Assembly Instructions

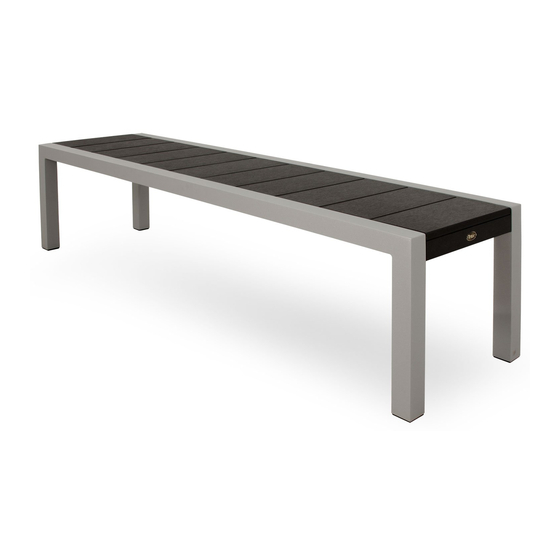

Model: TX3810
__(1) Bench top with slats
__(2) Leg Frames
__(1) Hardware Pack
7/16 Wrench
Qty.
Description
12
A - 1/4-20 X 1/2 HEX CAP SCREW
16
B - 1/4" SPRING LOCK WASHER
4
Step 1
Lay Bench top on flat surface
Step 2
Attach Leg frames to the bench top using
(12) bolts, lock washer, and flat washers
Step 3
Attach table frame to side leg with 1-1/2 bolt and washer
C - 1/4-20 X 1-1/2 HEX CAP SCREW
ALL HARDWARE IS STAINLESS STEEL
C
A
A
B
DETAIL A
SCALE 1 : 3
03/19/2012
