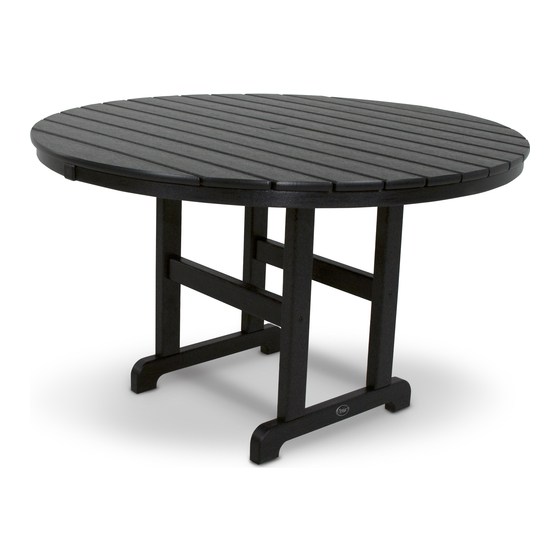

TREX Outoor Furniture TXRT248 Assembly Instructions

Assembly Instructions
Models:
TXRT248, TXRCT248
TXRRT248, TXRBT248
__(1) Table top
__(4) Leg
__(2) Foot
__(2) Brace
__(1) Hardware pack
TOOLS NEEDED
4MM T-HANDLE HEX KEY
(INCLUDED)
4mm HEX KEY: INCLUDED
Qty. Description
A - .27 X 2 1/2 SOCKET WAFER "A"
8
B - .27 X 3 SOCKET WAFER "A"
4
C - 1/4-20 X 3-1/4 WAFER SHCS
4
Step 1
Attach feet to legs using
(4) 3 1/4" Chair bolts.
C
ALL HARDWARE IS COATED STAINLESS STEEL
Step 2
Lay the table top on a flat surface.
Attach the leg assemblies to the table top using
(8) 2 1/2" screws.
Step 3
Attach leg braces using
(4) 3" screws.
Set table upright and tighten all bolts
Removable table plug
included in table.
A
A
B
B
6/2/2011
