TREX TXA15 Assembly Instructions

Assembly Instructions
Model: TXA15
__(1) Seat
__(1) Back
__(2) Front legs
__(2) Arms
__(1) Long brace
__(1) Short brace
__(1) Hardware pack
TOOLS NEEDED
4MM T-HANDLE HEX KEY
(INCLUDED)
Qty. Description
A-.27 X 2 SOCKET WAFER A
8
B-1/4-20 X 1-7/8 WAFER SHCS
6
C-1/4-20 X 2-1/4 WAFER SHCS
2
D-1/4 FLAT WASHER
8
E-1/4-20 NYLOCK NUT
8
wing faces
D,E
front
B
A
long brace
A
A
ALL HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED

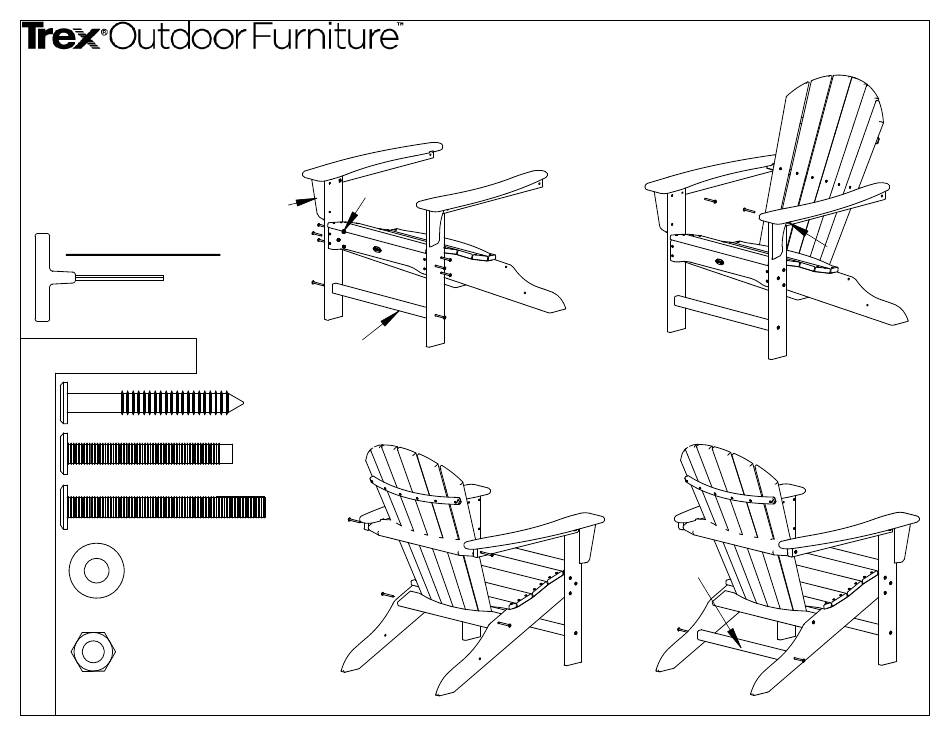

Step 1
Attach front legs to seat
using (6) 1-7/8" screws
Attach long brace
using (2) 2" screws
B
A
Step 3
Attach back to seat
using (2) 2" screws
Attach back to arm
using (2) 2" screws
A
A
Step 2
Attach arms to front leg using
(2) 2-1/4" screws
C
Step 4
Attach short brace to rear leg
using (2) 2" screws
short brace
A
D,E
A
