- Page 1 CAR HEAD UP DISPLAY KAHUDA5CARA...
- Page 3 COMPONENTS Head up display (HUD) Charging cable Non-slip mat Reflective film User guide...

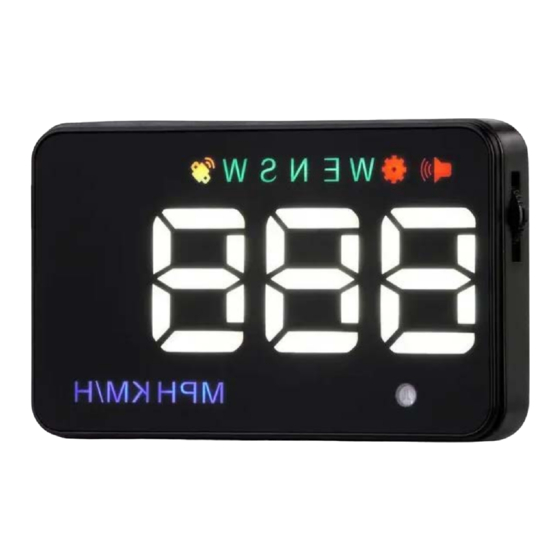

- Page 4 OVERVIEW Input button Display (as viewed on windscreen) Buzzer Setting Compass Satellite Speed Light sensor Speed unit (MPH/ Km/h)
-
Page 5: Installation
INSTALLATION Before First Use Place the non-slip mat on the driver’s side corner of the dashboard and then place the head up display (HUD) on it. Connect charger to vehicle’s 12V socket. Connect the cable to the OBDII input on the unit. Start the engine and the HUD will power on. -
Page 6: Operation
OPERATION Input button: The Input button is a three-way button used to navigate the HUD’s menu and adjust the settings. Down • Up: push the button towards the windscreen • Ok: press the button inwards • Down: pull the button towards the driver Using the input button Press and hold the input button for 5 seconds to enter the menu. - Page 7 Settings menu Since the HUD receives data from satellites, the data will vary slightly from the information displayed on the vehicle dashboard. If you find the value on your dashboard is different to the value displayed by the HUD, you can change it through the following procedure. Adjustment Menu Parameter...
-
Page 8: Specifications
SPECIFICATIONS Working voltage DC8-18V Working: 40mA Current Standby: 15mA Speed range 0-400km Cold start: 4 mins Satellite positioning time Hot start: 45 seconds Compass precision ±1° 12V car charger 1000mA Weight Dimensions 90x54x12mm... -
Page 9: Troubleshooting
TROUBLESHOOTING Issue Solution • Ensure the power cable is properly connected • Press the input button down multiple times HUD has no display/power • Connect the HUD to a different 12V socket or another vehicle to ensure the 12V is functioning correctly •... - Page 10 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
