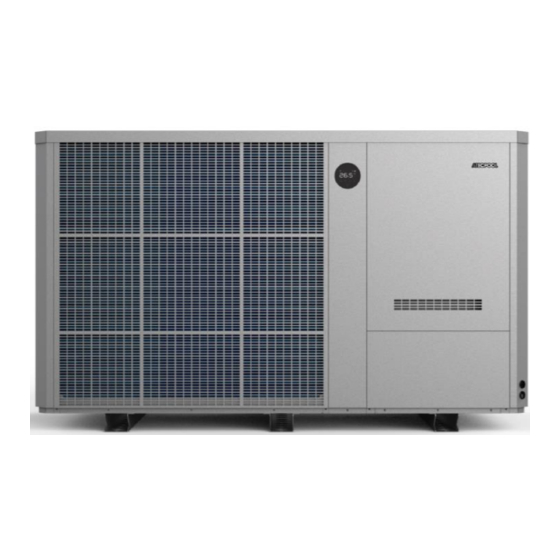

- Page 1 INVERTER POOL HEAT PUMP USER MANUAL...
-
Page 2: Table Of Contents
Table of contents A. Foreword B. Safety Precautions Warning Attention Safety C. About your heat pump Transportation Accessories: Operating condition and range: Introduction of different modes: Technical parameter Dimension D. Installation guidance Installation reminder Wiring Electric wiring Diagram References for protecting devices and cable specification Operation guidance Key Function Operation Instruction... -
Page 3: Foreword
A. Foreword Thank you for choosing our inverter pool heat pump, which is designed for more silent and energy saving user experience. It is an ideal way for green pool heating. We hope you'll enjoy using our heat pumps. Thank you! -
Page 4: Safety Precautions
B. Safety Precautions We have provided important safety messages in this manual and on your heater. Please always read and obey all safety messages. 1. Warning The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury or injury to a third party. -
Page 5: About Your Heat Pump
Always keep upright b. Loose the screws in the bottom, and use the forklift to transport. c. Do not lift the water union, otherwise, the titanium heat exchanger inside the heat pump may be damaged) 2. Accessories: AMHP060 AMHP090... -
Page 6: Operating Condition And Range
Fast heating Heating capacity: 20% to 80% capacity Silence mode Sound level: 3dB (A) lower than Boost mode 5. Technical parameter Model AMHP060 AMHP090 PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity (kW) 60.2 115.0 Average COP at 50% Speed 10.5... -
Page 7: Dimension
Please take into consideration that the pool heater performance and parameters are different under various conditions. Related parameters are subject to adjustment periodically for technical improvement without further notice. For details please refer to nameplate. 6. Dimension Name Size (mm) Model AMHP060 1010 1110 1070 1023 1260 Size (mm) Name... -
Page 8: Installation Guidance
D. Installation guidance 1. Installation reminder Only a professional staff is allowed to install the heat pump. The users are not qualified to install by themselves, otherwise the heat pump might be damaged and risky for users’ safety. a. Location and water pipe connection The inverter pool heat pump should be installed in a good ventilation place. - Page 9 The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be connected with hard pipes! How to connect to the terminal board of IMC60 Step 1. open the maintenance panel AMHP060 Remove three screws outside Open the front right panel and the internal ...
- Page 10 ⑤ Fix by screws AMHP090 Remove three screws outside Open the panel Remove two screws inside Open the internal...
- Page 11 Step 2. Power cord must be passed through below 3 holes Connect the wire through three holes Restore the internal panel Fix the internal panel by two screws Restore the panel Fix the panel by three screws...
-
Page 12: Wiring
Must be hard wired, plug is not allowed. Note: 1) 2) The swimming pool heat pump must be earthed well. 4. References for protecting devices and cable specification MODEL AMHP060 AMHP090 Maximum Current (A) Breaker Residual-current circuit breaker Fuse (A) -
Page 13: Operation Guidance
E. Operation guidance 1. Key Function Symbol Heating & cooling models Power On/Off ii. Wi-Fi setting Lock/Unlock Screen ii. Heating mode (18-40°C) iii. Cooling mode (12-30°C) iv. Auto mode (12-40°C) Boost ii. Silence Temperature Setting Attention: The controller has power-down memory function. The buttons will turn dark when it’s locked. - Page 14 c. Temperature Setting Press to display and adjust set temperature. d. Mode Selection 1) Heating/Cooling/Auto Press “ ” to switch among heating ” ”, cooling ” ” and auto mode ” ”. Heating mode “ ”: Water temperature setting range(18-40°C) Cooling mode “...
-
Page 15: Testing
F. Testing 1. Inspect heat pump before use a. The ventilating device and outlets are operating adequately and are not obstructed. b. It’s prohibited to install refrigeration pipe or components in corrosive environment. c. Inspect the electric wiring on basis of the electric wiring diagram and earthing connection. d. -
Page 16: Maintenance
G. Maintenance “CUT OFF” power supply of the heater before cleaning, examination and repairing 1. In winter season when you don’t swim: a. Cut off power supply to prevent any machine damage. b. Drain water clear of the machine. c. Cover the machine body when not in use. !!Important: Unscrew the water nozzle of inlet pipe to let the water flow out. -
Page 17: Trouble Shooting For Common Faults
H. Trouble shooting for common faults 1. Failure solution and code ---------------------------------------------------------------------------------------------------------------------------------------- Failure Reason Solution No power Wait until the power recovers Power switch is off Switch on the power Heat pump doesn’t run Fuse burned Check and change the fuse Check and turn on the The breaker is off breaker... - Page 18 Protection & Failure code Display Protection code description No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure code description High pressure protection Low pressure protection 3 phase sequence protection (three phase only)
-
Page 19: Electrical Wiring Schematic (Optional)
I. Electrical wiring schematic (optional) Water pump: 400V voltage Breaker/fuse (Customer prepare) Power Cord Power Supply 400V~/50Hz Earthing Water Pump Customer remote control switch connector Water Pump Breaker/fuse Contactor (Customer prepare) coil voltage:400V Power Supply 400V~/50Hz Earthing... - Page 20 Water pump control and timer connection 1: Water pump timer 2: Water pump wiring of Heat Pump Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, condition 1 or 2 is connected. To stop the water pump, both 1 and 2 should be disconnected.
-
Page 21: Wi-Fi Operation
J. Wi-Fi operation InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration. - Page 22 b. Register through third-party application Create Family Please set family name and choose location of device.
- Page 23 APP Pairing a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is on. 2. Click “Add Device”, and then follow the instructions to pair device.
- Page 24 b. With Wi-Fi 1. Please make sure you are connected to Wi-Fi. 2. Press " " for 3 seconds to unlock the screen. Press “ ” for 3 seconds and release. After hearing “Beep”, enter Wi-Fi password in app. During connection, “ ” will flash.
- Page 25 Operation 1. For heat pump with Heating function only: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature temperature Query Select Boost/ Silence Mode Timer On/Off 2. For heat pump with Heating & Cooling function: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water...
- Page 26 Share Devices to Your Family Members After pairing, if your family members also want to control the device, please let your family members register “InverGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice.
- Page 28 AQ18CKEV-R410A-V22...
