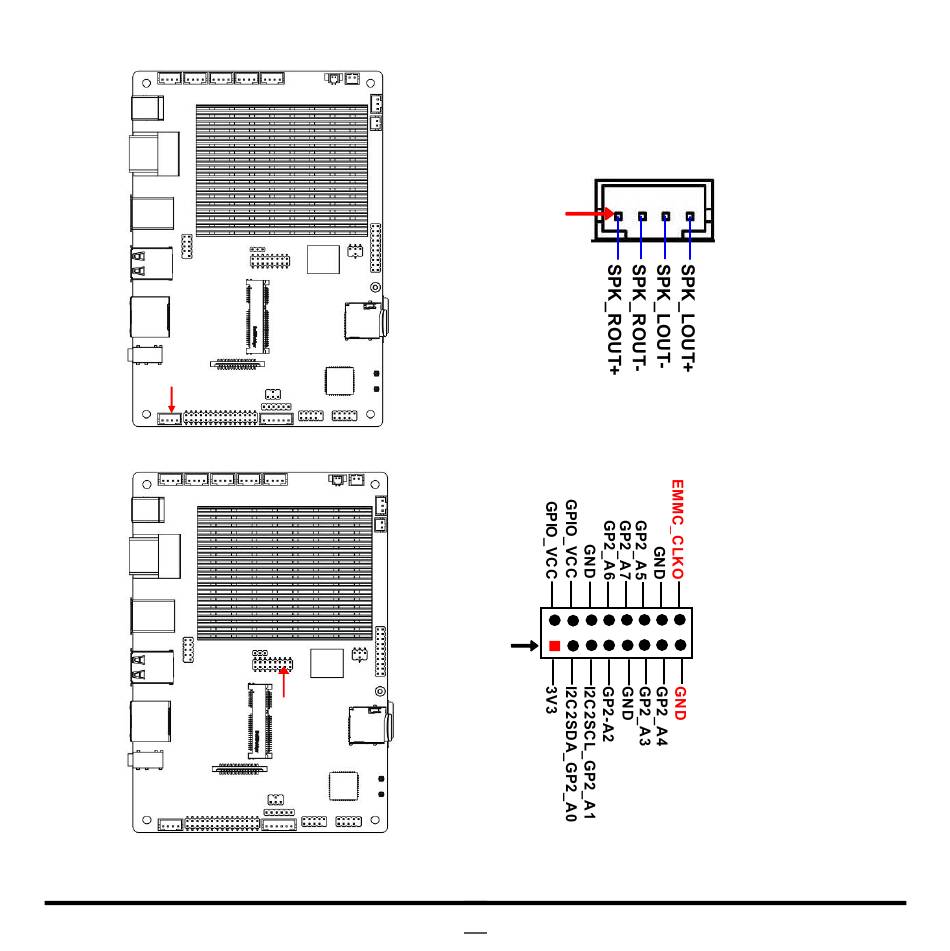

SPK (4-pin): 3W Speaker Connector
Pin1
SPK
GPIO (16-pin): 8-bit GPIO & I2C Combo Header Block
2
Pin1
GPIO
*Note:
Pin 15 & 16 short = EMMC_UPDATE (If EMMC_CLKO=0V after power-on
reset, then system will enter into Maskrom mode).
