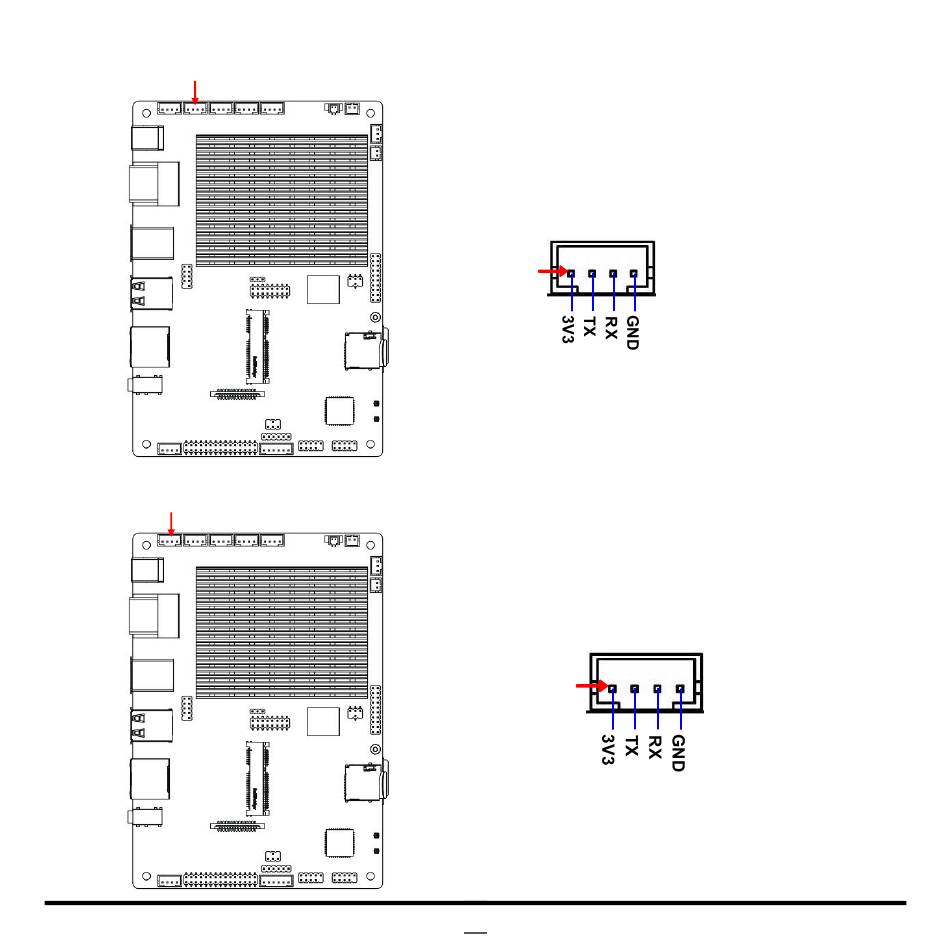

UART4 (4-pin): UART TTL/RS232 Connector
UART4
Pin1
UART4=TTL (Default);
UART4=RS2332 (Optional).
UART5 (4-pin): UART TTL Connector
UART5
Pin1
UART5=TTL.
13
