R3399X-2C /R3399XL-2C Series
User's Manual
P/N: G03-R3399-F
Revision: 1.0
Release date: April 27, 2020
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Advertisement
Table of Contents
Related Manuals for JETWAY R3399X-2C Series
Summary of Contents for JETWAY R3399X-2C Series
- Page 1 All manuals and user guides at all-guides.com R3399X-2C /R3399XL-2C Series User’s Manual P/N: G03-R3399-F Revision: 1.0 Release date: April 27, 2020 Trademark: * Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
- Page 2 All manuals and user guides at all-guides.com Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. To minimize pollution and ensure environment protection of mother earth, please recycle.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com TABLE OF CONTENT ENVIRONMENTAL SAFETY INSTRUCTION................... iii USER’S NOTICE............................ iv MANUAL REVISION INFORMATION....................iv ITEM CHECKLIST..........................iv CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD FEATURE OF MOTHERBOARD..................1 SPECIFICATION........................2 PRODUCT DIAGRAM......................3 CHAPTER 2 HARDWARE INSTALLATION REAR I/O CONNECTORS.................... -
Page 4: Environmental Safety Instruction
All manuals and user guides at all-guides.com Environmental Safety Instruction Avoid the dusty, humidity and temperature extremes. Do not place the product in any area where it may become wet. 0 to 40 centigrade is the suitable temperature. (The temperature comes from the request of the chassis and thermal solution) ... -
Page 5: User's Notice
All manuals and user guides at all-guides.com USER’S NOTICE COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN PERMISSION OF THE MANUFACTURER. -
Page 6: Chapter 1 Introduction Of The Motherboard

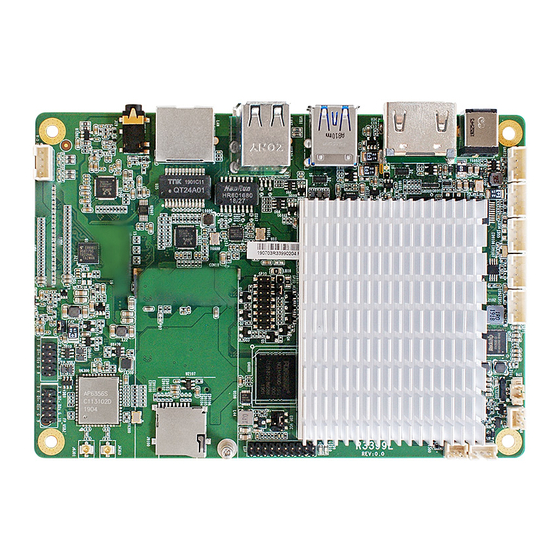

All manuals and user guides at all-guides.com Chapter 1 Introduction of the Motherboard Feature of Motherboard Rockchip ® RK3399 6-core 2.0GHz: Rockchip ® ARM Cortex A72(Dual Core) + Cortex A53(Quad Core) Onboard 2GB/1333MHz DDR3L DRAM Onboard 16GB Flash ROM (Max 64GB) ... -
Page 7: Specification
All manuals and user guides at all-guides.com 1-2 Specification Spec Description From Factor 102 * 146mm Rockchip ® RK3399 6-core 2.0GHz: Rockchip ® ARM Cortex A72(Dual Core) +Cortex A53(Quad Core) RK808-D PMU Rockchip ® Memory Onboard 2GB/1333MHz DDR3L DRAM ... -
Page 8: Product Diagram
All manuals and user guides at all-guides.com 1* EDP_VCC Jumper 1* LVDS Header &1* Inverter Connector(R3399X-2C) 1* LVDS_BKLT Jumper(R3399X-2C) 1* LVDS_POWER Jumper(R3399X-2C) 1-3 Product Diagram Rear IO Panel Diagram R3399X-2C: *LAN2 HDMI-In RJ-45 Port Port (10/100Mbps) USB 3.0 Port Line-Out &... - Page 9 All manuals and user guides at all-guides.com Motherboard Internal Diagram Top View: UART3: UART4: RS232/UART TTL UART1: UART TTL/RS232 DEBUG: (Default: RS232) UART TTL/RS485 (Default: UART TTL) Debug (Default: UART TTL) UART5: FAN: UART TTL CPUFAN JP8: Power Switch & Recover RESETKEY: Reset *FP_USB20:...
- Page 10 All manuals and user guides at all-guides.com *Note: The product diagrams are for illustration purpose only and mostly come from Model R3399X-2C, unless otherwise noted. Differences from R3399X-2C & R3399XL-2C are listed as below: Optional Item R3399X-2C R3399XL-2C Mini-PCIE Slot MiPi CSI LVDS LVDS Inverter...
- Page 11 All manuals and user guides at all-guides.com Rear Connectors: Name DCIN 12V DC–In Power Jack HDMI1 Top: HDMI-In Port Bottom: HDMI-Out Port USB1 Top: USB 3.0/OTG Co-Lay Port Bottom: USB 3.0 Port USB20_1(R3399XL-2C) USB 2.0 Port x2 LAN2 (R3399X-2C) 10/100 Mbps RJ-45 LAN Port 10/100/1000 Mbps RJ-45 LAN Port Audio Line-out &...
-
Page 12: Chapter 2 Hardware Installation
All manuals and user guides at all-guides.com LVDS (R3399X-2C) LVDS Header 30-pin Block INVERTER (R3399X-2C) LVDS /EDP Inverter 6-pin Block LVDS_BKLT LVDS Backlight VCC Select Jumper 4-pin Block (R3399X-2C) LVDS_POWER LVDS LCD Power VCC Select Jumper 6-pin Block (R3399X-2C) Chapter 2 Hardware Installation 2-1 Rear I/O Connectors *For Rear IO please refer to Page-3. -
Page 13: Internal Connectors, Headers And Jumpers
All manuals and user guides at all-guides.com This connector is standard RJ-45 LAN jack for Gigabit Network connection which supports 10/100/1000 RJ-45 LAN Port Mbps transfer rate. Line-out & MIC audio jack. Audio Connector Macro-SD (TF) For user to insert compatible micro-SD (TF) card J9100 Card Socket into the socket. - Page 14 All manuals and user guides at all-guides.com RESETKEY (2-pin): Reset Connector RESETKEY Pin1 RESET FAN (2-pin): CPUFAN Connector Pin1...
- Page 15 All manuals and user guides at all-guides.com UART1 (4-pin): UART TTL/ RS485 Connector UART1 Pin1 Pin1 UART1=TTL UART1=RS485 (Default) (Optional) DEBUG (4-pin): Debug Connector DEBUG Pin1...
- Page 16 All manuals and user guides at all-guides.com UART3 (4-pin): RS232/UART TTL Connector UART3 Pin1 UART3=RS232 (Default); UART3=TTL (Optional). UART4 (4-pin): UART TTL/RS232 Connector UART4 Pin1 UART4=TTL (Default); UART4=RS2332 (Optional).
- Page 17 All manuals and user guides at all-guides.com UART5 (4-pin): UART TTL Connector UART5 Pin1 UART5=TTL. FP_USB2/FP_USB3 (9-pin): USB 2.0 Header Pin1 FP_USB2 FP_USB3...
- Page 18 All manuals and user guides at all-guides.com *FP_USB20 (9-pin): USB 2.0 Header *FP_USB20 *Note: FP_USB20 is optional to R3399X-2C series only. SPK (4-pin): 3W Speaker Connector Pin1...
- Page 19 All manuals and user guides at all-guides.com GPIO (16-pin): 8-bit GPIO & I2C Combo Header Block Pin1 GPIO *Note: Pin 15 & 16 short = EMMC_UPDATE (If EMMC_CLKO=0V after power-on reset, then system will enter into Maskrom mode). GPIO_VCC (3-pin): GPIO_VCC Select Jumper GPIO_VCC...
- Page 20 All manuals and user guides at all-guides.com *CSI (15-pin): MIPI CSI Connector Pin Define VCC3V3 I2C2_SDA I2C2_SCL MCLK GPIO2_B4 CLKP CLKN *CSI Pin15 Pin1 *Note: MIPI CSI is optional to R3399X-2C series only.
- Page 21 All manuals and user guides at all-guides.com EDP (20-pin): EDP Header Pin1 Pin2 Pin Define Pin No. Pin No. Pin Define BKLT_12V EDP_TX0N EDP_TX0P EDP_TX1N EDP_TX1P EDP_TX2N EDP_TX2P EDP_TX3N EDP_TX3P EDP_AUXN EDP_AUXP LED_EN BKLT_3.3 BKLT_5V...
- Page 22 All manuals and user guides at all-guides.com EDP_VCC (4-pin): EDP LCD Power VCC Select Jumper EDP_VCC EDP LCD Power VCC → 2 4 6 2 4 6 EDP_VCC 1 3 5 1 3 5 2-4 Closed=3.3V; 3-4 Closed=5V; 4-6 Closed=12V. *INVERTER (6-pin): LVDS Inverter Connector Pin1 *INVERTER...
- Page 23 All manuals and user guides at all-guides.com *LVDS (30-pin): 24-bit dual channel LVDS Header Pin1 Pin2 *LVDS Pin Define Pin No. Pin No. Pin Define R2AN R2AP R2BN 9 10 R2BP R2CN 11 12 R2CP 13 14 R2CLKN 15 16 R2CLKP R2DN 17 18...
- Page 24 All manuals and user guides at all-guides.com *LVDS_BKLT (4-pin): LVDS Backlight VCC Select Jumper LVDS_BKLT Inverter Backlignt VCC → 5 3 1 5 3 1 6 4 2 6 4 2 2-4 Closed=3.3V; 3-4 Closed=5V; 4-6 Closed=12V. *LVDS_BKLT *LVDS_POWER (6-pin): LVDS LCD Power VCC Select Jumper Pin1 Pin1 1-2 Closed:...
