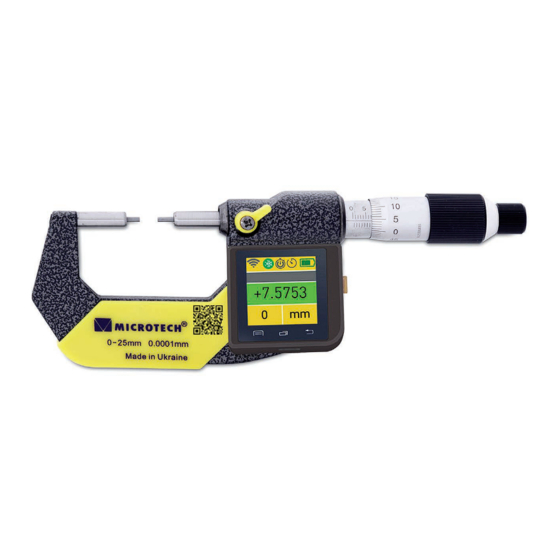

- Page 1 MICROTECH SUB-MICRON COMPUTERIZED SMALL TIP MICROMETER USER MANUAL Calibration ISO 17025:2017 ISO 9001:2015...
- Page 2 It’s possible setup max and min value throw menu. possibility saving data to folders. Separate Data’s or Folders in manufacturing, automotive medical industry and for Color indication reduce possibility of error during can be transfer Wireless to MICROTECH Software (Windows, calibration control Android,iOS)
- Page 3 MAIN INFO MICROTECH SWITCH ON DEVICE - button push (1 sec) SWITCH OFF DEVICE - auto switch off (configurating throw DISPLAY SETTING menu) - button push (3 sec) Clean the oil from the measuring surfaces of micrometer by cloth. Turn on micrometer by pressing SWITCH ON button.
- Page 4 MENU NAVIGATION MICROTECH functions status Battery status color indication Go/NoGo mm/inch conversion ZERO setting MEMORY MANAGER max 100000 values MAIN MENU folders system transfering data from memory to PC WIRELESS LIMITS MEMORY SETTING ERROR COMPENSATION modes of data transmition color...
- Page 5 MODE TABLE EDITORS DATA TRANSFER DISTANCE FOR INTELLIGENT INSTRUMENTS QUALITY •All MICROTECH Intelligent instruments has internal memory. CONTROL You can collect data to memory and when it will be neccesary RESULTS transfer all data to the peripheral device with no data loosing.
- Page 6 FUNCTIONS MICROTECH MAX/MIN LIMITS GO/NOGO MENU SETTING MAIN SCREEN Status indication on main screen MAX - NoGo over MAX value ENABLE/DISABLE mode MIN - NoGo over MIN value indicating MAX dvalue RANGE - selecting GO range indicating MIN value NONE - No active mode...
- Page 7 FUNCTIONS MICROTECH USB CONNECTION WIRELESS CONNECTION WIRELESS status DISPLAY SETTING Rotation 0, 90, 180, 270 Sleep mode Brightness level LINK TO SOFTWARE MEMORY MANAGER SETTINGS Free Software for Windows, Android, iOS Link to page with MDS Software download - Standard / Folder mode...
- Page 8 MICROTECH Free Software for Windows, Android, iOS max 50 m data transfer distance MICROTECH innovative measuring instruments 61001, Kharkiv, Ukraine, str. Rustaveli, 39 tel.: +38 (057) 739-03-50 Change without prior notice www.microtech.ua Edition: M1030_0520 tool@microtech.ua...
