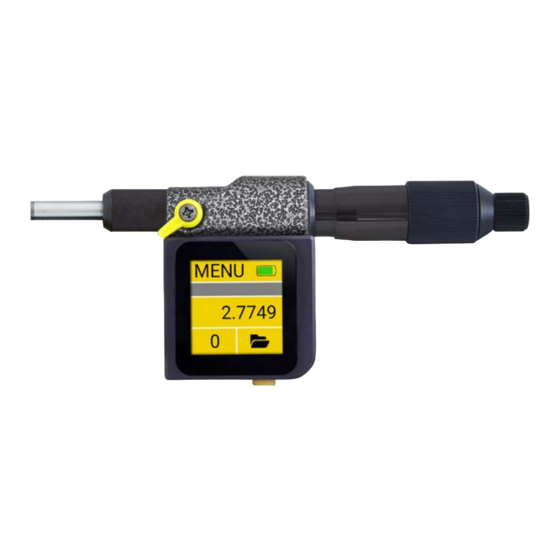

- Page 1 MICROTECH ISO 17025 CalIbRaTION TEMP TIMER TOUCHSREEN COMPENSATION LI-POL LINEAR 0,1μm BATTERY CORRECTION MAGNETIC MEMORY LIMITS CHARGER SUB-MICRON COMPUTERIZED MICROMETER HEAD USER MANUAL ISO17025:2017 ISO 9001:2015...
-
Page 2: Specification
SPECIFICATION MICROTECH Accuracy Protection Item No Range Resolution Indication Data output Calibration class μ Wireless inch inch ISO 17025 110180027 0-25 0-1” ±2 IP-65 computerized Long range 0,0001 0.00001” MICS system with 110181057 0-50 0-2” ±3 IP-65 Long range 1,54” touchscreen... - Page 3 It’s possible setup max and min value throw menu. possibility saving data to folders. Separate Data’s or Folders in manufacturing, automotive medical industry and for Color indication reduce possibility of error during can be transfer Wireless to MICROTECH Software (Windows, calibration control Android,iOS)
-
Page 4: Data Transfer
WIRELESS DATA TRANSFER MICROTECH Activate WIRELESS data transfer in WIRELESS menu Switch on Wireless data transmition Activating multifunctional button to save value to memory or send data by touchscreeb ur button push Connect instrument with MICS indication system to Tablet or PC... - Page 5 MODE TABLE EDITORS DATA TRANSFER DISTANCE FOR INTELLIGENT INSTRUMENTS QUALITY •All MICROTECH Intelligent instruments has internal memory. CONTROL You can collect data to memory and when it will be neccesary RESULTS transfer all data to the peripheral device with no data loosing.
-
Page 6: Menu Navigation
MENU NAVIGATION MICROTECH USE TOUCHSCREEN TO OPERATE MENU Battery level MENU button MEMORY WITH STATISTIC Colour can be changed according function Actual value Zero setting Memory MENU CONFIGURATION MAIN MENU MEMORY SETTING WIRELESS LIMITS ERROR COMPENSATION modes of data transmition... -
Page 7: System Functions
MICS SYSTEM FUNCTIONS MICROTECH LIMITS GO/NOGO MAIN SCREEN INDICATION Colour indication limits MENU SETTING MAX value MAX - NoGo more MAX value MIN - NoGo less MIN value MIN value RANGE - between MIN & MAX NONE - disactivating mode... - Page 8 MICS SYSTEM FUNCTIONS MICROTECH MATHEMATICAL ERROR COMPENSATION Mathematical correction points with big error to normal values MENU SETTING actual values Select all points correct values by up&down button Add new point for confirm point correction error compensation use gauge blocks or measuring machine for points correction TEMPERATURE COMPENSATION Re-calculation detail size to calibration conditions (20°C)
- Page 9 MICS SYSTEM FUNCTIONS MICROTECH WIRELESS CONNECTION Activating or disactivating wireless data transfer MENU SETTING Switch on Wireless data transmition Activating multifunctional button to save value to memory or send data by touchscreeb ur button push USB CONNECTION MENU SETTING Connect USB cable to PC Activate USB connection mode (DON’t activate mode without USB cable connection)
- Page 10 Standard - saving values to memory OFF - disable saving to memory LINK TO SOFTWARE MENU SETTING QR Link to MICROTECH web site page with MDS Software download - Android, iOS, Windows versions - Free and Pro version - Manuals...
- Page 11 DIMESIONAL DRAWINGS MICROTECH *Dimensions for 25mm range...
- Page 12 MICROTECH MICROTECH innovative measuring instruments 61001, Kharkiv, Ukraine, str. Rustaveli, 39 tel.: +38 (057) 739-03-50 www.microtech.ua Change without prior notice tool@microtech.ua...
