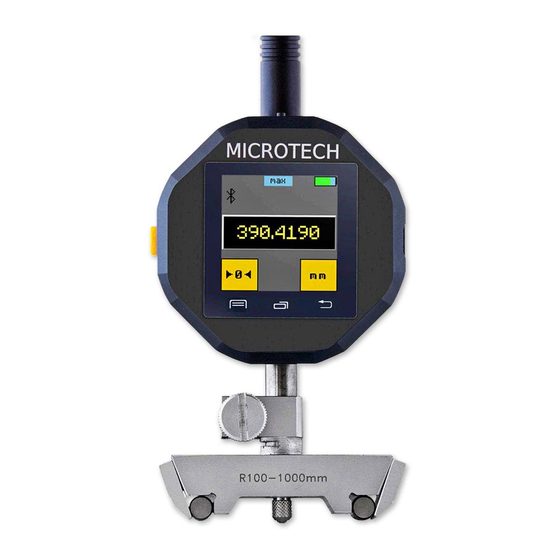

- Page 1 MICROTECH SUB-MICRON INTELLIGENT COMPUTERIZED INDICATOR USER MANUAL Calibration ISO 17025:2017 ISO 9001:2015...
-
Page 2: Specification
SPECIFICATION MICROTECH Radius Item No Resolution Indication Data output Calibration Range Type μ Wireless inch ISO17025 computerized MICS system 1250511006 100-1000 4-40” external max 50 m with 1,54” touchscreen For using Radius gauge mode select Radius in FORMULA sub menu... - Page 3 MAIN INFO MICROTECH SWITCH ON DEVICE - button push (1 sec) SWITCH OFF DEVICE - auto switch off (configurating throw DISPLAY SETTING menu) - button push (3 sec) Clean the oil from the measuring rod and measuring anvil. For recharging indicator (Li-Pol rechargeable battery) connect it with standard USB cable to charger device Turn on instrument by pressing ON button (1 sec).
-
Page 4: Menu Navigation
MENU NAVIGATION MICROTECH functions status Battery status color indication Go/NoGo mm/inch conversion ZERO setting MEMORY MANAGER folders system MAIN MENU transfering data from memory to PC WIRELESS LIMITS MEMORY SETTING ERROR COMPENSATION modes of data transmition color Go/NoGo mathematical correction... - Page 5 MODE TABLE EDITORS DATA TRANSFER DISTANCE FOR INTELLIGENT INSTRUMENTS QUALITY •All MICROTECH Intelligent instruments has internal memory. CONTROL You can collect data to memory and when it will be neccesary RESULTS transfer all data to the peripheral device with no data loosing.
- Page 6 FUNCTIONS MICROTECH MAX/MIN LIMITS GO/NOGO MENU SETTING MAIN SCREEN Status indication on main screen MAX - NoGo over MAX value ENABLE/DISABLE mode MIN - NoGo over MIN value indicating MAX dvalue RANGE - selecting GO range indicating MIN value NONE - No active mode...
-
Page 7: Display Setting
FUNCTIONS MICROTECH USB CONNECTION WIRELESS CONNECTION WIRELESS status DISPLAY SETTING Rotation 0, 90, 180, 270 Sleep mode Brightness level LINK TO SOFTWARE MEMORY MANAGER SETTINGS Free Software for Windows, Android, iOS Link to page with MDS Software download - Standard / Folder mode... - Page 8 MICROTECH MICROTECH innovative measuring instruments 61001, Kharkiv, Ukraine, str. Rustaveli, 39 tel.: +38 (057) 739-03-50 Change without prior notice www.microtech.ua Edition: M1029_0520 tool@microtech.ua...
