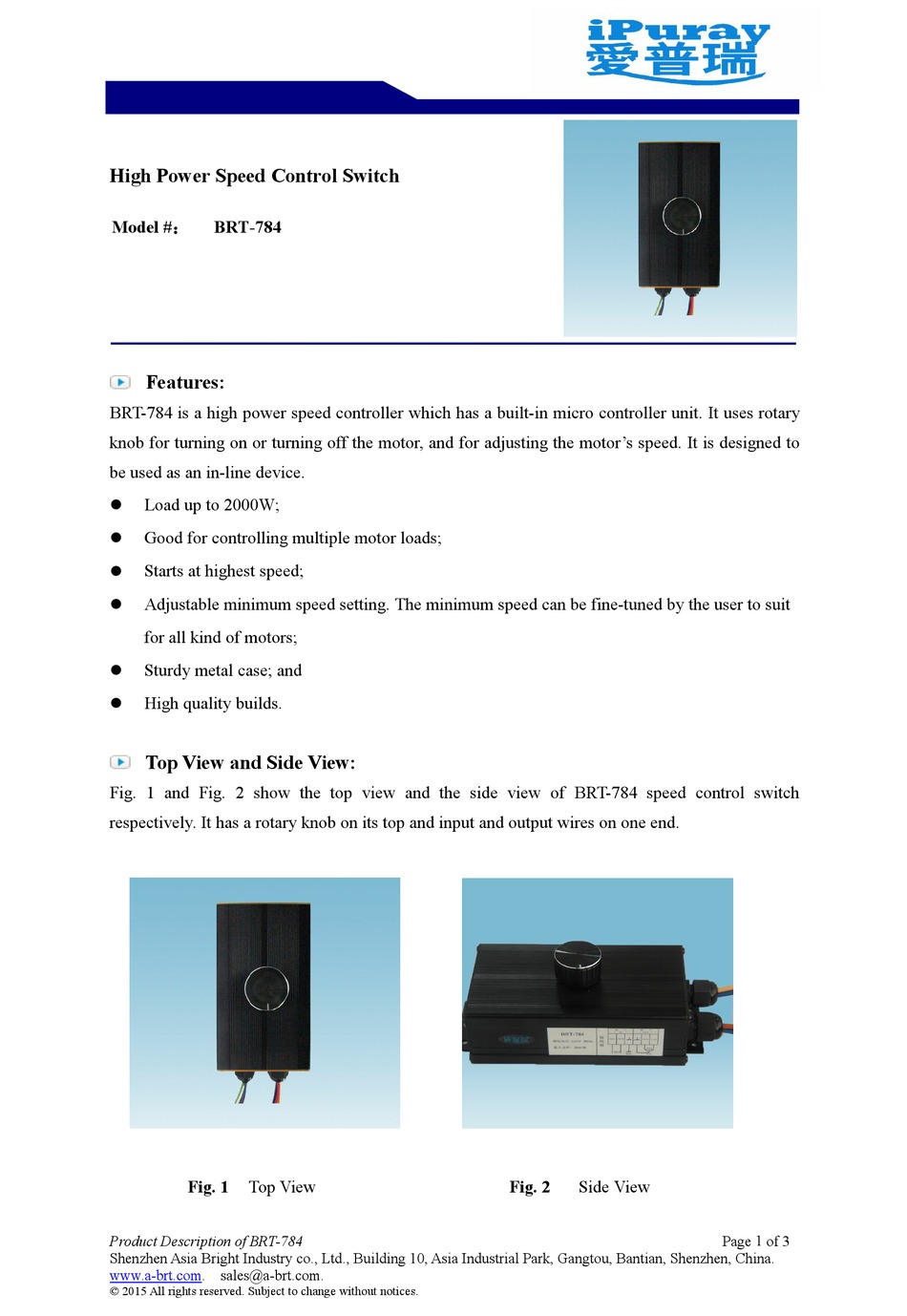

iPuray BRT-784 Quick Start Manual

High Power Speed Control Switch

Model #： BRT-784

Features:

BRT-784 is a high power speed controller which has a built-in micro controller unit. It uses rotary
knob for turning on or turning off the motor, and for adjusting the motor's speed. It is designed to
be used as an in-line device.

Load up to 2000W;
 Good for controlling multiple motor loads;
 Starts at highest speed;
 Adjustable minimum speed setting. The minimum speed can be fine-tuned by the user to suit
for all kind of motors;
 Sturdy metal case; and
 High quality builds.
Top View and Side View:
Fig. 1 and Fig. 2 show the top view and the side view of BRT-784 speed control switch
respectively. It has a rotary knob on its top and input and output wires on one end.

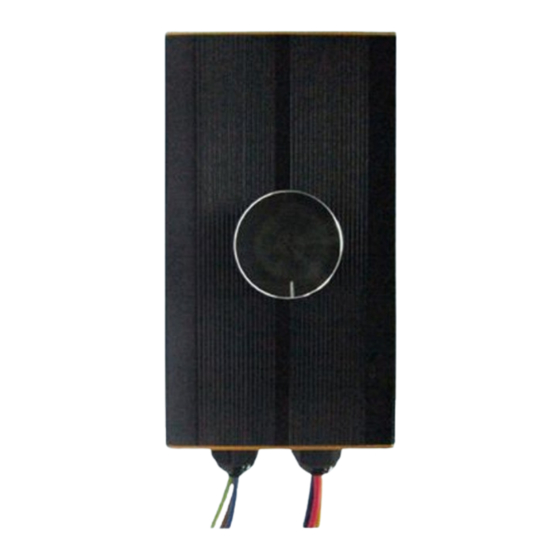

Fig. 1 Top View
Product Description of BRT-784
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Side View
Page 1 of 3
