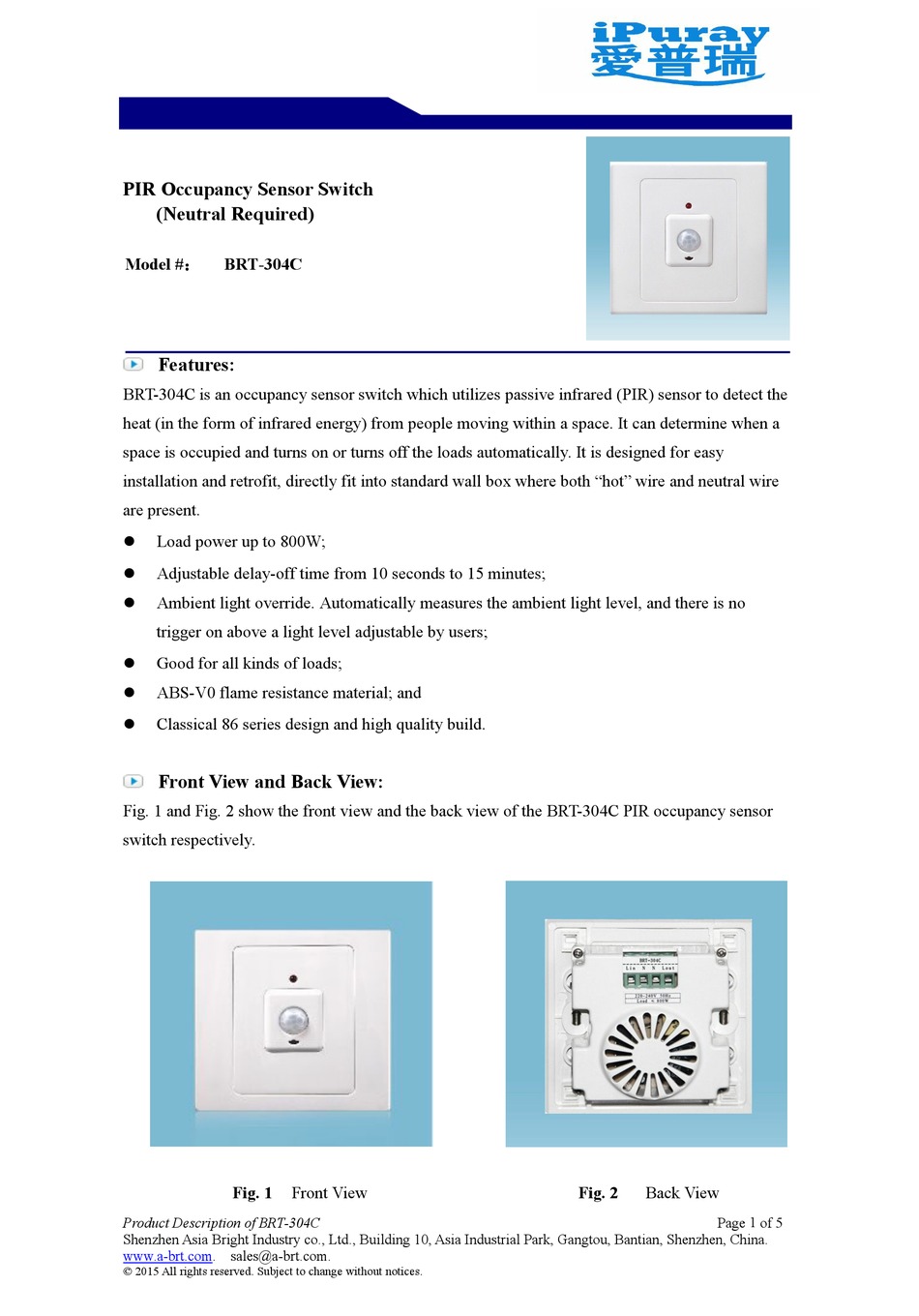

iPuray BRT-304C Manual

PIR Occupancy Sensor Switch
(Neutral Required)
Model #： BRT-304C

Features:

BRT-304C is an occupancy sensor switch which utilizes passive infrared (PIR) sensor to detect the
heat (in the form of infrared energy) from people moving within a space. It can determine when a
space is occupied and turns on or turns off the loads automatically. It is designed for easy
installation and retrofit, directly fit into standard wall box where both "hot" wire and neutral wire
are present.
 Load power up to 800W;
 Adjustable delay-off time from 10 seconds to 15 minutes;
 Ambient light override. Automatically measures the ambient light level, and there is no
trigger on above a light level adjustable by users;
Good for all kinds of loads;

 ABS-V0 flame resistance material; and
 Classical 86 series design and high quality build.
Front View and Back View:
Fig. 1 and Fig. 2 show the front view and the back view of the BRT-304C PIR occupancy sensor
switch respectively.

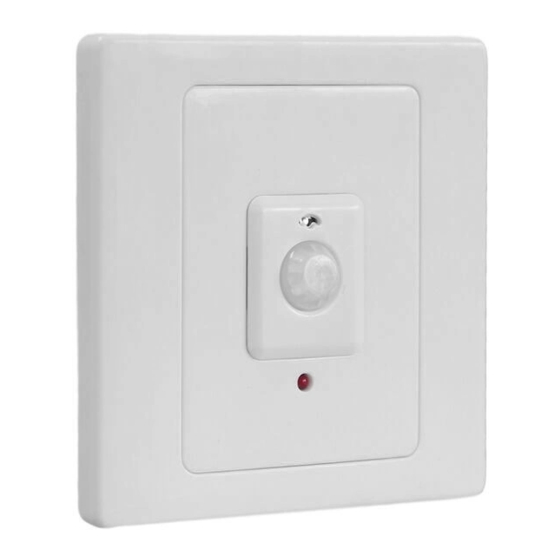

Fig. 1 Front View
Product Description of BRT-304C
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
Page 1 of 5
