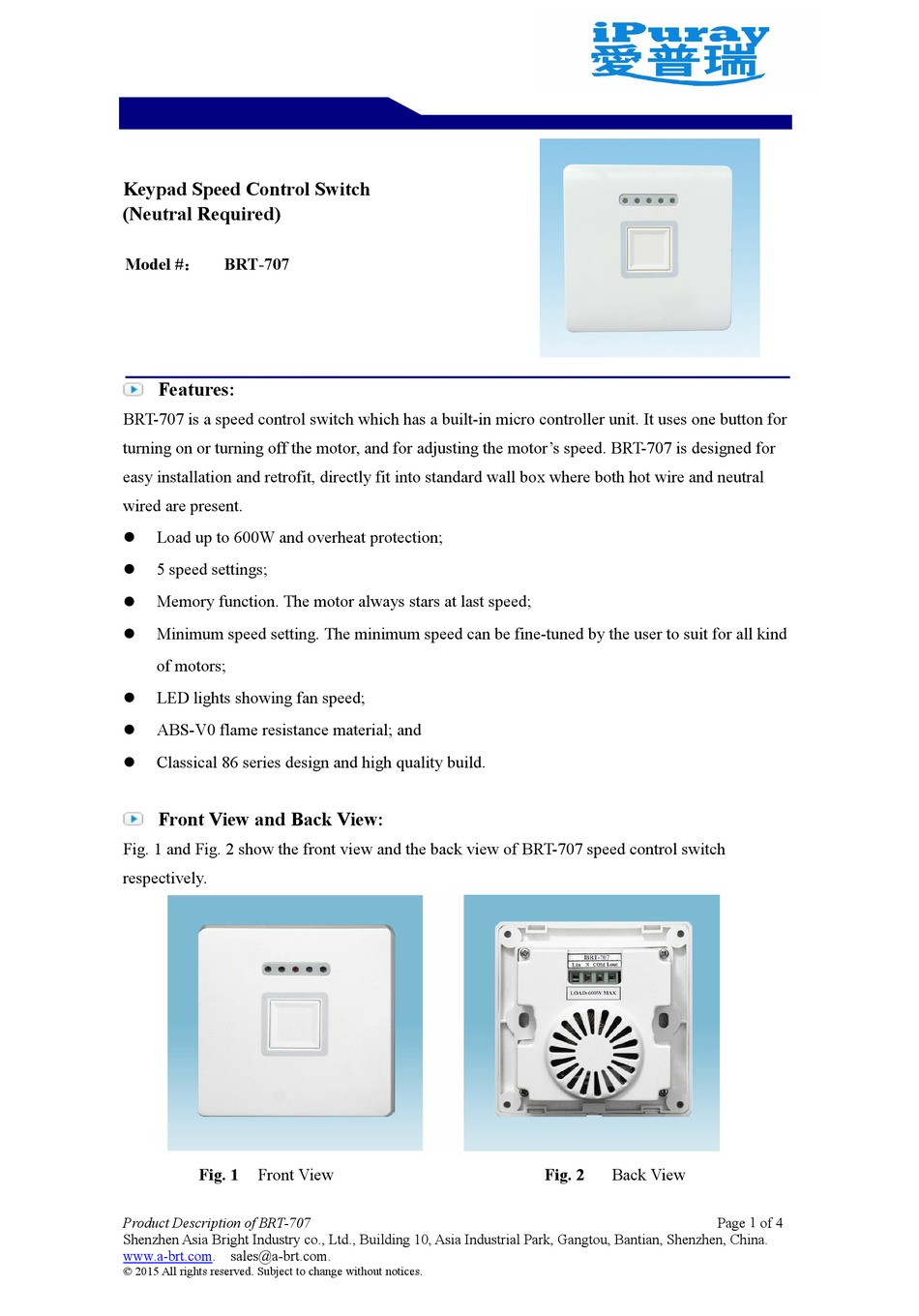

iPuray BRT-707 Instructions

Keypad Speed Control Switch

(Neutral Required)
Model #： BRT-707

Features:

BRT-707 is a speed control switch which has a built-in micro controller unit. It uses one button for
turning on or turning off the motor, and for adjusting the motor's speed. BRT-707 is designed for
easy installation and retrofit, directly fit into standard wall box where both hot wire and neutral
wired are present.
 Load up to 600W and overheat protection;
 5 speed settings;
 Memory function. The motor always stars at last speed;
 Minimum speed setting. The minimum speed can be fine-tuned by the user to suit for all kind
of motors;
 LED lights showing fan speed;
 ABS-V0 flame resistance material; and
 Classical 86 series design and high quality build.

Front View and Back View:

Fig. 1 and Fig. 2 show the front view and the back view of BRT-707 speed control switch
respectively.

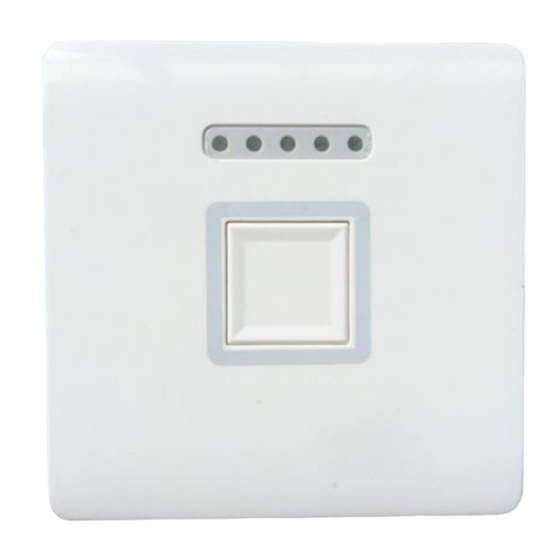

Fig. 1 Front View
Product Description of BRT-707
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
Page 1 of 4
