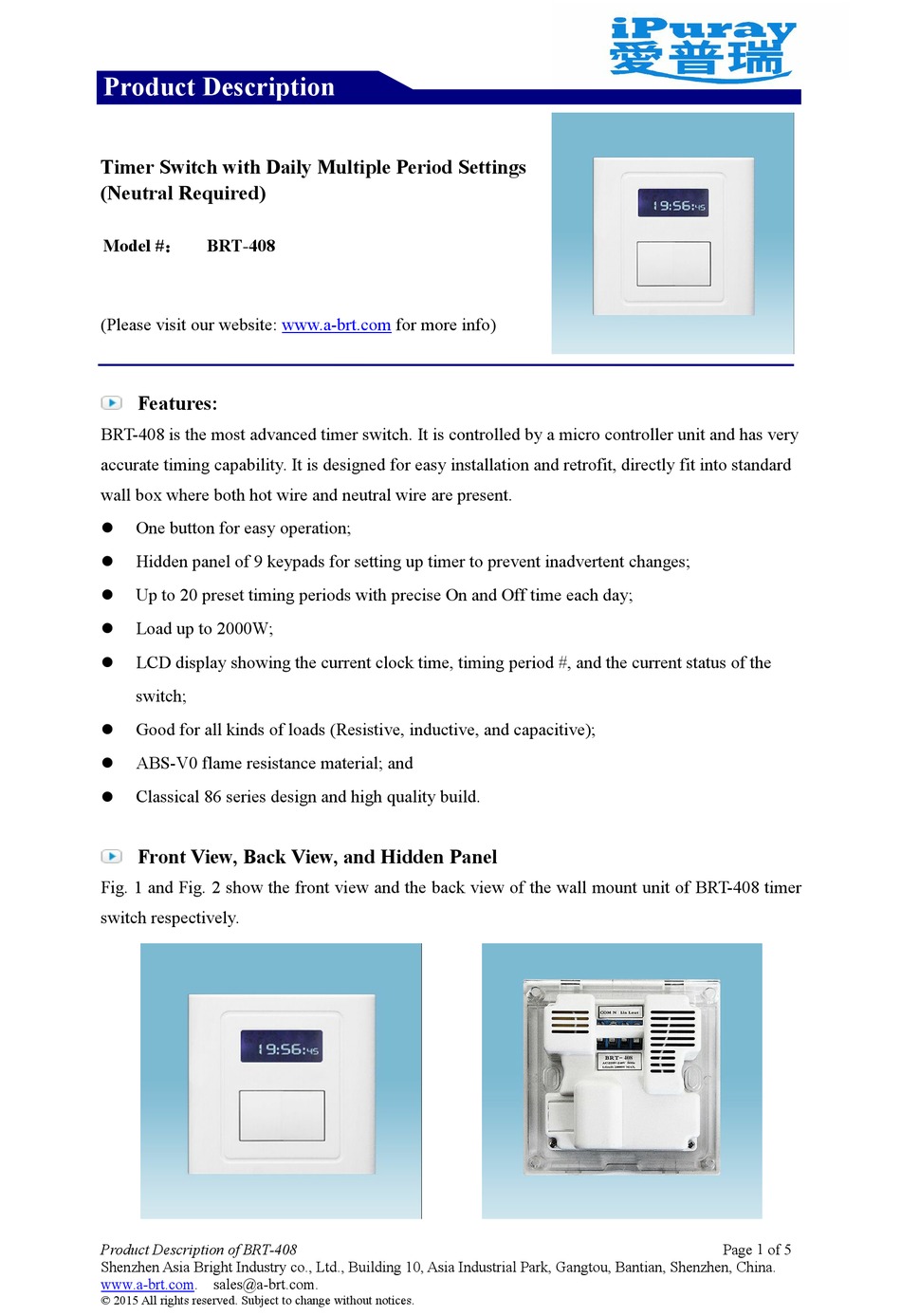

iPuray BRT-408 Product Description

Product Description
Timer Switch with Daily Multiple Period Settings
(Neutral Required)
Model #： BRT-408
(Please visit our website:

Features:

BRT-408 is the most advanced timer switch. It is controlled by a micro controller unit and has very
accurate timing capability. It is designed for easy installation and retrofit, directly fit into standard
wall box where both hot wire and neutral wire are present.
 One button for easy operation;
 Hidden panel of 9 keypads for setting up timer to prevent inadvertent changes;
 Up to 20 preset timing periods with precise On and Off time each day;
 Load up to 2000W;
 LCD display showing the current clock time, timing period #, and the current status of the
switch;
 Good for all kinds of loads (Resistive, inductive, and capacitive);
 ABS-V0 flame resistance material; and
 Classical 86 series design and high quality build.

Front View, Back View, and Hidden Panel

Fig. 1 and Fig. 2 show the front view and the back view of the wall mount unit of BRT-408 timer
switch respectively.
Product Description of BRT-408
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
www.a-brt.com for more info)
Page 1 of 5
