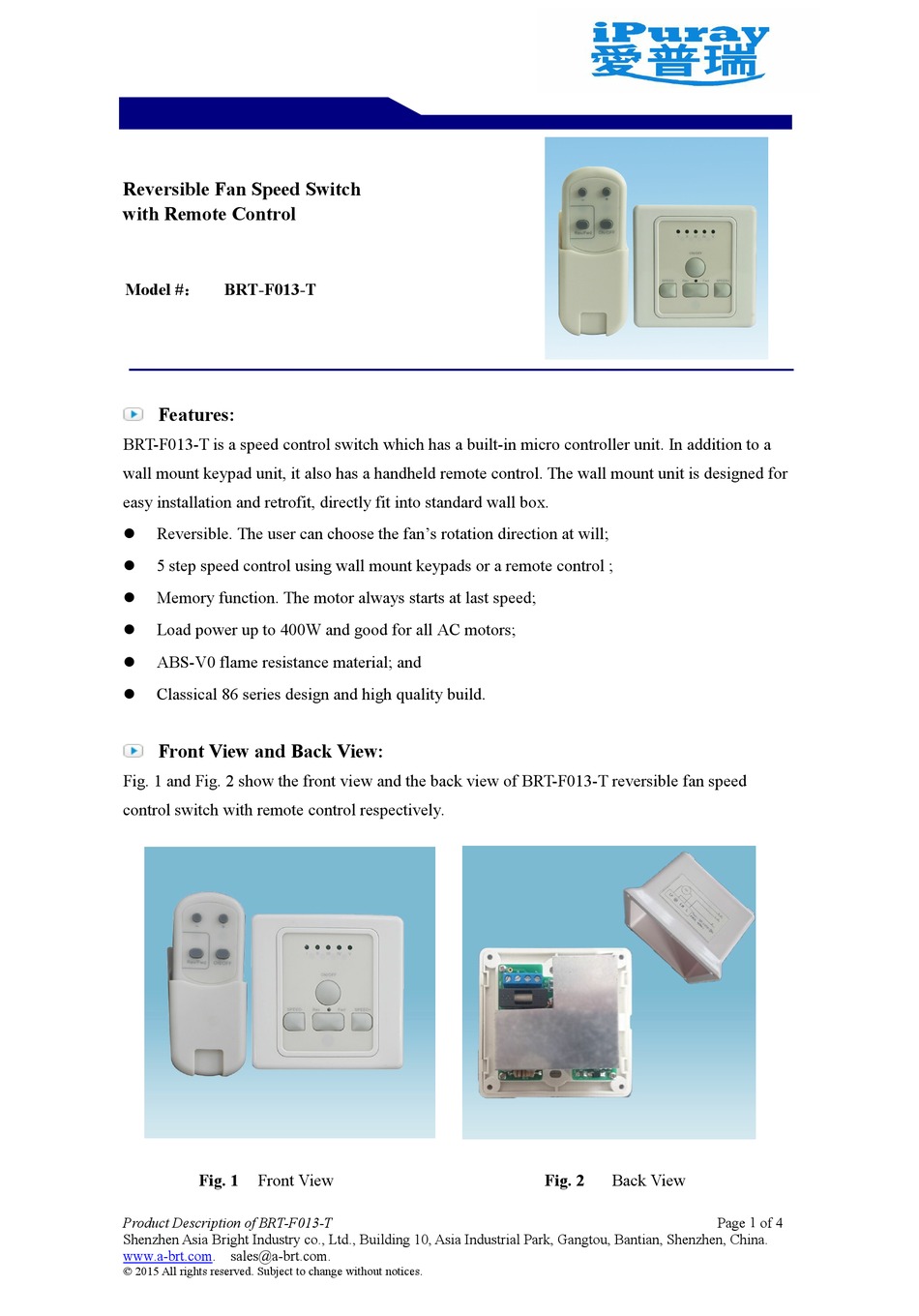

Reversible Fan Speed Switch
with Remote Control
Model #：
BRT-F013-T
Features:
BRT-F013-T is a speed control switch which has a built-in micro controller unit. In addition to a
wall mount keypad unit, it also has a handheld remote control. The wall mount unit is designed for
easy installation and retrofit, directly fit into standard wall box.
Reversible. The user can choose the fan's rotation direction at will;
5 step speed control using wall mount keypads or a remote control ;
Memory function. The motor always starts at last speed;
Load power up to 400W and good for all AC motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View and Back View:

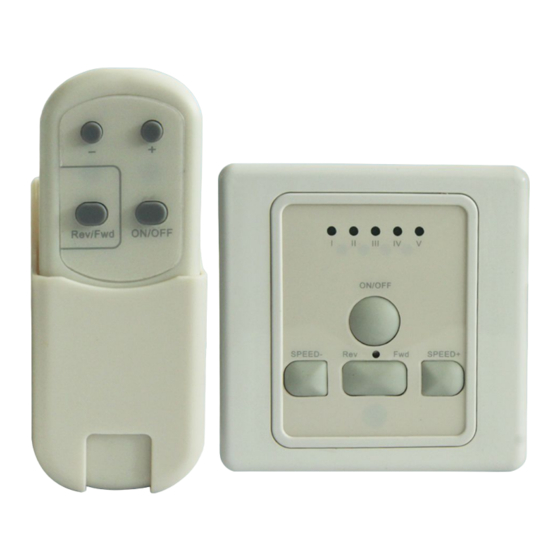

Fig. 1 and Fig. 2 show the front view and the back view of BRT-F013-T reversible fan speed
control switch with remote control respectively.
Fig. 1
Front View
Product Description of BRT-F013-T
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2
Back View
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iPuray BRT-F013-T
Summary of Contents for iPuray BRT-F013-T
- Page 1 Classical 86 series design and high quality build. Front View and Back View: Fig. 1 and Fig. 2 show the front view and the back view of BRT-F013-T reversible fan speed control switch with remote control respectively. Fig. 1 Front View Fig.
- Page 2 As shown in Fig. 1 and Fig. 2, BRT-F013-T reversible speed control switch set includes a wall mount unit and a remote control. The wall mount unit has 4 control keypads, 5 speed LED indicators, and an infrared detector on the front, and wiring terminal blocks on the back. The remote control has four control buttons and a wall mount bracket.
- Page 3 Install screws and front plate. Fig. 4 BRT-F013-T Installation Guide Operation Guide: BRT-F013-T speed control switch can be controlled either using the keypads of the wall mount unit or the remote control as shown in Fig 5. Fig. 5 BRT-F013-T Speed Control...
- Page 4 Applications: BRT-F013-T speed control switch is ideal for regulating the speed of all kinds of AC motors. It has wide applications at various locations such as homes, schools, laboratories, hospitals, bar, restaurant, etc, to control the speed of ventilation fans, pumps, or blowers.
