R&S

CMW-KM5xx/-KS5xx

LTE UE Firmware Applications

User Manual

(;×îL2)

1173.9628.02 ─ 24

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the R&S CMW-KM5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohde & Schwarz R&S CMW-KM5 Series

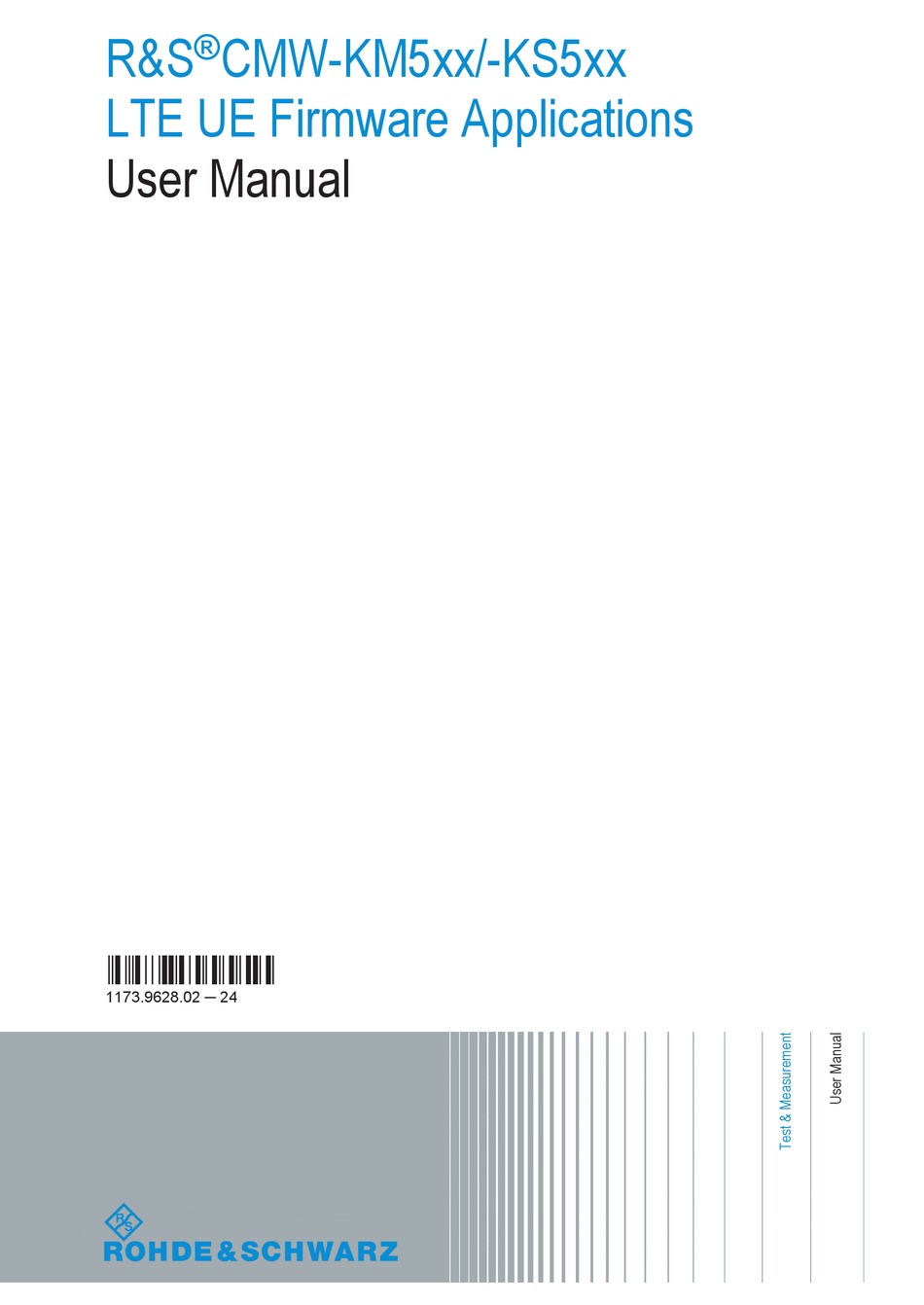

Page 1 ® R&S CMW-KM5xx/-KS5xx LTE UE Firmware Applications User Manual (;×îL2) 1173.9628.02 ─ 24...
Page 2 ® This user manual describes the following R&S CMW options: ● ® R&S CMW-KS170 (Alerting network support, generic signaling) ● R&S ® CMW-KM500 (LTE FDD R8, TX measurement, uplink) ● ® R&S CMW-KM502 (LTE FDD R10 UL CA, TX measurement, uplink) ●...
Page 3: Table Of Contents
® Contents R&S CMW-KM5xx/-KS5xx Contents 1 Preface....................9 Documentation Overview..................... 9 R&S CMW Models....................... 10 How to Read Firmware Application Chapters............10 1.3.1 General Description...................... 11 1.3.2 Application Sheets......................11 1.3.3 GUI Reference......................11 1.3.4 Programming Examples....................11 1.3.5 Command Reference....................12 2 LTE Signaling..................
Page 4 ® Contents R&S CMW-KM5xx/-KS5xx 2.2.20 Extended BLER Measurement..................74 2.2.21 RLC Throughput Measurement..................86 Application Sheets......................88 2.3.1 Combined Signal Path Measurements................88 2.3.2 LTE IP-Based Data Tests..................... 92 2.3.3 VoLTE Call Setup and Audio Tests................96 GUI Reference......................107 2.4.1 Main View........................108 2.4.2 Signaling Control......................120 2.4.3 Using the Shortcut Softkeys..................125 2.4.4...
Page 5 ® Contents R&S CMW-KM5xx/-KS5xx Command Reference....................299 2.6.1 Conventions and General Information................ 300 2.6.2 General Settings......................306 2.6.3 Connection Control and States................... 309 2.6.4 Event Log........................323 2.6.5 UE Measurement Report Contents................324 2.6.6 UE Capabilities......................332 2.6.7 UE Info........................376 2.6.8 Routing Settings......................379 2.6.9...
Page 6 ® Contents R&S CMW-KM5xx/-KS5xx 3.3.1 Measurement Control....................678 3.3.2 Accessing Parameters and Settings................679 3.3.3 Signal Routing and Analyzer Settings.................679 3.3.4 Carrier Aggregation Settings..................683 3.3.5 Measurement Control Settings..................687 3.3.6 Trigger Settings......................703 3.3.7 Limit Settings.......................706 3.3.8 Shortcut Configuration....................706 3.3.9 Additional Softkeys and Hotkeys.................707 3.3.10 Measurement Results....................
Page 7 ® Contents R&S CMW-KM5xx/-KS5xx 4.3.2 Parameters and Settings.....................917 4.3.3 Measurement Results....................928 Programming......................930 4.4.1 Key Features.......................930 4.4.2 Specifying General and Common Measurement Settings.......... 930 4.4.3 Specifying Required PRACH Settings................ 931 4.4.4 Specifying Measurement-Specific Settings..............931 4.4.5 Configuring the Trigger System.................. 932 4.4.6 Specifying Limits......................
Page 8 ® Contents R&S CMW-KM5xx/-KS5xx 5.4.3 Specifying Measurement-Specific Settings..............987 5.4.4 Configuring the Trigger System.................. 987 5.4.5 Specifying Limits......................987 5.4.6 Performing Single-Shot Measurements..............987 5.4.7 Single-Shot and Continuous Measurements...............988 Command Reference....................989 5.5.1 Conventions and General Information................ 989 5.5.2 General Measurement Settings.................. 993 5.5.3 SRS Measurement Commands..................
Page 9: Preface
® Preface R&S CMW-KM5xx/-KS5xx Documentation Overview 1 Preface ● Documentation Overview..................9 ● R&S CMW Models....................10 ● How to Read Firmware Application Chapters............10 1.1 Documentation Overview This section provides an overview of the R&S CMW user documentation. Most docu- ments are available in PDF format.
Page 10: R&S Cmw Models
® Preface R&S CMW-KM5xx/-KS5xx How to Read Firmware Application Chapters Basic safety instructions Contains safety instructions, operating conditions and further important information. The printed document is delivered with the instrument. Data sheet and brochure The data sheet contains the technical specifications of the R&S CMW. The brochure provides an overview of the instrument and deals with the specific char- acteristics.
Page 11: General Description
® Preface R&S CMW-KM5xx/-KS5xx How to Read Firmware Application Chapters The chapters "System Overview" and "Remote Control" in the R&S CMW base unit manual provide additional important information independent of the individual firmware applications. The most important parts are referenced by the firmware application descriptions.
Page 12: Command Reference
® Preface R&S CMW-KM5xx/-KS5xx How to Read Firmware Application Chapters The command sequences are written with the intention to list most commands of the firmware application. They do not show the fastest way for a given configuration task. The fastest way would use many reset values and omit the corresponding commands. The examples are referenced by the command descriptions of the command refer- ence.
Page 13: Lte Signaling
® LTE Signaling R&S CMW-KM5xx/-KS5xx 2 LTE Signaling The LTE signaling firmware application emulates an E-UTRAN cell and communicates with the UE under test. The UE can synchronize to the downlink signal and attach to the PS domain. A connection can be set up (3GPP-compliant RMC or user-defined channel).
Page 14: What's New In This Revision
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.1 What's New in This Revision This revision describes version 3.5.50 and later of the LTE signaling application. Com- pared to version 3.5.40, it provides the following new features and changes: ● SRVCC handover of voice connection to GSM (up to now only to WCDMA), see Handover ●...
Page 15: Scenarios
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● Connection States....................31 ● Handover.........................35 ● Physical DL Channels and Signals................. 37 ● MIMO and Beamforming..................42 ● Scheduling Type RMC.................... 47 ● User-Defined Channels...................59 ● Channels......................62 ● Semi-Persistent Scheduling (SPS)................. 66 ● Operating Bands.....................
Page 16 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Scenario name Explanation "3CC CA - Fading - 6 RF Out" "4CC CA - Fading - 8 RF Out" "1 Cell - Fading - MIMO4x2 - 2 RF Out" MIMO 4x2 and internal extended fading or external fading (no CA) "1 Cell - IQ Out, RF In"...
Page 17: Test Setups
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description I/Q board Software options "3CC CA - SCC1 MIMO - 4 RF Out" KS502/KS552, KS512, KS520 "3CC CA - 6 RF Out" KS502/KS552, KS512, KS520 "4CC CA - 4 RF Out" KS502/KS552, KS512 "4CC CA - 8 RF Out"...
Page 18 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.2.1 Test Setup for Scenario 1 Cell - 1 RF Out The basic test setup for a "1 Cell - 1 RF Out" scenario uses a bidirectional RF connec- tion between the tester and the device under test (DUT). It carries both the downlink and the uplink signal: ●...
Page 19 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Using several signaling applications in parallel Depending on the installed hardware and software options, you can run several signal- ing application instances in parallel. Example: Assume an instrument with two signaling unit wideband (SUW), one signal- ing unit universal (SUU), four TX paths and four RX paths.
Page 20 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Depending on the scenario, a downlink carrier can have one output path (SISO) or two output paths (for example MIMO nx2). In total, up to four output paths are supported. Each output path must use a different TX module and each input path a different RX module.
Page 21 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The instruments are connected to each other via their rear panels. This rear panel cabling is identical for all multi-CMW test setups. For details, refer to the R&S CMWC documentation. The required RF cabling depends on the scenario and on the RF antenna configuration of the DUT.
Page 22 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● Connect RF 3 COM and RF 4 COM of both R&S CMW to the ports B1 to B4, in any order. When configuring the RF settings, consider that the external combiner increases the external attenuation.
Page 23 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-7: Test setup for scenario "1 Cell - IQ Out, RF In" (example) 2.2.2.7 Test Setup for External Fading Scenarios To superimpose fading on the baseband signal, you can integrate an external fader (e.g.
Page 24 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description For a setup with only one downlink path, you need only two of the four I/Q data con- nections. For MIMO 4x2 fading, you must connect two I/Q boards. The RF connections between R&S CMW and DUT must be established in the same way as without external fading.
Page 25: Initiating Signaling Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.3 Initiating Signaling Tests The required settings vary depending on the measurement to be performed. However, the following general procedure is applicable to most measurements. 1. Connect your UE to the R&S CMW (see Chapter 2.2.2, "Test Setups", on page 17).
Page 26: Carrier Aggregation
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description cation or security is enabled but not supported by the UE or the secret key does not match. An appropriate USIM can be obtained from Rohde & Schwarz (R&S CMW-Z04, stock no. 1207.9901.02). ●...
Page 27 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● For carrier aggregation with MIMO: MIMO software options as for MIMO without carrier aggregation 2.2.4.1 Setting Up a Connection with Carrier Aggregation Proceed as follows: 1. Connect your UE to the R&S CMW (see Chapter 2.2.2.4, "Test Setup for CA Sce- narios (Single CMW)",...
Page 28: External Fading
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 10. If the RRC state is "Idle", press the "Connect" hotkey to set up an RRC connection on the PCC. Note the RRC state displayed in the main view. Wait until it equals "Connected". 11.
Page 29: Internal Fading
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 5. In the external fader, activate fading. Note the signal level. If you add noise to the signal, note the signal level without noise. 6. Configure the I/Q input of the R&S CMW: In the configuration tree, section "IQ Settings >...
Page 30: Data Tests And Voice Over Lte
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description phase-shifted signals sum up at the receiving antenna. If the receiver is moving, there are also frequency-shifted signals. The internal fading simulator supports multipath propagation conditions defined in annex B.2 of 3GPP TS 36.101. A faded signal has a higher crest factor than an unfaded one.
Page 31: Audio Tests And Speech Quality Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description In data application mode, you can perform IP-based data tests using the DAU mea- surements or you can perform an RLC throughput measurement. You can also use the IMS server provided by the DAU to set up a voice over LTE (VoLTE) call. For further reference: ●...
Page 32 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The related connection states are described in the following sections. For a connection without carrier aggregation, only the packet-switched states are relevant. 2.2.9.1 Packet-Switched States The main connection states related to the primary packet-switched connection are described in the following table.
Page 33 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-8: PS state transitions Dotted line = Action initiated by instrument Dashed line = Action initiated by UE Solid line = Action initiated by UE or instrument In addition to the main states shown in the table and the figure the instrument indicates the following transitory states: ●...
Page 34 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Additional transitions and handover The transitions in Figure 2-8 are not complete. The "Off" state can be reached from any state by turning off the cell signal. Moreover, incidents like an alerting timeout or a loss of the radio link cause additional transitions.
Page 35: Handover
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-9: SCC state transitions For selection of the mode, see "SCC Activation Mode" on page 129. Additional transitions The transitions in Figure 2-9 are not complete. The "SCC Off" state can be reached at any time by releasing the RRC connection, for example by turning off the PCC cell sig- nal.
Page 36 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The R&S CMW performs an RRC connection reconfiguration. The reconfiguration message includes intra-RAT mobility control information. This mechanism is relevant for a handover within the signaling application. You can change the operating band and the channel, but not the cell bandwidth. ●...
Page 37: Physical Dl Channels And Signals
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description See also "Troubleshooting" on page 37 5. Press the button "Execute". You can monitor the process in the "Event Log" area of the main view of the signal- ing applications. If you want to reconfigure only one parameter of the LTE signaling application, you can change it directly, without using the "Inter/Intra-RAT"...
Page 38 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-10: Resource element grid (7 OFDM symbols per RB, 1 TX antenna) The positions of resource elements carrying reference signals (pilots) are standardized and depend on the number of transmit antennas. The preceding figure applies to sin- gle-antenna configurations.
Page 39 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-12: Assignment of resource blocks (RB) to UEs In the time domain, the additional units radio frame, subframe and slot (containing the OFDM symbols) are defined. A guard time called cyclic prefix (CP) is added to each OFDM symbol.
Page 40 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-14: LTE DL frame structure for FDD A TDD radio frame is also divided into 10 subframes. But for TDD three subframe types are defined: DL subframe (two DL slots), UL subframe (two UL slots) and special subframe.
Page 41 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.11.2 Physical Channel Overview A downlink physical channel corresponds to a set of resource elements carrying infor- mation originating from higher layers. Physical channels can be either broadcast chan- nels or shared channels. Dedicated channels are not used for LTE. Broadcast channels carry messages that are not directed at a particular UE;...
Page 42: Mimo And Beamforming
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Physical DL signal Purpose / transmission modes / antenna ports Channel state information reference sig- For channel quality feedback calculation, TM 9 nal (CSI-RS) Ports configurable: 15 / 15-16 / 15-18 / 15-22 Primary synchronization signal (PSS) Acquisition of cell timing and cell identity during cell search Secondary synchronization signal (SSS)
Page 43 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The UE-specific reference signals and the data transmission use the same antenna weightings and antenna ports (see Table 2-5). For the cell-specific refer- ence signals and the CSI reference signals, there is no beamforming. For transmission schemes without beamforming, the number of used antennas is denoted as "TxR", with T transmit antennas and R receive antennas.
Page 44 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Antennas/ Transmission scheme Scenario 1)3) format beamf. 0, 1, 2, Dual-layer beamforming (ports 7, 8) random 0 to 15 Single-layer beamforming (port 8) Dual-layer beamforming (ports 7, 8) 2x 0 to 15 "1 Cell - Fading - MIMO4x2 - 2 RF Out" 1, 1A Transmit diversity "1 Cell - 4 RF Out"...
Page 45 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The channel amplitude and phase responses for the individual transmission paths can be characterized by the complex coefficients h to h The indices for TM 2 to 6 specify the receiver first (h for receiver a / transmitter b).
Page 46 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The principles described here for MIMO 2x2 and MIMO 4x2 apply also to the other MIMO modes. A MIMO axb configuration uses a TX antennas, b RF output paths and b RX antennas. 2.2.12.2 Beamforming Matrix For transmission schemes with beamforming, beamforming is applied to antenna ports...
Page 47: Scheduling Type Rmc
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-20: Beamforming matrix, 1x2, transmission mode 7 For transmission mode 9, you do not configure a beamforming matrix. Instead, you define the beamforming via the number of TX antennas and one or two precoding matrix indices.
Page 48 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.13.1 UL RMCs, Contiguous Allocation This section lists the supported parameter sets for UL RMCs with contiguous RB allo- cation (resource allocation type 0). For allowed RB positions, see "Position of first RB, contiguous allocation" on page 49.
Page 49 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs TBS idx (QPSK) TBS idx (16-QAM) 20 MHz Position of first RB, contiguous allocation Two start positions are always allowed: ● Low: lower end of channel bandwidth, starting with first RB ●...
Page 50 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Conditions 3GPP tables Bandwidth Alloc. RBs Modulation Position first RB QPSK, 16-QAM 16-QAM Band 26 6.2.4.4.1-10 1.4 MHz 1, 5 QPSK NS_12 3 MHz 4, 10 QPSK 5 MHz 8, 15 QPSK 10 MHz QPSK 15 MHz QPSK...
Page 51 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Conditions 3GPP tables Bandwidth Alloc. RBs Modulation Position first RB Band 17 7.3A.1.3-0b 5 MHz QPSK middle 10 MHz QPSK middle Band 1 6.2.4A.1.4.1-1 15 MHz QPSK CA_NS_01 6.6.3.3A.1.4.1-1 20 MHz QPSK Band 1 6.2.4A.1.4.1-2 15 MHz QPSK...
Page 52 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Conditions 3GPP tables Bandwidth Alloc. RBs Modulation Position first RB Band 39 6.2.4A.1.4.1-7 15 MHz QPSK CA_NS_07 6.6.3.3A.1.4.1-6 20 MHz QPSK 10, 30 QPSK QPSK 2.2.13.2 UL RMCs, Multi-Cluster The following table lists the supported parameter sets for UL RMCs with multi-cluster RB allocation (resource allocation type 1).
Page 53 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● H: upper end of channel bandwidth, up to last RB ● 5, 10, 23, 35, 48: special start positions for 3GPP TS 36.521, table C.2-2. For 256-QAM, option R&S CMW-KS504/-KS554 is required. Table 2-11: DL RMCs, single TX antenna Bandwidth Allocated RBs...
Page 54 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs Position first RB Modulation TBS index 64-QAM 256-QAM L, H QPSK L, H, 35 16-QAM L, H 64-QAM L, H 64-QAM 15 MHz L, H QPSK QPSK L, H 64-QAM 256-QAM L, H QPSK...
Page 55 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs Modulation TBS index QPSK 3 MHz QPSK QPSK 5 MHz QPSK 16-QAM QPSK 16-QAM 10 MHz QPSK 16-QAM 64-QAM QPSK 15 MHz QPSK QPSK 20 MHz 16-QAM Some TDD RMCs defined by 3GPP have the same channel bandwidth, number of RBs, modulation type and TBS index.
Page 56 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs Modulation TBS index Version QPSK 20 MHz 0: R.30 16-QAM 1: R.30-1 2.2.13.5 DL RMCs, Transmission Mode 7 The following tables list the supported parameter sets for downlink RMCs when trans- mission mode 7 is used.
Page 57 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs Modulation TBS index 16-QAM QPSK 16-QAM 64-QAM 10 MHz QPSK 16-QAM 64-QAM 16-QAM 15 MHz 16-QAM 16-QAM 20 MHz 16-QAM 2.2.13.6 DL RMCs, Transmission Mode 8 The following tables list the supported parameter sets for downlink RMCs when trans- mission mode 8 is used.
Page 58 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Table 2-17: DL RMCs for TDD, TM 8 Bandwidth Allocated RBs Modulation TBS index 16-QAM 1.4 MHz 16-QAM 16-QAM 3 MHz 16-QAM 16-QAM 5 MHz 16-QAM QPSK 64-QAM QPSK 10 MHz 16-QAM 64-QAM 16-QAM 15 MHz 16-QAM...
Page 59: User-Defined Channels
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Bandwidth Allocated RBs Modulation TBS index 16-QAM 16-QAM 10 MHz QPSK 16-QAM 16-QAM 15 MHz 16-QAM 16-QAM 20 MHz 16-QAM Table 2-19: DL RMCs for TDD, TM 9 Bandwidth Allocated RBs Modulation TBS index 16-QAM 1.4 MHz 16-QAM...
Page 60 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● Transport block size index The supported modulation types are independent of the allocated RBs. For each mod- ulation type, a range of transport block size indices is available. Two modes are available. One mode allows you to configure UL and DL channels globally, for all subframes.
Page 61 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Table 2-20: RBG parameters Channel Maximum RBG size Size of No. of Allowed start RB bandwidth no. of RBs last RBG RBGs 1.4 MHz 0, 1, 2, 3, 4, 5 3 MHz 0, 2, 4, 6, 8, 10, 12, 14 5 MHz 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 10 MHz...
Page 62: Cqi Channels
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The allocated resource blocks are divided into two clusters. Within each cluster, the RB allocation is contiguous. The number of allocated resource blocks and the position of the first allocated resource block are configured per cluster. Only entire resource block groups (RBG) can be allocated.
Page 63 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The uplink channel is identical to a user-defined TTI-based uplink channel, see Chap- ter 2.2.14, "User-Defined Channels", on page 59. 2.2.15.1 Fixed CQI Channels This scheduling type is supported for the transmission modes 1 to 9. Option R&S CMW-KS510 is required.
Page 64 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description CQI index Modulation scheme Target code rate 0.85254 0.92578 Table 2-24: CQI indices with 256-QAM CQI index Modulation scheme Target code rate QPSK 0.07617 0.18848 0.43848 16-QAM 0.36914 0.47852 0.60156 64-QAM 0.45508 0.55371 0.65039 0.75391 0.85254...
Page 65 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description In addition to the mapping table, you can configure the following downlink settings: ● Channel bandwidth ● Number and position of resource blocks (RB) ● 256-QAM usage All downlink settings are configured globally, not per TTI. The rules for configuration of the allocated RBs are the same as for user-defined downlink channels (global configu- ration, not TTI-based), see Chapter 2.2.14.1, "Number and Position of RBs...
Page 66: Semi-Persistent Scheduling (Sps)
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description You can override this behavior and individually enable also these subframes. 2.2.15.4 Follow WB CQI-RI and CQI-PMI-RI Channels The scheduling type "Follow WB CQI-RI" is supported for the transmission mode 3. Scheduling type "Follow WB CQI-PMI-RI" is supported for the transmission modes 4, 8 and 9.
Page 67: Operating Bands
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Table 2-25: Range of transport block size index depending on modulation type Modulation type QPSK 16-QAM 64-QAM Indices for uplink channels 0 to 10 10 to 14 not supported Indices for downlink channels 0 to 9 9 to 14 not supported...
Page 68 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Band / MHz Channel N / MHz ) / MHz Offset, UL Offset, UL 1749.9 21800 21800 to 22149 1749.9 to 1784.8 1710 22150 22150 to 22749 1710 to 1769.9 1427.9 22750 22750 to 22949 1427.9 to 1447.8 23010 23010 to 23179...
Page 69 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Band / MHz Channel N / MHz Offset, DL Offset, DL 3450 3450 to 3799 925 to 959.9 1844.9 3800 3800 to 4149 1844.9 to 1879.8 2110 4150 4150 to 4749 2110 to 2169.9 1475.9 4750 4750 to 4949...
Page 70: Trigger Signals
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Table 2-28: Operating bands for TDD signals Band / MHz Channel N F / MHz Offset Offset 1900 36000 36000 to 36199 1900 to 1919.9 2010 36200 36200 to 36349 2010 to 2024.9 1850 36350 36350 to 36949...
Page 71: Relative Power Control Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description generated. It is aligned to the beginning of the fourth subframe after the subframe in which the preamble has started. The following figure illustrates this timing for preamble format 3. Figure 2-21: PRACH trigger timing The PRACH trigger signal can be used to trigger LTE "PRACH"...
Page 72 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description The following figure shows the ramping up TPC pattern A for FDD as an example. The RB allocation change is located after the first radio frame (10 subframes). Figure 2-22: Ramping up pattern A for FDD The 3GPP specification allows us to interrupt the power ramping.
Page 73 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description ● End of frame 3: change of RB allocation In this example, the channel bandwidth is 1.4 MHz. Thus the allocation changes from 1 RB to 6 RB (8.78 dB power step expected). ●...
Page 74: Extended Bler Measurement
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.20 Extended BLER Measurement The extended BLER measurement is installed together with the LTE signaling applica- tion. To access the measurement, press the softkey "LTE RX Meas" in the LTE signal- ing main view. Then select the tab "Extended BLER". The measurement sends data to the UE via PDSCH subframes.
Page 75 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Reduced PDCCH resources can also result in an increased number of NACKs. So it is recommended to disable "Reduced PDCCH", see PDCCH. For configuration of CQI, PMI and RI reporting, see Reporting. For configuration of DL HARQ settings, see HARQ.
Page 76 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-24: Result overview You can enlarge one of the diagrams in the overview and show a detailed view with additional measurement results, see Chapter 2.2.20.9, "Selecting and Modifying Views", on page 85. The individual results are described in the "Detailed Views" sec- tions.
Page 77 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Number of uplink subframes with passed / failed CRC check, received since the start of the measurement. ● "DTX": Number of scheduled uplink subframes skipped by the UE. The result is calculated from the number of expected uplink subframes and the number of received uplink subframes (CRC pass / fail results).
Page 78 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-25: BLER view results (two streams normal measurement / one stream confidence BLER) Result tables ● "ACK / NACK / DTX": Number of acknowledgments and negative acknowledgments received via the PUSCH since the start of the measurement. No answer at all (no ACK, no NACK) is counted as DTX.
Page 79 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description It is recommended to always activate downlink padding for throughput measure- ments, even in data application mode. Otherwise, the throughput results can be hard to interpret. Confidence BLER results ● "PCC or SCC Pass/Fail": When a pass/fail decision has been made for the carrier, one of the following result values is displayed: –...
Page 80 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-26: Throughput view (two streams) For carrier aggregation scenarios, the "Throughput" view presents the results on sev- eral tabs. The "PCC" and "SCC<n>" tabs provide the results for the PCC downlink and for the SCC downlinks.
Page 81 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-27: CQI Reporting view (two streams) The bar graph shows how often the CQI indices 0 to 15 have been reported by the UE since the measurement has been started. The table directly below the bar graph pro- vides the index value and the height of the seven highest bars in the diagram.
Page 82 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description This view is only available if CQI reporting is enabled in the signaling application, see "Enable CQI Reporting" on page 218. Whether PMI and/or RI reports are sent by the UE depends on the transmission mode. For TM 8 and 9, you must explicitly request reports from the UE, see "Enable PMI/RI Reporting (TM 8, 9)"...
Page 83 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-29: Lower part for eight CSI-RS ports To display result tables for all possible RI - PMI 1 - PMI 2 combinations, press the softkey - hotkey combination "Display > PMI 1 x PMI 2 Results". Figure 2-30: Complete tables, RI - PMI 1 - PMI 2 combinations The highlighted values in the complete tables are also displayed in the bar graphs.
Page 84 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-31: HARQ view (two streams, absolute results) The view displays two types of tables for each downlink stream: ● The "HARQ per Transmissions" table lists the initial transmissions and all retrans- missions. Column 1 indicates the initial transmissions (first redundancy version), column 2 the first retransmission (second redundancy version), column 3 the sec- ond retransmission (third redundancy version), and so on.
Page 85 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.20.8 Common View Elements Each view displays at least one of the following elements to indicate the progress of the measurement: ● "Subframes": This value indicates the number of already processed subframes. For single-shot measurements with fixed length, also the total number of subframes to be pro- cessed is displayed.
Page 86: Rlc Throughput Measurement
® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description 2.2.20.10 Using Markers The "Marker" softkey displays the following hotkeys at the bottom of the GUI: Hotkey Description "Ref. Marker" Enable or disable the reference marker and select the marker position. If sev- eral traces can be displayed, a trace can also be selected.
Page 87 ® LTE Signaling R&S CMW-KM5xx/-KS5xx General Description Figure 2-32: RLC throughput tab Diagram The diagram provides a graphical presentation of the data throughput results for the previous measurement cycle. The X-axis indicates the processed subframes, with the last processed subframe labeled 0, the previously processed subframe labeled -1, and so on.
Page 88: Application Sheets
® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 2.3 Application Sheets Application sheets describe short application examples for select issues and provide related background information. The following application sheets are related to the "LTE Signaling" firmware application. ● Combined Signal Path Measurements..............88 ●...
Page 89 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets To set up a connection, 1. Reset your R&S CMW to ensure a definite instrument state. 2. Connect your UE to the RF 1 COM connector. 3. Open the "LTE Signaling" application, e.g. from the task bar (press "TASKS" to open the task bar).
Page 90 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets Note the connection states displayed in the main view and wait until the connection has been established. Attach failure If the attach procedure fails, check whether the UE capabilities are in accordance with the security settings in the "Network"...
Page 91 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets To enlarge a diagram, perform one of the following actions: ● Double-click it using a connected mouse. ● Select it by turning the rotary knob and open it by pressing the rotary knob. 2.3.1.4 Possible Extensions While the connection is established, you can vary LTE signaling settings and observe...
Page 92: Lte Ip-Based Data Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets result, the UE will send an SRS signal after connection setup. The other steps are simi- lar. For PRACH measurements, you do not establish a connection. Configure the PRACH settings in section "Physical Cell Setup" of the signaling application. Activate "No Response to Preambles"...
Page 93 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 2. In the main view of the signaling application, note the IPv4 address assigned to the UE during attach. You need this information in the following sections. If you have connected your UE to a PC with Windows operating system, you can also retrieve the IP address information via the PC.
Page 94 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 2.3.2.4 Measuring the Throughput with Iperf The following steps describe how to measure the downlink throughput for data transfer via UDP/IP. As a prerequisite, the iperf tool must be installed on the UE, or on a PC connected to the UE.
Page 95 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 5. Press OK to close the configuration dialog. 6. Press ON | OFF. The application starts and the "Iperf" softkey indicates the "RUN" state. The R&S CMW sends data packets to the UE, using the downlink bit rate indicated in the last column and the graphic.
Page 96: Volte Call Setup And Audio Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 2.3.2.5 Possible Extensions While the connection is established, you can vary "LTE Signaling" settings and "Data Application Measurements" settings and observe the impact on the measurement results. You can for example modify the downlink power levels, the downlink channel configuration and the sent bit rate.
Page 97 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets ● Software options: – LTE R8, SISO, basic signaling, R&S CMW-KS500 (FDD) or -KS550 (TDD) – IPv4 enabler, R&S CMW-KA100, for IPv6 also R&S CMW-KA150 – IMS basic service, R&S CMW-KAA20 ● Software and minimum software versions: Base software ≥...
Page 98 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 3. Enable the applications: a) Press SIGNAL GEN. The "Generator/Signaling Controller" dialog box opens. b) Enable "LTE Signaling 1". c) Press MEASURE. The "Measurement Controller" dialog box opens. d) Enable "Audio Measurements 1". e) Enable "Data Appl.
Page 99 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets c) Enter all public user IDs of your mobile. d) Press "Apply" and then "Close". 4. Press the "Virtual Subscriber" hotkey. A dialog box opens. Configure "Virtual 1" as follows: a) Set the "Signaling Type" compatible to your mobile (call setup with or without SIP preconditions).
Page 100 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets Configure especially the duplex mode (FDD / TDD), the band, the channel number and the cell bandwidth. The "RS EPRE" must be sufficient so that the UE can receive the DL signal. 3. Press the "Config" hotkey. The LTE signaling configuration dialog box opens.
Page 101 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets Attaching and registering the UE 1. Switch on the UE. The UE synchronizes to the LTE cell signal and attaches. A default bearer is estab- lished. Note the displayed connection states and wait until the attach procedure is com- plete and the RRC connection is established.
Page 102 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets Initiating a mobile-terminating VoLTE call Perform the following steps or set up a mobile-originating call, see "Initiating a mobile- originating VoLTE call" on page 101. 1. Press the "Virtual Subscriber" hotkey. A dialog box opens. 2.
Page 103 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 7. To check the downlink direction, speak into the handset microphone and listen to the UE speaker. The speech must be audible at the UE speaker after a small delay. 8. To check the uplink direction, speak into the UE microphone and listen to the hand- set speaker.
Page 104 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 5. Wait until the softkey indicates the "ON" state. A 1000 Hz tone is generated, fed to the speech encoder and transmitted to the UE via the VoLTE connection. 6. Select the "Analog Meas" softkey and press ON | OFF. The measurement is started.
Page 105 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets 2. Select the "Digital Meas" tab. 3. Press the "Analog Generator" softkey. 4. Press the "Level" hotkey. Enter a value compatible to the microphone input of your UE, for example 100 mV. 5. Press ON | OFF. The generator is started.
Page 106 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Application Sheets Figure 2-35: Test setup for external speech analysis A generator of the R&S UPV feeds an audio signal to the microphone of the UE. The UE encodes the audio signal and modulates the RF uplink signal. It transmits the RF signal via the VoLTE connection to the R&S CMW.
Page 107: Gui Reference
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 4. Configure the R&S UPV. Calibrate it, if necessary. 5. Start the R&S UPV generators and analyzers. For more information about speech quality tests with an R&S UPV, refer to the follow- ing documents: ●...
Page 108: Main View
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference ● Main View......................108 ● Signaling Control....................120 ● Using the Shortcut Softkeys..................125 ● General Settings....................127 ● Settings......................130 ● Settings......................131 ● Internal Fading...................... 138 ● Downlink Power Levels..................143 ● Uplink Power Control....................
Page 109 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-36: LTE signaling main view For descriptions of the individual areas of the view, refer to the subsections. ● Connection Status....................109 ● Event Log......................110 ● UE Measurement Report..................111 ● Capabilities......................113 ● Info........................
Page 110 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Cell Displays the current state (or state transition) of the downlink signal generator. Remote command: SOURce:LTE:SIGN<i>:CELL:STATe Packet Switched Displays the current state or state transition of the primary packet-switched connection (uplink and PCC downlink). Remote command: FETCh:LTE:SIGN<i>:PSWitched:STATe? RRC State...
Page 111 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.1.3 UE Measurement Report To display the measurement report information, select "UE Measurement Report" in the field below the event log area. The displayed information is retrieved from "measurement reports" provided by the connected UE.
Page 112 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference LTE Serving Cell > RSRP The reference signal received power (RSRP) denotes the average power of the resource elements carrying cell-specific reference signals. The measurement report displays the reported dimensionless value and in brackets the corresponding measured value range.
Page 113 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference WCDMA > RSCP, EcNO The received signal code power (RSCP) denotes the received power on one code, measured on the primary CPICH of the neighbor WCDMA cell. The Ec/No denotes the ratio of the received energy per PN chip for the primary CPICH to the total received power spectral density in the WCDMA band.
Page 114 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-41: UE capabilities in the main view The displayed information comprises the following extracts from the UE capability report: ● General UE capability information ● RF UE capabilities To maximize the UE capabilities area and display all capability information, press the button to the right.
Page 115 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference IMSI International mobile subscriber identity (IMSI) received from the UE. Remote command: SENSe:LTE:SIGN<i>:UESinfo:IMSI? Voice Domain Preference The voice domain preference received from the UE indicates whether the UE uses the CS domain or the IMS for voice calls. CS domain means that a circuit-switched fallback is performed and the voice call is established via GERAN or UTRAN.
Page 116 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference <EPS dedicated bearer ID> (-> <EPS default bearer ID>, <profile>) Example: "6 (->5, Voice)" means dedicated bearer 6, mapped to default bearer 5, using dedicated bearer profile "Voice" For calls set up by the IMS, the <profile> indicates the call type ("IMS Voice" or "IMS Video") and the initial digits of the call ID.
Page 117 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Chapter 2.4.10, "Physical Cell Setup", on page 154 ● Most important DL power parameters (RS EPRE, full cell BW power) Chapter 2.4.8, "Downlink Power Levels", on page 143 ● Most important UL power parameters Chapter 2.4.9, "Uplink Power Control", on page 147...
Page 118 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The settings are the same as in the configuration tree, see Chapter 2.4.12.10, "User-Defined Channel Configuration", on page 205. ● User-defined TTI-based / fixed CQI: You can configure the settings of a selected subframe (TTI) directly. Alternatively, press the button "Edit All"...
Page 119 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-44: SPS settings To configure SPS, proceed as follows: 1. Select the duplex mode and the cell bandwidth in the upper part of the main view. 2. Select the scheduling type SPS. 3.
Page 120: Signaling Control
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference # RB ... TBSI /TBS "# RB" selects the number of allocated resource blocks. "Start RB" specifies the number of the first allocated resource block. This parameter allows you to shift the allocated RBs within the cell bandwidth. "Mod"...
Page 121 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SOURce:LTE:SIGN<i>:CELL:STATe SOURce:LTE:SIGN<i>:CELL:STATe:ALL? Connection control hotkeys Any interaction with a UE requires an LTE downlink signal (cell). If the signal is availa- ble (state ON, no hour glass), connection control hotkeys can be present in the hotkey bar.
Page 122 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Option R&S CMW-KS510 is required. Without this option, a single dedicated bearer with predefined default settings is set up. The dialog box is described in the following. Connect ← Connect (hotkey) Use the "Connect" section of the dialog box to configure a dedicated bearer. Then press the "Connect"...
Page 123 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Voice Video Data AM Data UM "pollByte" (RLC AM) 250kB "maxRetxThreshold" (RLC AM) Remote command: CATalog:LTE:SIGN<i>:CONNection:DEFBearer? PREPare:LTE:SIGN<i>:CONNection:DEDBearer PREPare:LTE:SIGN<i>:CONNection:DEDBearer:SEParate CALL:LTE:SIGN<i>:PSWitched:ACTion Disconnect ← Connect (hotkey) Use the "Disconnect" section of the dialog box to release an established dedicated bearer.
Page 124 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-46: Handover of VoLTE call to WCDMA For a detailed step-by-step description of a handover, see "How to perform a hand- over" on page 36. Target ← Inter/Intra-RAT (hotkey) This parameter selects the handover destination. For a handover to another instru- ment, select "No Connection"...
Page 125: Using The Shortcut Softkeys
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Connection Type ← Inter/Intra-RAT (hotkey) This setting is only relevant for the handover of a VoLTE call to another signaling appli- cation. It selects the call type to be set up at the destination. Option R&S CMW-KS510 is required.
Page 126 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Using one of these softkeys, ensures that the measurement is configured compatible to the settings of the signaling application. When you use the softkey to switch to a TX measurement, the combined signal path scenario is activated automatically in the mea- surement.
Page 127: General Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.4 General Settings The general settings are at the top of the configuration dialog. Configure them accord- ing to your test scenario, before configuring any other settings. The general settings reflect basic decisions: FDD or TDD signal, use MIMO / fading / carrier aggregation or not.
Page 128 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference SCC Activation Mode....................129 UL........................129 Intraband Contiguous to PCC..................129 Duplex Mode Selects the duplex mode of the LTE signal: FDD or TDD. If you enable "Use Carrier Specific", you can configure the duplex mode per compo- nent carrier.
Page 129 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: Configured via the scenario selection command, see Chapter 2.6.8.1, "Scenario Selec- tion and Signal Routing", on page 379 SCC Activation Mode This setting is only displayed on the SCC tabs. It configures the activation mode of the SCCs for carrier aggregation scenarios.
Page 130: I/Q Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:SCC<c>:CAGGregation:MODE 2.4.5 I/Q Settings The parameters in this section configure the I/Q output paths and/or the I/Q input paths. The settings are relevant for external fading scenarios and for the "I/Q out - RF in"...
Page 131: Rf Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SENSe:LTE:SIGN<i>:IQOut[:PCC]:PATH<n>? SENSe:LTE:SIGN<i>:IQOut:SCC<c>:PATH<n>? Baseband PEP (Out / In) Indicates the peak envelope power of the baseband signal as dB value relative to full scale. "Full scale" in this case corresponds to the maximum representable amplitude of the I/Q samples.
Page 132 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-51: RF settings (1 Cell - 1 RF Out) For descriptions of the parameters, refer to the subsections. ● RF Signal Routing....................132 ● Frequency....................... 134 ● Expected Uplink Power..................137 2.4.6.1 RF Signal Routing This section configures the RF input path and/or the RF output paths.
Page 133 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Connector, Converter ← RF Output (TX) Selects the output paths for the generated RF signals, that means the output connector and the TX module for each downlink path. Depending on your hardware configuration, there are dependencies between both parameters.
Page 134 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The external attenuation value is also used in the calculation of the maximum input power that the R&S CMW can measure. If a correction table for frequency-dependent attenuation is active for the chosen con- nector, then the table name and a button are displayed.
Page 135 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Operating Band, Channel, Frequency.................135 Frequency Offset......................135 Band Definition......................136 └ UL/DL Separation..................136 └ Channel Subdivision..................136 └ Band Indicator....................136 └ DL Channel, Frequency................136 └ UL Channel, Frequency................136 Operating Band, Channel, Frequency To specify the DL and UL frequencies, select an operating band first, then enter a valid channel number or frequency for UL or DL.
Page 136 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Band Definition Displays the definition of the selected operating band. Operating band "User-Defined" can be edited. Option R&S CMW-KS525 is required for user-defined bands. UL/DL Separation ← Band Definition , for TDD usually the same frequency is used in UL and DL, but different fre- quencies can be configured for user-defined bands.
Page 137 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:CHANnel:UL: MINimum CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:CHANnel:UL: MAXimum? CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:FREQuency:UL: MINimum? CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:FREQuency:UL: MAXimum? Plus corresponding PCC commands. 2.4.6.3 Expected Uplink Power The following parameters configure the expected uplink power. With UL carrier aggregation, you can configure the settings per component carrier. Figure 2-54: RF uplink power settings Exp.
Page 138: Internal Fading
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UMARgin Plus corresponding PCC commands. Mixer Level Offset Varies the input level of the mixer in the analyzer path. A negative offset reduces the mixer input level. A positive offset increases the level. Optimize the mixer input level according to the properties of the uplink signal.
Page 139 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-57: Fading simulator settings, extended fading For most scenarios, extended fading is available. Standard fading applies to some sce- narios, if more than two DL TX antennas are used per carrier. See also Table 2-1.
Page 140 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference For standard fading, a subset is available: EPA and EVA with maximum Doppler fre- quency 5 Hz - low, medium and high correlation level. Remote command: CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:STANdard:PROFile CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:PROFile CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:STANdard:PROFile CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:PROFile Restart Event The scenario "1 Cell - Fading - MIMO4x2 - 2 RF Out" supports only the mode "Trigger". The other scenarios support only the modes "Auto"...
Page 141 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Doppler Frequency Mode, Doppler Frequency The maximum Doppler frequency can be calculated automatically or you can define it manually. "Normal" The maximum Doppler frequency is calculated automatically, based on the currently selected Profile. "User"...
Page 142 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:FADing[:PCC]:POWer:SUM? CONFigure:LTE:SIGN<i>:FADing:SCC<c>:POWer:SUM? 2.4.7.3 Fading Module AWGN The following parameters enable and configure the AWGN insertion on the fading module. For background information, see Chapter 2.2.6.2, "AWGN Generator", on page 30. Figure 2-59: AWGN settings For carrier aggregation scenarios, you can configure the settings per component car- rier.
Page 143: Downlink Power Levels
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:BWIDth:RATio CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:BWIDth:RATio Noise Bandwidth Displays the actual noise bandwidth, resulting from the "Min. Noise/System BW Ratio" and the cell bandwidth. Remote command: CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:BWIDth:NOISe? CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:BWIDth:NOISe? Effective Signal BW Displays the part of the cell bandwidth that is dedicated to the downlink subcarriers. Signal/Noise Ratio Specifies the signal to noise ratio.
Page 144 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-60: DL power levels The reference point for all power settings in this section (except AWGN) is the simula- ted eNodeB antenna. For scenarios with several RF output paths per component car- rier, there is a simulated radio channel between the eNodeB antennas and the RF out- put connectors.
Page 145 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference PSS Power Offset Power level of a primary synchronization signal (PSS) resource element relative to the RS EPRE. Remote command: CONFigure:LTE:SIGN<i>:DL[:PCC]:PSS:POFFset CONFigure:LTE:SIGN<i>:DL:SCC<c>:PSS:POFFset SSS Power Offset Power level of a secondary synchronization signal (SSS) resource element relative to the RS EPRE.
Page 146 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The power level of the OCNG is chosen automatically so that the displayed "Full Cell BW Power" is reached. Thus the overall DL power is constant in each transmission time interval. Remote command: CONFigure:LTE:SIGN<i>:DL[:PCC]:OCNG CONFigure:LTE:SIGN<i>:DL:SCC<c>:OCNG PDSCH...
Page 147: Uplink Power Control
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:DL[:PCC]:CSIRs:MODE CONFigure:LTE:SIGN<i>:DL[:PCC]:CSIRs:POFFset CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:MODE CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:POFFset AWGN Total level of the additional white Gaussian noise (AWGN) interferer in dBm/15 kHz (the spectral density integrated across one subcarrier). If enabled, the AWGN signal is added to the DL LTE signal for the entire cell bandwidth.
Page 148 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference With enabled joint power control, most uplink power control settings are only configura- ble via the PCC tab. On the SCC tab, these settings are grayed-out. Remote command: CONFigure:LTE:SIGN<i>:UL[:PCC]:JUPower Max. allowed Power P-Max Specifies the maximum allowed output power for the UE in the cell.
Page 149 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Pathloss........................151 Expected PRACH Preamble Power................151 Expected OL Power....................151 Open Loop Nominal Power Defines a cell-specific nominal power value for full resource block allocation in the UL (entire channel bandwidth used). From this value, the cell-specific nominal power value related to one resource block is determined and sent to all UEs via broadcast.
Page 150 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CONFigure:LTE:SIGN<i>:UL:SCC<c>:APPower:PIRPower:ADVanced SENSe:LTE:SIGN<i>:UL:SCC<c>:APPower:PIRPower:BASic? P0 Nominal PUSCH Specifies the parameter "p0-NominalPUSCH", signaled to the UE as uplink power con- trol parameter (see 3GPP TS 36.331, section 6.3.2). In 3GPP TS 36.213, section 5.1.1.1 this parameter is called P O_NOMINAL_PUSCH Remote command: CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PNPusch:ADVanced...
Page 151 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Pathloss Displays the pathloss resulting from the "Reference Signal Power" on page 149 and "RS EPRE" on page 144. Remote command: SENSe:LTE:SIGN<i>:UL[:PCC]:APPower:PATHloss? SENSe:LTE:SIGN<i>:UL:SCC<c>:APPower:PATHloss? Expected PRACH Preamble Power Displays the expected power of the first preamble. The value depends on the "preambleInitialReceivedTargetPower"...
Page 152 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Active TPC Setup......................152 Target Power PCC / SCC................... 153 3GPP Rel. Pow. Ctrl. Pattern..................153 Closed Loop Target Power..................153 Single Pattern......................154 User-Defined Pattern....................154 Active TPC Setup Selects the TPC setup to be executed. All setups use relative (accumulative) TPC commands and are only executed when a connection has been established.
Page 153 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference seconds. The duration is long enough for a measurement, but short enough to pre- vent a synchronization error. A synchronization error can nevertheless occur if you decrease the "Out of Sync" timeout value in the network settings. The following parameters are related to this TPC setup.
Page 154: Physical Cell Setup
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference For uplink carrier aggregation with grayed-out "Joint UL Power", the additional SCC setting "Offset to PCC" is displayed. It shifts the SCC target power relative to the PCC target power. Remote command: CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:CLTPower CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:CLTPower CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:CLTPower:OFFSet Single Pattern...
Page 155 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.10.1 General Cell Setup Settings This section describes the following settings at the highest level of the node "Physical Cell Setup". DL / UL Cell Bandwidth....................155 Physical Cell ID......................155 Cyclic Prefix........................ 155 DL / UL Cell Bandwidth Define the DL and UL cell bandwidths, also called channel bandwidth by 3GPP.
Page 156 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:CPRefix 2.4.10.2 SRS Settings The following cell settings are related to sounding RS (SRS). You can enable SRS and configure SRS parameters to be signaled to the UE. Uplink SRS signals can be measured using the "LTE SRS" measurement included in option R&S CMW-KM500/-KM550.
Page 157 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference With enabled "Manual Configuration", the signaled values are configured manually via the following parameters. Remote command: CONFigure:LTE:SIGN<i>:CELL:SRS:MCENable Bandwidth Config (Common) ← SRS Configures the parameter "srs-BandwidthConfig" manually. This cell-specific value influences the mapping to physical resources. The meaning of the individual values is specified in 3GPP TS 36.211, section 5.5.3.2.
Page 158 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.10.3 TDD Settings The following parameters configure TDD-specific settings, not relevant for FDD. Figure 2-66: TDD settings Use Carrier Specific....................158 Uplink Downlink Configuration..................158 Special Subframe......................158 Use Carrier Specific Selects whether the UL/DL configuration and the special subframe configuration can be configured individually per component carrier or whether the same settings apply to all carriers.
Page 159 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL[:PCC]:SSUBframe CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SSUBframe 2.4.10.4 PRACH Settings The following parameters configure settings related to the random access procedure. Figure 2-67: PRACH settings No Response to Preambles, # Ignored Preambles.............159 Power Ramping Step....................159 Configuration Index.....................
Page 160 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference If you set the step size to 0 dB, the preamble power is kept constant by the UE. Thus you can use a constant expected nominal power setting during a PRACH measure- ment. Remote command: CONFigure:LTE:SIGN<i>:CELL:PRACh:PRSTep Configuration Index...
Page 161 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.10.5 CSAT / SCell Muting Settings Carrier-sensing adaptive transmission (CSAT) is defined by the LTE-U Forum for the SCC DL in unlicensed bands. With CSAT, the DL transmission is adapted depending on how busy the channel is. Furthermore, regular signal OFF periods allow others to use the channel.
Page 162: Network Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference To ensure a DL signal during ON periods, you can for example use MAC padding, see "Downlink MAC Padding" on page 180. Remote command: CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:ONSDuration CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:OFFSduration Periodic MAC Activation Enable the checkbox if you want to activate / deactivate the MAC for each ON / OFF period.
Page 163 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-70: Neighbor cell settings To configure the neighbor cell entries, press the "Edit" button. The configuration dialog contains one tab per technology. Figure 2-71: Neighbor cell list configuration dialog Only the enabled entries are broadcasted. The column "Measurement"...
Page 164 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Threshold The configured "Low" reselection threshold value is written into the system information block element "threshX-Low" defined in 3GPP TS 36.331. It corresponds to the param- eter "Thresh " in 3GPP TS 36.304. The resulting threshold value in dB is dis- X, LowP played for information.
Page 165: Cell Reselection
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The channel number and the WCDMA reselection thresholds are written into system information block 6. Remote command: CONFigure:LTE:SIGN<i>:NCELl:WCDMa:CELL<n> CDMA2000, 1xEV-DO For a CDMA2000 (1xRTT) or 1xEV-DO (HRPD) neighbor cell entry, you can specify the band class, the channel number and the physical cell ID which identifies the PN off- set.
Page 166: Identity Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference S NonIntraSearch Threshold S for inter-frequency and inter-RAT measurements. nonIntraSearch The threshold is configured in dB. System information block 3 contains the configured value divided by 2. If the checkbox is disabled, the information element is omitted in SIB 3.
Page 167: Security Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:MNC CONFigure:LTE:SIGN<i>:CELL:MNC:DIGits Specifies the tracking area code (TAC). Remote command: CONFigure:LTE:SIGN<i>:CELL:TAC E-UTRAN Cell Identifier Specifies the E-UTRAN cell identifier, unique within a PLMN. It is sent to the UE via broadcast and can be set independent of the physical cell ID (see "Physical Cell ID"...
Page 168 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:SECurity:AUTHenticat NAS Security Enables or disables non-access stratum (NAS) security. With enabled NAS security, the UE uses integrity protection for NAS signaling. This setting is only relevant if authentication is enabled. Remote command: CONFigure:LTE:SIGN<i>:CELL:SECurity:NAS AS Security...
Page 169: Ue Identity
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference RAND Value The random number RAND is used for the authentication procedure (including a possi- ble integrity check). This parameter selects whether an odd or even RAND value is used. Remote command: CONFigure:LTE:SIGN<i>:CELL:SECurity:RVALue 2.4.11.5 UE Identity The "UE Identity"...
Page 170: Time
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:TOUT:T<no> 2.4.11.7 Time The "Time" section allows you to send configurable date and time information to the UE. Thus you can update the date and time displayed by the mobile. In a real network, this service is typically used to send the current local time to the UE.
Page 171: Nas Signaling Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:TIME:LTZoffset Send Time Press "Now" to send the date and time information to the UE. This action is only possi- ble if an RRC connection has been established. "at Attach" selects whether the date and time information is sent to the UE during the attach procedure or not.
Page 172 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The rejection causes are defined in 3GPP TS 24.301, section 9.9.3.9. The purpose of rejecting UE requests is to test the reaction of the UE: Does it repeat the request at all and if so, in which time intervals? Option R&S CMW-KS510 is required.
Page 173: Synchronization
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL:NAS:CSLCs 2.4.11.9 Synchronization The parameters in this section configure the synchronization to other signaling applica- tions and the synchronization of PCC and SCC. Figure 2-79: Synchronization settings Synchronization Zone Select the same synchronization zone in all signaling applications that you want to syn- chronize.
Page 174: Connection Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CELL[:PCC]:SYNC:OFFSet CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SYNC:OFFSet 2.4.12 Connection Configuration This section defines parameters for the connection, for example the resource configu- ration to be allocated to the UE. Most parameters can be reconfigured for an estab- lished connection.
Page 175: Easy Mode
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Group Hopping......................176 Category........................176 UE Category 0 Allowed....................176 Allowed.......................176 Default Paging Cycle....................176 Additional Spectrum Emission..................177 Add. Spectrum Emission Scell..................177 UE Meas. Filter Coefficient..................177 Connection Type......................177 External DAU......................178 └ Use external DAU..................
Page 176 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Enable the easy mode if you want to change settings reliably via a redirection or a blind handover. Remote command: CONFigure:LTE:SIGN<i>:CONNection:EASY:BFBW Group Hopping Enables or disables group hopping, specified in 3GPP TS 36.211. Remote command: CONFigure:LTE:SIGN<i>:CONNection:GHOPping UE Category...
Page 177 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The R&S CMW considers the setting when sending paging messages. Remote command: CONFigure:LTE:SIGN<i>:CONNection:DPCYcle Additional Spectrum Emission The selected value is signaled to the UE within a system information block. It deter- mines which additional ACLR and spectrum emission requirements have to be met and whether additional maximum power reduction (A-MPR) is allowed.
Page 178 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference External DAU Usually, the DAU is installed on the same R&S CMW as the LTE signaling application. If all expansion slots of this R&S CMW are occupied by other hardware options, a DAU installed on another R&S CMW can be used instead (external DAU).
Page 179 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference RLC Mode ← Default Bearer Selects the RLC mode for downlink transmissions: unacknowledged mode (UM) or acknowledged mode (AM), see 3GPP TS 36.322. Option R&S CMW-KS510 is required. "UM" There are no ARQ retransmissions on the RLC layer. "AM"...
Page 180: General Mimo Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference "Enabled" The RRC connection established during attach is kept when the attach procedure is completed. For a subsequent connection setup, the already established RRC connection is used. So the connection setup is faster. When the dedi- cated bearer is released via a disconnect, the RRC connection is still kept.
Page 181 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference For carrier aggregation scenarios, you can configure all MIMO settings per component carrier. Figure 2-81: General MIMO settings, TM 4 Transmission Mode.....................181 Format........................181 Antenna Configuration....................182 Precoding Matrix......................182 Transmission Scheme....................182 Transmission Mode Selects the LTE transmission mode.
Page 182: Mimo Channel Model Tm 2 To Tm 6
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Antenna Configuration Selects the number of downlink TX antennas. The allowed values depend on the selected scenario and transmission mode. The setting is available for transmission mode 1 to 6. The number of downlink RX antennas depends on the selected scenario and is dis- played for information.
Page 183: Mimo Beamforming Settings Tm 7
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-82: MIMO 2x2 channel model The size of the matrix depends on the number of antennas. 2x2 channel model You can configure the phase of each number and the square of the magnitude of h and h .
Page 184: Mimo Beamforming Settings Tm 8
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Port 0 Mapping......................184 Beamforming Mode.....................184 Beamforming Matrix....................184 Port 0 Mapping Selects the mapping of antenna port 0 to the RF output paths. This setting is available for TM 7 in scenarios with two RF output paths, without fading. You can map port 0 to the first RF output path only.
Page 185 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-84: Beamforming settings for TM 8, 2 layers Beamforming Mode.....................185 Number of Layers......................185 Precoding Matrix......................186 Beamforming Matrix....................186 Channel Matrix 2x2 TM8..................... 186 Beamforming Mode Enables or disables beamforming. "Off" Beamforming is disabled. Not allowed for TM 8 plus "Follow..."...
Page 186: Mimo Tm 9 Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Precoding Matrix Selects a precoding matrix to be used as beamforming matrix. Only relevant for beam- forming mode "Precoding Matrix". The meaning of the PMI values is defined in 3GPP TS 36.213, section 7.2.4. Remote command: CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PMATrix CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:PMATrix...
Page 187 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-85: TM 9 settings, four TX antennas, four CSI-RS antenna ports Number Tx Antennas TM 9..................187 Codewords / Layers....................187 Precoding Matrix 2...................... 188 CSI-RS Power......................188 CSI-RS Antenna Ports....................188 CSI-RS Configuration ....................188 CSI-RS Subframe Cfg....................189...
Page 188 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<no>:CODewords CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CODewords Precoding Matrix 2 For transmission mode 9 with 8 TX antennas, the precoding matrix is selected via two PMI values. The parameter "Precoding Matrix" selects the first value, see "Precoding Matrix"...
Page 189 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CSI-RS Subframe Cfg The CSI-RS subframe configuration (I ) determines in which subframes the CSI- CSI-RS RS is transmitted. The selected value determines the periodicity (T ) and the subframe offset (Δ CSI-RS CSI- ).
Page 190: Miscellaneous Connection Settings Part 2
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix: EIGHt<line> Plus corresponding PCC commands. 2.4.12.7 Miscellaneous Connection Settings Part 2 This section describes the following "Connection" settings. Figure 2-86: Connection configuration settings part 2 UE Transmit Antenna Selection.................. 191 Scheduling Type......................191 Multicluster UL......................
Page 191 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference └ Redundancy Version Coding Sequence, User-Defined Sequence....198 Connected DRX......................198 Capabilities........................198 Timing Advance Control....................199 UE Transmit Antenna Selection Configures the parameter "ue-TransmitAntennaSelection" signaled to the UE, see 3GPP TS 36.213, section 8.7 "UE Transmit Antenna Selection". You can disable UE antenna selection or allow open loop antenna selection.
Page 192 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference "Follow ..." The "Follow..." scheduling types provide a downlink signal configured according to the values reported by the UE. The scheduling types are available depending on the transmission mode: ● Follow CQI (TM 1 to 9) ●...
Page 193 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference SPS TwoIntervalsConfig TDD Configures the parameter "twoIntervalsConfig", signaled to the UE for scheduling type SPS in TDD mode. The parameter is specified in 3GPP TS 36.321. Remote command: CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:TIConfig TTI Bundling Enables or disables TTI bundling for the uplink. With TTI bundling, the UE sends the same data with different redundancy versions in four subsequent TTIs.
Page 194 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Enable Header Compression ← ROHC Enables or disables ROHC. ROHC is only performed for dedicated bearers with bearer profile "Voice" or "Video", not for data connections. Remote command: CONFigure:LTE:SIGN<i>:CONNection:ROHC:ENABle Profile ... ← ROHC Enables up to two header compression profiles.
Page 195 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The aggregation levels are displayed as numbers of control channel elements (CCE), see 3GPP TS 36.211, section 6.8.1. "Aggr. Level DL/UL Config" configures the C-RNTI aggregation levels. The available values depend on the cell bandwidth as follows: ●...
Page 196 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CS Fallback (MO) The following settings configure the feature circuit-switched fallback (CSFB) for mobile- originating calls. A fallback for a mobile-originating voice call can be performed to a WCDMA cell, a GSM cell or a TD-SCDMA cell. If you select "None", requests for CS fallback are rejec- ted.
Page 197 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Number of HARQ Transmissions ← UL HARQ Specifies the maximum number of uplink transmissions, including initial transmissions and retransmissions. For TTI bundling, only the value 4 is supported. Remote command: CONFigure:LTE:SIGN<i>:CONNection:HARQ:UL:NHT DCI-0 / PHICH ← UL HARQ Selects how the UE is informed about required retransmissions / successful UL trans- missions.
Page 198 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Number of HARQ Transmissions ← DL HARQ Specifies the maximum number of downlink transmissions, including initial transmis- sions and retransmissions. Remote command: CONFigure:LTE:SIGN<i>:CONNection:HARQ:DL:NHT Redundancy Version Coding Sequence, User-Defined Sequence ← DL HARQ The coding sequence defines the redundancy versions for repeated transmissions of a packet.
Page 199: Connected Drx Connection Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference You can enable up to 16 entries with different bands. The element "requestedFrequen- cyBands" is filled with all enabled entries, top-down. Remote command: CONFigure:LTE:SIGN<i>:UECapability:RFBands:ALL Timing Advance Control Enables the correction of a changing UL frame timing via timing advance commands, sent to the UE.
Page 200 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-87: Example, short and long cycles after inactivity Active MAC padding and uplink RB allocation cause PDCCH traffic and prevent DRX, see also "UL Dynamic Scheduling" on page 202. The following settings are available (option R&S CMW-KS510 is required). Figure 2-88: Connected DRX settings (values used in example) The unit "PDCCH subframe"...
Page 201 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Option R&S CMW-KS510 is required. "DRX_S" Settings according to 3GPP TS 36.521-3, table H.3.6-1. "DRX_L" Settings according to 3GPP TS 36.521-3, table H.3.6-2. "User-Defined" You can configure all DRX settings. Remote command: CONFigure:LTE:SIGN<i>:CONNection:CDRX:ENABle On Duration Timer "On"...
Page 202: Rmc Connection Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The long DRX cycle duration is always a multiple of the short DRX cycle duration and adapted automatically to this setting (if short cycles are enabled). Remote command: CONFigure:LTE:SIGN<i>:CONNection:CDRX:SDCYcle Short Cycle Timer ← DRX Short Cycle Number of short DRX cycles to be processed ("drxShortCycleTimer"), for example after the inactivity timer has expired.
Page 203 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference For multi-cluster, configure first cluster 1, then cluster 2. 4. Select the modulation type. 5. If the transport block size index is configurable, select it. For valid parameter combinations and background information, see Chapter 2.2.13, "Scheduling Type RMC",...
Page 204 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference # Resource Blocks Selects the number of allocated resource blocks. This parameter influences the allowed modulation types. For multi-cluster allocation, this setting is configurable separately for cluster 1 and clus- ter 2. Remote command: CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:RMC:DL<s>...
Page 205: User-Defined Channel Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CONNection[:PCC]:RMC:DL<s> CONFigure:LTE:SIGN<i>:CONNection[:PCC]:RMC:UL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:RMC:DL<s> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:RMC:UL Transport Block Size Displays the transport block size in bits. Remote command: Throughput Displays the expected maximum throughput in Mbit/s (averaged over one frame). The value is calculated per downlink and uplink stream. Remote command: SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL[:PCC]:STReam<s>? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL[:PCC]?
Page 206 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-90: User-defined channel settings Use Stream 1 Settings....................206 # Resource Blocks ... Transport Block Size..............206 Throughput........................207 Code Rate........................207 DL multi-cluster allocation................... 207 Use Stream 1 Settings This parameter is visible if the selected transmission scheme involves several downlink streams.
Page 207: User-Defined Tti-Based Channel Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:MCLuster:UL Plus corresponding PCC commands. Throughput Displays the expected maximum throughput in Mbit/s (averaged over one frame). The value is calculated per downlink and uplink stream. Remote command: SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL[:PCC]:STReam<s>? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL[:PCC]? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL:SCC<c>:STReam<s>? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL:SCC<c>? Code Rate Only displayed in the main view: Effective channel code rate, i.e.
Page 208: Tti-Based Channel Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.12.12 CQI Channel Configuration The configuration depends on the CQI scheduling type. ● "Fixed CQI", "Follow WB PMI" and "Follow WB PMI-RI": Uplink and downlink settings for these scheduling types can only be configured from the main view, not from the configuration tree.
Page 209 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference configuration of the radio frame, see "Use Carrier Specific" on page 158. For UL-DL configuration 0, all UL subframes have the same settings. The subframe number (0 to 9) and the subframe type are indicated in the column header.
Page 210 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Copy........................210 256-QAM......................210 #RB / Start RB......................210 Idx........................210 Mod..........................210 Idx........................210 UL configuration commands..................210 DL configuration commands..................211 └ User-Defined TTI-Based................211 └ Fixed CQI......................211 TBS..........................211 Code Rate........................211 Throughput........................211 TTI Copy Allows you to copy the settings of a selected subframe to other subframes.
Page 211 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The settings apply to all scheduling types with TTI-based uplink configuration. Remote command: CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL:ALL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:UL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:UL:ALL DL configuration commands For downlink configuration, there are different commands per scheduling type and for PCC and SCC. User-Defined TTI-Based ←...
Page 212 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL:SCC<c>? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL:SCC<c>:STReam<s>? 2.4.13.2 DL Follow WB Tab - CQI Variant There are two variants of this tab. The CQI variant provides a mapping table and is active for the scheduling types "Follow WB CQI", "Follow WB CQI-RI" and "Follow WB CQI-PMI-RI".
Page 213 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference DL multi-cluster allocation................... 213 MCS@CQI Table / CQI-MCS Mapping...............214 └ Follow WB CQI..................... 214 └ Follow WB CQI-RI..................215 └ Follow WB CQI-PMI-RI................. 215 Use 256-QAM There are two CQI and MCS definition tables in 3GPP TS 36.213, one table with 256- QAM and one table without 256-QAM.
Page 214 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FWBCqi:MCLuster:DL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:MCLuster:DL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:MCLuster:DL Plus corresponding PCC commands. MCS@CQI Table / CQI-MCS Mapping The mapping table assigns an MCS index value (0 to 28, with 256-QAM 0 to 27) to each possible reported wideband CQI index value (1 to 15). The MCS index value used for the downlink is dynamically determined according to this table, using the pre- vious wideband CQI value reported by the UE.
Page 215 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Follow WB CQI-RI ← MCS@CQI Table / CQI-MCS Mapping The following commands apply to the scheduling type "Follow WB CQI-RI". Remote command: CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable: UDEFined CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable: SSUBframe:UDEFined SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable:DETermined? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable:SSUBframe: DETermined? Plus corresponding PCC commands. Follow WB CQI-PMI-RI ←...
Page 216 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-93: Follow WB PMI DL settings, TDD, UL-DL config 1 Scheduled CQI......................216 #RB / Start RB......................216 DL multi-cluster allocation................... 217 Mod. / TBS Idx......................217 TBS..........................217 Code Rate........................217 Throughput........................217 Scheduled CQI According to 3GPP TS 36.521, some subframes must be inactive (not scheduled), depending on the duplex mode and the scheduling type, see Chapter 2.2.15, "CQI...
Page 217: Cqi Reporting
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPMI:DL CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPRI:DL DL multi-cluster allocation To enable DL multi-cluster allocation, see "Multicluster DL" on page 192. To configure the clusters, press the button "RB Clusters" in the main view. The follow- ing configuration window opens. In this dialog box, you can enable or disable each individual RBG via the checkboxes.
Page 218 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-94: CQI reporting settings Enable CQI Reporting....................218 Format Indicator......................218 CSI - Report Mode...................... 218 Enable PMI/RI Reporting (TM 8, 9)................218 CQI/PMI Config Index....................219 CQI/PMI Reporting Period / Offset................219 Configuration Hints......................219 Enable CQI Reporting Enables periodic CQI reporting ("Periodic") or disables CQI reporting completely...
Page 219 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference "ON" The UE reports also PMI and RI values (if reporting is enabled at all). For TM 9, reported values are based on the CSI reference signal. For PMI and RI reports, you must enable at least two CSI-RS antenna ports.
Page 220: Ue Measurement Report Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference PCC: "cqi-pmi-ConfigIndex" = 3 means offset = 1, period = 5 SCC: "cqi-pmi-ConfigIndex" = 9 means offset = 2, period = 10 The following table shows the resulting configuration for two frames. There is a colli- sion in subframe number 1, with CQI/PMI reporting for the PCC and RI reporting for the SCC.
Page 221 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Measurement Gap Period................... 221 Filter Coefficient RSRP/RSRQ..................221 WCDMA Measurement Quantity.................221 Measurement Cycle SCell...................222 Report Enables or disables the UE measurement report. Configure the other settings before enabling this parameter. Remote command: CONFigure:LTE:SIGN<i>:UEReport:ENABle Reporting Interval Sets the interval between two consecutive measurement reports.
Page 222: Messaging (Sms) Parameters
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:UEReport:WMQuantity Measurement Cycle SCell Specifies how often the UE must measure the SCC in state "RRC Added". The setting is signaled to the UE as "measCycleSCell". The measurement period is calculated from the configured value.
Page 223 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-97: Outgoing SMS parameters Large SMS Handling....................223 Outgoing Message Handling..................224 Outgoing SMS......................224 Outgoing SMS binary....................224 Protocol Identifier......................224 Data Coding / Character Set..................224 User Data Header....................... 224 Coding Group......................225 Message Class......................225 Originator SMSC...
Page 224: Outgoing Message Handling
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:SMS:OUTGoing:LHANdling Outgoing Message Handling Selects whether the message text is defined via the GUI or read from a file. "Use Internal" Use the message text configured via the GUI (Outgoing SMS Out- going SMS binary).
Page 225: Coding Group
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference ● Length of information element (IEIDL, one octet) ● Information element data (IED, 0 to n octets) The signaling application sets the TP-UDHI automatically, according to the checkbox. With enabled checkbox, it sends the hex value to the UE and uses the correct number of fill bits in the header.
Page 226: From File
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:TSOurce CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:DATE CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:TIME From File This node selects a file containing the message to be transmitted. The file is used for Outgoing Message Handling = "From File". Select File ← From File Selects a file from the system drive folder D:\Rohde-Schwarz\CMW\Data\SMS\LTE\Send or one of its subfolders.
Page 227: Messaging (Cbs) Parameters
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-98: Incoming SMS parameters Select File Selects a file from the system drive folder D:\Rohde-Schwarz\CMW\Data\SMS\LTE\Received. Incoming messages are stored there with the file extension .sms. Only messages received in the current session are available. The files are deleted dur- ing startup.
Page 228 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The supported CBS messages can be divided into two categories: ● Commercial mobile alert system (CMAS) messages: Message types: presidential alert, extreme alert, severe alert and amber alert CMAS messages are transmitted via SIB 12. The term CMAS is used in 3GPP specifications.
Page 229: Enable
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Enable Enables the transmission of cell broadcast messages via system information mes- sages. Cell broadcast messages are transmitted if this checkbox is switched on and the cell is switched on. Remote command: CONFigure:LTE:SIGN<i>:CBS:MESSage:ENABle Select a message type.
Page 230: Shortcut Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:SIGN<i>:CBS:MESSage:SOURce Data Defines the contents of a message for the data source "Use Internal". Remote command: CONFigure:LTE:SIGN<i>:CBS:MESSage:DATA From File Selects a file containing the message to be transmitted. The file is used if the config- ured data source equals "From File".
Page 231: Message Monitoring Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-100: Shortcut configuration Select Menu Selects a measurement. The corresponding shortcut softkey opens a dialog presenting this measurement as default target or uses the measurement as fixed target. Select as fixed Target Configures and renames the corresponding shortcut softkey.
Page 232: Bler Measurement Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.20 BLER Measurement Configuration The "Extended BLER" measurement is included in the "LTE signaling" application. To access the measurement, press the softkey "LTE RX Meas" in the LTE signaling main view. Then select the tab "Extended BLER". The views and configuration dialogs of the tab are described in this section.
Page 233 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-102: Extended BLER result overview Results For a detailed description of the individual views and results, see Chapter 2.2.20, "Extended BLER Measurement", on page 74. For result retrieval commands, see Chapter 2.6.20.3, "Measurement Results", on page 590.
Page 234 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-103: Extended BLER settings Repetition........................234 Stop Condition......................234 No. of Subframes......................235 Error Ratio Calculation....................235 Confidence BLER......................235 └ Over All Stop Decision.................. 235 └ Minimum Test Time..................236 └ Limit Error Rate.....................236 Suppress "Cell Off"...
Page 235 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference No. of Subframes For measurements without stop condition, this parameter defines the number of sub- frames to be processed per measurement cycle (a single-shot measurement covers one measurement cycle). For confidence BLER measurements, this parameter specifies only the length of the throughput result trace.
Page 236: Rlc Throughput Measurement Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference – If at least one result = "Early Fail": Overall result = "Early Fail" – Else, if at least one result = "Fail": Overall result = "Fail" – Else, if all results = "Early Pass": Overall result = "Early Pass" –...
Page 237 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.21.1 Measurement Control To turn the measurement on or off, select the control softkey and press ON | OFF or RESTART | STOP. Alternatively, right-click the control softkey. See also: "Measurement Control" in the R&S CMW base unit manual, chapter "System Overview"...
Page 238 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-104: RLC throughput tab Results For a detailed description of the results, see Chapter 2.2.21.2, "Measurement Results", on page 86. Remote command: etc. FETCh:LTE:SIGN<i>:THRoughput? etc. FETCh:LTE:SIGN<i>:THRoughput:TRACe:UL:PDU:CURRent? etc. FETCh:LTE:SIGN<i>:THRoughput:TRACe:DL:PDU:CURRent? 2.4.21.3 Settings The "RLC Throughput" parameters configure the scope of the measurement. Figure 2-105: RLC throughput settings Repetition........................
Page 239: Annex: Ue Capabilities
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference "Single-Shot" The measurement stops automatically when the configured "Window Size" has been processed. Remote command: CONFigure:LTE:SIGN<i>:THRoughput:REPetition Update Interval Number of subframes used to derive a single throughput result (multiple of 100 sub- frames). Remote command: CONFigure:LTE:SIGN<i>:THRoughput:UPDate Window Size...
Page 240 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-106: General UE capability information Access Stratum Release.....................240 Category........................240 Feature Group Indicators.................... 240 Feature Group Indicators Rel9 Add................240 Feature Group Indicators Rel 10.................241 Device Type........................ 241 rach Report......................... 241 Access Stratum Release Supported release of the E-UTRA layer one, two and three specifications.
Page 241 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SENSe:LTE:SIGN<i>:UECapability:FGINdicators:RNADd? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:FGINdicators:RNADd? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators:RNADd? Feature Group Indicators Rel 10 32-bit value, containing one bit per feature group ("1" = supported, "0" = not suppor- ted). The features assigned to the individual bits are listed in the annex of 3GPP TS 36.331, table C.1-1.
Page 242 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference ROHC RTP to ROHCv2 IP..................242 Max Num ROHC Context Sessions................242 PDCP SN Extension....................242 Support ROHC Context Continue................242 ROHC RTP to ROHCv2 IP Support of the robust header compression profiles with the profile identifiers 0x0001 to 0x0004, 0x0006, 0x0101 to 0x0104.
Page 243 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference cross Carrier Scheduling Supported................244 simultaneous PUCCH PUSCH Supported..............244 multi Cluster PUSCH within CC Supported..............244 non Contiguous UL RA within CC List Supported............244 UE TX Antenna Selection Supported Support of transmit antenna selection, see 3GPP TS 36.213. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:UTASupported? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:UTASupported?
Page 244 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference cross Carrier Scheduling Supported Support of cross-carrier scheduling for CA. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:CCSSupport? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:CCSSupport? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:CCSSupport? simultaneous PUCCH PUSCH Supported UE baseband supports simultaneous transmission of PUCCH and PUSCH and is band agnostic. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:SPPSupport? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:SPPSupport? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:SPPSupport?
Page 245 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-109: Physical layer UE capabilities InterfHandl......................245 ePDCCH........................245 multiACK CSI Reporting....................245 SS CCH InterfHandl....................246 SpecialSubframe....................246 txDiv PUCCH1b ChSelect...................246 CoMP........................246 interBand TDD CA With Different Config..............246 e HARQ Pattern FDD....................246 enhanced 4 Tx Codebook...................
Page 246: Ul Comp
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference SS CCH InterfHandl Support of synchronization signal and common channel interference handling. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:SCIHandl? TDD SpecialSubframe Support of TDD special subframe as defined in 3GPP TS 36.211. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:TSSubframe? txDiv PUCCH1b ChSelect Support of transmit diversity for PUCCH format 1b with channel selection.
Page 247: Phy Tdd Reconfig Fdd Pcell
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:TRCTddpcell? phy TDD ReConfig FDD PCell Support of TDD UL/DL reconfiguration for TDD serving cell via monitoring PDCCH on an FDD PCell. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:TRCFddpcell? pusch Feedback Mode Support of PUSCH feedback mode 3-2. Remote command: SENSe:LTE:SIGN<i>:UECapability:PLAYer:PFMode? pusch SRS PowerControl SubframeSet...
Page 248 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-110: RF UE capabilities Supported Bands......................248 Supported Band Combination..................248 Retrieval........................249 Requested Bands......................249 Freq Band Priority Adjustment..................249 Supported Bands The UE supports all listed operating bands. Column "Half Duplex" indicates whether the UE supports only half duplex operation for the band.
Page 249 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference The table "Band combinations vs Parameter" contains one row per band combination. The columns indicate the bands. Column "BW Comb. Set" indicates which bandwidth combination sets are supported for a band combination. The leftmost bit corresponds to set 0, the next bit to set 1, and so on.
Page 250 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.22.6 Measurement UE Capabilities This section indicates the UE capabilities for channel measurements, for example on other operating bands or on other radio access technologies (RAT). Figure 2-111: Measurement UE capabilities Inter-Freq Need for Gaps....................
Page 251 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Inter-RAT Need for Gaps Indicates the need for downlink measurement gaps when using a certain E-UTRA band and measuring on a supported band of another RAT. Each column corresponds to a specific used E-UTRA band, each row to a specific measured band of another RAT.
Page 252 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.22.7 Inter-RAT UE Capabilities This section indicates the inter-RAT handover capabilities of the UE. Figure 2-112: Inter-RAT handover UE capabilities UTRA-FDD........................253 └ Supported Bands..................253 └ e Redirection UTRA..................253 UTRA-TDD128......................253 └ Supported Bands..................
Page 253: Utra-Fdd
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference UTRA-FDD This node contains capability information for handover to UTRA FDD. Supported Bands ← UTRA-FDD Lists the supported UTRA FDD operating bands. A handover to these bands is suppor- ted by the UE. Remote command: SENSe:LTE:SIGN<i>:UECapability:IRAT:UFDD:SUPPorted? e Redirection UTRA ←...
Page 254: Dtm
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SENSe:LTE:SIGN<i>:UECapability:IRAT:GERan:PHGeran? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:GERan:PHGeran? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:GERan:PHGeran? dtm ← GERAN Support of the dual transfer mode (DTM) in GERAN. Remote command: SENSe:LTE:SIGN<i>:UECapability:IRAT:GERan:DTM? e Redirection GERAN ← GERAN Support of an enhanced redirection to GERAN, using system information provided upon redirection.
Page 255: Tx Config
® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: SENSe:LTE:SIGN<i>:UECapability:IRAT:CXRTt:SUPPorted? TX Config ← CDMA2000 1xRTT Support of single/dual transmitter. Dual transmitter allows the UE to transmit simultane- ously on E-UTRAN and 1xRTT. Remote command: SENSe:LTE:SIGN<i>:UECapability:IRAT:CXRTt:TCONfig? RX Config ← CDMA2000 1xRTT Support of single/dual receiver.
Page 256 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference In Device Coex Ind Support of in-device coexistence indication and autonomous denial functionality. Remote command: SENSe:LTE:SIGN<i>:UECapability:IDCindex? Power Pref Ind Support of power preference indication. Remote command: SENSe:LTE:SIGN<i>:UECapability:PPINdex? UE Rx Tx Time Diff Measurements Support of RX-TX time difference measurements.
Page 257 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-115: Proximity indication capabilities Intra Freq Proximity Indication Support of proximity indications for intra-frequency E-UTRAN CSG member cells. Remote command: SENSe:LTE:SIGN<i>:UECapability:CPINdication:FREQuency:INTRa? Inter Freq Proximity Indication Support of proximity indications for inter-frequency E-UTRAN CSG member cells. Remote command: SENSe:LTE:SIGN<i>:UECapability:CPINdication:FREQuency:INTer? utran Proximity Indication...
Page 258 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference utran SI-Acquisition for HO Support of system information acquisition for UMTS neighbor cells. Remote command: SENSe:LTE:SIGN<i>:UECapability:NCSacq:UTRan? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:UTRan? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:NCSacq:UTRan? 2.4.22.12 UE Based Network Performance Measurement UE Capabilities This section indicates UE capabilities for UE-based network performance measure- ments.
Page 259 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.22.14 WLAN IW UE Capabilities This section indicates UE capabilities for WLAN interworking. Figure 2-119: WLAN interworking capabilities WLAN IW RAN Rules Support of RAN-assisted WLAN interworking based on access network selection and traffic steering rules specified in 3GPP TS 36.304.
Page 260 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference Figure 2-121: MAC capabilities Logical Channel SR Prohibit Timer Support of logical channel SR prohibit timer as specified in 3GPP TS 36.321. Remote command: SENSe:LTE:SIGN<i>:UECapability:MAC:LCSPtimer? Long DRX Command Support of long DRX command MAC control element as specified in 3GPP TS 36.321. Remote command: SENSe:LTE:SIGN<i>:UECapability:MAC:LDRXcommand? 2.4.22.17...
Page 261 ® LTE Signaling R&S CMW-KM5xx/-KS5xx GUI Reference 2.4.22.18 SL UE Capabilities This section indicates UE capabilities for sidelink communication. Figure 2-123: Sidelink capabilities Comm Simultaneous Tx....................261 Disc Scheduled Resource Alloc.................. 261 Disc UE Selected Resource Alloc................261 Disc SLSS........................261 Disc Supported Proc....................
Page 262: Programming
® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5 Programming The following sections provide programming examples for the LTE signaling applica- tion. The examples contain SCPI commands supported by the R&S CMW and the following symbolic scripting commands: ● // <comment>: A <comment> ignored by the used programming tool ●...
Page 263 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming Each of the following command blocks activates a scenario, selects the related signal paths and configures the related external attenuations. Execute only one command block. // ***************************************************************************** // SISO, no CA, no fading // ***************************************************************************** ROUTe:LTE:SIGN:SCENario:SCELl:FLEXible SUW1,RF2C,RX1,RF2C,TX1 CONFigure:LTE:SIGN:RFSettings:EATTenuation:OUTPut 2 CONFigure:LTE:SIGN:RFSettings:EATTenuation:INPut 2...
Page 264 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // MIMO nx2, DL CA four carriers, internal fading, UL CA // ***************************************************************************** ROUTe:LTE:SIGN:SCENario:DHF:INTernal SUW11,R11C,RX11,R11C,TX11,R12C,TX13, SUW12,R13C,TX12,R14C,TX14,SUW21,R21C,TX21,R22C,TX23,SUW22,R23C,TX22,R24C,TX24 CONFigure:LTE:SIGN:RFSettings:PCC:EATTenuation:OUTPut1 2 CONFigure:LTE:SIGN:RFSettings:PCC:EATTenuation:OUTPut2 2 CONFigure:LTE:SIGN:RFSettings:SCC1:EATTenuation:OUTPut1 2 CONFigure:LTE:SIGN:RFSettings:SCC1:EATTenuation:OUTPut2 2 CONFigure:LTE:SIGN:RFSettings:SCC2:EATTenuation:OUTPut1 2 CONFigure:LTE:SIGN:RFSettings:SCC2:EATTenuation:OUTPut2 2 CONFigure:LTE:SIGN:RFSettings:SCC3:EATTenuation:OUTPut1 2 CONFigure:LTE:SIGN:RFSettings:SCC3:EATTenuation:OUTPut2 2 CONFigure:LTE:SIGN:RFSettings:PCC:EATTenuation:INPut 2 CONFigure:LTE:SIGN:RFSettings:SCC1:EATTenuation:INPut 2 2.5.1.3 Specifying General Settings...
Page 265 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.4 Configuring Operating Bands and Channels // ***************************************************************************** // Specify PCC operating band plus DL channel number and query the // automatically calculated UL channel number and the UL frequency in Hz. // Configure PCC frequency offsets for DL and UL. // Configure the SCC1.
Page 266 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.5 Configuring Internal Fading The following commands configure the PCC. To configure the SCC number <n>, sub- stitute :PCC: by :SCC<n>: (:SSC1:, :SCC2:, ...). / ***************************************************************************** // Configure standard fading for the PCC downlink: // Enable it and select a fading profile.
Page 267 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:DL:PCC:PCFich:POFFset 0 CONFigure:LTE:SIGN:DL:PCC:PHICh:POFFset 0 CONFigure:LTE:SIGN:DL:PCC:PDCCh:POFFset -3 SENSe:LTE:SIGN:DL:PCC:FCPower? // ***************************************************************************** // Configure the used CSI-RS power offset manually, // independent from the signaled power offset. // ***************************************************************************** CONFigure:LTE:SIGN:DL:PCC:CSIRs:MODE MANual CONFigure:LTE:SIGN:DL:PCC:CSIRs:POFFset -10 // ***************************************************************************** // Enable the OFDMA channel noise generator. // ***************************************************************************** CONFigure:LTE:SIGN:DL:PCC:OCNG ON // *****************************************************************************...
Page 268 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // Alternatively enable advanced UL power configuration, // define the parameter values to be signaled to the UE and // query values calculated from the parameters. // ***************************************************************************** CONFigure:LTE:SIGN:UL:PCC:APPower:EASettings ON CONFigure:LTE:SIGN:UL:PCC:APPower:RSPower:ADVanced 15 CONFigure:LTE:SIGN:UL:PCC:APPower:PIRPower:ADVanced -100 CONFigure:LTE:SIGN:UL:PCC:APPower:PNPusch:ADVanced -81 CONFigure:LTE:SIGN:UL:PCC:APPower:PCALpha:ADVanced DOT7 CONFigure:LTE:SIGN:UL:PCC:APPower:TPRRcsetup:ADVanced OFF...
Page 269 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:CELL:SCC1:ULDL 3 CONFigure:LTE:SIGN:CELL:SSUBframe 5 CONFigure:LTE:SIGN:CELL:SCC1:SSUBframe 7 // ***************************************************************************** // PRACH settings: answer preambles, set power step size, // PRACH configuration index, frequency offset, // logical root sequence index and zero correlation zone config. // ***************************************************************************** CONFigure:LTE:SIGN:CELL:PRACh:NRPReambles OFF CONFigure:LTE:SIGN:CELL:PRACh:PRSTep P4DB CONFigure:LTE:SIGN:CELL:PRACh:PCINdex:FDD 15...
Page 270 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:NCELl:LTE:THResholds:LOW 5 CONFigure:LTE:SIGN:NCELl:GSM:THResholds:LOW 5 CONFigure:LTE:SIGN:NCELl:WCDMa:THResholds:LOW 5 CONFigure:LTE:SIGN:NCELl:CDMA:THResholds:LOW 10 CONFigure:LTE:SIGN:NCELl:EVDO:THResholds:LOW 10 CONFigure:LTE:SIGN:NCELl:TDSCdma:THResholds:LOW 5 // ***************************************************************************** // Specify general reselection parameters for the cell. // ***************************************************************************** CONFigure:LTE:SIGN:CELL:RESelection:SEARch:INTRasearch OFF CONFigure:LTE:SIGN:CELL:RESelection:SEARch:NINTrasearch OFF CONFigure:LTE:SIGN:CELL:RESelection:TSLow 14 CONFigure:LTE:SIGN:CELL:RESelection:QUALity:RXLevmin -130 2.5.1.10 Configuring Other Network Settings // ***************************************************************************** // Specify MCC, 2-digit MNC and tracking area code.
Page 271 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // Disable sending of a DNS IP address to the UE, configure reject causes, // enable IE "EPS Network Feature Support" and configure its contents. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:SDNSpco OFF CONFigure:LTE:SIGN:CELL:RCAuse:ATTach CONG22 CONFigure:LTE:SIGN:CELL:RCAuse:TAU TANA12 CONFigure:LTE:SIGN:CELL:NAS:EPSNetwork ON CONFigure:LTE:SIGN:CELL:NAS:IMSVops NSUP CONFigure:LTE:SIGN:CELL:NAS:EMCBs SUPP CONFigure:LTE:SIGN:CELL:NAS:EPCLcs NSUP...
Page 272 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:CONNection:QCI? CONFigure:LTE:SIGN:CONNection:SIBReconfig RRCReconfig CONFigure:LTE:SIGN:CONNection:KRRC OFF CONFigure:LTE:SIGN:CONNection:RITimer 20 // ***************************************************************************** // Enable usage of external DAU and specify network segment and network ID // of instrument with external DAU. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:EDAU:ENABle ON CONFigure:LTE:SIGN:CONNection:EDAU:NSEGment A CONFigure:LTE:SIGN:CONNection:EDAU:NID 5 // ***************************************************************************** // Activate DL padding and insert 10% transport block errors.
Page 273 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:CONNection:SCC:PDCCh:SYMBol P3 SENSe:LTE:SIGN:CONNection:SCC:PDCCh:PSYMbols? CONFigure:LTE:SIGN:CONNection:SCC:PDCCh:ALEVel AUTO SENSe:LTE:SIGN:CONNection:SCC:PDCCh:ALEVel? // ***************************************************************************** // Configure GSM, WCDMA and TD-SCDMA target for MO CSFB. // Activate the GSM target. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:CSFB:GSM G09, 1000, G18 CONFigure:LTE:SIGN:CONNection:CSFB:WCDMa OB1, 10600 CONFigure:LTE:SIGN:CONNection:CSFB:TDSCdma OB1, 9500 CONFigure:LTE:SIGN:CONNection:CSFB:DESTination GSM // ***************************************************************************** // Configure list of requested frequency bands for UE capability report.
Page 274 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.14 Configuring MIMO Settings The following commands configure the PCC. To configure the SCC number <n>, sub- stitute :PCC: by :SCC<n>:. // ***************************************************************************** // Select mode 4 (closed loop spatial multiplexing), DCI format 2 and // two transmit antennas (MIMO 2x2).
Page 275 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:CONNection:PCC:TM9:CSIRs:APORts P1516 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CSIRs:RESource 11 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CSIRs:SUBFrame 8 CONFigure:LTE:SIGN:CONNection:PCC:TM9:ZP:BITS #B1010000000000000 CONFigure:LTE:SIGN:CONNection:PCC:TM9:ZP:CSIRs:SUBFrame 8 // ***************************************************************************** // Configure channel matrix for TM 9: 2x2, 4x2 and 8x2. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:TWO1 0.9,0,45 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:TWO2 0.1,45,0 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:FOUR1 0.1,0,0.2,0,0.3,0,270 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:FOUR2 0.4,270,0.3,90,0.2,90,180 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:EIGHt1 0.05,15,0.05,30,0.1,15,0.1, 30,0.15,15,0.15,30,0.2,15,30 CONFigure:LTE:SIGN:CONNection:PCC:TM9:CMATrix:EIGHt2 0.2,30,0.2,15,0.15,30,0.15, 15,0.1,30,0.1,15,0.05,30,15...
Page 276 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // is selected automatically. // Configure the upper end of the channel bandwidth as RB position (not really // relevant for DL - the 50 RBs use the entire bandwidth). // Select version 1 of ambiguous RMCs. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe RMC CONFigure:LTE:SIGN:CONNection:PCC:MCLuster:UL OFF...
Page 277 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // ***************************************************************************** // Define the same user-defined channel for the second MIMO downlink stream. // Query the resulting maximum expected throughput for that stream and for // both PCC downlink streams together. Query the code rate. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:UDCHannels:DL2 15,12,Q64,26 SENSe:LTE:SIGN:CONNection:ETHRoughput:DL:PCC:STReam2?
Page 278 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.18 Configuring TTI-Based User-Defined Channels The following commands configure the PCC. To configure the SCC number <n>, sub- stitute :PCC: by :SCC<n>:. // ***************************************************************************** // TTI-based user-defined channels: Select scheduling type, // configure subframe number 3 and 4, UL and both PCC DL streams. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe UDTTibased CONFigure:LTE:SIGN:CONNection:PCC:UDTTibased:UL 3,12,21,QPSK,9...
Page 279 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:SIGN:CONNection:PCC:QAM256:DL ON // ***************************************************************************** // Fixed CQI downlink channels: Select scheduling type. // Configure subframe number 3 and 4, both PCC DL streams. // For uplink, see TTI-based user-defined channels. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe CQI, TTIBased CONFigure:LTE:SIGN:CONNection:PCC:FCTTibased:DL1 3,15,12,10 CONFigure:LTE:SIGN:CONNection:PCC:FCTTibased:DL1 4,15,12,10 CONFigure:LTE:SIGN:CONNection:PCC:FCTTibased:DL2 3,15,12,10...
Page 280 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe CQI,FPMI ON,ON,ON,ON,ON,ON,ON,ON,ON,ON CONFigure:LTE:SIGN:CONNection:PCC:FPMI:DL:STTI CONFigure:LTE:SIGN:CONNection:PCC:FPMI:DL 50,0,Q16,11 //or multi-cluster: CONFigure:LTE:SIGN:CONNection:PCC:FPMI:MCLuster:DL #B10101101011010111,Q16,11 // ***************************************************************************** // Follow WB PMI-RI PCC downlink channels: Select scheduling type. // Configure the RB allocation. // Contiguous RB allocation and alternatively multi-cluster DL allocation. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe CQI,FPRI CONFigure:LTE:SIGN:CONNection:PCC:FPRI:DL:STTI ON,ON,ON,ON,ON,ON,ON,ON,ON,ON...
Page 281 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // Query the resulting code rates and expected throughput. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:STYPe SPS CONFigure:LTE:SIGN:CONNection:PCC:SPS:TIConfig ON CONFigure:LTE:SIGN:CONNection:PCC:SPS:SINTerval S20 CONFigure:LTE:SIGN:CONNection:PCC:SPS:DL 10,20,QPSK,9 CONFigure:LTE:SIGN:CONNection:PCC:SPS:UL 10,20,QPSK,9 SENSe:LTE:SIGN:CONNection:PCC:SPS:DL:CRATe:ALL? SENSe:LTE:SIGN:CONNection:PCC:SPS:UL:CRATe:ALL? SENSe:LTE:SIGN:CONNection:ETHRoughput:DL:ALL? SENSe:LTE:SIGN:CONNection:ETHRoughput:UL? 2.5.1.21 Configuring CQI Reporting // ***************************************************************************** // Enable periodic CQI reporting, set the CSI reporting mode, // enable PMI/RI reporting and set the cqi-pmi-ConfigIndex for PCC // and SCC1, FDD and TDD.
Page 282 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.23 Configuring Message Monitoring // ***************************************************************************** // Enable message monitoring for LTE, select address number 2 from the global // logging PC address pool and query the corresponding IP address string. // ***************************************************************************** CONFigure:LTE:SIGN:MMONitor:ENABle ON CONFigure:LTE:SIGN:MMONitor:IPADdress IP2 CONFigure:LTE:SIGN:MMONitor:IPADdress? 2.5.1.24...
Page 283 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // ***************************************************************************** // Switch on the UE and wait until it is attached (connection state = ATT). // ***************************************************************************** WAITKEY >Switch on the UE< WHILE FETCh:LTE:SIGN:PSWitched:STATe? <> "ATT" // ***************************************************************************** // Query the RRC connection state. // ***************************************************************************** SENSe:LTE:SIGN:RRCState? // *****************************************************************************...
Page 284 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming ● Modify parameters, see Chapter 2.5.1.37, "Modifying Parameters for an Estab- lished Connection", on page 292 2.5.1.28 Connecting/Releasing Dedicated Bearers This section is only relevant for data application tests, not for test mode connections. // ***************************************************************************** // Query a list of established default bearers.
Page 285 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.1.30 Querying UE Information // ***************************************************************************** // Query all UE information results. // ***************************************************************************** SENSe:LTE:SIGN:UESinfo:IMEI? SENSe:LTE:SIGN:UESinfo:IMSI? SENSe:LTE:SIGN:UESinfo:VDPReference? SENSe:LTE:SIGN:UESinfo:UEUSage? SENSe:LTE:SIGN:UESinfo:UEADdress:IPV4? SENSe:LTE:SIGN:UESinfo:UEADdress:IPV6? SENSe:LTE:SIGN:UESinfo:UEADdress:DEDBearer:SEParate? 2.5.1.31 Querying UE Capability Report Contents // ***************************************************************************** // Query general UE capability information. // ***************************************************************************** SENSe:LTE:SIGN:UECapability:ASRelease? SENSe:LTE:SIGN:UECapability:UECategory?
Page 286 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:USRSsupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:USRSsupport? SENSe:LTE:SIGN:UECapability:PLAYer:EDLFsupport? SENSe:LTE:SIGN:UECapability:PLAYer:EDLTsupport? SENSe:LTE:SIGN:UECapability:PLAYer:TAPPsupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:TAPPsupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:TAPPsupport? SENSe:LTE:SIGN:UECapability:PLAYer:TWEFsupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:TWEFsupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:TWEFsupport? SENSe:LTE:SIGN:UECapability:PLAYer:PDSupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:PDSupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:PDSupport? SENSe:LTE:SIGN:UECapability:PLAYer:CCSSupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:CCSSupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:CCSSupport? SENSe:LTE:SIGN:UECapability:PLAYer:SPPSupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:SPPSupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:SPPSupport? SENSe:LTE:SIGN:UECapability:PLAYer:MCPCsupport? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:MCPCsupport? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:MCPCsupport? SENSe:LTE:SIGN:UECapability:PLAYer:NURClist? SENSe:LTE:SIGN:UECapability:FAUeeutra:PLAYer:NURClist? SENSe:LTE:SIGN:UECapability:TAUeeutra:PLAYer:NURClist? SENSe:LTE:SIGN:UECapability:PLAYer:CIHandl? SENSe:LTE:SIGN:UECapability:PLAYer:EPDCch? SENSe:LTE:SIGN:UECapability:PLAYer:MACReporting? SENSe:LTE:SIGN:UECapability:PLAYer:SCIHandl? SENSe:LTE:SIGN:UECapability:PLAYer:TSSubframe? SENSe:LTE:SIGN:UECapability:PLAYer:TDPChselect? SENSe:LTE:SIGN:UECapability:PLAYer:ULComp? SENSe:LTE:SIGN:UECapability:PLAYer:ITCWithdiff? SENSe:LTE:SIGN:UECapability:PLAYer:EHPFdd? SENSe:LTE:SIGN:UECapability:PLAYer:EFTCodebook? SENSe:LTE:SIGN:UECapability:PLAYer:TFCPcelldplx? SENSe:LTE:SIGN:UECapability:PLAYer:TRCTddpcell?
Page 287 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa1? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa2? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa3? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa4? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa1:BCLass:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa2:BCLass:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa3:BCLass:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa4:BCLass:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa1:BCLass:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa2:BCLass:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa3:BCLass:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa4:BCLass:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa1:MCAPability:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa2:MCAPability:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa3:MCAPability:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa4:MCAPability:UL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa1:MCAPability:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa2:MCAPability:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa3:MCAPability:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1020:EUTRa4:MCAPability:DL? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1090:EUTRa1? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1090:EUTRa2? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1090:EUTRa3? SENSe:LTE:SIGN:UECapability:RF:BCOMbination:V1090:EUTRa4? SENSe:LTE:SIGN:UECapability:RF:FBRetrieval? SENSe:LTE:SIGN:UECapability:RF:RBANds? SENSe:LTE:SIGN:UECapability:RF:FBPadjust? // ***************************************************************************** // Query measurement UE capabilities. // ***************************************************************************** SENSe:LTE:SIGN:UECapability:MEAS:IFNGaps? SENSe:LTE:SIGN:UECapability:MEAS:IRNGaps:UFDD?
Page 288 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming SENSe:LTE:SIGN:UECapability:IRAT:UFDD:EREDirection:UTRA? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:EREDirection:UTRA? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:EREDirection:UTRA? SENSe:LTE:SIGN:UECapability:IRAT:UTDD128:SUPPorted? SENSe:LTE:SIGN:UECapability:IRAT:UTDD128:EREDirection:UTDD? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:EREDirection:UTDD? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:EREDirection:UTDD? SENSe:LTE:SIGN:UECapability:IRAT:GERan:SUPPorted? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:GERan:SUPPorted? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:GERan:SUPPorted? SENSe:LTE:SIGN:UECapability:IRAT:GERan:PHGeran? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:GERan:PHGeran? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:GERan:PHGeran? SENSe:LTE:SIGN:UECapability:IRAT:GERan:DTM? SENSe:LTE:SIGN:UECapability:IRAT:GERan:EREDirection? SENSe:LTE:SIGN:UECapability:IRAT:CDMA2000:NWSHaring? SENSe:LTE:SIGN:UECapability:IRAT:CHRPd:SUPPorted? SENSe:LTE:SIGN:UECapability:IRAT:CHRPd:TCONfig? SENSe:LTE:SIGN:UECapability:IRAT:CHRPd:RCONfig? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:SUPPorted? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:TCONfig? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:RCONfig? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:ECSFb? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:CXRTt:ECSFb? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:CXRTt:ECSFb? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:ECCMob? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:CXRTt:ECCMob? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:CXRTt:ECCMob? SENSe:LTE:SIGN:UECapability:IRAT:CXRTt:ECDual? SENSe:LTE:SIGN:UECapability:FAUeeutra:IRAT:CXRTt:ECDual? SENSe:LTE:SIGN:UECapability:TAUeeutra:IRAT:CXRTt:ECDual? // ***************************************************************************** // Query other UE capabilities. // ***************************************************************************** SENSe:LTE:SIGN:UECapability:IDCindex? SENSe:LTE:SIGN:UECapability:PPINdex?
Page 289 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming SENSe:LTE:SIGN:UECapability:CPINdication:FREQuency:INTer? SENSe:LTE:SIGN:UECapability:CPINdication:UTRan? // ***************************************************************************** // Query neighbor cell SI-acquisition UE capabilities. // ***************************************************************************** SENSe:LTE:SIGN:UECapability:NCSacq:FREQuency:INTRa? SENSe:LTE:SIGN:UECapability:FAUeeutra:NCSacq:FREQuency:INTRa? SENSe:LTE:SIGN:UECapability:TAUeeutra:NCSacq:FREQuency:INTRa? SENSe:LTE:SIGN:UECapability:NCSacq:FREQuency:INTer? SENSe:LTE:SIGN:UECapability:FAUeeutra:NCSacq:FREQuency:INTer? SENSe:LTE:SIGN:UECapability:TAUeeutra:NCSacq:FREQuency:INTer? SENSe:LTE:SIGN:UECapability:NCSacq:UTRan? SENSe:LTE:SIGN:UECapability:FAUeeutra:NCSacq:UTRan? SENSe:LTE:SIGN:UECapability:TAUeeutra:NCSacq:UTRan? // ***************************************************************************** // Query UE-based network performance measurement capabilities. // ***************************************************************************** SENSe:LTE:SIGN:UECapability:UBNPmeas:LMIDle? SENSe:LTE:SIGN:UECapability:UBNPmeas:SGLocation? SENSe:LTE:SIGN:UECapability:LMMeas? // *****************************************************************************...
Page 290 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming SENSe:LTE:SIGN:UECapability:SL:DSRalloc? SENSe:LTE:SIGN:UECapability:SL:DUSRalloc? SENSe:LTE:SIGN:UECapability:SL:DSLSs? SENSe:LTE:SIGN:UECapability:SL:DSPRoc? 2.5.1.32 Performing an Intra-RAT Handover // ***************************************************************************** // An intra-RAT handover is a handover within the LTE signaling application. // Select the LTE signaling application as handover destination. // Define the destination parameters: band 2, DL channel no. 910, // 10 MHz cell bandwidth, additional requirement NS_03.
Page 291 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming PREPare:LTE:SIGN:HANDover:DESTination "No Connection" PREPare:LTE:SIGN:HANDover:EXTernal:DESTination WCDMa PREPare:LTE:SIGN:HANDover:EXTernal:WCDMa OB1, 10565 CALL:LTE:SIGN:PSWitched:ACTion HANDover PREPare:LTE:SIGN:HANDover:EXTernal:CDMA USC, 500 PREPare:LTE:SIGN:HANDover:EXTernal:EVDO USC, 500 PREPare:LTE:SIGN:HANDover:EXTernal:GSM G09, 55, G18 PREPare:LTE:SIGN:HANDover:EXTernal:LTE OB1, 300 PREPare:LTE:SIGN:HANDover:EXTernal:TDSCdma OB1, 10565 2.5.1.35 Sending / Receiving a Short Message // ***************************************************************************** // Configure support of concatenated SMS.
Page 292 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming WHILE SENSe:LTE:SIGN:SMS:INFO:LRMessage:RFLag? <> "OFF" SENSe:LTE:SIGN:SMS:INComing:INFO:DCODing? SENSe:LTE:SIGN:INComing:INFO:MTEXt? SENSe:LTE:SIGN:SMS:INComing:INFO:MLENgth? SENSe:LTE:SIGN:SMS:INComing:INFO:SEGMent? // ***************************************************************************** // Configure outgoing messages via a file: // Select message file and query file information. // ***************************************************************************** CONFigure:LTE:SIGN:SMS:OUTGoing:MESHandling FILE CONFigure:LTE:SIGN:SMS:OUTGoing:FILE "@USERDATA\sms\LTE\Send\myfile.sms" CONFigure:LTE:SIGN:SMS:OUTGoing:FILE:INFO? // ***************************************************************************** // Get information about an old received short message: // Select a message file and query information about it.
Page 293 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // block size index 6. // Position the resource blocks at the lower end of the channel bandwidth. // ***************************************************************************** CONFigure:LTE:SIGN:CONNection:PCC:RMC:DL N50,QPSK,T5 CONFigure:LTE:SIGN:CONNection:PCC:RMC:UL N50,QPSK,T6 CONFigure:LTE:SIGN:CONNection:PCC:RMC:RBPosition:DL LOW CONFigure:LTE:SIGN:CONNection:PCC:RMC:RBPosition:UL LOW // ***************************************************************************** // Modify the RS EPRE level for the PCC. // ***************************************************************************** CONFigure:LTE:SIGN:DL:PCC:RSEPre:LEVel -83 // *****************************************************************************...
Page 294: Bler Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.2 BLER Tests The BLER measurement provided by the LTE signaling application is programmed as follows: ● The application is controlled by SCPI commands with the following syn- tax: ...:LTE:SIGN:EBLer:... ● After a *RST, the measurement is switched off. You can start the measurement using INIT:LTE:SIGN:EBLer and retrieve the results using FETCh commands.
Page 295 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming INIT:LTE:SIGN:EBLer FETCh:LTE:SIGN:EBLer:PCC:CONFidence? FETCh:LTE:SIGN:EBLer:SCC:CONFidence? FETCh:LTE:SIGN:EBLer:ALL:CONFidence? 2.5.2.3 Performing a Continuous BLER Measurement // ***************************************************************************** // Start a continuous BLER measurement. // Wait until the measurement is really running. // ***************************************************************************** CONFigure:LTE:SIGN:EBLer:REPetition CONT CONFigure:LTE:SIGN:EBLer:SCONdition NONE INIT:LTE:SIGN:EBLer WHILE FETCh:LTE:SIGN:EBLer:STATe:ALL? <> "RUN","ADJ","ACT" // ***************************************************************************** // Monitor intermediate BLER results for a SISO single carrier configuration, // by sending the following commands periodically.
Page 296 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming 2.5.2.4 Performing a Single-Shot BLER Measurement // ***************************************************************************** // Start a single-shot BLER measurement (one measurement cycle). // ***************************************************************************** CONFigure:LTE:SIGN:EBLer:REPetition SING CONFigure:LTE:SIGN:EBLer:SCONdition NONE INIT:LTE:SIGN:EBLer // ***************************************************************************** // Return BLER and throughput single results for a SISO single carrier // configuration.
Page 297 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming // ***************************************************************************** // Return CQI bar graphs and median CQI traces for a MIMO configuration with // carrier aggregation (PCC and SCC1). // ***************************************************************************** FETCh:LTE:SIGN:EBLer:TRACe:CQIReporting:PCC:STReam1? FETCh:LTE:SIGN:EBLer:TRACe:CQIReporting:PCC:STReam2? FETCh:LTE:SIGN:EBLer:TRACe:THRoughput:PCC:MCQI:STReam1? FETCh:LTE:SIGN:EBLer:TRACe:THRoughput:PCC:MCQI:STReam2? FETCh:LTE:SIGN:EBLer:TRACe:CQIReporting:SCC:STReam1? FETCh:LTE:SIGN:EBLer:TRACe:CQIReporting:SCC:STReam2? FETCh:LTE:SIGN:EBLer:TRACe:THRoughput:SCC:MCQI:STReam1? FETCh:LTE:SIGN:EBLer:TRACe:THRoughput:SCC:MCQI:STReam2? // ***************************************************************************** // Return RI and PMI bar graphs for PCC and SCC1.
Page 298: Rlc Throughput Tests
® LTE Signaling R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:SIGN:EBLer:SCC:HARQ:STReam2:SUBFrame:ABSolute? FETCh:LTE:SIGN:EBLer:SCC:HARQ:STReam2:SUBFrame:RELative? 2.5.3 RLC Throughput Tests The RLC throughput measurement provided by the LTE signaling application is pro- grammed as follows: ● The application is controlled by SCPI commands with the following syn- tax: ...:LTE:SIGN:THRoughput:... ●...
Page 299: Command Reference
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 5. Generate IP traffic, for example using the iperf measurement provided by the DAU. 2.5.3.3 Performing an RLC Throughput Measurement // ***************************************************************************** // Start the measurement and return the contents of the result table. // Query the measurement state (should be "RDY").
Page 300: Conventions And General Information
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.1 Conventions and General Information The following sections describe the most important conventions and general informa- tion concerning the command reference. 2.6.1.1 SIGN<i> SIGN<i> is used as abbreviation of SIGNaling<instance>. For better readability, only the abbreviated form (which is also accepted by the instrument) is given in the command reference.
Page 301 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference This section lists all values available for path selection. Depending on your configura- tion, only a subset is relevant for you. Virtual connector names are only relevant for setting commands. Queries return the physical connector names. Additional information is available in the base software documentation.
Page 302 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference TX11 | TX12 | TX13 | TX14 | TX21 | TX22 | TX23 | TX24 TX31 | TX32 | TX33 | TX34 | TX41 | TX42 | TX43 | TX44 TX<a><b>: CMW <a>, TX <b> Example TX13: TX module 3 of CMW 1 ●...
Page 303 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Indicates the lowest software version supporting the command. Command enhancements in later software versions are also indicated. Indications of enhancements before V3.0.10 have been purged to improve the readability. 2.6.1.6 Reliability Indicator The first value in the output arrays of FETCh...?, READ...? and CALCulate...? queries indicates the most severe error that has occurred during the measurement.
Page 304 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference The measurement could not be started because the R&S CMW was not yet ready to deliver stable results after a change of the input signal power / the input signal frequency. ● 19 ("Call not Established"): For measurements: The measurement could not be started because no signaling connection to the DUT was established.
Page 305 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference The selected ARB file could not be found. ● 45 ("ARB Memory Overflow"): The ARB file length is greater than the available memory. ● 46 ("ARB Sample Rate out of Range)": The clock rate of the ARB file is either too high or too low. ●...
Page 306: General Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Indicates an error not covered by other reliability values. For troubleshooting, follow the steps described for "101 (Firmware Error)". ● 103 ("Parameter Error"): Indicates that the measurement could not be performed due to internal conflicting parameter settings.
Page 307 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>[:PCC]:DMODe:UCSPecific <Enable> Enables the carrier-specific duplex mode configuration. ● Enabled - The duplex mode is configured per carrier via: CONFigure:LTE:SIGN<i>[:PCC]:DMODe CONFigure:LTE:SIGN<i>:SCC<c>:DMODe ● Disabled - All carriers have the same duplex mode, configured via: CONFigure:LTE:SIGN<i>[:PCC]:DMODe Parameters: <Enable>...
Page 308 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference For possible connector and converter values, see Chapter 2.6.1.4, "Values for Signal Path Selection", on page 300. Suffix: <c> 1..3 Parameters: <UseUplink> OFF | ON *RST: <SCCRXConnector> RF connector for the SCC input path <SCCRXConverter>...
Page 309: Connection Control And States
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:CEXecute Copies PCC DL settings to the SCC number <c>. Suffix: <c> 1..3 Usage: Event Firmware/Software: V3.2.82 Manual operation: "Copy (button)" on page 118 2.6.3 Connection Control and States The commands in the following sections control the connection to the UE and retrieve connection-related information.
Page 310: Source:lte:sign:Cell:state:all
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <GeneratorState> OFF | PENDing | ON OFF: generator switched off PEND: generator switched on but no signal available yet ON: generator switched on, signal available *RST: Example: Attaching the UE and Activating SCCs Firmware/Software: V1.0.15.20 Manual operation: "Cell"...

Page 311: Call:lte:sign:Pswitched:action
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CALL:LTE:SIGN<i>:PSWitched:ACTion <PSAction> Controls the PS connection state. As a prerequisite, the DL signal must be switched on, see SOURce:LTE:SIGN<i>:CELL:STATe. Setting parameters: <PSAction> CONNect | DISConnect | SMS | DETach | HANDover CONNect: Initiate a mobile-terminated connection setup DISConnect: Release the connection SMS: Send an SMS DETach: Detach the UE...

Page 312: Fetch:lte:sign:Scc:State
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <PS State> OFF | ON | ATTached | CESTablished | DISConnect | CONNecting | SIGNaling | SMESsage | RMESsage | IHANdover | OHANdover OFF: signal off ON: signal on ATTached: UE attached CESTablished: connection established DISConnect: disconnect in progress CONNecting: connection setup in progress...

Page 313: Connect/Disconnect Preparation
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.3.2 Connect/Disconnect Preparation The following commands configure the dedicated bearer settings as a preparation for a dedicated bearer connect or disconnect, initiated via CALL:LTE:SIGN<i>: PSWitched:ACTion. The commands are only relevant for the connection type "Data Application". For the connection type "Testmode", no preparation is required.

Page 314 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <DefBearerID> Bearer ID string, selecting the default bearer, to which the dedi- cated bearer is mapped. String example: "5 (cmw500.rohde-schwarz.com)" To query a list of IDs for all established default bearers, see CATalog:LTE:SIGN<i>:CONNection:DEFBearer?.

Page 315: Handover Preparation
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Profile> VOICe | VIDeo | DRAM | DRUM Selects a dedicated bearer profile VOICe: for voice connections VIDeo: for video connections DRAM: for data connections with RLC acknowledged mode DRUM: for data connections with RLC unacknowledged mode *RST: DRUM <TFTportLowDL>...

Page 316 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ............... 316 PREPare:LTE:SIGN<i>:HANDover:DESTination ..........316 PREPare:LTE:SIGN<i>:HANDover:CATalog:DESTination? ..............316 PREPare:LTE:SIGN<i>:HANDover:MMODe ...............317 PREPare:LTE:SIGN<i>:HANDover:CTYPe .................. 317 PREPare:LTE:SIGN<i>:HANDover ..............318 PREPare:LTE:SIGN<i>:HANDover:ENHanced ..........319 PREPare:LTE:SIGN<i>:HANDover:EXTernal:DESTination ............319 PREPare:LTE:SIGN<i>:HANDover:EXTernal:CDMA ............319 PREPare:LTE:SIGN<i>:HANDover:EXTernal:EVDO ............320 PREPare:LTE:SIGN<i>:HANDover:EXTernal:GSM ............. 321 PREPare:LTE:SIGN<i>:HANDover:EXTernal:LTE ............321 PREPare:LTE:SIGN<i>:HANDover:EXTernal:TDSCdma ............322 PREPare:LTE:SIGN<i>:HANDover:EXTernal:WCDMa PREPare:LTE:SIGN<i>:HANDover:DESTination <Destination> Selects the handover destination.

Page 317 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Mode> REDirection | MTCSfallback | HANDover *RST: Example: Performing an Inter-RAT Handover Firmware/Software: V3.2.50, V3.5.20 added HANDover Options: R&S CMW-KS510 for MTCSfallback Manual operation: "Mobility Mode, Operating Band Change, Frequency Change" on page 124 PREPare:LTE:SIGN<i>:HANDover:CTYPe <Type>...

Page 318 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLBandwidth> B014 | B030 | B050 | B100 | B150 | B200 DL cell/channel bandwidth (also used for UL) 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz *RST: B100 <AddSpecEmission>...

Page 319 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Destination Parameters" on page 125 PREPare:LTE:SIGN<i>:HANDover:EXTernal:DESTination <Destination> Selects the target radio access technology for handover to another instrument. Parameters: <Destination> LTE | EVDO | CDMA | GSM | WCDMa | TDSCdma *RST: Example: Performing a Handover to Another Instrument...

Page 320 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLChannel> Channel number Range: depends on the band class, see table below *RST: Example: Performing a Handover to Another Instrument Firmware/Software: V3.0.20 Manual operation: "Destination Parameters" on page 125 Table 2-31: Channel number range depending on band class Band class Channel number USC, KCEL...

Page 321 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLChannel> Channel number used for the BCCH Range: depends on GSM band, see table below *RST: <BandIndicator> G18 | G19 Band indicator for distinction of GSM 1800 and GSM 1900 bands. The two bands partially use the same channel numbers for different frequencies.

Page 322 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Band> OB1 | OB2 | OB3 OB1: Band 1 (F), 1880 MHz to 1920 MHz OB2: Band 2 (A), 2010 MHz to 2025 MHz OB3: Band 3 (E), 2300 MHz to 2400 MHz *RST: <DLChannel>...

Page 323: Event Log
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Operating band Channel number 1162 to 1513 1537 to 1738, 1887 to 2087 (step 25) 1007, 1012, 1032, 1037, 1062, 1087, 4357 to 4458 1037, 1062, 4387 to 4413 2237 to 2563, 2587 to 2912 (step 25) 2937 to 3088 9237 to 9387 OB10...

Page 324: Ue Measurement Report Contents
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Event> Text string describing the event, e.g. "RRC Connection Established" Usage: Query only Firmware/Software: V2.1.30 Manual operation: "Event log entries" on page 110 SENSe:LTE:SIGN<i>:ELOG:ALL? Queries all entries of the event log. For each entry, three parameters are returned, from oldest to latest entry: {<Time- stamp>, <Category>, <Event>} , {<Timestamp>, <Category>, <Event>} , ...

Page 325 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..............326 SENSe:LTE:SIGN<i>:UEReport[:PCC]:SCELl? ............. 326 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:SCELl? .............327 SENSe:LTE:SIGN<i>:UEReport[:PCC]:SCELl:RANGe? ..........327 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:SCELl:RANGe? ........... 327 SENSe:LTE:SIGN<i>:UEReport:NCELl:LTE:CELL<no>? ........328 SENSe:LTE:SIGN<i>:UEReport:NCELl:LTE:CELL<no>:RANGe? ..........328 SENSe:LTE:SIGN<i>:UEReport:NCELl:GSM:CELL<no>? ........329 SENSe:LTE:SIGN<i>:UEReport:NCELl:GSM:CELL<no>:RANGe? ..........329 SENSe:LTE:SIGN<i>:UEReport:NCELl:WCDMa:CELL<no>? .........330 SENSe:LTE:SIGN<i>:UEReport:NCELl:WCDMa:CELL<no>:RANGe? ..........330 SENSe:LTE:SIGN<i>:UEReport:NCELl:CDMA:CELL<no>? ..........331 SENSe:LTE:SIGN<i>:UEReport:NCELl:EVDO:CELL<no>? ..........331 SENSe:LTE:SIGN<i>:UEReport:NCELl:TDSCdma:CELL<no>? ......331 SENSe:LTE:SIGN<i>:UEReport:NCELl:TDSCdma:CELL<no>:RANGe? SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRP? SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRP?

Page 326 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRQ? SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRQ? Returns the RSRQ reported by the UE as dimensionless index. Suffix: <c> 1..3 Return values: <RSRQ> Range: 0 to 34 Usage: Query only Firmware/Software: V2.0.10, SCC command V3.2.70 Manual operation: "LTE Serving Cell > RSRQ" on page 112 SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRQ:RANGe? SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRQ:RANGe?

Page 327 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "LTE Serving Cell > RSRP" on page 112 SENSe:LTE:SIGN<i>:UEReport[:PCC]:SCELl:RANGe? SENSe:LTE:SIGN<i>:UEReport:SCC<c>:SCELl:RANGe? Returns the value ranges corresponding to the dimensionless index values reported for the serving LTE cell. Suffix: <c> 1..3 Return values: <RSRPlower>...

Page 328 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "LTE Neighbor Cells > RSRP, RSRQ" on page 112 SENSe:LTE:SIGN<i>:UEReport:NCELl:LTE:CELL<no>:RANGe? Returns the value ranges corresponding to the dimensionless index values reported for the LTE neighbor cell number <no>. Suffix: <no>...

Page 329 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "GSM > RSSI" on page 112 SENSe:LTE:SIGN<i>:UEReport:NCELl:GSM:CELL<no>:RANGe? Returns the value range corresponding to the dimensionless RSSI index value repor- ted for the GSM neighbor cell number <no>. Suffix: <no>...

Page 330 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UEReport:NCELl:WCDMa:CELL<no>:RANGe? Returns the value ranges corresponding to the dimensionless index values reported for the WCDMA neighbor cell number <no>. Suffix: <no> 1..4 Return values: <RSCPlower> RSCP minimum value Range: -120 dBm to -25 dBm Default unit: dBm <RSCPupper>...

Page 331 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "CDMA2000 / 1xEV-DO > pilot Pn Phase, pilot Strength" on page 113 SENSe:LTE:SIGN<i>:UEReport:NCELl:EVDO:CELL<no>? Returns measurement report values for the 1xEV-DO neighbor cell number <no>. Suffix: <no> 1..4 Return values: <pilotPnPhase>...

Page 332: Ue Capabilities
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <no> 1..4 Return values: <RSCPlower> RSCP minimum value Range: -120 dBm to -25 dBm Default unit: dBm <RSCPupper> RSCP maximum value Range: -120 dBm to -25 dBm Default unit: dBm Example: Querying UE Measurement Report Contents Usage: Query only Firmware/Software: V3.2.20...

Page 333 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ........334 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:FGINdicators:RNADd? ........334 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators:RNADd? ..........334 SENSe:LTE:SIGN<i>:UECapability:FGINdicators:RTEN? ........334 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:FGINdicators:RTEN? ........334 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators:RTEN? ..............335 SENSe:LTE:SIGN<i>:UECapability:DTYPe? ..............335 SENSe:LTE:SIGN<i>:UECapability:RREPort? SENSe:LTE:SIGN<i>:UECapability:ASRelease? Returns the "Access Stratum Release" according to the UE capability information. Return values: <AccStratRelease> REL8 | REL9 | REL10 | REL11 | REL12 Example: Querying UE Capability Report Contents Usage:...

Page 334 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <UEcategory> Range: 0 to 13 Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.40 Manual operation: "UE Category" on page 240 SENSe:LTE:SIGN<i>:UECapability:FGINdicators? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:FGINdicators? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators? Returns the "featureGroupIndicators" contained in the UE capability information. The 32-bit value contains one bit per feature group (1 = supported, 0 = not supported).

Page 335 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <FeatureGroupInd> Range: #B0 to #B11111111111111111111111111111111 Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "Feature Group Indicators Rel 10" on page 241 SENSe:LTE:SIGN<i>:UECapability:DTYPe? Returns whether the UE benefits from NW-based battery consumption optimization or not.

Page 336 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PDCP:SRPRofiles? Returns UE capability information indicating the support of the individual robust header compression (ROHC) profiles. Return values: <ROHC_RTP> OFF | ON Support of profile 0x0001, ROHC RTP <ROHC_UDP> OFF | ON Support of profile 0x0002, ROHC UDP <ROHC_ESP>...

Page 337 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PDCP:SNEXtension? Returns whether the UE supports PDCP SN extension. Return values: <Extension> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "PDCP SN Extension" on page 242 SENSe:LTE:SIGN<i>:UECapability:PDCP:SRCContinue? Returns whether the UE supports ROHC context continuation during handover.

Page 338 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..........341 SENSe:LTE:SIGN<i>:UECapability:PLAYer:SPPSupport? .........341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:SPPSupport? .........341 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:SPPSupport? ..........341 SENSe:LTE:SIGN<i>:UECapability:PLAYer:MCPCsupport? ......341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:MCPCsupport? ......341 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:MCPCsupport? ............341 SENSe:LTE:SIGN<i>:UECapability:PLAYer:NURClist? ........341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:NURClist? ........341 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:NURClist? ............342 SENSe:LTE:SIGN<i>:UECapability:PLAYer:CIHandl? ............342 SENSe:LTE:SIGN<i>:UECapability:PLAYer:EPDCch? ..........342 SENSe:LTE:SIGN<i>:UECapability:PLAYer:MACReporting? ............. 342 SENSe:LTE:SIGN<i>:UECapability:PLAYer:SCIHandl? ..........

Page 339 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V2.1.30, FAUeeutra / TAUeeutra V3.2.80 Manual operation: "UE-Specific Ref. Sigs. Supported" on page 243 SENSe:LTE:SIGN<i>:UECapability:PLAYer:EDLFsupport? Returns whether the UE supports enhanced dual layer (PDSCH TM 8) for FDD or not. Return values: <EnDualLayFDDsup>...

Page 340 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PLAYer:TWEFsupport? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:TWEFsupport? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:TWEFsupport? Returns whether the UE supports PDSCH TM 9 with 8 CSI reference signal ports for FDD. Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "tm9 with 8TX FDD Supported"...

Page 341 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PLAYer:SPPSupport? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:SPPSupport? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:PLAYer:SPPSupport? Returns whether the UE supports the simultaneous transmission of PUCCH and PUSCH. Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "simultaneous PUCCH PUSCH Supported"...

Page 342 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PLAYer:CIHandl? Returns whether the UE supports CRS interference handling. Return values: <InterfHandl> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "CRS InterfHandl" on page 245 SENSe:LTE:SIGN<i>:UECapability:PLAYer:EPDCch? Returns whether the UE supports DCI reception via UE-specific search space on enhanced PDCCH.

Page 343 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V3.5.50 Manual operation: "SS CCH InterfHandl" on page 246 SENSe:LTE:SIGN<i>:UECapability:PLAYer:TSSubframe? Returns whether the UE supports TDD special subframe as defined in 3GPP TS 36.211. Return values: <TddSpecialSf> OFF | ON Example: Querying UE Capability Report Contents Usage:...

Page 344 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PLAYer:ITCWithdiff? Returns whether the UE supports inter-band TDD CA with different UL/DL configura- tion combinations. Return values: <InterBand> String with two bits, for example "b00" or "b01" Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50...

Page 345 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V3.5.50 Manual operation: "tdd FDD CA PCell Duplex" on page 246 SENSe:LTE:SIGN<i>:UECapability:PLAYer:TRCTddpcell? Returns whether the UE supports TDD UL/DL reconfiguration for TDD serving cell via monitoring PDCCH on a TDD PCell. Return values: <Pcell>...

Page 346 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:PLAYer:PSPSfset? Returns whether the UE supports subframe set dependent UL power control for PUSCH and SRS. Return values: <SfSet> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "pusch SRS PowerControl SubframeSet"...

Page 347 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "discovery Signals In Deact SCell" on page 247 2.6.6.4 RF UE Capabilities The following commands query the supported E-UTRA operating bands, band combi- nations and other RF capabilities............347 SENSe:LTE:SIGN<i>:UECapability:RF:SUPPorted? .............347 SENSe:LTE:SIGN<i>:UECapability:RF:HDUPlex? ......

Page 348 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.30 V3.5.40: result array restructured Manual operation: "Supported Bands" on page 248 SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>:BCSet? Returns a list of binary numbers, indicating which bandwidth combination sets the UE supports for the individual carrier aggregation band combinations. Suffix: <Number>...

Page 349 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>: EUTRa<BandNr>:BCLass:UL? SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>: EUTRa<BandNr>:BCLass:DL? Returns the bandwidth classes supported by the UE in the uplink or downlink. The information is returned for a selected band of all supported carrier aggregation band combinations. Suffix: <Number>...

Page 350 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.80, V3.5.20 band 3+4 Manual operation: "Supported Band Combination" on page 248 SENSe:LTE:SIGN<i>:UECapability:RF:FBRetrieval? Returns whether the UE supports the reception of "requestedFrequencyBands". Return values: <Retrieval> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50...

Page 351 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.6.5 Measurement UE Capabilities The following commands query the UE capabilities for channel measurements............351 SENSe:LTE:SIGN<i>:UECapability:MEAS:IFNGaps? ..........352 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:UFDD? ........352 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:UTDD<n>? ..........353 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:GERan? ..........354 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:CHRPd? ..........355 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:CXRTt? ........355 SENSe:LTE:SIGN<i>:UECapability:MEAS:IFNGaps:V<number>? ......

Page 352 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.30 V3.2.80: added <Index>, some bands added in later versions V3.5.40: result array restructured Manual operation: "Inter-Freq Need for Gaps" on page 250 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:UFDD? [<Index>] Returns a list of values indicating the need for downlink measurement gaps when oper- ating on a specific E-UTRA band and measuring on a specific UTRA FDD band.

Page 353 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference {measured band: 1, 2, ..., 32} used band: 255 Via the optional parameter <Index>, you can alternatively query the list for a single UTRA TDD band: {used band: user-defined, 1, 2, ..., 255} measured band <Index>...

Page 354 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Value> OFF | ON Without <Index>: 11 x 256 = 2816 values With <Index>: 256 values Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.0.30 V3.2.80: added <Index> V3.5.40: result array restructured Manual operation: "Inter-RAT Need for Gaps"...

Page 355 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:CXRTt? [<Index>] Returns a list of values indicating the need for downlink measurement gaps when oper- ating on a specific E-UTRA band and measuring on a specific CDMA2000 1xRTT band class. The full list contains 18 times 256 values. Each block of 18 values corresponds to the CDMA2000 band classes.

Page 356 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Via the optional parameter <Index>, you can alternatively query the list for a single measured E-UTRA band: {used combination: 0, 1, ..., n} measured band <Index> Suffix: <number> 1020 Query parameters: <Index> UDEFined | OB1 | ... | OB46 | OB65 | ... | OB67 | OB252 | OB255 Selects the measured E-UTRA band, for which the list is returned.

Page 357 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Value> OFF | ON Without <Index>: 32 x (n+1) values With <Index>: n+1 values Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "Inter-RAT Need for Gaps v1020" on page 251 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:UTDD<n>? [<Index>]...

Page 358 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:GERan? [<Index>] Returns a list of values indicating the need for downlink measurement gaps when oper- ating on a specific E-UTRA band combination and measuring on a specific GERAN band. The full list contains 11 times n+1 values. Each block of 11 values corresponds to the following GERAN bands: GSM 450, GSM 480, GSM 710, GSM 750, GSM 810, GSM 850, P-GSM 900, E-GSM 900, R-GSM 900, GSM 1800, GSM 1900.

Page 359 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference {measured band: 0, 1, ..., 17} used band combination 0 {measured band: 0, 1, ..., 17} , ..., used band combination 1 {measured band: 0, 1, ..., 17} used band combination n Via the optional parameter <Index>, you can alternatively query the list for a single CDMA2000 band class: {used combination: 0, 1, ..., n} measured band <Index>...

Page 360 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Query parameters: <Index> BC0 | BC1 | ... | BC17 Selects the measured CDMA2000 band class, for which the list is returned. Return values: <Value> OFF | ON Without <Index>: 18 x (n+1) values With <Index>: n+1 values Example: Querying UE Capability Report Contents...

Page 361 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ......361 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:EREDirection:UTRA? ........362 SENSe:LTE:SIGN<i>:UECapability:IRAT:UTDD128:SUPPorted? ......362 SENSe:LTE:SIGN<i>:UECapability:IRAT:UTDD128:EREDirection:UTDD? ......362 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:EREDirection:UTDD? ......362 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:EREDirection:UTDD? ........... 362 SENSe:LTE:SIGN<i>:UECapability:IRAT:GERan:SUPPorted? ......362 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:GERan:SUPPorted? ......362 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:GERan:SUPPorted? ..........363 SENSe:LTE:SIGN<i>:UECapability:IRAT:GERan:PHGeran? ......363 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:GERan:PHGeran? ......363 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:GERan:PHGeran? ............ 363 SENSe:LTE:SIGN<i>:UECapability:IRAT:GERan:DTM? ........

Page 362 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "e Redirection UTRA" on page 253 SENSe:LTE:SIGN<i>:UECapability:IRAT:UTDD128:SUPPorted? Returns a list of values indicating the support of the individual UTRA TDD operating bands by the UE, according to the UE capability information.

Page 363 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <SupportedBand> OFF | ON 11 values: GSM 450, GSM 480, GSM 710, GSM 750, GSM 810, GSM 850, P-GSM 900, E-GSM 900, R-GSM 900, GSM 1800, GSM 1900 Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V2.1.30, FAUeeutra / TAUeeutra V3.2.80...

Page 364 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.80 Manual operation: "e Redirection GERAN" on page 254 SENSe:LTE:SIGN<i>:UECapability:IRAT:CDMA2000:NWSHaring? Returns whether the UE supports network sharing for CDMA2000. Return values: <Sharing> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation:...

Page 365 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <RXconfiguration> SINGle | DUAL Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V2.1.30 Manual operation: "RX Config" on page 254 SENSe:LTE:SIGN<i>:UECapability:IRAT:CXRTt:SUPPorted? Returns a list of values indicating the support of the individual CDMA2000 1xRTT band classes by the UE.

Page 366 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "RX Config" on page 255 SENSe:LTE:SIGN<i>:UECapability:IRAT:CXRTt:ECSFb? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:CXRTt:ECSFb? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:CXRTt:ECSFb? Returns whether the UE supports enhanced CS fallback to CDMA2000 1xRTT or not. Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80...

Page 367 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.6.7 Other UE Capabilities The following commands query the UE capabilities categorized by 3GPP as "other parameters"..............367 SENSe:LTE:SIGN<i>:UECapability:IDCindex? ..............367 SENSe:LTE:SIGN<i>:UECapability:PPINdex? ............. 367 SENSe:LTE:SIGN<i>:UECapability:URTTimediff? ..............368 SENSe:LTE:SIGN<i>:UECapability:DCIulca? SENSe:LTE:SIGN<i>:UECapability:IDCindex? Returns whether the UE supports in-device coexistence indication and autonomous denial functionality.

Page 368 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:DCIulca? Returns whether the UE supports in-device coexistence indication for UL CA. Return values: <Index> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "In Device Coex Div UL CA" on page 256 2.6.6.8 MBMS UE Capabilities...

Page 369 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ....... 369 SENSe:LTE:SIGN<i>:UECapability:CPINdication:FREQuency:INTRa? .........369 SENSe:LTE:SIGN<i>:UECapability:CPINdication:FREQuency:INTer? ..........369 SENSe:LTE:SIGN<i>:UECapability:CPINdication:UTRan? SENSe:LTE:SIGN<i>:UECapability:CPINdication:FREQuency:INTRa? Returns whether the UE supports proximity indications for intra-frequency E-UTRAN CSG member cells or not. Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80...

Page 370 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.6.10 Neighbor Cell SI-Acquisition Capabilities The following commands query whether the UE supports system information requests for handover or not........370 SENSe:LTE:SIGN<i>:UECapability:NCSacq:FREQuency:INTRa? ......370 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:FREQuency:INTRa? ......370 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:NCSacq:FREQuency:INTRa? ........370 SENSe:LTE:SIGN<i>:UECapability:NCSacq:FREQuency:INTer? ....... 370 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:FREQuency:INTer? ....... 370 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:NCSacq:FREQuency:INTer? ............

Page 371 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:NCSacq:UTRan? SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:UTRan? SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:NCSacq:UTRan? Returns whether the UE supports system information acquisition for UMTS neighbor cells or not. Return values: <Supported> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.2.80 Manual operation: "utran SI-Acquisition for HO"...

Page 372 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:LMMeas? Returns whether the UE supports logged MBSFN measurements in RRC idle and con- nected mode. Return values: <Lmbsfn> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "Logged MBSFN Measurements"...

Page 373 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:WIW:WIAPolicies? Returns whether the UE supports RAN-assisted WLAN interworking based on ANDSF policies specified in 3GPP TS 24.312. Return values: <Policies> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "WLAN IW ANDSF Policies"...

Page 374 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.6.15 MAC UE Capabilities The following commands query the UE capabilities for the MAC layer............374 SENSe:LTE:SIGN<i>:UECapability:MAC:LCSPtimer? ..........374 SENSe:LTE:SIGN<i>:UECapability:MAC:LDRXcommand? SENSe:LTE:SIGN<i>:UECapability:MAC:LCSPtimer? Returns whether the UE supports the logical channel SR prohibit timer as specified in 3GPP TS 36.321.

Page 375 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Simultaneous> OFF | ON Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "Comm Simultaneous Tx" on page 261 SENSe:LTE:SIGN<i>:UECapability:SL:DSRalloc? Returns whether the UE supports transmission of discovery announcements based on network scheduled resource allocation.

Page 376: Ue Info
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UECapability:SL:DSPRoc? Returns the number of processes supported by the UE for sidelink discovery. Return values: <Proc> N50 | N400 Example: Querying UE Capability Report Contents Usage: Query only Firmware/Software: V3.5.50 Manual operation: "Disc Supported Proc" on page 261 2.6.7 UE Info The following queries retrieve information about the connected mobile as shown in the...

Page 377 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "IMSI" on page 115 SENSe:LTE:SIGN<i>:UESinfo:VDPReference? Queries the voice domain preference of the UE. Return values: <Value> CVONly | IPVonly | CVPRefered | IPVPrefered CVONly: CS voice only IPVonly: IMS PS voice only CVPRefered: CS voice preferred, IMS PS voice as secondary IPVPrefered: IMS PS voice preferred, CS voice as secondary Example:...

Page 378 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UESinfo:UEADdress:DEDBearer? Returns information about all established dedicated bearers. Three values are returned per bearer: {<ID>, <TFTPortLow>, <TFTPortHigh>} , ..., {...} Bearer 1 Bearer n Use this command if you have configured a single port range per bearer, applicable to the uplink and the downlink.

Page 379: Routing Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V3.5.30 Manual operation: "Dedicated Bearer" on page 115 2.6.8 Routing Settings The following commands configure the signal input and output paths. ● Scenario Selection and Signal Routing..............379 ● RF Path Properties....................401 ●...

Page 380 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Scenario name at GUI Commands "2CC CA - 4 RF Out" on page 389 ROUTe:LTE:SIGN<i>:SCENario:CAFRfout:FLEXible "2CC CA - Fading - 2 RF Out" on page 389 ROUTe:LTE:SIGN<i>:SCENario:CATF:FLEXible:INTernal on page 390 ROUTe:LTE:SIGN<i>:SCENario:CATF:FLEXible[:EXTernal] "2CC CA - Fading - 4 RF Out" on page 391 ROUTe:LTE:SIGN<i>:SCENario:CAFF:FLEXible:INTernal on page 391...

Page 381 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Scenario> SCEL | TRO | FRO | IORI | SCF | TROF | MTF | CATR | CAFR | BDD | CATF | CAFF | BDFD | CC | CCMP | CCMS1 | CF | CFF | DD | DH | DHF BDD: "2CC CA - 4 RF Out - Distributed"...

Page 382 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Scenario> SCEL | TRO | FRO | IORI | SCF | TROF | MTF | CATR | CAFR | BDD | CATF | CAFF | BDFD | CC | CCMP | CCMS1 | CF | CFF | DD | DH | DHF Active scenario For mapping of the values to scenario names, see...

Page 383 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10, some return values added in later versions V3.5.20: added scenarios BDD, CF, CFF, DD, DH, BDFD, DHF and path 5 to 8 ROUTe:LTE:SIGN<i>:SCENario:SCELl:FLEXible <PCCBBBoard>, <RXConnector>, <RXConverter>, <TXConnector>, <TXConverter> Activates the scenario "1 Cell - 1 RF Out" and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion",...

Page 384 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:FRO:FLEXible <PCCBBBoard>, <PCCBBBoard2>, <RXConnector>, <RXConverter>, <TX1Connector>, <TX1Converter>, <TX2Connector>, <TX2Converter>, <TX3Connector>, <TX3Converter>, <TX4Connector>, <TX4Converter> Activates the scenario "1 Cell - 4 RF Out" and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300.

Page 385 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:SCFading:FLEXible:INTernal <PCCBBBoard>, <RXConnector>, <RXConverter>, <TXConnector>, <TXConverter>, <Fader> Activates the scenario "1 Cell - Fading - 1 RF Out" with internal fading and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300.

Page 386 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:TROFading:FLEXible:INTernal <PCCBBBoard>, <RXConnector>, <RXConverter>, <TX1Connector>, <TX1Converter>, <TX2Connector>, <TX2Converter>, <Fader> Activates the scenario "1 Cell - Fading - 2 RF Out" with internal fading and selects the signal paths. The fading I/Q board is selectable. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion",...

Page 387 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.5.40 Options: R&S CMW-KS510 and R&S CMW-KS520 ROUTe:LTE:SIGN<i>:SCENario:MTFading:FLEXible:INTernal <PCCBBBoard>, <PCCBBBoard2>, <RXConnector>, <RXConverter>, <TX1Connector>, <TX1Converter>, <TX2Connector>, <TX2Converter> Activates the scenario "1 Cell - Fading - MIMO4x2 - 2 RF Out" with internal fading and selects the signal paths.

Page 388 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <TX1Connector> RF connector for the first output path <TX1Converter> TX module for the first output path <IQ1Connector> DIG IQ OUT connector for fading of the first output path <IQ2Connector> DIG IQ OUT connector for fading of the second output path <TX2Connector>...

Page 389 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:CAFRfout:FLEXible <PCCBBBoard>, <PCCRXConnector>, <PCCRXConverter>, <PCCTX1Connector>, <PCCTX1Converter>, <PCCTX2Connector>, <PCCTX2Converter>, <SCCBBBoard>, <SCCTX1Connector>, <SCCTX1Converter>, <SCCTX2Connector>, <SCCTX2Converter>[, <SCCRXConnector>, <SCCRXConverter>] Activates the scenario "2CC CA - 4 RF Out" and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300.

Page 390 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <RXConnector> RF connector for the PCC input path <RXConverter> RX module for the PCC input path <PCCTXConnector> RF connector for the PCC output path <PCCTXConverter> TX module for the PCC output path <SCC1BBBoard> Signaling unit for the SCC <SCCTXConnector>...

Page 391 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:CAFF:FLEXible:INTernal <PCCBBBoard>, <RXConnector>, <RXConverter>, <PCCTX1Connector>, <PCCTX1Converter>, <PCCTX2Connector>, <PCCTX2Converter>, <SCC1BBBoard>, <SCC1TX1Conn>, <SCC1TX1Conv>, <SCC1TX2Conn>, <SCC1TX2Conv> Activates the scenario "2CC CA - Fading - 4 RF Out" with internal fading and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300.

Page 392 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <RXConnector> RF connector for the PCC input path <RXConverter> RX module for the PCC input path <PCCTX1Connector> RF connector for the first PCC output path <PCCTX1Converter> TX module for the first PCC output path <PCCIQ1Connector>...

Page 393 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <SCC2BBBoard> Signaling unit for the SCC2 <SCC2TXConnector> RF connector for the SCC2 output path <SCC2TXConverter> TX module for the SCC2 output path Firmware/Software: V3.5.40 Options: R&S CMW-KS502 for FDD / R&S CMW-KS552 for TDD R&S CMW-KS512 ROUTe:LTE:SIGN<i>:SCENario:CCMP:FLEXible <PCCBBBoard>, <RXConnector>, <RXConverter>, <PCCTX1Connector>, <PCCTX1Converter>,...

Page 394 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ROUTe:LTE:SIGN<i>:SCENario:CCMS<c>:FLEXible <PCCBBBoard>, <RXConnector>, <RXConverter>, <PCCTX1Connector>, <PCCTX1Converter>, <SCC1BBBoard>, <SCC1TX1Connect>, <SCC1TX1Convert>, <SCC1TX2Connect>, <SCC1TX2Convert>, <SCC2BBBoard>, <SCC2TXConnector>, <SCC2TXConverter> Activates the scenario "3CC CA - SCC1 MIMO - 4 RF Out" and selects the signal paths. For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300.

Page 395 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference For possible parameter values, see Chapter 2.6.1.4, "Values for Signal Path Selec- tion", on page 300. Parameters: <PCCBBBoard> Signaling unit for the PCC <PCCRXConnect> RF connector for the PCC input path <PCCRXConvert> RX module for the PCC input path <PCCTX1Connect>...

Page 396 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <RXConvert> RX module for the PCC input path <PCCTX1Connect> RF connector for the first PCC output path <PCCTX1Convert> TX module for the first PCC output path <PCCTX2Connect> RF connector for the second PCC output path <PCCTX2Convert>...

Page 397 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <PCCIQ1Connector> DIG IQ OUT connector for fading of the first PCC output path <PCCTX2Connector> RF connector for the second PCC output path <PCCTX2Converter> TX module for the second PCC output path <PCCIQ2Connector> DIG IQ OUT connector for fading of the second PCC output path <SCC1BBBoard>...

Page 398 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <SCC1BBBoard> Signaling unit for the SCC1 <TX2Connector> RF connector for the SCC1 output path <TX2Converter> TX module for the SCC1 output path <SCCBBBoard2> Signaling unit for the SCC2 <TX3Connector> RF connector for the SCC2 output path <TX3Converter>...

Page 399 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <SCC2BBBoard> Signaling unit for the SCC2 <SCC2TX1Conn> RF connector for the first SCC2 output path <SCC2TX1Conv> TX module for the first SCC2 output path <SCC2TX2Conn> RF connector for the second SCC2 output path <SCC2TX2Conv>...

Page 400 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <SCC1TX2Connect> RF connector for the second SCC1 output path <SCC1TX2Convert> TX module for the second SCC1 output path <SCC2BBBoard> Signaling unit for the SCC2 <SCC2TX1Connect> RF connector for the first SCC2 output path <SCC2TX1Convert>...

Page 401 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <PCCTX2Connector> RF connector for the second PCC output path <PCCTX2Converter> TX module for the second PCC output path <PCCIQ2Connector> DIG IQ OUT connector for fading of the second PCC output path <SCC1BBBoard> Signaling unit for the SCC1 <SCC1TX1Conn>...

Page 402 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ............402 CONFigure:LTE:SIGN<i>:RFSettings:EDC:OUTPut .............. 402 CONFigure:LTE:SIGN<i>:RFSettings:EDC:INPut CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:EATTenuation:OUTPut<n> <ExtRFOutAtt> CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:EATTenuation:OUTPut<n> <ExtRFOutAtt> Defines an external attenuation (or gain, if the value is negative), to be applied to the RF output path number <n>. Depending on the transmission scheme, several output paths are used for each carrier and the attenuation can be configured per output path.

Page 403 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Time> Range: 0 s to 20E-6 s *RST: Default unit: s Example: Specifying General Settings Firmware/Software: V3.2.50 Manual operation: "External Delay Compensation" on page 134 2.6.8.3 Signal Settings The following commands provide settings for the downlink and uplink signals..............

Page 404 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <SampleRate> M100 Fixed value, indicating a sample rate of 100 Msamples/s (100 MHz) <PEP> Peak envelope power of the baseband signal Range: -60 dBFS to 0 dBFS Default unit: dBFS <CrestFactor> Crest factor of the baseband signal Range: 0 dB to 60 dB...

Page 405 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:RFSettings:ALL:BWCHannel <BandPCC>, <DLChannelPCC>, <BandwithPCC>[, <BandSCC1>, <DLChannelSCC1>, <BandwithSCC1>[, <BandSCC2>, <DLChannelSCC2>, <BandwithSCC2>[, <BandSCC3>, <DLChannelSCC3>, <BandwithSCC3>]]] Selects the operating band, the downlink channel number and the cell bandwidth for the PCC and optionally for the SCCs. A query returns only the component carriers that are supported by the current sce- nario.

Page 406 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLChannelSCC2> SCC2 DL channel number Range: depends on operating band *RST: <BandwithSCC2> B014 | B030 | B050 | B100 | B150 | B200 SCC2 cell bandwidth *RST: B100 <BandSCC3> FDD: UDEFined | OB1 | ... | OB32 | OB65 | ... | OB67 | OB252 | OB255 TDD: UDEFined | OB33 | ...

Page 407 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:CHANnel:DL <Channel> CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:CHANnel:DL <Channel> Selects the DL channel number. It must be valid for the current operating band. The related UL channel number is calculated and set automatically. By appending a Hz unit (e.g. Hz, kHz, MHz) to a setting command, you can set the channel via its center frequency (only integer numbers accepted).

Page 408 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference You can use the PCC command to configure the same offset for the PCC and all SCCs. Or you can use the PCC and SCC command to configure different values. See also CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:FOFFset:DL:UCSPecific on page 408.

Page 409 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Frequency Offset" on page 135 CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:ENPMode <Mode> CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:ENPMode <Mode> Selects the expected nominal power mode. The expected nominal power of the UL sig- nal can be defined manually or calculated automatically, according to the UL power control settings.

Page 410 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <ExpectedPower> In manual mode, the range of the expected nominal power can be calculated as follows: Range (expected nominal power) = range (input power) + exter- nal attenuation - margin The input power range is stated in the data sheet. *RST: -20 dBm Default unit: dBm...

Page 411 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <MixLevOffset> Range: -10 dB to 10 dB *RST: 0 dB Default unit: dB Example: Specifying General Settings Firmware/Software: V3.2.10, SCC command V3.5.20 Manual operation: "Mixer Level Offset" on page 138 2.6.8.4 User-Defined Band The following commands configure a user-defined band.

Page 412 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Frequency> Depending on the other settings, only a part of the following range is allowed. Range: -5930E+6 Hz to 5930E+6 Hz *RST: 190E+6 Hz Default unit: Hz Example: Configuring Operating Bands and Channels Firmware/Software: V2.1.30, SCC command V3.5.20 Options: R&S CMW-KS525...

Page 413 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <Channel> Range: 0 to 262143 Example: Configuring Operating Bands and Channels Firmware/Software: V2.1.30, SCC commands V3.2.50 Options: R&S CMW-KS525 Manual operation: "DL Channel, Frequency" on page 136 CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:UDEFined:FREQuency:DL:MINimum <Frequency> CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:FREQuency:DL: MINimum <Frequency>...

Page 414 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:UDEFined:FREQuency:DL: MAXimum? CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:UDEFined:FREQuency:DL: MAXimum? Queries the maximum downlink carrier center frequency resulting from the user- defined band settings. For calculation, see CONFigure:LTE:SIGN<i>: RFSettings[:PCC]:UDEFined:FREQuency:DL:MINimum. Suffix: <c> 1..3 Return values: <Frequency> Range: 70E+6 Hz to 6E+9 Hz Default unit: Hz Example: Configuring Operating Bands and Channels...

Page 415: Internal Fading
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..2 Return values: <Channel> Maximum uplink channel number CHAN:UL:MAX = CHAN:UL:MIN + CHAN:DL:MAX - CHAN:DL:MIN Example: Configuring Operating Bands and Channels Usage: Query only Firmware/Software: V2.1.30, SCC command V3.5.20 Options: R&S CMW-KS525 Manual operation: "UL Channel, Frequency"...

Page 416 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.9.1 Fading Simulator The following commands configure the fading simulator of the internal fader for fading of the PCC and SCC downlink......416 CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:STANdard:ENABle ......416 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:STANdard:ENABle ..........417 CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:FOFFset ..........417 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:FOFFset ......417 CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:STANdard:PROFile ......

Page 417 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:FOFFset <Offset> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:FOFFset <Offset> Shifts the center frequency of the noise bandwidth relative to the carrier center fre- quency. Suffix: <c> 1..3 Parameters: <Offset> Range: -40E+6 Hz to 40E+6 Hz *RST: 0 Hz Default unit: Hz Example: Configuring Internal Fading...

Page 418 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON *RST: Example: Configuring Internal Fading Firmware/Software: V3.0.20, SCC command V3.2.70 Options: See relevant fading scenario Manual operation: "Enable" on page 139 CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:PROFile <Profile> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:PROFile <Profile> Selects a propagation condition profile for extended fading. Suffix: <c>...

Page 419 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: See relevant fading scenario Manual operation: "Profile" on page 139 CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:RESTart:MODE <RestartMode> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:RESTart:MODE <RestartMode> Sets the restart mode of the fading simulator. The scenario "1 Cell - Fading - MIMO4x2 - 2 RF Out" supports only the mode TRIGger.

Page 420 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:GLOBal:SEED <Seed> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:GLOBal:SEED <Seed> Sets the start seed for the pseudo-random fading algorithm. Suffix: <c> 1..3 Parameters: <Seed> Range: 0 to 9 *RST: Example: Configuring Internal Fading Firmware/Software: V3.0.20, SCC command V3.2.70 Options: See relevant fading scenario Manual operation: "Start Seed"...

Page 421 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <InsertionLoss> Range: 0 dB to 18 dB *RST: 0 dB Default unit: dB Firmware/Software: V3.0.20, SCC command V3.2.70 Options: See relevant fading scenario Manual operation: "Insertion Loss" on page 140 SENSe:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:ILOSs:CSAMples<path>? SENSe:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:ILOSs:CSAMples<n>? Returns the percentage of clipped samples for the output path number <n>.

Page 422 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:FADing[:PCC]:FSIMulator:DSHift <Frequency> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:DSHift <Frequency> Sets the maximum Doppler frequency for the fading simulator. A setting is only allowed in USER mode (see CONFigure:LTE:SIGN<i>:FADing[: PCC]:FSIMulator:DSHift:MODE). Suffix: <c> 1..3 Parameters: <Frequency> Range: 1 Hz to 2000 Hz *RST: 5 Hz Default unit: Hz...

Page 423 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:FADing[:PCC]:POWer:NOISe:TOTal? CONFigure:LTE:SIGN<i>:FADing:SCC<c>:POWer:NOISe:TOTal? Queries the total noise power for one carrier. Suffix: <c> 1..3 Return values: <NoisePower> Default unit: dBm Usage: Query only Firmware/Software: V3.0.20, SCC command V3.2.70 Options: See relevant fading scenario Manual operation: "Noise (Total BW) Power"...

Page 424 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:ENABle <Enable> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:ENABle <Enable> Enables or disables AWGN insertion via the fading module. Suffix: <c> 1..3 Parameters: <Enable> OFF | ON *RST: Example: Configuring Internal Fading Firmware/Software: V3.0.20, SCC command V3.2.70 Options: See relevant fading scenario Manual operation: "Enable"...

Page 425: Downlink Power Levels
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Noise Bandwidth" on page 143 CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:SNRatio <Ratio> CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:SNRatio <Ratio> Specifies the signal to noise ratio for the AWGN inserted on the internal fading module. Suffix: <c> 1..3 Parameters: <Ratio> Range: -50 dB to 40 dB *RST: 0 dB Default unit: dB...

Page 426 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ............430 CONFigure:LTE:SIGN<i>:DL[:PCC]:CSIRs:MODE ............430 CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:MODE ............431 CONFigure:LTE:SIGN<i>:DL[:PCC]:CSIRs:POFFset ............. 431 CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:POFFset ..............431 CONFigure:LTE:SIGN<i>:DL[:PCC]:AWGN ..............431 CONFigure:LTE:SIGN<i>:DL:SCC<c>:AWGN CONFigure:LTE:SIGN<i>:DL[:PCC]:RSEPre:LEVel <Level> CONFigure:LTE:SIGN<i>:DL:SCC<c>:RSEPre:LEVel <Level> Defines the energy per resource element (EPRE) of the cell-specific reference signal (C-RS). The power levels of resource elements used for other channels/signals are defined relative to this power level.

Page 427 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring DL Power Levels Usage: Query only Firmware/Software: V3.0.10, SCC command V3.2.50 Manual operation: "RS EPRE" on page 144 CONFigure:LTE:SIGN<i>:DL[:PCC]:PSS:POFFset <Offset> CONFigure:LTE:SIGN<i>:DL:SCC<c>:PSS:POFFset <Offset> Defines the power level of a primary synchronization signal (PSS) resource element. Suffix: <c>...

Page 428 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Offset> PBCH power relative to RS EPRE Range: -30 dB to 0 dB *RST: 0 dB Default unit: dB Example: Configuring DL Power Levels Firmware/Software: V1.0.15.20, SCC command V3.2.50 Manual operation: "PBCH Power Offset" on page 145 CONFigure:LTE:SIGN<i>:DL[:PCC]:PCFich:POFFset <Offset>...

Page 429 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:DL[:PCC]:PDCCh:POFFset <Offset> CONFigure:LTE:SIGN<i>:DL:SCC<c>:PDCCh:POFFset <Offset> Defines the power level of a physical downlink control channel (PDCCH) resource ele- ment. Suffix: <c> 1..3 Parameters: <Offset> PDCCH power relative to RS EPRE Range: -30 dB to 0 dB *RST: 0 dB Default unit: dB...

Page 430 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "PDSCH" on page 146 CONFigure:LTE:SIGN<i>:DL[:PCC]:PDSCh:RINDex <RatioIndex> CONFigure:LTE:SIGN<i>:DL:SCC<c>:PDSCh:RINDex <RatioIndex> Defines the power ratio index P . The index is required for calculation of the power level of a PDSCH resource element. Suffix: <c>...

Page 431 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Mode> ACSirs | MANual ACSirs The used power offset matches the signaled value. For configuration of the signaled value, see CONFigure:LTE: SIGN<i>:CONNection:SCC<c>:TM<no>:CSIRs:POWer on page 508. MANual The used power offset is independent from the signaled value. For configuration of the used power offset, see CONFigure: on page 431.

Page 432: Uplink Power Control
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <AWGN> Range: depends on many parameters *RST: -98 dBm/15kHz, OFF Default unit: dBm/15kHz Additional parameters: OFF | ON (disables | enables the AWGN interferer) Example: Configuring DL Power Levels Firmware/Software: V1.0.15.21, SCC command V3.2.50 Options: R&S CMW-KS510...

Page 433 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Power> Range: -30 dBm to 33 dBm *RST: 24 dBm Default unit: dBm Additional parameters: OFF | ON (disables | enables signaling of the value to the UE) Example: Configuring UL Power Control for Call Setup Firmware/Software: V3.0.10, SCC command V3.5.20 Manual operation: "Max.

Page 434 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:EASettings <Enable> CONFigure:LTE:SIGN<i>:UL:SCC<c>:APPower:EASettings <Enable> Enables or disables advanced configuration of the PRACH and open loop power set- tings via the other CONFigure:LTE:SIGN:UL:PCC/SCC<c>:APPower:... com- mands. Suffix: <c> 1..3 Parameters: <Enable> OFF | ON *RST: Example: Configuring UL Power Control for Call Setup Firmware/Software: V3.0.50, SCC command V3.5.30...

Page 435 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <RefSignalPower> Range: -60 dBm to 50 dBm Default unit: dBm Example: Configuring UL Power Control for Call Setup Usage: Query only Firmware/Software: V3.0.50, SCC command V3.5.30 Manual operation: "Reference Signal Power" on page 149 SENSe:LTE:SIGN<i>:UL[:PCC]:APPower:PIRPower:BASic? SENSe:LTE:SIGN<i>:UL:SCC<c>:APPower:PIRPower:BASic?

Page 436 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:UL[:PCC]:APPower:PCALpha:BASic? SENSe:LTE:SIGN<i>:UL:SCC<c>:APPower:PCALpha:BASic? Queries the value of parameter "alpha", signaled to the UE if basic UL power configu- ration applies. Suffix: <c> 1..3 Return values: <PathCompAlpha> ZERO | DOT4 | DOT5 | DOT6 | DOT7 | DOT8 | DOT9 | ONE ZERO: 0 DOT4 ...

Page 437 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <RefSignalPower> Range: -60 dBm to 50 dBm *RST: 18 dBm Default unit: dBm Example: Configuring UL Power Control for Call Setup Firmware/Software: V3.0.50, SCC command V3.5.30 Manual operation: "Reference Signal Power" on page 149 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PIRPower:ADVanced <TargetPower>...

Page 438 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PCALpha:ADVanced <PathCompAlpha> CONFigure:LTE:SIGN<i>:UL:SCC<c>:APPower:PCALpha:ADVanced <PathCompAlpha> Specifies the value of parameter "alpha", signaled to the UE if advanced UL power configuration applies. Suffix: <c> 1..3 Parameters: <PathCompAlpha> ZERO | DOT4 | DOT5 | DOT6 | DOT7 | DOT8 | DOT9 | ONE ZERO: 0 DOT4 ...

Page 439 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring UL Power Control for Call Setup Usage: Query only Firmware/Software: V3.0.50, SCC command V3.5.20 Manual operation: "Pathloss" on page 151 SENSe:LTE:SIGN<i>:UL[:PCC]:APPower:EPPPower? SENSe:LTE:SIGN<i>:UL:SCC<c>:APPower:EPPPower? Queries the expected power of the first preamble, resulting from the advanced UL power settings.

Page 440 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..........441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:RPControl ...........441 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:RPControl ..........441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:TPOWer ..........441 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:TPOWer ..........441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:CLTPower .......... 441 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:CLTPower ......442 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:CLTPower:OFFSet ...........442 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:SINGle ..........442 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:SINGle ..........443 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:UDPattern .......... 443 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:UDPattern CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:SET <SetType> CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:SET <SetType> Selects the active TPC setup to be executed for power control of the PUSCH.

Page 441 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Example: Modifying Parameters for an Established Connection Usage: Event Firmware/Software: V2.0.20, SCC command V3.5.20 Manual operation: "Active TPC Setup" on page 152 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:RPControl <Pattern> CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:RPControl <Pattern> Selects a TPC pattern for 3GPP relative power control tests with the TPC setup RPControl.

Page 442 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <Power> Range: -50 dBm to 33 dBm *RST: -20 dBm Default unit: dBm Example: Modifying Parameters for an Established Connection Firmware/Software: V3.2.60, SCC command V3.5.30 Manual operation: "Closed Loop Target Power" on page 153 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:CLTPower:OFFSet <Offset>...

Page 443 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.10, SCC command V3.5.30 Manual operation: "Single Pattern" on page 154 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:UDPattern <PatternLength>, <Value1>[, <Value2>, <Value3>, <Value4>, <Value5>, <Value6>, <Value7>, <Value8>, <Value9>, <Value10>, <Value11>, <Value12>, <Value13>, <Value14>, <Value15>, <Value16>, <Value17>, <Value18>, <Value19>, <Value20>] CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:UDPattern <PatternLength>, <Value1>[, <Value2>, <Value3>, <Value4>, <Value5>, <Value6>, <Value7>,...

Page 444 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Value6> Range: -1 dB to 3 dB *RST: -1 dB Default unit: dB <Value7> Range: -1 dB to 3 dB *RST: -1 dB Default unit: dB <Value8> Range: -1 dB to 3 dB *RST: -1 dB Default unit: dB...

Page 445: Physical Cell Setup
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Value20> Range: -1 dB to 3 dB *RST: -1 dB Default unit: dB Example: Modifying Parameters for an Established Connection Firmware/Software: V2.0.20, SCC command V3.5.30 Manual operation: "User-Defined Pattern" on page 154 2.6.12 Physical Cell Setup The following commands configure physical layer attributes of the simulated cell.

Page 446 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <Bandwidth> B014 | B030 | B050 | B100 | B150 | B200 B014: 1.4 MHz B030: 3 MHz B050: 5 MHz B100: 10 MHz B150: 15 MHz B200: 20 MHz *RST: B100 Example:...

Page 447 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:SRS:ENABle <Enable> Enables support of SRS. Parameters: <Enable> OFF | ON *RST: Example: Configuring Physical Cell Setup Firmware/Software: V2.0.20 Manual operation: "Sounding RS (SRS)" on page 156 CONFigure:LTE:SIGN<i>:CELL:SRS:MCENable <Enable> Enables or disables the manual configuration of signaled values for SRS configuration. Parameters: <Enable>...

Page 448 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Subframe> Range: 0 to 15 *RST: Example: Configuring Physical Cell Setup Firmware/Software: V3.2.60 Options: R&S CMW-KS510 Manual operation: "Subframe Configuration" on page 157 CONFigure:LTE:SIGN<i>:CELL:SRS:DBANdwidth <DedicatedBW> Specifies the "srs-Bandwidth" value. The setting is only used if manual configuration is enabled, see CONFigure:LTE: SIGN<i>:CELL:SRS:MCENable.

Page 449 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Index> Range: 0 to 636 *RST: Example: Configuring Physical Cell Setup Firmware/Software: V3.2.70 Options: R&S CMW-KS510 Manual operation: "Configuration Index" on page 157 CONFigure:LTE:SIGN<i>:CELL:SRS:SCINdex:TDD <Index> Specifies the "srs-ConfigIndex" value for TDD. The setting is only used if manual configuration is enabled, see CONFigure:LTE: SIGN<i>:CELL:SRS:MCENable.

Page 450 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL[:PCC]:ULDL <UplinkDownlink> CONFigure:LTE:SIGN<i>:CELL:SCC<c>:ULDL <UplinkDownlink> Selects an uplink-downlink configuration, defining the combination of uplink, downlink and special subframes within a radio frame. This command is only relevant for duplex mode TDD. See also on page 449. CONFigure:LTE:SIGN<i>:CELL:TDD:SPECific Suffix: <c>...

Page 451 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:PRACh:NRPReambles <Enable> Selects whether the application ignores received preambles or not. Parameters: <Enable> OFF | ON | NIPReambles OFF: respond to received preambles ON: ignore received preambles NIPReambles: ignore a configured number of preambles, then respond to subsequent preambles - for configuration see CONFigure:LTE:SIGN<i>:CELL:PRACh:NIPRach, only allowed for power ramping step size 0 dB...

Page 452 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <PRACHconfIndex> Range: 0 to 63 *RST: Example: Configuring Physical Cell Setup Firmware/Software: V2.1.20 Options: R&S CMW-KS500 Manual operation: "Configuration Index" on page 160 CONFigure:LTE:SIGN<i>:CELL:PRACh:PCINdex:TDD <PRACHconfIndex> Selects the PRACH configuration index for TDD. Parameters: <PRACHconfIndex>...

Page 453 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference UL-DL configuration Allowed PRACH configuration indices 0, 1, 3, 48, 49, 51 0-15, 20-25, 30-35, 40, 41, 43, 48-53 CONFigure:LTE:SIGN<i>:CELL:PRACh:PFOFfset <PRACHfreqOffset> Specifies the PRACH frequency offset. Parameters: <PRACHfreqOffset> Range: 0 to <total RB - 6> depending on channel band- width, see table below *RST: Example:...

Page 454 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CSAT:ENABle <Enable> Enables CSAT, including LDS transmission and SCell muting. Suffix: <c> 1..3 Parameters: <Enable> OFF | ON *RST: Example: Configuring Physical Cell Setup Firmware/Software: V3.5.50 Options: R&S CMW-KS525 Manual operation: "Enable" on page 161 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CSAT:DMTCperiod <Period>...

Page 455: Network Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "ON State Duration / OFF State Duration" on page 161 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:OFFSduration <Duration> Configures the OFF state duration for SCell muting (SCC DL muting). Suffix: <c> 1..3 Parameters: <Duration> Range: 1 ms to 1000 ms *RST: 10 ms Default unit: ms...

Page 456 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.13.1 Neighbor Cell Settings The following commands define neighbor cell information to be broadcasted to the UE.............456 CONFigure:LTE:SIGN<i>:NCELl:LTE:THResholds:LOW ..........456 CONFigure:LTE:SIGN<i>:NCELl:GSM:THResholds:LOW ..........456 CONFigure:LTE:SIGN<i>:NCELl:WCDMa:THResholds:LOW ..........457 CONFigure:LTE:SIGN<i>:NCELl:CDMA:THResholds:LOW ..........457 CONFigure:LTE:SIGN<i>:NCELl:EVDO:THResholds:LOW .......... 457 CONFigure:LTE:SIGN<i>:NCELl:TDSCdma:THResholds:LOW ............457 CONFigure:LTE:SIGN<i>:NCELl:ALL:THResholds:LOW...

Page 457 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring Neighbor Cells and Reselection Firmware/Software: V2.1.30 Manual operation: "Threshold" on page 164 CONFigure:LTE:SIGN<i>:NCELl:CDMA:THResholds:LOW <Low> Configures the reselection threshold value "threshX-Low" for CDMA2000 neighbor cells. Parameters: <Low> Range: 0 to 63 *RST: Example: Configuring Neighbor Cells and Reselection Firmware/Software: V2.1.30...

Page 458 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Alternatively to a common threshold you can also use individual thresholds. They are defined per technology via the commands CONFigure:LTE:SIGN<i>:NCELl:<Technology>:THResholds:LOW. The parameter <Valid> selects whether common or individual thresholds are used. Parameters: <Valid> OFF | ON OFF: use individual thresholds defined by separate commands ON: use common threshold defined by this command...

Page 459 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <QOffset> N24 | N22 | N20 | N18 | N16 | N14 | N12 | N10 | N8 | N6 | N5 | N4 | N3 | N2 | N1 | ZERO | P1 | P2 | P3 | P4 | P5 | P6 | P8 | P10 | P12 | P14 | P16 | P18 | P20 | P22 | P24 Corresponds to value "q-OffsetCell"...

Page 460 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 for neighbor cell measurements Manual operation: "GSM" on page 164 Table 2-37: Channel number range depending on GSM band Band Channel number G085 128 to 251 0 to 124, 940 to 1023 512 to 885 512 to 810 CONFigure:LTE:SIGN<i>:NCELl:WCDMa:CELL<n>...

Page 461 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.50, V3.5.40: OB22, OB25 Options: R&S CMW-KS510 for neighbor cell measurements Manual operation: "WCDMA FDD" on page 164 Table 2-38: Channel number range depending on operating band Operating band Channel number 10562 to 10838 412 to 687 (step 25), 9662 to 9938 1162 to 1513 1537 to 1738, 1887 to 2087 (step 25)

Page 462 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <n> 1..4 Parameters: <Enable> OFF | ON Enables or disables the entry *RST: <BandClass> USC | KCEL | NAPC | TACS | JTAC | KPCS | N45T | IM2K | NA7C | B18M | NA8S | PA4M | PA8M | IEXT | USPC | AWS | U25B | U25F | NA9C | PS7C | LO7C USC: BC 0, US cellular KCEL: BC 0, Korean cellular...

Page 463 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 for neighbor cell measurements Manual operation: "CDMA2000, 1xEV-DO" on page 165 Table 2-39: Channel number range depending on band class Band class Channel number USC, KCEL 1 to 799, 991 to 1323 NAPC, IM2K 0 to 1199 TACS...

Page 464 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Channel> Channel number Range: 9400 to 12000, depending on operating band *RST: 9600 <ScramblingCode> Cell parameter ID Range: #H0 to #H7F *RST: <Measurement> OFF | ON Disables / enables neighbor cell measurements for the entry ON is only allowed if also <Enable>...

Page 465 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:RESelection:SEARch:NINTrasearch <Snonintrasearch> Defines the threshold S . The value divided by 2 is broadcasted to the UE in nonIntraSearch SIB3. Parameters: <Snonintrasearch> Range: 0 dB to 62 dB Increment: 2 dB *RST: 32 dB Default unit: dB Additional parameters: OFF | ON (disables | enables transmis- sion of the information element)

Page 466 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Q rxlevmin" on page 166 2.6.13.3 Identity Settings The following commands configure identities of the simulated radio network................466 CONFigure:LTE:SIGN<i>:CELL:MCC ................466 CONFigure:LTE:SIGN<i>:CELL:MNC ..............466 CONFigure:LTE:SIGN<i>:CELL:MNC:DIGits ................467 CONFigure:LTE:SIGN<i>:CELL:TAC ............467 CONFigure:LTE:SIGN<i>:CELL[:PCC]:CID:EUTRan ............467 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CID:EUTRan...

Page 467 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V1.0.15.20 Manual operation: "MNC" on page 166 CONFigure:LTE:SIGN<i>:CELL:TAC <TAC> Specifies the tracking area code. Parameters: <TAC> Range: 0 to 65535 *RST: Example: Configuring Other Network Settings Firmware/Software: V1.0.15.20 Manual operation: "TAC" on page 167 CONFigure:LTE:SIGN<i>:CELL[:PCC]:CID:EUTRan <CID>...

Page 468 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:SECurity:AUTHenticat <Enable> Enables or disables authentication, to be performed during the attach procedure. Parameters: <Enable> OFF | ON *RST: Example: Configuring Other Network Settings Firmware/Software: V1.0.15.20 Manual operation: "Authentication" on page 167 CONFigure:LTE:SIGN<i>:CELL:SECurity:NAS <Enable> Enables or disables the NAS security mode.

Page 469 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Integrity Algorithm" on page 168 CONFigure:LTE:SIGN<i>:CELL:SECurity:MILenage <Enable> Enables or disables using the MILENAGE algorithm set instead of the standard algo- rithms. Parameters: <Enable> OFF | ON *RST: Example: Configuring Other Network Settings Firmware/Software: V1.0.15.20 Manual operation: "Milenage"...

Page 470 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring Other Network Settings Firmware/Software: V2.1.20 Manual operation: "RAND Value" on page 169 2.6.13.5 UE Identity The following command configures the default IMSI. CONFigure:LTE:SIGN<i>:CELL:UEIDentity:IMSI <Value> Specifies the default IMSI. Parameters: <Value> String value, containing 14 to 16 digits. *RST: '001010123456063' Firmware/Software: V1.0.15.20...

Page 471 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference This command configures the timer value in seconds. So there are three subranges with different increments. Suffix: <no> 3402,3412 Parameters: <Value> Range: 2 s to 11160 s Increment: 2 s (2 s to 62 s), 60 s (120 s to 1860 s), 360 s (2160 s to 11160 s) *RST: 720 s for T3402, 2 s for T3412...

Page 472 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:TIME:DATE <Day>, <Month>, <Year> Specifies the UTC date for the time source DATE (see CONFigure:LTE:SIGN<i>: on page 471). CELL:TIME:TSOurce Parameters: <Day> Range: 1 to 31 *RST: <Month> Range: 1 to 12 *RST: <Year> Range: 2011 to 9999 *RST:...

Page 473 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> P1H | P2H P1H: +1h offset if DST is ON P2H: +2h offset if DST is ON *RST: OFF (P1H) Additional parameters: OFF | ON (disables | enables DST) Example: Sending Date and Time Information to the UE Firmware/Software: V3.0.30 Options: R&S CMW-KS510...

Page 474 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON ON: send date and time at attach OFF: do not send date and time at attach *RST: Example: Sending Date and Time Information to the UE Firmware/Software: V3.0.30 Options: R&S CMW-KS510 Manual operation:...

Page 475 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Cause> IUE3 | EPS7 | PLMN11 | TANA12 | C13 | C17 | CONG22 | C2 | C5 | C6 | C8 | C9 | C10 | C14 | C15 | C16 | C18 | C19 | C20 | C21 | C23 | C24 | C25 | C26 | C35 | C39 | C40 | C42 | C95 | C96 | C97 | C98 | C99 | C100 | C101 | C111 | ON | OFF See table for explanation of values...

Page 476 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Cause> Number Meaning Security mode rejected, unspecified Not authorized for this CSG Non-EPS authentication unacceptable Requested service option not authorized in this PLMN CS service temporarily not available No EPS bearer context activated Severe network failure Semantically incorrect message Invalid mandatory information...

Page 477 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Support> NSUPported | SUPPorted NSUPported: not supported SUPPorted: supported *RST: NSUP Example: Configuring Other Network Settings Firmware/Software: V3.2.20 Manual operation: "IMS Voice Over PS Session Indicator" on page 172 CONFigure:LTE:SIGN<i>:CELL:NAS:EMCBs <Support> Configures the field "Emergency bearer services indicator" of the information element "EPS Network Feature Support".

Page 478 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CELL:NAS:CSLCs <Support> Configures the field "Location services indicator in CS" of the information element "EPS Network Feature Support". Parameters: <Support> NSUPported | SUPPorted | NINFormation NSUPported: not supported SUPPorted: supported NINFormation: no information *RST: NSUP Example:...

Page 479: Connection Configuration
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Offset> Range: 0 s to 1E-3 s *RST: Default unit: s Example: Configuring Other Network Settings Firmware/Software: V3.2.50 Options: R&S CMW-KS510 for PCC, R&S CMW-KS512 for SCC Manual operation: "Synchronization Offset" on page 173 2.6.14 Connection Configuration The commands in this section define parameters for the supported scheduling types.

Page 480 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..............484 CONFigure:LTE:SIGN<i>:CONNection:CTYPe ............484 CONFigure:LTE:SIGN<i>:CONNection:EDAU:ENABle ..........484 CONFigure:LTE:SIGN<i>:CONNection:EDAU:NSEGment ............485 CONFigure:LTE:SIGN<i>:CONNection:EDAU:NID ..............485 CONFigure:LTE:SIGN<i>:CONNection:TMODe ............. 485 CONFigure:LTE:SIGN<i>:CONNection:RLCMode ..............485 CONFigure:LTE:SIGN<i>:CONNection:IPVersion ..............486 CONFigure:LTE:SIGN<i>:CONNection:APN ..............486 CONFigure:LTE:SIGN<i>:CONNection:QCI ............486 CONFigure:LTE:SIGN<i>:CONNection:SIBReconfig ..............487 CONFigure:LTE:SIGN<i>:CONNection:KRRC ..............487 CONFigure:LTE:SIGN<i>:CONNection:RITimer ............487 CONFigure:LTE:SIGN<i>:CONNection:DLPadding ............

Page 481 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:GHOPping <Enable> Enables or disables group hopping. Parameters: <Enable> OFF | ON *RST: Example: Configuring General Connection Settings Part 1 Firmware/Software: V3.0.30 Manual operation: "Group Hopping" on page 176 CONFigure:LTE:SIGN<i>:CONNection:UECategory:MANual <UECatManual> Configures the UE category to be used by the R&S CMW if no reported value is availa- ble or usage of the reported value is disabled, see CONFigure:LTE:SIGN<i>: CONNection:UECategory:REPorted.

Page 482 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:UECategory:CZALlowed <Allowed> Specifies whether category 0 UEs are allowed to access the cell. This information is sent to the UE via broadcast in system information block 1. Parameters: <Allowed> OFF | ON *RST: Example: Configuring General Connection Settings Part 1 Firmware/Software: V3.5.30...

Page 483 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Value> NS01 | NS02 | NS03 | NS04 | NS05 | NS06 | NS07 | NS08 | NS09 | NS10 | NS11 | NS12 | NS13 | NS14 | NS15 | NS16 | NS17 | NS18 | NS19 | NS20 | NS21 | NS22 | NS23 | NS24 Value NS_01 to NS_24 *RST:...

Page 484 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "UE Meas. Filter Coefficient" on page 177 CONFigure:LTE:SIGN<i>:CONNection:CTYPe <Type> Selects the connection type to be applied. Parameters: <Type> TESTmode | DAPPlication TESTmode: for signaling tests not involving the DAU DAPPlication: for data application measurements using the *RST: TEST Example:...

Page 485 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:EDAU:NID <ID> Specifies the subnet node ID of the instrument where the external DAU is installed. Parameters: <ID> Range: 1 to 254 *RST: Example: Configuring General Connection Settings Part 1 Firmware/Software: V3.2.80 Options: R&S CMW-KA120 Manual operation: "Network Segment, Subnet Node ID"...

Page 486 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <IPversion> IPV4 | IPV6 | IPV46 IPV4: IPV4 only IPV6: IPV6 only IPV46: IPv4 and IPv6 *RST: IPV46 Example: Configuring General Connection Settings Part 1 Firmware/Software: V3.2.80 Options: R&S CMW-KS510 Manual operation: "IP Version"...

Page 487 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Type> SIBPaging | RRCReconfig *RST: SIBP Example: Configuring General Connection Settings Part 1 Firmware/Software: V3.0.20 Manual operation: "SIB Reconfiguration" on page 179 CONFigure:LTE:SIGN<i>:CONNection:KRRC <Enable> Selects whether the RRC connection is kept or released after attach. Parameters: <Enable>...

Page 488 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring General Connection Settings Part 1 Firmware/Software: V1.0.15.20 Manual operation: "Downlink MAC Padding" on page 180 CONFigure:LTE:SIGN<i>:CONNection:DLEinsertion <Value> Configures the rate of transport block errors to be inserted into the downlink data. Parameters: <Value>...

Page 489 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Type> RMC | UDCHannels | UDTTibased | CQI | SPS RMC: 3GPP-compliant reference measurement channel UDCHannels: user-defined channel UDTTibased: user-defined channel configurable per TTI CQI: CQI channel, as specified by next parameter SPS: semi-persistent scheduling (only PCC, not SCC) *RST: <CQIMode>...

Page 490 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:MCLuster:DL <Multicluster> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:MCLuster:DL <Multicluster> Enables/disables multi-cluster allocation for the DL. Suffix: <c> 1..3 Parameters: <Multicluster> OFF | ON OFF: contiguous allocation ON: multi-cluster allocation *RST: Example: Configuring User-Defined Channels Firmware/Software: V3.5.50 Manual operation: "Multicluster DL"...

Page 491 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.80 Options: R&S CMW-KS510 Manual operation: "TTI Bundling" on page 193 CONFigure:LTE:SIGN<i>:CONNection:ROHC:ENABle <Enable> Enables or disables robust header compression. Parameters: <Enable> OFF | ON *RST: Example: Configuring General Connection Settings Part 2 Firmware/Software: V3.2.80 Options: R&S CMW-KS510...

Page 492 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Mode> BHANdover | REDirection Blind handover or redirection *RST: Example: Configuring General Connection Settings Part 2 Firmware/Software: V2.1.30 Manual operation: "Mobility Mode, Operating Band Change, Frequency Change" on page 124 CONFigure:LTE:SIGN<i>:CONNection:FCHange <Mode> Selects the mechanism to be used for inter-frequency handover (operating band not changed).

Page 493 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLChannel> Channel number used for the broadcast control channel (BCCH) Range: 0 to 1023, depending on GSM band, see table below *RST: <BandIndicator> G18 | G19 Band indicator for distinction of GSM 1800 and GSM 1900 bands.

Page 494 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Table 2-41: Channel number range depending on operating band Operating band Channel number 10562 to 10838 412 to 687 (step 25), 9662 to 9938 1162 to 1513 1537 to 1738, 1887 to 2087 (step 25) 1007, 1012, 1032, 1037, 1062, 1087, 4357 to 4458 1037, 1062, 4387 to 4413 2237 to 2563, 2587 to 2912 (step 25)

Page 495 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <DLChannel> Downlink channel number The allowed range depends on the frequency band: OB1: 9400 to 9600 OB2: 10050 to 10125 OB3: 11500 to 12000 *RST: 9400 Example: Configuring General Connection Settings Part 2 Firmware/Software: V3.5.20 Manual operation: "CS Fallback (MO)"...

Page 496 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON *RST: Example: Configuring General Connection Settings Part 2 Firmware/Software: V3.5.10 Manual operation: "Timing Advance Control" on page 199 2.6.14.2 General MIMO Settings The following commands configure MIMO connection settings applicable to most trans- mission modes.

Page 497 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <DCI> D1 | D1A | D1B | D2 | D2A | D2B | D2C Format 1, 1A, 1B, 2, 2A, 2B, 2C *RST: Example: Configuring MIMO Settings Firmware/Software: V3.2.70, V3.5.10: D2C added Manual operation: "DCI Format"...

Page 498 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Scheme> SISO | SIMO | TXDiversity | OLSMultiplex | CLSMultiplex | CLSingle | SBF5 | SBF8 | DBF78 SISO: single input single output SIMO: single input multiple output (receive diversity) TXDiversity: transmit diversity OLSMultiplex: open loop spatial multiplexing CLSMultiplex: closed loop spatial multiplexing CLSingle: closed loop spatial multiplexing, single layer...

Page 499 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference 2.6.14.3 MIMO Channel Model TM 2 to TM 6 The following commands configure the static channel model for transmission mode 2 to 6........499 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SCHModel:ENABle ........499 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:SCHModel:ENABle ...........499 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SCHModel ..........499 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:SCHModel ......

Page 500 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <h12phi> Phase of h Range: 0 deg to 345 deg Increment: 15 deg *RST: 0 deg Default unit: deg <h21abs> Square of magnitude of h Range: 0 to 1 *RST: <h21phi> Phase of h Range: 0 deg to 345 deg Increment: 15 deg...

Page 501 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <Mimo> <c> 1..3 Parameters: <h11abs> Range: 0 to 1 *RST: 0.25 <h11phi> Range: 0 deg to 345 deg *RST: 0 deg Default unit: deg <h12abs> Range: 0 to 1 *RST: 0.25 <h12phi> Range: 0 deg to 345 deg *RST:...

Page 502 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <h24phi> Range: 0 deg to 345 deg *RST: 180 deg Default unit: deg Example: Configuring MIMO Settings Firmware/Software: V3.0.50, SCC command V3.2.50 Options: R&S CMW-KS520 and R&S CMW-KS521 Manual operation: "4x2 channel model" on page 183 2.6.14.4 MIMO Beamforming Settings TM 7/8...

Page 503 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:BEAMforming:MODE <Mode> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:BEAMforming:MODE <Mode> Selects the beamforming mode for TM 7 and 8. Depending on other settings, only a subset of the values is allowed, see: ● TM 7: "Beamforming Mode" on page 184 ●...

Page 504 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:BEAMforming:MATRix <h11phi>[, <h12phi>[, <h11abs>, <h12abs>, <h21phi>, <h22phi>[, <h13phi>, <h14phi>[, <h13abs>, <h14abs>, <h23phi>, <h24phi>]]]] CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:BEAMforming:MATRix <h11phi>[, <h12phi>[, <h11abs>, <h12abs>, <h21phi>, <h22phi>[, <h13phi>, <h14phi>[, <h13abs>, <h14abs>, <h23phi>, <h24phi>]]]] Configures the beamforming matrix coefficients for TM 7 and TM 8. There are two types of parameters: ●...

Page 505 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <h24phi> Range: 0 deg to 345 deg Default unit: deg Example: Configuring MIMO Settings Firmware/Software: V3.2.70 Options: R&S CMW-KS520 Manual operation: "Beamforming Matrix" on page 184 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<8>:CHMatrix <abs11>, <phase11>, <abs12>, <phase12>, <abs21>, <phase21>, <abs22>, <phase22> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<8>:CHMatrix <abs11>, <phase11>, <abs12>, <phase12>, <abs21>, <phase21>, <abs22>, <phase22>...

Page 506 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <phase21> Phase of h Range: 0 deg to 345 deg Increment: 15 deg *RST: 0 deg Default unit: deg <abs22> Square of magnitude of h Range: 0 to 1 *RST: <phase22> Phase of h Range: 0 deg to 345 deg Increment: 15 deg...

Page 507 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<no>:NTXantennas <Antennas> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:NTXantennas <Antennas> Selects the number of downlink TX antennas for TM 9. Suffix: <no> <c> 1..3 Parameters: <Antennas> TWO | FOUR | EIGHt *RST: Example: Configuring MIMO Settings Firmware/Software: V3.5.10 Options: TWO (2x2): R&S CMW-KS520 FOUR (4x2): R&S CMW-KS520 and -KS521 EIGHt (8x2): R&S CMW-KS520 and -KS521 and -KS522...

Page 508 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Mode> PMI0 | PMI1 | PMI2 | PMI3 | PMI4 | PMI5 | PMI6 | PMI7 | PMI8 | PMI9 | PMI10 | PMI11 | PMI12 | PMI13 | PMI14 | PMI15 Matrix according to PMI 0, PMI 1, ...

Page 509 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Ports> NONE | P15 | P1516 | P1518 | P1522 NONE: no CSI-RS P15: port 15 P1516: port 15 and 16 P1518: port 15 to 18 P1522: port 15 to 22 *RST: P1516 Example: Configuring MIMO Settings...

Page 510 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Config> Range: 0 to 154 *RST: Example: Configuring MIMO Settings Firmware/Software: V3.5.10 Options: R&S CMW-KS520 Manual operation: "CSI-RS Subframe Cfg" on page 189 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<no>:ZP:BITS <Bits> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:ZP:BITS <Bits> Specifies the bitmap "ZeroPowerCSI-RS". Suffix: <no>...

Page 511 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<no>:CMATrix:TWO<line> <h1xabs>, <h1xphi>, <h2xphi> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix:TWO<line> <h1xabs>, <h1xphi>, <h2xphi> Configures the 2x2 channel coefficients for TM 9. The value <h2xabs> is calculated automatically from <h1xabs>, so that the sum of the values equals 1. A query returns <h1xabs>, <h1xphi>, <h2xabs>, <h2xphi>.

Page 512 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <hnmabs> = (h The sum of all values in one matrix line must not be greater than 1. <h4xabs> is calculated automatically, so that the sum equals 1. ● <hnmphi> defines the phase of the channel coefficient nm: <hnmphi>...

Page 513 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TM<no>:CMATrix:EIGHt<line> <h1xabs>, <h1xphi>, <h2xabs>, <h2xphi>, <h3xabs>, <h3xphi>, <h4xabs>, <h4xphi>, <h5xabs>, <h5xphi>, <h6xabs>, <h6xphi>, <h7xabs>, <h7xphi>, <h8xphi> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix:EIGHt<line> <h1xabs>, <h1xphi>, <h2xabs>, <h2xphi>, <h3xabs>, <h3xphi>, <h4xabs>, <h4xphi>, <h5xabs>, <h5xphi>, <h6xabs>, <h6xphi>, <h7xabs>, <h7xphi>, <h8xphi> Configures the 8x2 channel coefficients for TM 9. There are two types of parameters: ●...

Page 514 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <h5xphi> Range: 0 deg to 345 deg Increment: 15 deg Default unit: deg <h6xabs> Range: 0 to 1 <h6xphi> Range: 0 deg to 345 deg Increment: 15 deg Default unit: deg <h7xabs> Range: 0 to 1 <h7xphi>...

Page 515 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <PDCCH> AUTO | P1 | P2 | P3 | P4 AUTO: automatic configuration depending on scheduling type P1 to P4: 1, 2, 3, 4 symbols *RST: AUTO Example: Configuring General Connection Settings Part 2 Firmware/Software: V3.2.82 Manual operation: "PDCCH Symbol Config, #PDCCH Symbols"...

Page 516 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Aggregationlevel> AUTO | D8U4 | D4U4 | D4U2 | D1U1 AUTO: automatic configuration D<a>U<b>: <a> CCE for DCI messages for the DL, <b> CCE for messages for the UL *RST: AUTO Example: Configuring General Connection Settings Part 2 Firmware/Software: V3.2.82 Manual operation:...

Page 517 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:RPDCch <ReducedPDCCH> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:PDCCh:RPDCch <ReducedPDCCH> Enables / disables the reduction of PDCCH resources. Suffix: <c> 1..2 Parameters: <ReducedPDCCH> OFF | ON *RST: Firmware/Software: V3.0.50, SCC command V3.2.50 Manual operation: "Reduced PDCCH" on page 195 2.6.14.7 HARQ Connection Settings The following commands configure HARQ connection settings.

Page 518 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Number> Range: 1 to 4 *RST: Example: Configuring HARQ Firmware/Software: V3.5.10 Options: R&S CMW-KS510 Manual operation: "Number of HARQ Transmissions" on page 197 CONFigure:LTE:SIGN<i>:CONNection:HARQ:UL:DPHich <Mode> Selects how the UE is informed about required retransmissions / successful transmis- sions for UL HARQ.

Page 519 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON *RST: Example: Configuring HARQ Firmware/Software: V3.0.50 Options: R&S CMW-KS510 for scenarios without carrier aggregation R&S CMW-KS512 for scenarios with carrier aggregation Manual operation: "DL HARQ" on page 197 CONFigure:LTE:SIGN<i>:CONNection:HARQ:DL:NHT <Number>...

Page 520 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Configuring HARQ Firmware/Software: V3.0.50 Manual operation: "Redundancy Version Coding Sequence, User-Defined Sequence" on page 198 CONFigure:LTE:SIGN<i>:CONNection:HARQ:DL:UDSequence <Value1>[, <Value2>, <Value3>, <Value4>] Specifies the user-defined redundancy version sequence. Only the first n values are used, according to the specified length, see CONFigure:LTE:SIGN<i>: CONNection:HARQ:DL:UDSequence:LENGth.

Page 521 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..........524 CONFigure:LTE:SIGN<i>:CONNection:CDRX:UDSCheduling ............524 CONFigure:LTE:SIGN<i>:CONNection:SRPRindex ............. 524 CONFigure:LTE:SIGN<i>:CONNection:SRCindex CONFigure:LTE:SIGN<i>:CONNection:CDRX:ENABle <Enable> Enables or disables DRX and selects a set of DRX settings. Parameters: <Enable> DRXS | DRXL | UDEFined | ON | OFF DRXS: DRX_S, 3GPP TS 36.521-3, table H.3.6-1 DRXL: DRX_L, 3GPP TS 36.521-3, table H.3.6-2 UDEFined: user-defined DRX settings...

Page 522 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Timer> PSF1 | PSF2 | PSF3 | PSF4 | PSF5 | PSF6 | PSF8 | PSF10 | PSF20 | PSF30 | PSF40 | PSF50 | PSF60 | PSF80 | PSF100 | PSF200 | PSF300 | PSF500 | PSF750 | PSF1280 | PSF1920 | PSF2560 PSFn means n PDCCH subframes *RST:...

Page 523 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:CDRX:SOFFset <Offset> Configures the "drxStartOffset", shifting all DRX cycles. Parameters: <Offset> Range: 0 to length of long DRX cycle - 1 *RST: Example: Configuring Connected DRX Firmware/Software: V3.2.20 Options: R&S CMW-KS510 Manual operation: "Start Offset"...

Page 524 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Timer> Number of short DRX cycles Range: 1 to 16 *RST: Example: Configuring Connected DRX Firmware/Software: V3.2.20 Options: R&S CMW-KS510 Manual operation: "Short Cycle Timer" on page 202 CONFigure:LTE:SIGN<i>:CONNection:CDRX:UDSCheduling <Enable> Enables or disables uplink dynamic scheduling. Parameters: <Enable>...

Page 525 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "sr-ConfigIndex" on page 202 2.6.14.9 Global UL/DL Commands The following commands are related to UL/DL settings and are independent of the scheduling type. Scheduling-type specific commands are described in the subsequent sections............

Page 526 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <s> 1..2 <c> 1..3 Return values: <Throughput> Default unit: Mbit/s Example: Configuring User-Defined Channels Usage: Query only Firmware/Software: V3.0.20, SCC command V3.2.50 Manual operation: "Throughput" on page 205 SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL[:PCC]? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:DL:SCC<c>? Returns the expected maximum throughput (averaged over one frame) for the sum of all DL streams of one component carrier.

Page 527 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL[:PCC]? SENSe:LTE:SIGN<i>:CONNection:ETHRoughput:UL:SCC<c>? Returns the expected maximum throughput (averaged over one frame) for the uplink of one component carrier. The throughput is calculated for the currently selected schedul- ing type. Suffix: <c> 1..3 Return values: <Throughput>...

Page 528 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NumberRB> ZERO | N1 | N2 | N3 | N4 | N5 | N6 | N7 | N8 | N9 | N10 | N12 | N15 | N16 | N17 | N18 | N20 | N24 | N25 | N27 | N30 | N32 | N36 | N40 | N42 | N45 | N48 | N50 | N54 | N60 | N64 | N72 | N75 | N80 | N81 | N83 | N90 | N92 | N96 | N100 Number of allocated resource blocks.

Page 529 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NumberRB> ZERO | N1 | N2 | N3 | N4 | N5 | N6 | N7 | N8 | N9 | N10 | N12 | N15 | N16 | N17 | N18 | N20 | N24 | N25 | N27 | N30 | N32 | N36 | N40 | N42 | N45 | N48 | N50 | N54 | N60 | N64 | N72 | N75 | N80 | N81 | N83 | N90 | N92 | N96 | N100 Number of allocated resource blocks...

Page 530 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "RB Position/Start RB" on page 204 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:RMC:RBPosition:UL <Position> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:RMC:RBPosition:UL <Position> Selects the position of the allocated uplink resource blocks within the channel band- width, for contiguous allocation. The RBs can always be at the lower end, starting with RB number 0 (LOW), or at the upper end of the channel (HIGH).

Page 531 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:RMC:MCLuster:UL <NumberRB1>, <PositionRB1>, <NumberRB2>, <PositionRB2>, <Modulation>, <TransBlockSizeIdx> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:RMC:MCLuster:UL <NumberRB1>, <PositionRB1>, <NumberRB2>, <PositionRB2>, <Modulation>, <TransBlockSizeIdx> Configures an uplink reference measurement channel (RMC) with multi-cluster alloca- tion. Only certain value combinations are accepted, see Chapter 2.2.13, "Scheduling Type RMC", on page 47.

Page 532 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <TransBlockSizeIdx> ZERO | T1 | T2 | T3 | T4 | T5 | T6 | T7 | T10 | T11 | T12 | T13 | T14 | T17 | T18 | T19 | T21 | T22 | T23 | T24 | T25 | T30 | T31 | Transport block size index.

Page 533 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <StartRB> Position of first resource block. Configure the same value for all streams of a carrier. *RST: <Modulation> QPSK | Q16 | Q64 | Q256 Modulation type QPSK | 16-QAM | 64-QAM | 256-QAM *RST: QPSK <TransBlockSizeIdx>...

Page 534 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:MCLuster:DL<s> <Cluster>, <Modulation>, <TransBlockSizeIdx> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:MCLuster:DL<s> <Cluster>, <Modulation>, <TransBlockSizeIdx> Configures a user-defined downlink channel with multi-cluster allocation. The allowed input ranges have dependencies and are described in the background information, see Chapter 2.2.14, "User-Defined Channels", on page 59 and especially Table...

Page 535 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NumberRB1> Number of allocated resource blocks, cluster 1 *RST: <StartRB1> Position of first RB, cluster 1 *RST: <NumberRB2> Number of allocated resource blocks, cluster 2 *RST: <StartRB2> Position of first RB, cluster 2 *RST: <Modulation>...

Page 536 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:UL:CRATe:ALL? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:UL:CRATe:ALL? Queries the code rate for all uplink subframes for the scheduling type "User-defined Channels". Suffix: <c> 1..3 Return values: <CodeRate> Comma-separated list of 10 values (subframe 0 to subframe 9) Range: 0 to 10 Example: Configuring User-Defined Channels...

Page 537 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference A query for TDD can also return OFF,OFF,OFF,OFF, indicating that the queried sub- frame is no DL subframe. Suffix: <s> 1..2 <c> 1..3 Parameters: <NumberRB> Number of allocated resource blocks. The same value must be configured for all streams.

Page 538 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference For TDD UL and special subframes, you can set OFF or specify a number from the allowed input range. The effect is the same. A query returns OFF for non-DL sub- frames. Suffix: <s>...

Page 539 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <NumberRB> Number of allocated resource blocks *RST: <StartRB> Position of first resource block *RST: <Modulation> QPSK | Q16 | OFF Modulation type QPSK | 16-QAM | no UL subframe *RST: QPSK <TransBlockSizeIdx>...

Page 540 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <NumberRB> Number of allocated resource blocks *RST: <StartRB> Position of first resource block *RST: <Modulation> QPSK | Q16 | OFF Modulation type QPSK | 16-QAM | no UL subframe *RST: QPSK <TransBlockSizeIdx>...

Page 541 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL:CRATe:ALL? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:UL:CRATe:ALL? Queries the code rate for all uplink subframes, applicable to all scheduling types with a TTI-based UL definition. Suffix: <c> 1..3 Return values: <CodeRate> Comma-separated list of 10 values (subframe 0 to subframe 9) Range: 0 to 10 Example:...

Page 542 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NumberRB> Number of allocated resource blocks. The same value must be configured for all streams of the carrier. *RST: <StartRB> Position of first resource block. The same value must be config- ured for all streams of the carrier. *RST: <CQIIdx>...

Page 543 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NumberRB> Number of allocated resource blocks. The same value must be configured for all streams of the carrier. *RST: <StartRB> Position of first resource block. The same value must be config- ured for all streams of the carrier. *RST: <CQIIdx>...

Page 544 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:STTI <Scheduled>... CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FWBCqi:DL:STTI <Scheduled>... Configures which subframes are scheduled for the DL of the scheduling type "Follow WB CQI". For most subframes, the setting is fixed, depending on the duplex mode and the UL-DL configuration.

Page 545 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:MCLuster:DL <Cluster>, <Table> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FWBCqi:MCLuster:DL <Cluster>, <Table> Configures the downlink for the scheduling type "Follow WB CQI", with multi-cluster allocation. The allowed input ranges have dependencies and are described in the background information, see Chapter 2.2.15, "CQI Channels", on page 62 and especially...

Page 546 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <MCS> Comma-separated list of 15 MCS values, for reported CQI index value 1 to 15 Range: 0 to 28 *RST: 0,1,2,3,5,7,9,12,14,16,19,22,24,27,27 Example: Configuring CQI DL Channels Firmware/Software: V3.0.50, SCC command V3.2.70 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Follow WB CQI"...

Page 547 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <MCS> Comma-separated list of 15 MCS values, for reported CQI index value 1 to 15 Range: 0 to 28 *RST: 0,1,3,5,7,10,12,14,17,19,21,22,24,25,25 Example: Configuring CQI DL Channels Firmware/Software: V3.5.50 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Follow WB CQI"...

Page 548 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.5.40 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Follow WB CQI" on page 214 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:SSUBframe: DETermined? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FWBCqi:DL:MCSTable:SSUBframe: DETermined? Queries the automatically determined mapping table for special subframes. The table is used for the scheduling type "Follow WB CQI" if the table mode is set to DETermined.

Page 549 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.5.50 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Scheduled CQI" on page 216 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPMI:DL <NumberRB>, <StartRB>, <Modulation>, <TransBlockSizeIdx> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPMI:DL <NumberRB>, <StartRB>, <Modulation>, <TransBlockSizeIdx> Configures the downlink for the scheduling type "Follow WB PMI", with contiguous allo- cation.

Page 550 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <c> 1..3 Parameters: <Cluster> Bitmap, enabling or disabling the individual RBGs 1 means RBG allocated, 0 means RBG not allocated The number of bits depends on the cell bandwidth and equals the total number of RBGs. The bitmap starts with RBG 0 (most significant bit) and contin- ues with increasing RBG index / frequency.

Page 551 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Scheduled CQI" on page 216 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPRI:DL <NumberRB>, <StartRB>, <Modulation>, <TransBlockSizeIdx> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPRI:DL <NumberRB>, <StartRB>, <Modulation>, <TransBlockSizeIdx> Configures the downlink for the scheduling type "Follow WB PMI-RI", with contiguous allocation.

Page 552 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Cluster> Bitmap, enabling or disabling the individual RBGs 1 means RBG allocated, 0 means RBG not allocated The number of bits depends on the cell bandwidth and equals the total number of RBGs. The bitmap starts with RBG 0 (most significant bit) and contin- ues with increasing RBG index / frequency.

Page 553 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCRI:DL:STTI <Scheduled>... CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:STTI <Scheduled>... Configures which subframes are scheduled for the DL of the scheduling type "Follow WB CQI-RI". For most subframes, the setting is fixed, depending on the duplex mode and the UL-DL configuration.

Page 554 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCRI:MCLuster:DL <Cluster>, <Table> CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:MCLuster:DL <Cluster>, <Table> Configures the downlink for the scheduling type "Follow WB CQI-RI", with multi-cluster allocation. The allowed input ranges have dependencies and are described in the background information, see Chapter 2.2.15, "CQI Channels", on page 62 and especially...

Page 555 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <MCS> Comma-separated list of 15 MCS values, for reported CQI index value 1 to 15 Range: 0 to 28 *RST: 0,1,2,3,5,7,9,12,14,16,19,22,24,27,28 Example: Configuring CQI DL Channels Firmware/Software: V3.2.80 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Follow WB CQI-RI"...

Page 556 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V3.2.80 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Follow WB CQI-RI" on page 215 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCRI:DL:MCSTable:SSUBframe: DETermined? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable:SSUBframe: DETermined? Queries the automatically determined mapping table for special subframes. The table is used for the scheduling type "Follow WB CQI-RI"...

Page 557 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:SSUBframe: ......................560 UDEFined ....560 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:DETermined? ....560 SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:DETermined? ..561 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:CSIRs:DETermined? ..561 SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:CSIRs:DETermined? SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:SSUBframe: ...................... 561 DETermined? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:SSUBframe: ...................... 561 DETermined? CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:STTI <Scheduled>... CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:STTI <Scheduled>... Configures which subframes are scheduled for the DL of the scheduling type "Follow WB CQI-PMI-RI".

Page 558 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Table> DETermined | UDEFined DETermined: Automatic CQI to MCS mapping table UDEFined: User-defined mapping table *RST: Example: Configuring CQI DL Channels Firmware/Software: V3.2.80 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "#RB / Start RB" on page 213 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:MCLuster:DL <Cluster>, <Table>...

Page 559 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:UDEFined <MCS>(15) CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:UDEFined <MCS>(15) Configures a user-defined mapping table that assigns an MCS index value to each possible reported wideband CQI index value. The table is used for the scheduling type "Follow WB CQI-PMI-RI" if the table mode is set to UDEFined.

Page 560 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:SSUBframe: UDEFined <MCS>(15) CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:SSUBframe: UDEFined <MCS>(15) Configures a user-defined mapping table for special subframes that assigns an MCS index value to each possible reported wideband CQI index value. The table is used for the scheduling type "Follow WB CQI-PMI-RI" if the table mode is set to UDEFined.

Page 561 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:CSIRs: DETermined? SENSe:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:CSIRs: DETermined? Queries the automatically determined mapping table for subframes with CSI-RS. The table is used for the scheduling type "Follow WB CQI-PMI-RI" if the table mode is set to DETermined. Suffix: <c>...

Page 562 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..........562 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:TIConfig ..........562 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:SINTerval ..........562 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:DL<s> ............563 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:UL ........564 SENSe:LTE:SIGN<i>:CONNection[:PCC]:SPS:DL<s>:CRATe:ALL? ........564 SENSe:LTE:SIGN<i>:CONNection[:PCC]:SPS:UL:CRATe:ALL? CONFigure:LTE:SIGN<i>:CONNection[:PCC]:SPS:TIConfig <Enable> Configures the parameter "twoIntervalsConfig", signaled to the UE for the scheduling type SPS in TDD mode. Parameters: <Enable>...

Page 563 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <s> 1..2 Parameters: <NumberRB> Number of allocated resource blocks *RST: <StartRB> Position of first resource block *RST: <Modulation> QPSK | Q16 Modulation type QPSK | 16-QAM *RST: QPSK <TransBlockSizeIdx> Transport block size index *RST: Example: Configuring SPS...

Page 564: Cqi Reporting Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference SENSe:LTE:SIGN<i>:CONNection[:PCC]:SPS:DL<s>:CRATe:ALL? Queries the code rate for all downlink subframes for the scheduling type SPS. Suffix: <s> 1..2 Selects the downlink stream Return values: <CodeRate> Comma-separated list of 10 values (subframe 0 to subframe 9) Range: 0 to 50 Example:...

Page 565 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CQIReporting:ENABle <Enable> Enables/disables periodic CQI reporting. Parameters: <Enable> OFF | PERiodic OFF: no CQI reporting PERiodic: periodic CQI reporting *RST: Example: Configuring CQI Reporting Firmware/Software: V3.0.10 Options: R&S CMW-KS510 for scenarios without carrier aggregation R&S CMW-KS512 for scenarios with carrier aggregation Manual operation: "Enable CQI Reporting"...

Page 566 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference R&S CMW-KS512 for scenarios with carrier aggregation Manual operation: "Enable PMI/RI Reporting (TM 8, 9)" on page 218 CONFigure:LTE:SIGN<i>:CQIReporting[:PCC]:CINDex[:FDD] <Index> CONFigure:LTE:SIGN<i>:CQIReporting:SCC<c>:CINDex[:FDD] <Index> Specifies the FDD "cqi-pmi-ConfigIndex" (I CQI/PMI Suffix: <c> 1..3 Parameters: <Index> Range: 0 to 316, 318 to 541 *RST:...

Page 567: Ue Measurement Report Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Period> Range: 1 to 160 Example: Configuring CQI Reporting Usage: Query only Firmware/Software: V3.0.10, SCC command V3.2.70 Options: R&S CMW-KS510 for scenarios without carrier aggregation R&S CMW-KS512 for scenarios with carrier aggregation Manual operation: "CQI/PMI Reporting Period / Offset"...

Page 568 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON *RST: Example: Configuring Measurement Reports Firmware/Software: V2.0.10 Manual operation: "Report" on page 221 CONFigure:LTE:SIGN<i>:UEReport:RINTerval <Interval> Sets the interval between two consecutive measurement reports. Parameters: <Interval> I120 | I240 | I480 | I640 | I1024 | I2048 | I5120 | I10240 Interval in ms, e.g.

Page 569 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "Measurement Gap Period" on page 221 CONFigure:LTE:SIGN<i>:UEReport:FCOefficient:RSRP <Filter> Selects the value to be sent to the UE as "filterCoefficientRSRP". It is used by the UE to measure the reference signal received power (RSRP). Parameters: <Filter>...

Page 570: Messaging (Sms)
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Cycle> OFF | SF160 | SF256 | SF320 | SF512 | SF640 | SF1024 | SF1280 OFF: Do not signal "measCycleSCell" SFn: n subframes *RST: Example: Configuring Measurement Reports Firmware/Software: V3.2.70 Manual operation: "Measurement Cycle SCell"...

Page 571 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <LSMSHandling> TRUNcate | MSMS TRUNcate The SMS is truncated to 160 characters, the rest is discarded. MSMS Up to five concatenated messages are sent, consisting in sum of up to 800 characters. *RST: TRUN Example:...

Page 572 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:SMS:OUTGoing:BINary <SMSbinary> Defines the message contents for outgoing 8-bit binary messages. Parameters: <SMSbinary> Message contents as hexadecimal number with up to 1400 dig- Example: Sending / Receiving a Short Message Firmware/Software: V3.2.70 Manual operation: "Outgoing SMS binary"...

Page 573 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Example: Sending / Receiving a Short Message Firmware/Software: V3.5.40 Manual operation: "User Data Header" on page 224 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:CGRoup <CodingGroup> Selects the coding group to be indicated to the message recipient in the TP-Data-Cod- ing-Scheme field.

Page 574 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:SMS:OUTGoing:OADDress <OrigAddress> Specifies the originating address to be sent to the message recipient. Parameters: <OrigAddress> Address as string *RST: '764332637249279' Example: Sending / Receiving a Short Message Firmware/Software: V3.2.70 Manual operation: "Originating Address" on page 225 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:TSOurce <SourceTime>...

Page 575 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS510 Manual operation: "Service Center Time Stamp" on page 225 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:TIME <Hour>, <Minute>, <Second> Specifies the time of the service center time stamp for the time source DATE (see CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:TSOurce). Parameters: <Hour>...

Page 576 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <MessageLength> Number of characters in the message Range: 0 to 10E+3 Example: Sending / Receiving a Short Message Usage: Query only Firmware/Software: V3.5.50 Manual operation: "Message Encoding, Message Text, Message Length" on page 226 SENSe:LTE:SIGN<i>:SMS:OUTGoing:INFO:LMSent? Queries whether the last outgoing short message transfer was successful or not.

Page 577 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <MessageText> Message text as string <MessageLength> Number of characters in the message Range: 0 to 10E+3 <MessageSegments> Number of segments Range: 0 to 1000 Example: Sending / Receiving a Short Message Usage: Query only Firmware/Software: V3.5.50 Manual operation: "Select File"...

Page 578: Messaging (Cbs)
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Message Text / Message Length" on page 227 CLEan:LTE:SIGN<i>:SMS:INComing:INFO:MTEXt Resets all parameters related to a received SMS message. The "message read" flag is set to true. Example: Sending / Receiving a Short Message Usage: Event Firmware/Software: V2.1.20...

Page 579 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..............583 CONFigure:LTE:SIGN<i>:CBS:MESSage:FILE ............583 CONFigure:LTE:SIGN<i>:CBS:MESSage:FILE:INFO? ............ 583 CONFigure:LTE:SIGN<i>:CBS:MESSage:ETWS:ALERt ........... 584 CONFigure:LTE:SIGN<i>:CBS:MESSage:ETWS:POPup CONFigure:LTE:SIGN<i>:CBS:MESSage:ENABle <Enable> Enables the transmission of cell broadcast messages. Parameters: <Enable> OFF | ON *RST: Example: Configuring the Cell Broadcast Service Firmware/Software: V3.5.40 Options: R&S CMW-KS170...

Page 580 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Type> APResidentia | AEXTreme | ASEVere | AAMBer | EARThquake | TSUNami | ETWarning | ETWTest | UDCMas | UDETws APResidentia: presidential alert AEXTreme: extreme alert ASEVere: severe alert AAMBer: amber alert EARThquake: earthquake TSUNami: tsunami ETWarning: earthquake + tsunami...

Page 581 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KS170 Manual operation: "Serial Number" on page 229 CONFigure:LTE:SIGN<i>:CBS:MESSage:CGRoup? Queries the coding group of the message. Return values: <CodingGroup> 0: used for internal data source 1: used for file data source *RST: Example: Configuring the Cell Broadcast Service...

Page 582 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <Language> <LngIndication> "Spanish" "Dutch" "Swedish" "Danish" "Portuguese" "Finnish" "Norwegian" "Greek" "Turkish" "Hungarian" "Polish" "Language unspecified" CONFigure:LTE:SIGN<i>:CBS:MESSage:SOURce <MessageHandling> Selects the source of the message text. Parameters: <MessageHandling> INTernal | FILE INTernal: message text defined via CONFigure:LTE: SIGN<i>:CBS:MESSage:DATA FILE: message text read from file, selected via...

Page 583 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Data" on page 230 CONFigure:LTE:SIGN<i>:CBS:MESSage:FILE <File> Selects a message file for the data source FILE. Store your message files in the directory D:\Rohde-Schwarz\CMW\Data\cbs\LTE\. Parameters: <File> Path and filename as string *RST: No File Selected Firmware/Software: V3.5.40 Options:...

Page 584: Message Monitoring Settings
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:CBS:MESSage:ETWS:POPup <Enable> Deactivates / activates ETWS warning popups. Parameters: <Enable> OFF | ON *RST: Example: Configuring the Cell Broadcast Service Firmware/Software: V3.5.40 Options: R&S CMW-KS170 Manual operation: "ETWS" on page 230 2.6.19 Message Monitoring Settings The following commands configure message monitoring for LTE.

Page 585: Bler Measurement
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Logging PC IPv4 Address" on page 231 2.6.20 BLER Measurement The following sections describe the commands related to the "Extended BLER" mea- surement. ● Measurement Control and States................. 585 ● Measurement Settings..................

Page 586 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:SIGN<i>:EBLer:STATe? Queries the main measurement state. Use FETCh:...:STATe:ALL? to query the measurement state including the substates. Use INITiate..., STOP..., ABORt... to change the measurement state. See also: "Measurement Control" in the R&S CMW base unit manual, chapter "Remote Control"...

Page 587 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <ResourceState> QUE | ACT | INV QUE: measurement without resources, no results available ("queued") ACT: resources allocated, acquisition of results in progress but not complete ("active") INV: not applicable, <MainState> OFF or RDY ("invalid") Example: Performing a Continuous BLER Measurement Usage:...

Page 588 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:EBLer:REPetition <Repetition> Specifies whether the measurement is stopped after a single shot or repeated continu- ously. Parameters: <Repetition> SINGleshot | CONTinuous SINGleshot: Single-shot measurement CONTinuous: Continuous measurement *RST: SING Example: Configuring a BLER Measurement Firmware/Software: V3.0.30 Manual operation: "Repetition"...

Page 589 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:EBLer:ERCalc <Algorithm> Selects the formula to be used for calculation of the BLER from the number of ACK, NACK and DTX. Parameters: <Algorithm> ERC1 | ERC2 | ERC3 | ERC4 ERC1: BLER = (NACK + DTX) / (ACK + NACK + DTX) ERC2: BLER = DTX / (ACK + NACK + DTX) ERC3: BLER = NACK / (ACK + NACK + DTX) ERC4: BLER = NACK / (ACK + NACK)

Page 590 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.30 Options: R&S CMW-KS510/-KS512 (without CA/with CA) Manual operation: "Minimum Test Time" on page 236 CONFigure:LTE:SIGN<i>:EBLer:CONFidence:LERate <Rate> Selects the limit error ratio for a confidence BLER measurement. Parameters: <Rate> P001 | P010 | P050 P001: 0.1 %, 3GPP TS 36.521 annex G.4 P010: 1 %, 3GPP TS 36.521 annex G.4 P050: 5 %, 3GPP TS 36.521 annex G.2...

Page 591 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ..............595 FETCh:LTE:SIGN<i>:EBLer:ALL:RELative? ......595 FETCh:INTermediate:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:ABSolute? ....... 595 FETCh:INTermediate:LTE:SIGN<i>:EBLer:SCC<c>:STReam<s>:ABSolute? ..........595 FETCh:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:ABSolute? ........... 595 FETCh:LTE:SIGN<i>:EBLer:SCC<c>:STReam<s>:ABSolute? ......596 FETCh:INTermediate:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:RELative? ....... 596 FETCh:INTermediate:LTE:SIGN<i>:EBLer:SCC<c>:STReam<s>:RELative? ..........596 FETCh:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:RELative? ..........596 FETCh:LTE:SIGN<i>:EBLer:SCC<c>:STReam<s>:RELative? .........597 FETCh:LTE:SIGN<i>:EBLer[:PCC]:CQIReporting:STReam<s>? ........597 FETCh:LTE:SIGN<i>:EBLer:SCC<c>:CQIReporting:STReam<s>? .......598 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]:STReam<s>? ......598 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>:STReam<s>? ..........599 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]?

Page 592 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V3.0.30 V3.2.80: added value UNDecided and SCC command FETCh:LTE:SIGN<i>:EBLer:ALL:CONFidence? Returns the overall pass/fail result of a confidence BLER measurement. Return values: <Reliability> Reliability Indicator <Confidence> EPASs | EFAil | PASS | FAIL | UNDecided EPASs, EFAil: early pass, early fail PASS, FAIL: pass, fail UNDecided: undecided...

Page 593 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <8_DTX> Number of sent scheduled subframes for which no ACK and no NACK has been received (sum of all downlink streams) Range: 0 to 4E+9 <9_Scheduled> Number of already sent scheduled subframes (per downlink stream) Range: 0 to 2E+9...

Page 594 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <10_MedianCQI> Median value of received CQI indices Range: 0 to 15 Example: Performing a Continuous BLER Measurement Usage: Query only Firmware/Software: V3.2.50 FETCh:INTermediate:LTE:SIGN<i>:EBLer[:PCC]:RELative? FETCh:INTermediate:LTE:SIGN<i>:EBLer:SCC<c>:RELative? FETCh:LTE:SIGN<i>:EBLer[:PCC]:RELative? FETCh:LTE:SIGN<i>:EBLer:SCC<c>:RELative? Returns the relative overall results of the BLER measurement for the sum of all DL streams of one carrier.

Page 595 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.30, SCC command V3.2.50 FETCh:INTermediate:LTE:SIGN<i>:EBLer:ALL:RELative? FETCh:LTE:SIGN<i>:EBLer:ALL:RELative? Returns the relative overall results of the BLER measurement for the sum of all down- link streams of all carriers. The number to the left of each result parameter is provided for easy identification of the parameter position within the result array.

Page 596 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference The number to the left of each result parameter is provided for easy identification of the parameter position within the result array. Suffix: <s> 1..2 <c> 1..3 Return values: <1_Reliability> Reliability Indicator <2_ACK> Number of received acknowledgments Range: 0 to 2E+9...

Page 597 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Reliability> Reliability Indicator <ACK> Received acknowledgments (percentage of sent scheduled sub- frames) Range: 0 % to 100 % Default unit: % <NACK> Received negative acknowledgments (percentage of sent scheduled subframes) Range: 0 % to 100 % Default unit: % <BLER>...

Page 598 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <RangeAbsolute> Number of reports received for the range from median CQI - 1 to median CQI + 1 Range: 0 to 2E+9 <RangeRelative> <RangeAbsolute> as percentage of total number of received reports Range: 0 % to 100 % Default unit: % <BLER>...

Page 599 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V2.0.10, SCC command V3.2.50 Options: R&S CMW-KS520 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]? FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>? Returns the throughput trace for the sum of all DL streams of one carrier. Each value is returned as a pair of X-value and Y-value. The number of result pairs n equals the number of subframes to be processed per measurement cycle, divided by 200.

Page 600 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <YValue> Throughput value calculated from the BLER result of 200 pro- cessed subframes (the labeled subframe and the previous 199 subframes) Default unit: kbit/s Example: Performing a Single-Shot BLER Measurement Usage: Query only Firmware/Software: V3.2.50 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]:MCQI:STReam<s>? FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>:MCQI:STReam<s>?

Page 601 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Reliability> Reliability Indicator <YValue> Comma-separated list of 16 Y-values, for CQI index 0 to 15 Range: 0 to 2E+9 Example: Performing a Single-Shot BLER Measurement Usage: Query only Firmware/Software: V3.0.10, SCC command V3.2.70 FETCh:LTE:SIGN<i>:EBLer[:PCC]:RI? FETCh:LTE:SIGN<i>:EBLer:SCC<c>:RI? Returns the rank indicator (RI) results.

Page 602 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <PMI> Comma-separated list of values, indicating number of received PMI values The number of results depends on the number of transmit anten- nas and the selected RI: 2 antennas, RI = 1: 4 values for PMI = 0, 1, 2, 3 2 antennas, RI = 2: 2 values for PMI = 0, 1 4 antennas: 16 values for PMI = 0, 1, ..., 15 8 ant.: 256 values for {PMI2 = 0, ..., 15}...

Page 603 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:SIGN<i>:EBLer[:PCC]:HARQ:STReam<s>:TRANsmission:RELative? FETCh:LTE:SIGN<i>:EBLer:SCC<c>:HARQ:STReam<s>:TRANsmission: RELative? Returns relative HARQ results for one downlink stream. All columns of the "HARQ per Transmissions" result table are returned: <Reliability>, {<Sent>, <ACK>, <NACK>, <DTX>} , {...} , {...} , {...} column 1 col.

Page 604 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Reliability> Reliability Indicator <Sent> NAV returned, for future use <ACK> Number of received acknowledgments Range: 0 to 2E+9 <NACK> Number of received negative acknowledgments Range: 0 to 2E+9 <DTX> Number of sent subframes for which no ACK and no NACK has been received Range: 0 to 2E+9...

Page 605: Rlc Throughput Measurement
® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.10, SCC command V3.2.70 FETCh:LTE:SIGN<i>:EBLer[:PCC]:UPLink? FETCh:LTE:SIGN<i>:EBLer:SCC<c>:UPLink? Returns the uplink results of the BLER measurement. Suffix: <c> 1..3 Return values: <Reliability> Reliability Indicator <BLER> Block error ratio (percentage of received uplink subframes with failed CRC check) Range: 0 % to 100 %...

Page 606 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference ................. 606 INITiate:LTE:SIGN<i>:THRoughput ..................606 STOP:LTE:SIGN<i>:THRoughput ...................606 ABORt:LTE:SIGN<i>:THRoughput ..............606 FETCh:LTE:SIGN<i>:THRoughput:STATe? ............... 607 FETCh:LTE:SIGN<i>:THRoughput:STATe:ALL? INITiate:LTE:SIGN<i>:THRoughput STOP:LTE:SIGN<i>:THRoughput ABORt:LTE:SIGN<i>:THRoughput Starts, stops, or aborts the measurement: ● INITiate... starts or restarts the measurement. The measurement enters the "RUN"...

Page 607 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.80 Manual operation: "RLC Throughput (Softkey)" on page 237 FETCh:LTE:SIGN<i>:THRoughput:STATe:ALL? Queries the main measurement state and the measurement substates. Both measure- ment substates are relevant for running measurements only. Use FETCh:...:STATe? to query the main measurement state only. Use INITiate..., STOP..., ABORt...

Page 608 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:THRoughput:TOUT <Timeout> Defines a timeout for the measurement. The timer is started when the measurement is initiated via a READ or INIT command. It is not started if the measurement is initiated manually (ON/OFF key or RESTART/STOP key). When the measurement has completed the first measurement cycle (first single shot), the statistical depth is reached and the timer is reset.

Page 609 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:SIGN<i>:THRoughput:WINDow <Size> Configures the number of subframes on the X-axis of the throughput diagram (duration of a single-shot measurement). The size cannot be smaller than the update interval. Parameters: <Size> Range: 200 to 120000 *RST: 60000 Example:...

Page 610 ® LTE Signaling R&S CMW-KM5xx/-KS5xx Command Reference <CurrUlPDU> Current uplink throughput Default unit: bit/s <AvgUlPDU> Average uplink throughput Default unit: bit/s <MaxUlPDU> Maximum uplink throughput Default unit: bit/s <MinUlPDU> Minimum uplink throughput Default unit: bit/s <BytesUlPDU> Number of bytes received in the uplink Example: Performing an RLC Throughput Measurement Usage:...

Page 611: List Of Commands
® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands <DownlinkPDU> Comma-separated list of n throughput values Default unit: bit/s Example: Performing an RLC Throughput Measurement Usage: Query only Firmware/Software: V3.2.80 2.7 List of Commands ABORt:LTE:SIGN<i>:EBLer.......................... 585 ABORt:LTE:SIGN<i>:THRoughput........................ 606 CALL:LTE:SIGN<i>:PSWitched:ACTion......................311 CALL:LTE:SIGN<i>:SCC<c>:ACTion......................311 CATalog:LTE:SIGN<i>:CONNection:DEDBearer?..................

Page 612 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CELL:PRACh:PRSTep..................451 CONFigure:LTE:SIGN<i>:CELL:PRACh:ZCZConfig..................453 CONFigure:LTE:SIGN<i>:CELL:RCAuse:ATTach..................474 CONFigure:LTE:SIGN<i>:CELL:RCAuse:TAU....................474 CONFigure:LTE:SIGN<i>:CELL:RESelection:QUALity:RXLevmin..............465 CONFigure:LTE:SIGN<i>:CELL:RESelection:SEARch:INTRasearch............464 CONFigure:LTE:SIGN<i>:CELL:RESelection:SEARch:NINTrasearch............465 CONFigure:LTE:SIGN<i>:CELL:RESelection:TSLow................... 465 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CID:EUTRan................467 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CSAT:DMTCperiod..............454 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:CSAT:ENABle................454 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:PCID.................... 446 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:OFFSduration............. 455 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:ONSDuration...............454 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SCMuting:PMAC................455 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SSUBframe..................450 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:SYNC:OFFSet................478 CONFigure:LTE:SIGN<i>:CELL:SCC<c>:ULDL....................450 CONFigure:LTE:SIGN<i>:CELL:SECurity:AS....................468 CONFigure:LTE:SIGN<i>:CELL:SECurity:AUTHenticat................468 CONFigure:LTE:SIGN<i>:CELL:SECurity:IALGorithm.................. 468 CONFigure:LTE:SIGN<i>:CELL:SECurity:MILenage..................469 CONFigure:LTE:SIGN<i>:CELL:SECurity:NAS.....................468 CONFigure:LTE:SIGN<i>:CELL:SECurity:OPC....................

Page 613 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CELL[:PCC]:SYNC:ZONE..................478 CONFigure:LTE:SIGN<i>:CELL[:PCC]:ULDL....................450 CONFigure:LTE:SIGN<i>:CONNection:AMDBearer..................495 CONFigure:LTE:SIGN<i>:CONNection:APN....................486 CONFigure:LTE:SIGN<i>:CONNection:ASEMission..................482 CONFigure:LTE:SIGN<i>:CONNection:CDRX:ENABle................521 CONFigure:LTE:SIGN<i>:CONNection:CDRX:ITIMer...................521 CONFigure:LTE:SIGN<i>:CONNection:CDRX:LDCYcle................522 CONFigure:LTE:SIGN<i>:CONNection:CDRX:ODTimer................521 CONFigure:LTE:SIGN<i>:CONNection:CDRX:RTIMer................. 522 CONFigure:LTE:SIGN<i>:CONNection:CDRX:SCENable................523 CONFigure:LTE:SIGN<i>:CONNection:CDRX:SCTimer................523 CONFigure:LTE:SIGN<i>:CONNection:CDRX:SDCYcle................523 CONFigure:LTE:SIGN<i>:CONNection:CDRX:SOFFset................523 CONFigure:LTE:SIGN<i>:CONNection:CDRX:UDSCheduling..............524 CONFigure:LTE:SIGN<i>:CONNection:CSFB:DESTination................. 492 CONFigure:LTE:SIGN<i>:CONNection:CSFB:GSM..................492 CONFigure:LTE:SIGN<i>:CONNection:CSFB:TDSCdma................494 CONFigure:LTE:SIGN<i>:CONNection:CSFB:WCDMa................493 CONFigure:LTE:SIGN<i>:CONNection:CTYPe.....................484 CONFigure:LTE:SIGN<i>:CONNection:DEDBearer..................315 CONFigure:LTE:SIGN<i>:CONNection:DLEinsertion..................488 CONFigure:LTE:SIGN<i>:CONNection:DLPadding..................

Page 614 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:BEAMforming:MATRix............504 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:BEAMforming:MODE............503 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:BEAMforming:NOLayers..........503 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:CEXecute................. 309 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:DCIFormat................ 496 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:DLEQual................525 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL................. 557 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:CSIRs:UDEFined......559 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:SSUBframe:UDEFined....560 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:MCSTable:UDEFined........559 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:DL:STTI..............557 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCPRi:MCLuster:DL............558 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL................553 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable:SSUBframe:UDEFined....555 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:MCSTable:UDEFined........554 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:DL:STTI..............553 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCRI:MCLuster:DL............554 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCTTibased:DL<s>............541 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FCTTibased:DL<s>:ALL...........542 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPMI:DL................549 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPMI:DL:STTI..............548 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPMI:MCLuster:DL............549 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPRI:DL................551 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:FPRI:DL:STTI..............

Page 615 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:STYPe................488 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<8>:CHMatrix.............. 505 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix:EIGHt<line>.........513 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix:FOUR<line>........511 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CMATrix:TWO<line>.......... 511 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CODewords............507 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CSIRs:APORts...........508 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CSIRs:POWer............ 508 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CSIRs:RESource..........509 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:CSIRs:SUBFrame..........509 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:NTXantennas............. 507 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:PMATrix............. 507 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:ZP:BITS..............510 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TM<no>:ZP:CSIRs:SUBFrame........510 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:TRANsmission..............496 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:DL<s>............532 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:MCLuster:DL<s>........534 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:MCLuster:UL..........534 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:UL............... 533 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:DL<s>............536 CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:DL<s>:ALL..........

Page 616 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FCTTibased:DL<s>:ALL............542 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPMI:DL................549 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPMI:DL:STTI...............548 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPMI:MCLuster:DL...............549 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPRI:DL................551 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPRI:DL:STTI............... 550 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FPRI:MCLuster:DL............... 551 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL................544 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:CSIRs:UDEFined......546 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:SSUBframe:UDEFined....546 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:UDEFined........545 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:STTI..............544 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:MCLuster:DL............545 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:MCLuster:DL................ 490 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:MCLuster:UL................ 489 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:NENBantennas..............497 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:ALEVel..............515 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:RPDCch..............517 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:SYMBol..............514 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PMATrix................498 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:PZERo:MAPPing..............502 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:QAM<ModOrder>:DL............

Page 617 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:CONNection[:PCC]:TTIBundling................490 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:DL<s>............. 532 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:MCLuster:DL<s>..........534 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:MCLuster:UL..........534 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:UL..............533 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:DL<s>..............536 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:DL<s>:ALL............537 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL..............538 CONFigure:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL:ALL............539 CONFigure:LTE:SIGN<i>:CQIReporting:CSIRmode..................565 CONFigure:LTE:SIGN<i>:CQIReporting:ENABle..................565 CONFigure:LTE:SIGN<i>:CQIReporting:PRIReporting:ENABle..............565 CONFigure:LTE:SIGN<i>:CQIReporting:SCC<c>:CINDex:TDD..............566 CONFigure:LTE:SIGN<i>:CQIReporting:SCC<c>:CINDex[:FDD]..............566 CONFigure:LTE:SIGN<i>:CQIReporting[:PCC]:CINDex:TDD...............566 CONFigure:LTE:SIGN<i>:CQIReporting[:PCC]:CINDex[:FDD]..............566 CONFigure:LTE:SIGN<i>:DL:SCC<c>:AWGN....................431 CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:MODE................... 430 CONFigure:LTE:SIGN<i>:DL:SCC<c>:CSIRs:POFFset................431 CONFigure:LTE:SIGN<i>:DL:SCC<c>:OCNG....................429 CONFigure:LTE:SIGN<i>:DL:SCC<c>:PBCH:POFFset................427 CONFigure:LTE:SIGN<i>:DL:SCC<c>:PCFich:POFFset................

Page 618 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:EBLer:SFRames....................588 CONFigure:LTE:SIGN<i>:EBLer:TOUT......................587 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:BWIDth:NOISe?............424 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:BWIDth:RATio.............. 424 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:ENABle................. 424 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:FOFFset............... 417 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:AWGN:SNRatio................ 425 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:DSHift..............422 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:DSHift:MODE............421 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:ENABle..............417 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:GLOBal:SEED............420 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:ILOSs:LOSS............420 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:ILOSs:MODE............420 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:PROFile..............418 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:RESTart..............419 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:RESTart:MODE............419 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:STANdard:ENABle..........416 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:FSIMulator:STANdard:PROFile..........417 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:POWer:NOISe:TOTal?............. 423 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:POWer:NOISe?................ 422 CONFigure:LTE:SIGN<i>:FADing:SCC<c>:POWer:SUM?................423 CONFigure:LTE:SIGN<i>:FADing[:PCC]:AWGN:BWIDth:NOISe?...............

Page 619 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:NCELl:GSM:THResholds:LOW................456 CONFigure:LTE:SIGN<i>:NCELl:LTE:CELL<n>................... 458 CONFigure:LTE:SIGN<i>:NCELl:LTE:THResholds:LOW................456 CONFigure:LTE:SIGN<i>:NCELl:TDSCdma:CELL<n>................. 463 CONFigure:LTE:SIGN<i>:NCELl:TDSCdma:THResholds:LOW..............457 CONFigure:LTE:SIGN<i>:NCELl:WCDMa:CELL<n>..................460 CONFigure:LTE:SIGN<i>:NCELl:WCDMa:THResholds:LOW..............456 CONFigure:LTE:SIGN<i>:RFSettings:ALL:BWCHannel................405 CONFigure:LTE:SIGN<i>:RFSettings:EDC:INPut..................402 CONFigure:LTE:SIGN<i>:RFSettings:EDC:OUTPut..................402 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:CHANnel:DL............... 407 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:CHANnel:UL............... 407 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:EATTenuation:INPut............402 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:EATTenuation:OUTPut<n>..........402 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:ENPMode................409 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:ENPower................409 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:FOFFset:DL................ 407 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:FOFFset:UL................ 408 CONFigure:LTE:SIGN<i>:RFSettings:SCC<c>:MLOFfset................

Page 620 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:UDEFined:UDSeparation............411 CONFigure:LTE:SIGN<i>:RFSettings[:PCC]:UMARgin.................410 CONFigure:LTE:SIGN<i>:SCC:AMODe......................307 CONFigure:LTE:SIGN<i>:SCC<c>:BAND.....................406 CONFigure:LTE:SIGN<i>:SCC<c>:CAGGregation:MODE................308 CONFigure:LTE:SIGN<i>:SCC<c>:DMODe....................306 CONFigure:LTE:SIGN<i>:SCC<c>:UUL......................307 CONFigure:LTE:SIGN<i>:SMS:INComing:FILE.................... 576 CONFigure:LTE:SIGN<i>:SMS:INComing:FILE:INFO?................576 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:BINary..................572 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:CGRoup..................573 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:DCODing................... 572 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:FILE...................575 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:FILE:INFO?................575 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:INTernal..................571 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:LHANdling................. 570 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:MCLass..................573 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:MESHandling................571 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:OADDress................. 574 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:OSADdress................573 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:PIDentifier..................572 CONFigure:LTE:SIGN<i>:SMS:OUTGoing:SCTStamp:DATE..............

Page 621 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:SET................440 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:SINGle................ 442 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:TPOWer..............441 CONFigure:LTE:SIGN<i>:UL:SCC<c>:PUSCh:TPC:UDPattern..............443 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:EASettings................434 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PCALpha:ADVanced............438 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PIRPower:ADVanced............437 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:PNPusch:ADVanced............437 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:RSPower:ADVanced............436 CONFigure:LTE:SIGN<i>:UL[:PCC]:APPower:TPRRcsetup:ADVanced............438 CONFigure:LTE:SIGN<i>:UL[:PCC]:JUPower....................432 CONFigure:LTE:SIGN<i>:UL[:PCC]:PMAX....................432 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:OLNPower................434 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:CLTPower............... 441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:PEXecute................ 440 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:RPControl............... 441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:SET................. 440 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:SINGle................442 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:TPOWer................441 CONFigure:LTE:SIGN<i>:UL[:PCC]:PUSCh:TPC:UDPattern...............

Page 622 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:SIGN<i>:EBLer:STATe?......................586 FETCh:LTE:SIGN<i>:EBLer:TRACe:CQIReporting:SCC<c>:STReam<s>?..........600 FETCh:LTE:SIGN<i>:EBLer:TRACe:CQIReporting[:PCC]:STReam<s>?.............600 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:ALL?................599 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>:MCQI:STReam<s>?........600 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>:STReam<s>?..........598 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput:SCC<c>?............... 599 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]:MCQI:STReam<s>?..........600 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]:STReam<s>?............598 FETCh:LTE:SIGN<i>:EBLer:TRACe:THRoughput[:PCC]?................599 FETCh:LTE:SIGN<i>:EBLer[:PCC]:ABSolute?....................592 FETCh:LTE:SIGN<i>:EBLer[:PCC]:CONFidence?..................591 FETCh:LTE:SIGN<i>:EBLer[:PCC]:CQIReporting:STReam<s>?..............597 FETCh:LTE:SIGN<i>:EBLer[:PCC]:HARQ:STReam<s>:SUBFrame:ABSolute?.......... 603 FETCh:LTE:SIGN<i>:EBLer[:PCC]:HARQ:STReam<s>:SUBFrame:RELative?...........604 FETCh:LTE:SIGN<i>:EBLer[:PCC]:HARQ:STReam<s>:TRANsmission:ABSolute?........602 FETCh:LTE:SIGN<i>:EBLer[:PCC]:HARQ:STReam<s>:TRANsmission:RELative?........603 FETCh:LTE:SIGN<i>:EBLer[:PCC]:PMI:RI<no>?..................601 FETCh:LTE:SIGN<i>:EBLer[:PCC]:RELative?....................594 FETCh:LTE:SIGN<i>:EBLer[:PCC]:RI?......................601 FETCh:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:ABSolute?................ 595 FETCh:LTE:SIGN<i>:EBLer[:PCC]:STReam<s>:RELative?.................596 FETCh:LTE:SIGN<i>:EBLer[:PCC]:UPLink?....................

Page 623 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands READ:LTE:SIGN<i>:THRoughput:TRACe:DL:PDU:CURRent?..............610 READ:LTE:SIGN<i>:THRoughput:TRACe:UL:PDU:AVERage?..............610 READ:LTE:SIGN<i>:THRoughput:TRACe:UL:PDU:CURRent?..............610 READ:LTE:SIGN<i>:THRoughput?....................... 609 ROUTe:LTE:SIGN<i>:SCENario:CAFF:FLEXible:INTernal................391 ROUTe:LTE:SIGN<i>:SCENario:CAFF:FLEXible[:EXTernal]............... 391 ROUTe:LTE:SIGN<i>:SCENario:CAFRfout:FLEXible................... 389 ROUTe:LTE:SIGN<i>:SCENario:CATF:FLEXible:INTernal................389 ROUTe:LTE:SIGN<i>:SCENario:CATF:FLEXible[:EXTernal]............... 390 ROUTe:LTE:SIGN<i>:SCENario:CATRfout:FLEXible................... 388 ROUTe:LTE:SIGN<i>:SCENario:CC:FLEXible....................392 ROUTe:LTE:SIGN<i>:SCENario:CCMP:FLEXible..................393 ROUTe:LTE:SIGN<i>:SCENario:CCMS<c>:FLEXible.................. 394 ROUTe:LTE:SIGN<i>:SCENario:CF......................394 ROUTe:LTE:SIGN<i>:SCENario:CFF:INTernal.....................395 ROUTe:LTE:SIGN<i>:SCENario:CFF[:EXTernal]..................396 ROUTe:LTE:SIGN<i>:SCENario:DD:FLEXible....................397 ROUTe:LTE:SIGN<i>:SCENario:DH......................398 ROUTe:LTE:SIGN<i>:SCENario:DHF:INTernal.................... 399 ROUTe:LTE:SIGN<i>:SCENario:DHF[:EXTernal]..................400 ROUTe:LTE:SIGN<i>:SCENario:FRO:FLEXible...................

Page 624 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:DL<s>:CRATe:ALL?......... 535 SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDCHannels:UL:CRATe:ALL?..........536 SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:DL<s>:CRATe:ALL?.......... 540 SENSe:LTE:SIGN<i>:CONNection:SCC<c>:UDTTibased:UL:CRATe:ALL?..........541 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:CSIRs:DETermined?....... 561 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:DETermined?...........560 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCPRi:DL:MCSTable:SSUBframe:DETermined?.......561 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCRI:DL:MCSTable:DETermined?..........555 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FCRI:DL:MCSTable:SSUBframe:DETermined?......556 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:CSIRs:DETermined?......547 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:DETermined?........547 SENSe:LTE:SIGN<i>:CONNection[:PCC]:FWBCqi:DL:MCSTable:SSUBframe:DETermined?....548 SENSe:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:ALEVel?.................516 SENSe:LTE:SIGN<i>:CONNection[:PCC]:PDCCh:PSYMbols?..............515 SENSe:LTE:SIGN<i>:CONNection[:PCC]:SPS:DL<s>:CRATe:ALL?............564 SENSe:LTE:SIGN<i>:CONNection[:PCC]:SPS:UL:CRATe:ALL?..............564 SENSe:LTE:SIGN<i>:CONNection[:PCC]:TSCHeme?................. 497 SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:DL<s>:CRATe:ALL?..........535 SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDCHannels:UL:CRATe:ALL?........... 536 SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:DL<s>:CRATe:ALL?..........540 SENSe:LTE:SIGN<i>:CONNection[:PCC]:UDTTibased:UL:CRATe:ALL?............

Page 625 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:FGINdicators?..............334 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:CXRTt:ECCMob?............366 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:CXRTt:ECDual?............366 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:CXRTt:ECSFb?............366 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:EREDirection:UTDD?..........362 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:EREDirection:UTRA?..........361 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:GERan:PHGeran?.............363 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:IRAT:GERan:SUPPorted?..........362 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:FREQuency:INTer?..........370 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:FREQuency:INTRa?..........370 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:NCSacq:UTRan?..............371 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:CCSSupport?............340 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:MCPCsupport?............341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:NURClist?............. 341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:PDSupport?............340 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:SPPSupport?............341 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:TAPPsupport?............339 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:TWEFsupport?............340 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:USRSsupport?............338 SENSe:LTE:SIGN<i>:UECapability:FAUeeutra:PLAYer:UTASupported?............ 338 SENSe:LTE:SIGN<i>:UECapability:FGINdicators:RNADd?................334 SENSe:LTE:SIGN<i>:UECapability:FGINdicators:RTEN?................

Page 626 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:CHRPd?..............354 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:CXRTt?..............355 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:GERan?..............353 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:UFDD?............... 352 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:UTDD<n>?..............352 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:CHRPd?..........358 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:CXRTt?..........359 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:GERan?..........358 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:UFDD?........... 356 SENSe:LTE:SIGN<i>:UECapability:MEAS:IRNGaps:V<number>:UTDD<n>?..........357 SENSe:LTE:SIGN<i>:UECapability:MEAS:RMWideband?................360 SENSe:LTE:SIGN<i>:UECapability:NCSacq:FREQuency:INTer?..............370 SENSe:LTE:SIGN<i>:UECapability:NCSacq:FREQuency:INTRa?...............370 SENSe:LTE:SIGN<i>:UECapability:NCSacq:UTRan?.................. 371 SENSe:LTE:SIGN<i>:UECapability:PDCP:MRCSessions?................336 SENSe:LTE:SIGN<i>:UECapability:PDCP:SNEXtension?................337 SENSe:LTE:SIGN<i>:UECapability:PDCP:SRCContinue?................337 SENSe:LTE:SIGN<i>:UECapability:PDCP:SRPRofiles?................336 SENSe:LTE:SIGN<i>:UECapability:PLAYer:CCSSupport?................340 SENSe:LTE:SIGN<i>:UECapability:PLAYer:CIHandl?..................342 SENSe:LTE:SIGN<i>:UECapability:PLAYer:CSFSet?..................

Page 627 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>:EUTRa<BandNr>:BCLass:UL?..349 SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>:EUTRa<BandNr>:MCAPability:DL?... 349 SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>:EUTRa<BandNr>:MCAPability:UL?... 349 SENSe:LTE:SIGN<i>:UECapability:RF:BCOMbination:V<Number>:EUTRa<BandNr>?......348 SENSe:LTE:SIGN<i>:UECapability:RF:FBPadjust?..................350 SENSe:LTE:SIGN<i>:UECapability:RF:FBRetrieval?................... 350 SENSe:LTE:SIGN<i>:UECapability:RF:HDUPlex?..................347 SENSe:LTE:SIGN<i>:UECapability:RF:RBANds?..................350 SENSe:LTE:SIGN<i>:UECapability:RF:SUPPorted?..................347 SENSe:LTE:SIGN<i>:UECapability:RREPort?....................335 SENSe:LTE:SIGN<i>:UECapability:SL:CSTX?..................... 374 SENSe:LTE:SIGN<i>:UECapability:SL:DSLSs?................... 375 SENSe:LTE:SIGN<i>:UECapability:SL:DSPRoc?..................376 SENSe:LTE:SIGN<i>:UECapability:SL:DSRalloc?..................375 SENSe:LTE:SIGN<i>:UECapability:SL:DUSRalloc?..................375 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators:RNADd?............334 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators:RTEN?............334 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:FGINdicators?..............334 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:CXRTt:ECCMob?............366 SENSe:LTE:SIGN<i>:UECapability:TAUeeutra:IRAT:CXRTt:ECDual?............

Page 628 ® LTE Signaling R&S CMW-KM5xx/-KS5xx List of Commands SENSe:LTE:SIGN<i>:UEReport:NCELl:LTE:CELL<no>?................327 SENSe:LTE:SIGN<i>:UEReport:NCELl:TDSCdma:CELL<no>:RANGe?............. 331 SENSe:LTE:SIGN<i>:UEReport:NCELl:TDSCdma:CELL<no>?..............331 SENSe:LTE:SIGN<i>:UEReport:NCELl:WCDMa:CELL<no>:RANGe?............330 SENSe:LTE:SIGN<i>:UEReport:NCELl:WCDMa:CELL<no>?..............329 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRP:RANGe?................325 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRP?..................325 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRQ:RANGe?................326 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:RSRQ?..................326 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:SCELl:RANGe?................327 SENSe:LTE:SIGN<i>:UEReport:SCC<c>:SCELl?..................326 SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRP:RANGe?................325 SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRP?.................... 325 SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRQ:RANGe?................326 SENSe:LTE:SIGN<i>:UEReport[:PCC]:RSRQ?.................... 326 SENSe:LTE:SIGN<i>:UEReport[:PCC]:SCELl:RANGe?................327 SENSe:LTE:SIGN<i>:UEReport[:PCC]:SCELl?.................... 326 SENSe:LTE:SIGN<i>:UESinfo:IMEI?......................376 SENSe:LTE:SIGN<i>:UESinfo:IMSI?......................376 SENSe:LTE:SIGN<i>:UESinfo:UEADdress:DEDBearer:SEParate?............. 378 SENSe:LTE:SIGN<i>:UESinfo:UEADdress:DEDBearer?................

Page 629: Lte Multi-Evaluation Measurement
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx What's New in This Revision 3 LTE Multi-Evaluation Measurement The LTE multi-evaluation measurement provides quick and flexible TX tests on LTE uplink signals. FDD and TDD are supported. An RX test (block error ratio test) is also included.

Page 630: General Description
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2 General Description The LTE multi-evaluation measurement captures an uplink (UL) LTE signal and pro- vides the TX measurement results for a configurable UL subframe / range of sub- frames. Both FDD signals (option R&S CMW-KM500) and TDD signals (option R&S CMW- KM550) can be measured.

Page 631 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description For synchronization to the received signal and proper decoding, some settings must be in accordance with the measured signal. In particular, ensure that the following param- eters match up: ● For TDD signals: "Uplink Downlink", "Special Subframe" and "Measure Subframe" Ensure that you select an UL subframe as "Measure Subframe".

Page 632 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● "Measure Slot" = 0 / 1 / all ● All statistic counts = 5 Resulting measurement scope: ● The power monitor and the RB allocation table show 10 subframes ("Number of Subframes"), labeled 0 to 9.

Page 633 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The following results are measured for both carriers in parallel. There are separate PCC and SCC results. ● Inband emission diagram ● Power monitor ● RB allocation table How to measure an uplink LTE signal with CA The basic measurement procedure is the same as for signals without carrier aggrega- tion.

Page 634 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description signaling settings instead of its own settings. These signaling settings can be config- ured both in the measurement GUI and in the GUI of the signaling application. To configure these settings via remote commands, use the commands of the signaling application.

Page 635 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3GPP TS 36.101, annex F, specifies the following additional conditions: ● The I/Q origin offset must be removed from the evaluated signal before calculating the EVM and the inband emissions. ● The EVM calculation must be based on two different FFT processing windows in the time domain, separated by the "EVM window length"...

Page 636: Lte Rx Tests
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2.2 LTE RX Tests You can perform RX tests in parallel to the TX tests. The following sections describe how to perform LTE BLER tests in non-signaling mode. In signaling mode (combined signal path), use the BLER measurement provided by the LTE signaling application.

Page 637: List Mode
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 4. Select "Measurement Control > PUCCH Format: F1a". This setting also ensures that a TX measurement which runs in parallel to the BLER test is configured in accordance with the expected UL signal. 5.

Page 638 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description You can configure up to 2000 segments in total as preparation for list mode measure- ments. One list mode measurement can cover up to 1000 segments with in total up to 4000 measured subframes. For details, see Maximum number of measured sub- frames.

Page 639 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description In the example shown below, overflow occurs in the fourth subframe. The samples of this subframe are discarded and subframe number 7 is measured to reach the speci- fied statistical length of 12 slots. Maximum number of measured subframes The limit of 4000 measured subframes comprises measured subframes included in a statistical length and subframes measured with the power monitor.

Page 640 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description In "Segment" mode, the retrigger flag of each segment is evaluated. It defines whether the measurement waits for a trigger event before measuring the segment, or not and which trigger source is used. For the first segment, the value OFF is interpreted as ON. Retriggering the measurement is recommended, if the timing of the first subframe of a segment is inaccurate, for example because of signal reconfiguration at the UE.

Page 641 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The R&S CMW supports a range of up to 2000 configured segments. 2. Select up to 1000 consecutive segments within the configured segment range (consider the maximum number of measured subframes). 3. Measure the selected segments. 4.

Page 642 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description You can deactivate the list mode via a command and also via the GUI: 1. Go to local using the corresponding hotkey. The active list mode is indicated in the upper right corner of the current view by the words "List Mode!".

Page 643: Lte Ul Signal Properties
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The second measurement stage implies a calculation of all measurement results in the offline segment from the existing raw data; no new measurement data is acquired. By repeating this second stage for different segments, you can obtain a complete set of measurement results over the entire measurement length.

Page 644 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description In the time domain, the additional units radio frame, subframe and slot (containing the SC-FDMA symbols) are defined, see figures below. Each SC-FDMA symbol contains a guard time called cyclic prefix (CP). Depending on the duration of the guard time, it is either called normal CP or extended CP.

Page 645 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Channel bandwidth / MHz Resource blocks (RB) The total number of allocated resource blocks is restricted by the following formula, specified in 3GPP TS 36.211. For multi-cluster RB allocation, it applies to the sum of both clusters.

Page 646 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2.4.3 Frequency Bands The carrier frequencies for LTE uplink signals are defined in 3GPP TS 36.101. Each operating band contains uplink carrier frequencies identified by channel numbers (EARFCN, E-UTRA absolute radio frequency channel number). The assignment between channel numbers N and carrier center frequencies F is defined as: N = 10 x (F - F )/MHz + N...

Page 647: Limit Settings And Conformance Requirements
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description FDD band / MHz Channel no N F / MHz Offset Offset 26690 26690 to 27039 814 to 848.9 27040 27040 to 27209 807 to 823.9 27210 27210 to 27659 703 to 747.9 2305 27660 27660 to 27759...

Page 648 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● Spectrum Limits....................652 ● Occupied Bandwidth Limits...................653 ● Spectrum Emission Mask..................653 ● ACLR Limits......................654 ● Power Dynamics Limits..................655 3.2.5.1 Modulation Limits All modulation limits can be configured per modulation scheme. Figure 3-6: One node per modulation scheme The individual modulation limits are described in the following sections.

Page 649 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2.5.3 Frequency Error Limits According to 3GPP, the UE modulated carrier frequency must be accurate within ±0.1 ppm, compared to the nominal carrier frequency. The frequency error can be set in the configuration dialog, depending on the modulation scheme.

Page 650 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● For non-allocated RBs at image frequencies of allocated RBs, an IQ image compo- nent is added to the general component. ● For RBs at the carrier frequency or next to the carrier frequency, an IQ offset com- ponent is added to the general component.

Page 651 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-10: Inband emissions limit settings for QPSK With carrier aggregation, RBs are allocated for the PCC, but not for the SCC. The lim- its apply to both component carriers. The measurement displays inband emission result diagrams for both carriers.

Page 652 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-12: Spectrum flatness limit settings Characteristics Refer to 3GPP TS 36.521 Specified limit, normal / extreme conditions V10.3.0, section... Spectrum flatness 6.5.2.4 / E.4.4 EVM equalizer max(range 1) - min(range 1) ≤ 5.4 dB / 5.4 dB spectrum flatness max(range 2) - min(range 2) ≤...

Page 653 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2.5.8 Occupied Bandwidth Limits The occupied bandwidth is the bandwidth that contains 99 % of the total integrated power of the transmitted spectrum. According to 3GPP, the occupied bandwidth must be less than the theoretical (aggregated) channel bandwidth. The limit for the occupied bandwidth can be set in the configuration dialog.

Page 654 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The start and stop frequencies of each emission mask area are defined relative to the edge of the assigned channel bandwidth. For carrier aggregation, they are defined rel- ative to the edge of the assigned aggregated channel bandwidth. Example: Assume 0 MHz as start frequency and 1 MHz as stop frequency for a channel band- width of 1.4 MHz.

Page 655 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-18: ACLR limit settings for 1.4 MHz channel bandwidth The default values are identical for all bandwidths and for signals with and without car- rier aggregation. According to 3GPP, the relative limit must be evaluated only, if the measured adjacent channel power is greater than -50 dBm (absolute limit).

Page 656 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-19: Measurement periods ON/OFF power The OFF power must not exceed -48.5 dBm. The ON power limit must be within a range depending on the channel bandwidth. The limits can be set in the configuration dialog.

Page 657: Measurement Results
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Exclusion periods of 40 µs are used around the SRS. The limits are evaluated for the "ON power", but not for the "SRS ON" power. ● SRS time mask with "SRS blanking", see 3GPP TS 36.101, figure 6.3.4.4-4 Two subframes with ON power are measured.

Page 658 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● Equalizer spectrum flatness ● Spectrum emission mask ● Spectrum ACLR ● I/Q constellation diagram ● RB allocation table ● Power monitor ● Most important results of detailed views "TX Measurement" and "BLER" Figure 3-21: Result overview The results to be measured and displayed in the overview can be limited using the hot- key "Assign Views", see...

Page 659 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-22: Error Vector Magnitude view All results are derived from the measured slot, located in the configured "Measure Sub- frame". Only a single carrier is analyzed. For signals with carrier aggregation, you can select which carrier is measured (setting "Measurement Carrier").

Page 660 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The lower diagram shows results even for SRS signals. To use the diagram for SRS, restrict the measurement to the second slot of the measured subframe ("Measure Slot" = 1) and select the last SC-FDMA symbol for display. For a description of the statistical overview, see Chapter 3.2.6.13, "View TX Measure- ment and...

Page 661 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description For query of the diagram contents via remote control, see Chapter 3.5.3.16, "EVM Results (Traces)", on page 807. 3.2.6.4 Views Magnitude Error, Phase Error Both views show a diagram and a statistical overview of results per slot. Figure 3-24: Magnitude Error view The diagrams (bar graphs) show the average magnitude error and phase error for each SC-FDMA symbol in the measured slot.

Page 662 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● Chapter 3.5.3.18, "Phase Error Results (Traces)", on page 811 3.2.6.5 View Inband Emissions The inband emissions are displayed in one diagram per component carrier and as a table of statistical results. Figure 3-25: Inband Emissions view For measurements without carrier aggregation, only the PCC is measured and a single diagram is displayed.

Page 663 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description NRB view filter Resource blocks are allocated dynamically: Their number and position within the sub- carrier range can vary from one measured slot to another. Use filter settings ("Config... > Measurement Control > View Filter") to restrict the measurement to a definite number of allocated RBs.

Page 664 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description frame". Only a single carrier is analyzed. For signals with carrier aggregation, you can select which carrier is measured (setting "Measurement Carrier"). The results are normalized to the arithmetic mean value of all results. Hence the mea- sured curve is centered on the 0 dB line.

Page 665 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Resolution filters with bandwidths of 30 kHz, 100 kHz and 1 MHz are available. Traces for all three resolution bandwidths (RBW) can be displayed in parallel. The 30 kHz con- tinuous trace is at the bottom, the 1 MHz trace on top and the 100 kHz trace in- between.

Page 666 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description gins for current trace". "Minimum" means "margins for maximum trace" (resulting in minimum margins). The "Total TX Power" in the table indicates the sum of the TX power of all component carriers. For other table results, see Chapter 3.2.6.13, "View TX Measurement and BLER", on page 674.

Page 667 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description The ACLR values resulting from the measured powers are displayed in the table below the diagram. According to 3GPP TS 36.521, the ACLR is defined as the mean power in the assigned E-UTRA channel divided by the mean power in an adjacent channel. The mean power in the assigned E-UTRA channel is also displayed.

Page 668 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Constellation diagrams give a graphical representation of the signal quality and can help to reveal typical modulation errors causing signal distortions. See also: "I/Q Constellation Diagram" in the R&S CMW base unit manual, chapter "System Overview"...

Page 669 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description "DMRS" refers to the demodulation reference signal within PUCCH and PUSCH. The PUCCH region indicates the resource block regions at the edges of the channel where a PUCCH can be located. Within this region, automatic channel detection distin- guishes between PUCCH and PUSCH.

Page 670 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-32: Power monitor Each subframe power value is RMS averaged over the entire subframe, excluding 20 μs at each subframe border. The number of subframes to be captured and shown on the X-axis is configurable. The offset of subframe 0 relative to the trigger event is also configurable.

Page 671 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-33: Power Dynamics view, general time mask The following statements apply also to power dynamics measurements with other time masks. The diagram shows the UE output power vs. time, sampled with 48 T (1.5625 µs).

Page 672 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Mean power in one subframe before the "Measure Subframe" ● "SRS ON/OFF": Mean power in the SRS period at the end of the "Measure Subframe" For the parameters at the bottom of the view, see Chapter 3.2.6.16, "Common View Elements", on page 677.

Page 673 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 3-34: Power Dynamics view, PUCCH / PUSCH / SRS time mask Figure 3-35: Power Dynamics view, SRS blanking time mask User Manual 1173.9628.02 ─ 24...

Page 674 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description 3.2.6.13 View TX Measurement and BLER This view contains tables of statistical results for the TX and RX measurements. Figure 3-36: TX measurement TX measurement The table provides an overview of statistical values obtained in the measured slot. Except for the OBW result, only a single carrier is analyzed.

Page 675 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● I/Q origin offset: The I/Q offset is estimated from the distribution of the constellation points. ● Gain imbalance: absolute value of (1 + I/Q imbalance) Quadrature error: angular component of (1 + I/Q imbalance) These results are only available, if the view "EVM vs.

Page 676 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description ● BLER: block error ratio, percentage of sent scheduled subframes for which no acknowledgment has been received The result considers received NACK and PDCCH decoding errors (DTX): BLER = (#NACK + #DTX) / (#ACK + #NACK + #DTX) ●...

Page 677 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx General Description Hotkey Description "Ref. Marker..." Enable or disable the reference marker and select the marker position. If sev- eral traces can be displayed, a trace can also be selected. "Marker 1/2..." Enable or disable marker 1 or 2 and define the marker position (absolute or rel- ative to the reference marker).

Page 678: Gui Reference
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Detected Modulation Modulation scheme in the measured slot. The modulation scheme is either detected automatically or selected manually (see "Modulation Scheme" on page 697). If chan- nel type PUCCH is detected, QPSK is displayed as modulation type, because the QPSK limits are applied in that case.

Page 679: Accessing Parameters And Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Multi Evaluation (Softkey) The softkey shows the current measurement state. Additional measurement substates can be retrieved via remote control. Remote command: INITiate:LTE:MEAS<i>:MEValuation ABORt:LTE:MEAS<i>:MEValuation STOP:LTE:MEAS<i>:MEValuation FETCh:LTE:MEAS<i>:MEValuation:STATe? FETCh:LTE:MEAS<i>:MEValuation:STATe:ALL? 3.3.2 Accessing Parameters and Settings The most important settings of the LTE multi-evaluation measurement are displayed at the top of the measurement dialog.

Page 680 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Band / Channel / Frequency..................681 Frequency Offset......................682 Expected Nominal Power....................682 User Margin.........................683 Mixer Level Offset....................... 683 Duplex Mode Selects the duplex mode of the LTE signal: FDD or TDD. In the standalone (SA) scenario, this parameter is controlled by the measurement. In the combined signal path (CSP) scenario, it is controlled by the signaling application.

Page 681 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Scenario = Measure@ProtocolTest Allows you to use an LTE protocol test application in parallel to the LTE measurement. The protocol test application is selected by the additional parameter "Controlled by". The signal routing and analyzer settings described in this section are ignored by the measurement application.

Page 682 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference You can specify the RF frequency in two ways: ● Enter the frequency directly. The band and channel settings can be ignored or used for validation of the entered frequency. For validation, select the designated band.

Page 683: Carrier Aggregation Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference User Margin Margin that the R&S CMW adds to the "Expected Nominal Power" to determine its ref- erence power ("Ref. Level"). The "User Margin" is typically used to account for the known variations of the RF input signal power, e.g. the variations due to a specific channel configuration.

Page 684 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Some measurement result views are also modified depending on the carrier aggrega- tion mode. Option R&S CMW-KM502/552 is required to measure FDD/TDD uplink signals with contiguous uplink carrier aggregation. Without these options, the parameters in this section are not visible.

Page 685 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Carrier Aggregation Mode Selects whether the measured signal uses carrier aggregation or not. The following modes are supported: ● "Off": The UL signal contains a single carrier, no carrier aggregation. Or it contains non- contiguous carriers, for example in different bands.

Page 686 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference The displayed bandwidth can be slightly less than the sum of the PCC and SCC chan- nel bandwidths. For details, see 3GPP TS 36.101, sections 5.6A and 5.7.1A. Option R&S CMW-KM502/552 is required for FDD/TDD. Remote command: CONFigure:LTE:MEAS<i>:CAGGregation:FREQuency:AGGRegated:LOW? CONFigure:LTE:MEAS<i>:CAGGregation:FREQuency:AGGRegated:CENTer?

Page 687: Measurement Control Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: (SA) CONFigure:LTE:MEAS<i>:MEValuation[:PCC]:PLCid (SA) CONFigure:LTE:MEAS<i>:MEValuation:SCC<no>:PLCid (CSP) CONFigure:LTE:SIGN<i>:CELL[:PCC]:PCID (CSP) CONFigure:LTE:SIGN<i>:CELL:SCC<c>:PCID Adjust Carrier Spacing Adjusts the SCC frequency, so that the PCC and the SCC are aggregated contigu- ously. Readjust the SCC frequency after you have changed a channel bandwidth or the PCC frequency.

Page 688 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 3-39: Measurement control settings - part 1 Repetition........................688 Stop Condition......................688 Measurement Mode....................689 Mode........................689 Measure on Exception....................690 Frame Structure......................690 Uplink Downlink......................691 Special Subframe......................691 Cyclic Prefix........................ 691 Channel Bandwidth.....................

Page 689 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference ● "On Limit Failure": The measurement is stopped when one of the limits is excee- ded, irrespective of the repetition mode set. If no limit failure occurs, it is performed according to its "Repetition" mode and "Statistic Count". Use this setting for mea- surements that are intended for checking limits, e.g.

Page 690 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference The list defines the expected nominal powers to be applied within one sequence of measured subframes, configured via parameter Measurement Subframe > "No. of Subframes". Example: ● Configured "No. of Subframes" = 30, to be measured two times (defined via statis- tic count) ●...

Page 691 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference For a TDD signal, the additional parameters "Uplink Downlink" and "Special Subframe" have to be set to specify the frame structure. Remote command: CONFigure:LTE:MEAS<i>:FSTRucture? Uplink Downlink Uplink-downlink configuration of a TDD signal, as defined in 3GPP TS 36.211, chapter 4, "Frame Structure".

Page 692 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference The parameter is a common measurement setting, i.e. it has the same value in all measurements (e.g. PRACH measurement and multi-evaluation measurement). In the standalone (SA) scenario, this parameter is controlled by the measurement. In the combined signal path (CSP) scenario, it is controlled by the signaling application.

Page 693 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 3-40: Measurement control settings - part 2 Network Signaled Value....................693 View Filter........................694 └ NRB......................694 └ Channel Type....................694 Allocation.......................694 └ Auto.......................694 └ Multicluster....................694 └ No. of RBs, Offset RB (no multi-cluster)............

Page 694 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference View Filter Restricts the measurement to signal periods with certain properties. Periods that do not match the filter settings, do not contribute to the measurement results. NRB ← View Filter Specifies the number of allocated resource blocks (RB) in the measured slot. Slots with a different number of allocated blocks are rejected.

Page 695 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference "ON" The allocated RBs are divided into two clusters. Within each cluster, the allocation is contiguous. Allocation type 1 is used (resource block groups). The view "RB Allocation Table" is not available. For inband emission results, the limit check is disabled.

Page 696 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Delta Seq. Shift PUSCH Delta sequence shift value (Δ ) used to calculate the sequence shift pattern for PUSCH from the sequence shift pattern for PUCCH (refer to "group hopping" in 3GPP TS 36.211).

Page 697: Statistic Count
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 3-41: Measurement control settings - modulation Modulation Scheme....................697 Statistic Count......................697 Sounding RS (SRS)....................698 EVM Window Length....................698 EVM Exclusion Periods....................698 Carrier Aggregation.....................699 Modulation Scheme Selects one of the three possible modulation schemes (QPSK, 16-QAM, 64-QAM) for LTE uplink signals.

Page 698 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:MEAS<i>:MEValuation:SCOunt:MODulation Sounding RS (SRS) Indicates whether the uplink signal can contain a sounding reference signal (SRS) or not. ● Disabled: The uplink signal must not contain an SRS. Otherwise the modulation results are distorted.

Page 699 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference ● PUSCH: This parameter affects all low and high results (single values and bar graphs). The selected time intervals are excluded from the calculation of these results. The "Leading" time interval is excluded at the beginning of each subframe. The "Lagging"...

Page 700 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Emission Mask / ACLR > Statistic Count..............700 Emission Mask > Meas Filter..................700 ACLR > Select ACLR....................700 Emission Mask / ACLR > Statistic Count Defines the number of measurement intervals per measurement cycle for emission mask and ACLR measurements.

Page 701 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Dynamics The following parameters configure the power dynamics measurement. Time Mask ← Dynamics Selects the time mask for power dynamics measurements. The time masks are defined by 3GPP. Each mask is designed for a specific sequence of powers. "ON"...

Page 702 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:MEAS<i>:MEValuation:SCOunt:POWer High Dynamic Mode Enables or disables the high dynamic mode. The high dynamic mode is suitable for power dynamics measurements involving high ON powers. In that case, the dynamic range of the R&S CMW is eventually not suffi- cient to measure both the high ON powers and the low OFF powers accurately.

Page 703: Trigger Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:MEAS<i>:MEValuation:BLER:SFRames List Mode > Offline Segment No. Selects the list mode segment to be displayed in the measurement diagram. To select a segment number, the list mode must be enabled. Option R&S CMW-KM012 is required.

Page 704 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference "IF Power" The measurement is triggered by the power of the received signal, converted into an IF signal. The trigger event coincides with the rising or falling edge of the detected LTE burst. "…External…"...

Page 705 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference The trigger system is controlled by a timer which is reset to zero in the following instan- ces: ● At the IF power-down ramp of each triggered or untriggered pulse, even if the pre- vious counter has not yet elapsed.

Page 706: Limit Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference 3.3.7 Limit Settings The "Limits" section in the configuration dialog defines lower and/or upper limits for the modulation, spectrum and power results. Separate limits can be set for the individual modulation schemes or channel bandwidths. For details, see Chapter 3.2.5, "Limit Settings and Conformance Requirements",...

Page 707: Additional Softkeys And Hotkeys
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Generator Shortcut Selects a GPRF generator instance. Softkeys for the selected instance are added to the softkey panel. 3.3.9 Additional Softkeys and Hotkeys The measurement provides some softkey/hotkey combinations which have no equiva- lent in the configuration dialog.

Page 708 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference For SRS signals, the low/high setting is irrelevant. The FFT processing window begins at the center of the cyclic prefix, not at the low or high position. Remote command: CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMagnitude:EVMSymbol Signaling Parameter > ... Provides access to the most essential settings of the "LTE Signaling"...

Page 709: Measurement Results
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx GUI Reference 3.3.10 Measurement Results The results of the LTE multi-evaluation measurement are displayed in a single over- view and one detailed view for each part of the overview. Figure 3-48: Result overview Most of the detailed views show a diagram and a statistical overview of single-slot results.

Page 710: Programming
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming Figure 3-49: Error Vector Magnitude result view For a detailed description of all result views, see Chapter 3.2.6, "Measurement Results", on page 657. Query of results via remote control All commands for result query start with FETCh, READ or CALCulate and continue with :LTE:MEAS<i>:MEValuation:.

Page 711: General Examples
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming See also: "Remote Control" in the R&S CMW base unit manual ● General Examples....................711 ● Using LTE List Mode.....................718 3.4.1 General Examples The LTE multi-evaluation measurement is programmed as follows: ● The measurement is controlled by SCPI commands with the following syn- tax: ...LTE:MEAS:MEValuation...

Page 712 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming // Query information about the resulting aggregated bandwidth. // Select the PCC for single-carrier mesaurements. // ***************************************************************************** CONFigure:LTE:MEAS:CAGGregation:MODE INTRaband CONFigure:LTE:MEAS:SCC:CBANdwidth B014 CONFigure:LTE:MEAS:CAGGregation:SCC:ACSPacing CONFigure:LTE:MEAS:RFSettings:SCC:FREQuency? CONFigure:LTE:MEAS:CAGGregation:FREQuency:AGGRegated:LOW? CONFigure:LTE:MEAS:CAGGregation:FREQuency:AGGRegated:CENTer? CONFigure:LTE:MEAS:CAGGregation:FREQuency:AGGRegated:HIGH? CONFigure:LTE:MEAS:CAGGregation:CBANdwidth:AGGRegated? CONFigure:LTE:MEAS:CAGGregation:MCARrier PCC // ***************************************************************************** // Set duplex mode TDD and query the resulting frame structure type (T2). // ***************************************************************************** CONFigure:LTE:MEAS:DMODe TDD CONFigure:LTE:MEAS:FSTRucture?

Page 713 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:MEAS:MEValuation:TOUT 3600 CONFigure:LTE:MEAS:MEValuation:CTYPe PUCCH CONFigure:LTE:MEAS:MEValuation:NSValue NS10 CONFigure:LTE:MEAS:MEValuation:NSValue:CAGGregation NS11 CONFigure:LTE:MEAS:MEValuation:NVFilter 10 CONFigure:LTE:MEAS:MEValuation:CTVFilter PUSCh // ***************************************************************************** // Define the "TPC Mode" list of expected nominal powers. // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:TMODe:SCOunt 5,8,4,4,1,1,1,1,1,1,1,1,1,1,1,1 CONFigure:LTE:MEAS:MEValuation:TMODe:ENPower 3,9,12,15,0,0,0,0,0,0,0,0,0,0,0,0 CONFigure:LTE:MEAS:MEValuation:TMODe:RLEVel? // ***************************************************************************** // Disable automatic detection of RB configuration and // set the number of resource blocks and the RB offset manually.

Page 714 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:MEAS:MEValuation:MODulation:MSCHeme QPSK CONFigure:LTE:MEAS:MEValuation:SRS:ENABle OFF CONF:LTE:MEAS:MEV:MODulation:EWLength 5,12,35,66,102,136,28,58,124,250,374,504 CONFigure:LTE:MEAS:MEValuation:MODulation:EWLength:CBANdwidth14 6,13 CONFigure:LTE:MEAS:MEValuation:MODulation:EEPeriods:PUCCh ON CONFigure:LTE:MEAS:MEValuation:MODulation:EEPeriods:PUSCh:LEADing MS25 CONFigure:LTE:MEAS:MEValuation:MODulation:EEPeriods:PUSCh:LAGGing MS25 CONFigure:LTE:MEAS:MEValuation:MODulation:CAGGregation:LLOCation CACB // ***************************************************************************** // Specify spectrum measurement settings: // select a measurement length of 30 slots, use gaussian resolution filter, // for ACLR measure all adjacent channels.

Page 715 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming 3.4.1.5 Specifying Limits // ***************************************************************************** // Define QPSK modulation limits // Commands for 16-QAM and 64-QAM are analogous with // mnemonic QAM16 or QAM64 instead of QPSK. // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:LIMit:QPSK:EVMagnitude 20, 40 CONFigure:LTE:MEAS:MEValuation:LIMit:QPSK:MERRor 20, OFF CONFigure:LTE:MEAS:MEValuation:LIMit:QPSK:PERRor 20, OFF CONFigure:LTE:MEAS:MEValuation:LIMit:QPSK:FERRor 0.15 CONFigure:LTE:MEAS:MEValuation:LIMit:QPSK:IQOFfset ON, -26, -21, -11...

Page 716 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:LIMit:PDYNamics:CBANdwidth14 ON,-7.6,-22.6,-48.8 3.4.1.6 Performing Single-Shot Measurements // ***************************************************************************** // Enable all measurements. // ***************************************************************************** CONF:LTE:MEAS:MEValuation:RESult:ALL ON,ON,ON,ON,ON,ON,ON,ON,ON,ON,ON,ON,ON,ON CONFigure:LTE:MEAS:MEValuation:RESult:EVMagnitude:EVMSymbol ON, 3, LOW // ***************************************************************************** // Start single-shot measurement, return average EVM bar graph values. // Query the measurement state (should be "RDY").

Page 717 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS:MEValuation:TRACe:IEMissions:PCC? FETCh:LTE:MEAS:MEValuation:TRACe:IEMissions:SCC? FETCh:LTE:MEAS:MEValuation:IEMission:PCC:MARGin:AVERage? FETCh:LTE:MEAS:MEValuation:IEMission:SCC:MARGin:AVERage? FETCh:LTE:MEAS:MEValuation:IEMission:PCC:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS:MEValuation:IEMission:SCC:MARGin:EXTReme:RBINdex? // ***************************************************************************** // Query equalizer spectrum flatness results. // ***************************************************************************** FETCh:LTE:MEAS:MEValuation:TRACe:ESFLatness? FETCh:LTE:MEAS:MEValuation:ESFLatness:AVERage? FETCh:LTE:MEAS:MEValuation:ESFLatness:CURRent:SCINdex? // ***************************************************************************** // Query spectrum emission results. // ***************************************************************************** FETCh:LTE:MEAS:MEValuation:TRACe:SEMask:RBW30:CURRent? FETCh:LTE:MEAS:MEValuation:TRACe:SEMask:RBW100:AVERage? FETCh:LTE:MEAS:MEValuation:TRACe:SEMask:RBW1000:MAXimum? FETCh:LTE:MEAS:MEValuation:SEMask:CURRent? FETCh:LTE:MEAS:MEValuation:SEMask:EXTReme? FETCh:LTE:MEAS:MEValuation:SEMask:MARGin:ALL? FETCh:LTE:MEAS:MEValuation:SEMask:MARGin:MINimum:POSitiv? FETCh:LTE:MEAS:MEValuation:SEMask:MARGin:MINimum:NEGativ?

Page 718: Using Lte List Mode
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS:MEValuation:PDYNamics:MAXimum? // ***************************************************************************** // Query BLER results. // ***************************************************************************** FETCh:LTE:MEAS:MEValuation:BLER? // ***************************************************************************** // Query limit check results. // ***************************************************************************** CALCulate:LTE:MEAS:MEValuation:ACLR:CURRent? CALCulate:LTE:MEAS:MEValuation:SEMask:CURRent? CALCulate:LTE:MEAS:MEValuation:ESFLatness:CURRent? CALCulate:LTE:MEAS:MEValuation:MODulation:CURRent? CALCulate:LTE:MEAS:MEValuation:PDYNamics:AVERage? CALCulate:LTE:MEAS:MEValuation:PDYNamics:MINimum? CALCulate:LTE:MEAS:MEValuation:PDYNamics:MAXimum? 3.4.1.7 Single-Shot and Continuous Measurements // ***************************************************************************** // Start single-shot measurement, return magnitude error bar graph values.

Page 719 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming ● Use general commands of the type ...:LTE:MEAS... (no :MEValuation mne- monic) to define the signal routing and perform RF and analyzer settings. ● After a *RST, the measurement is switched off and list mode is disabled. Use CONFigure:LTE:MEAS:MEValuation:LIST ON to enable the list mode and INIT:LTE:MEAS:MEValuation to initiate a single-shot measurement.

Page 720 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming ROUTe:LTE:MEAS:SCENario:SALone RF1C, RX1 CONFigure:LTE:MEAS:RFSettings:EATTenuation 2 CONFigure:LTE:MEAS:CAGGregation:MODE INTRaband // ***************************************************************************** // Specify required UE signal settings not configurable per segment: // signal contains PUCCH with format 1a, physical layer cell ID 5, // delta sequence shift value 10 // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:PFORmat F1A CONFigure:LTE:MEAS:MEValuation:PLCid 5...

Page 721 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming CONF:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation 10,ON,ON,ON,OFF,ON,ON,AUTO // ***************************************************************************** // Enable all spectrum emission results for segment 2. // Enable the E-UTRA ACLR results for segment 2 (no UTRA results). // Use a statistical length of 10 slots. // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:LIST:SEGMent2:SEMask 10,ON,ON,ON CONFigure:LTE:MEAS:MEValuation:LIST:SEGMent2:ACLR 10,ON,OFF,OFF,ON...

Page 722 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:IEMission:MARGin:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:IEMission:MARGin:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:IEMission:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:IEMission:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:IEMission:SCC:MARGin:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:IEMission:SCC:MARGin:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:IEMission:SCC:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:IEMission:SCC:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:ESFLatness:EXTReme? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:ESFLatness:EXTReme? CALCulate:LTE:MEAS:MEValuation:LIST:SEGMent1:MODulation:AVERage? CALCulate:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation:AVERage? CALCulate:LTE:MEAS:MEValuation:LIST:SEGMent1:ESFLatness:AVERage? CALCulate:LTE:MEAS:MEValuation:LIST:SEGMent2:ESFLatness:AVERage? // ***************************************************************************** // Return average and extreme spectrum emission results. // Return spectrum emission margins: X- and Y-values of minimum margins and // Y-values of all margins.

Page 723 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:MODulation:DALLocation? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:MODulation:DMODulation? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent1:MODulation:DCHType? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation:DALLocation? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation:DMODulation? FETCh:LTE:MEAS:MEValuation:LIST:SEGMent2:MODulation:DCHType? // ***************************************************************************** // Select segment no. 2 as offline segment (and implicitly enable the // offline mode). Restart the measurement to calculate all results in // segment 2. Go to local to view the results. // ***************************************************************************** CONFigure:LTE:MEAS:MEValuation:LIST:OSINdex 2 INIT:LTE:MEAS:MEValuation...

Page 724: Command Reference
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference // Return selected spectrum emission and ACLR results. // ***************************************************************************** FETCh:LTE:MEAS:MEValuation:LIST:SEMask:OBW:AVERage? FETCh:LTE:MEAS:MEValuation:LIST:SEMask:TXPower:MAXimum? FETCh:LTE:MEAS:MEValuation:LIST:SEMask:MARGin:AREA5:NEGativ:MINimum? FETCh:LTE:MEAS:MEValuation:LIST:ACLR:EUTRa:AVERage? FETCh:LTE:MEAS:MEValuation:LIST:ACLR:EUTRa:NEGativ:AVERage? FETCh:LTE:MEAS:MEValuation:LIST:ACLR:UTRA2:POSitiv:AVERage? // ***************************************************************************** // Query the RMS power monitor results. // Query the offset of the first result for segment 2 within the // returned list of power values.

Page 725: Conventions And General Information
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference 3.5.1 Conventions and General Information The following sections describe the most important conventions and general informa- tion concerning the command reference. 3.5.1.1 MEAS<i> MEAS<i> is used as abbreviation of "MEASurement<instance>". For better readability only the abbreviated form (which is also accepted by the instrument) is given in the command reference.

Page 726 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference 3.5.1.4 Values for RF Path Selection To select an RF input path, you must specify an RF connector and an RX module (con- verter). Which connectors and modules can be specified in a command, depends on the instal- led hardware, the test setup and the active subinstrument or instance <i>.

Page 727 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference R31 | R32 | R33 | R34 | R35 | R36 | R37 | R38 RA1 | RA2 | RA3 | RA4 | RA5 | RA6 | RA7 | RA8 RB1 | RB2 | RB3 | RB4 R<m><n>: R&S CMWS connector <m>.<n>...

Page 728 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example for an output array: 0, 10.22, 10.15, 10.01, 10.29, 100 (reliability = 0, followed by 5 numeric measurement values). The reliability indicator has one of the following values: ● 0 ("OK"): Measurement values available, no error detected.

Page 729 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference For DAU IMS service: The voice over IMS settings could not be applied. ● 21 ("Call Lost"): For measurements: The measurement was interrupted because the signaling con- nection to the DUT was lost. For DAU IMS service: The voice over IMS call was lost.

Page 730 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference The data application unit (DAU), a DAU service or a DAU measurement could not be started. Execute a DAU selftest. ● 51 ("No Reply"): The DAU has received no response, for example for a ping request. ●...

Page 731: General Measurement Settings
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● 104 ("Not Functional"): The application could not be started with the configured parameter set. 3.5.2 General Measurement Settings The commands valid for all LTE measurements are divided into the groups listed below.

Page 732 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.20 Options: FDD requires R&S CMW-KM500 TDD requires R&S CMW-KM550 Manual operation: "Frame Structure" on page 690 3.5.2.2 Signal Routing The following commands configure the scenario, select the input path for the measured signal and define an external attenuation value.

Page 733 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Carrier> String parameter selecting an uplink carrier configured in the master application e.g. 'PCC', 'SCC1' or 'SCC2' Firmware/Software: V1.0.15.20 V3.5.10: <Carrier> added Manual operation: "Scenario = Combined Signal Path" on page 680 ROUTe:LTE:MEAS<i>:SCENario:MAPRotocol [<Controler>] Activates the Measure@ProtocolTest scenario and optionally selects the controlling protocol test application.

Page 734 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Scenario> SALone | CSPath | MAPRotocol SALone: Standalone (non-signaling) CSPath: Combined signal path MAPRotocol: Measure at protocol test <Controller> Controlling application for scenario CSPath or MAPRotocol <RXConnector> RF connector for the input path <RFConverter>...

Page 735 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ............... 738 CONFigure:LTE:MEAS<i>:RFSettings:ENPower ...............739 CONFigure:LTE:MEAS<i>:RFSettings:UMARgin .............. 739 CONFigure:LTE:MEAS<i>:RFSettings:MLOFfset CONFigure:LTE:MEAS<i>:CAGGregation:MODE <CAmode> Selects whether the measured signal uses carrier aggregation (CA) or not. For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:SCC<c>: CAGGregation:MODE. Parameters: <CAmode> OFF | INTRaband OFF: no carrier aggregation INTRaband: intra-band contiguous CA (BW class B &...

Page 736 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KM502/-KM552 for FDD/TDD Manual operation: "Aggregated" on page 685 CONFigure:LTE:MEAS<i>:CAGGregation:FREQuency:AGGRegated:HIGH? Queries the upper edge of the aggregated bandwidth. Return values: <FrequencyHigh> Range: 60E+6 Hz to 6010E+6 Hz Default unit: Hz Example: Specifying General and Common Measurement Settings Usage:...

Page 737 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:RFSettings[:PCC]:FREQuency <AnalyzerFreq> Selects the center frequency of the PCC. Using the unit CH, the frequency can be set via the channel number. The allowed channel number range depends on the operating band, see Chapter 3.2.4.3, "Fre- quency Bands",...

Page 738 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:SCC<c>: CAGGregation:MODE. Suffix: <no> Only SCC1 supported - suffix can be omitted Example: Specifying General and Common Measurement Settings Usage: Event Firmware/Software: V3.2.70 Options: R&S CMW-KM502/-KM552 for FDD/TDD Manual operation: "Adjust Carrier Spacing"...

Page 739 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <ExpNomPow> The range of the expected nominal power can be calculated as follows: Range (Expected Nominal Power) = Range (Input Power) + External Attenuation - User Margin The input power range is stated in the data sheet. *RST: 0 dBm Default unit: dBm...

Page 740 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V1.0.15.20 Manual operation: "Mixer Level Offset" on page 683 3.5.2.4 Common Measurement Control Settings The following commands configure measurement control settings, valid for all LTE measurements............740 CONFigure:LTE:MEAS<i>:CAGGregation:MCARrier ..............740 CONFigure:LTE:MEAS<i>[:PCC]:CBANdwidth ............

Page 741: Multi-Evaluation Measurement Commands
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:SCC<no>:CBANdwidth <ChannelBW> Selects the channel bandwidth of the SCC. For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:CELL: BANDwidth:SCC<c>:DL. Suffix: <no> Only SCC1 supported - suffix can be omitted Parameters: <ChannelBW> B014 | B030 | B050 | B100 | B150 | B200 B014: 1.4 MHz B030: 3 MHz B050: 5 MHz...

Page 742 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● Phase Error Results (Traces)................811 ● Inband Emission Results..................811 ● Equalizer Spectrum Flatness Results..............815 ● Spectrum Emission Results.................. 818 ● ACLR Spectrum Results..................823 ● I/Q Constellation Results..................825 ● RB Allocation Table Results..................825 ●...

Page 743 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:STATe? Queries the main measurement state. Use FETCh:...:STATe:ALL? to query the measurement state including the substates. Use INITiate..., STOP..., ABORt... to change the measurement state. See also: "Measurement Control" in the R&S CMW base unit manual, chapter "Remote Control"...

Page 744 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <ResourceState> QUE | ACT | INV QUE: measurement without resources, no results available ("queued") ACT: resources allocated, acquisition of results in progress but not complete ("active") INV: not applicable, <MainState> OFF or RDY ("invalid") Example: Single-Shot and Continuous Measurements Usage:...

Page 745 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <MagnitudeError> OFF | ON *RST: <PhaseError> OFF | ON *RST: <InbandEmissions> OFF | ON *RST: <EVMversusC> OFF | ON EVM vs. subcarrier *RST: <IQ> OFF | ON I/Q constellation diagram *RST: <EquSpecFlatness> OFF | ON Equalizer spectrum flatness *RST: <TXMeasurement>...

Page 746 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V1.0.10.1 V1.0.15.20: added <RBAllocTable>, <PowerMonitor> V1.0.15.21: added <BLER> V2.0.10: added <PowerDynamics> Manual operation: "Multi Evaluation, PRACH > Assign Views" on page 707 CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMagnitude <Enable> CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMC <Enable> CONFigure:LTE:MEAS<i>:MEValuation:RESult:MERRor <Enable> CONFigure:LTE:MEAS<i>:MEValuation:RESult:PERRor <Enable> CONFigure:LTE:MEAS<i>:MEValuation:RESult:IEMissions <Enable> CONFigure:LTE:MEAS<i>:MEValuation:RESult:IQ <Enable>...

Page 747 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMagnitude:EVMSymbol <Enable>, <Symbol>, <LowHigh> Enables or disables the measurement of EVM vs. modulation symbol results and con- figures the scope of the measurement. Parameters: <Enable> OFF | ON OFF: Do not measure the results and hide the result diagram ON: Measure the results and show the diagram *RST: <Symbol>...

Page 748 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ..........756 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:ORB ....756 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:MCLuster:ORB<Number> ............756 CONFigure:LTE:MEAS<i>:MEValuation[:PCC]:PLCid ..........757 CONFigure:LTE:MEAS<i>:MEValuation:SCC<no>:PLCid ............757 CONFigure:LTE:MEAS<i>:MEValuation:DSSPusch ............757 CONFigure:LTE:MEAS<i>:MEValuation:GHOPping ............758 CONFigure:LTE:MEAS<i>:MEValuation:MSUBframes ..............758 CONFigure:LTE:MEAS<i>:MEValuation:MSLot CONFigure:LTE:MEAS<i>:MEValuation:TOUT <Timeout> Defines a timeout for the measurement. The timer is started when the measurement is initiated via a READ or INIT command.

Page 749 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "Repetition" on page 688 CONFigure:LTE:MEAS<i>:MEValuation:SCONdition <StopCondition> Qualifies whether the measurement is stopped after a failed limit check or continued. SLFail means that the measurement is stopped and reaches the RDY state when one of the results exceeds the limits.

Page 750 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "TPC Mode" on page 689 CONFigure:LTE:MEAS<i>:MEValuation:TMODe:ENPower <ExpNomPow>... Defines the expected nominal power values for all entries of the "TPC Mode" list. For definition of the corresponding subframe count values, see CONFigure:LTE: MEAS<i>:MEValuation:TMODe:SCOunt.

Page 751 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <MeasOnException> OFF | ON OFF: Faulty results are rejected ON: Results are never rejected *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V1.0.10.1 Manual operation: "Measure on Exception" on page 690 CONFigure:LTE:MEAS<i>:MEValuation:ULDL <UplinkDownlink> Selects an uplink-downlink configuration, defining the combination of uplink, downlink and special subframes within a radio frame.

Page 752 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KM550 Manual operation: "Special Subframe" on page 691 CONFigure:LTE:MEAS<i>:MEValuation:CPRefix <CyclicPrefix> Selects the type of cyclic prefix of the LTE signal. For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:CELL: CPRefix. Parameters: <CyclicPrefix>...

Page 753 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:NSValue <Value> Selects the "network signaled value" for measurements without carrier aggregation. For the combined signal path scenario, use CONFigure:LTE:SIGN<i>: CONNection:ASEMission. Parameters: <Value> NS01 | NS02 | NS03 | NS04 | NS05 | NS06 | NS07 | NS08 | NS09 | NS10 | NS11 | NS12 | NS13 | NS14 | NS15 | NS16 | NS17 | NS18 | NS19 | NS20 | NS21 | NS22 | NS23 | NS24 Value NS_01 to NS_24...

Page 754 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <NRBViewFilter> Number of allocated resource blocks Range: 1 to 100 *RST: Additional parameters: OFF | ON (disables | enables the filter) Example: Specifying Measurement-Specific Settings Firmware/Software: V1.0.10.1 Manual operation: "NRB" on page 694 CONFigure:LTE:MEAS<i>:MEValuation:CTVFilter <ChannelType>...

Page 755 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● CONFigure:LTE:SIGN<i>:CONNection:SCC<c>:MCLuster:UL Parameters: <Enable> OFF | ON OFF: contiguous allocation, resource allocation type 0 ON: multi-cluster allocation, resource allocation type 1 *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V3.5.50 Manual operation: "Multicluster" on page 694 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:NRB <NoRB>...

Page 756 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Manual operation: "No. of RBs, Offset RB (with multi-cluster)" on page 695 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:ORB <OffsetRB> Specifies the offset of the first allocated resource block for manual RB allocation defini- tion without multi-cluster allocation. Parameters: <OffsetRB>...

Page 757 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <PhsLayerCellID> Range: 0 to 503 *RST: Example: Specifying Required Settings Firmware/Software: V1.0.10.1 Manual operation: "Physical Cell ID" on page 686 CONFigure:LTE:MEAS<i>:MEValuation:SCC<no>:PLCid <PhsLayerCellID> Specifies the physical layer cell ID of the SCC. For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:CELL: SCC<c>:PCID.

Page 758 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Value> OFF | ON *RST: Example: Specifying Required Settings Firmware/Software: V2.0.20 Manual operation: "Group Hopping" on page 696 CONFigure:LTE:MEAS<i>:MEValuation:MSUBframes <SubframeOffset>, <SubframeCount>, <MeasSubframe> Configures the scope of the measurement, i.e. which subframes are measured. Parameters: <SubframeOffset>...

Page 759 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference 3.5.3.4 Modulation Measurement Settings The following commands specify settings for the modulation measurements......... 759 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:MSCHeme ..........759 CONFigure:LTE:MEAS<i>:MEValuation:SCOunt:MODulation ............760 CONFigure:LTE:MEAS<i>:MEValuation:SRS:ENABle ......... 760 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EWLength ...761 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EWLength:CBANdwidth<Band> ......762 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EEPeriods:PUCCh ....762 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EEPeriods:PUSCh:LEADing ....763 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EEPeriods:PUSCh:LAGGing ....763 CONFigure:LTE:MEAS<i>:MEValuation:MODulation:CAGGregation:LLOCation...

Page 760 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:SRS:ENABle <Enable> Specifies whether a sounding reference signal is allowed (ON) or not (OFF). For the combined signal path scenario, use CONFigure:LTE:SIGN<i>:CELL:SRS: ENABle. Parameters: <Enable> OFF | ON OFF: no SRS signal ON: SRS signal allowed in the last SC-FDMA symbol of each subframe *RST:...

Page 761 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <CPextB014> Length for extended CP, BW = 1.4 MHz Range: 1 to 32 *RST: <CPextB030> Length for extended CP, BW = 3 MHz Range: 1 to 64 *RST: <CPextB050> Length for extended CP, BW = 5 MHz Range: 1 to 128 *RST:...

Page 762 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Band> Range *RST Range *RST <CycPrefixNormal> <CycPrefixNormal> <CycPrefixExtend> <CycPrefixExtend> 1 to 9 1 to 32 1 to 18 1 to 64 1 to 36 1 to 128 1 to 72 1 to 256 1 to 108 1 to 384 1 to 144...

Page 763 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:MODulation:EEPeriods:PUSCh:LAGGing <Lagging> Specifies an EVM exclusion period at the end of each subframe (detected channel type "PUSCH"); if SRS signals are allowed, at the end of each shortened subframe. The specified period is excluded from the calculation of EVM, magnitude error and phase error results.

Page 764 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:SCOunt:SPECtrum:ACLR <StatisticCount> CONFigure:LTE:MEAS<i>:MEValuation:SCOunt:SPECtrum:SEMask <StatisticCount> Specifies the statistic count of the measurement. The statistic count is equal to the number of measurement intervals per single shot. Use CONFigure:...:MEAS<i>:...:REPetition SINGleshot | CONTinuous to select either single-shot or continuous measurements. See also: "Statistical Settings"...

Page 765 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <EUTRA> OFF | ON *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V1.0.15.0 Manual operation: "ACLR > Select ACLR" on page 700 3.5.3.6 Power Measurement Settings The following commands specify settings for the power measurements..........

Page 766 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:PDYNamics:AEOPower:LAGGing <Lagging> Shifts the end of the evaluation period for OFF power measurements. Parameters: <Lagging> Positive values reduce the evaluation period (ends earlier). Negative values increase the evaluation period (ends later). Range: -1000 Ts to 1000 Ts *RST: 0 Ts...

Page 767 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference 3.5.3.7 BLER Measurement Settings The following commands specify settings for the block error ratio measurement. CONFigure:LTE:MEAS<i>:MEValuation:BLER:SFRames <Subframes>[, <SchedSubfrPerFr>] Specifies the statistic count (number of measured subframes) and the number of scheduled subframes per radio frame for the BLER measurement. BLER is a single shot measurement.

Page 768 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ........ 776 CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask ........776 CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ACLR ......777 CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor ........778 CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer .............778 TRIGger:LTE:MEAS<i>:MEValuation:LIST:MODE CONFigure:LTE:MEAS<i>:MEValuation:LIST <Enable> Enables or disables the list mode. Parameters: <Enable> OFF | ON OFF: Disable list mode ON: Enable list mode *RST: Example: Specifying List Mode Settings...

Page 769 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Setting a value also enables the offline mode. Parameters: <OfflineSegIndex> Range: 1 to 1000 *RST: Additional parameters: OFF (disables offline mode) Example: Performing Single-Shot Measurements Firmware/Software: V2.0.10 V2.1.25: increased maximum to 250 V2.1.30: increased maximum to 512 V3.0.50: increased maximum to 1000 Options:...

Page 770 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <CMWSConnector> Selects the input connector of the R&S CMWS Example: Specifying List Mode Settings Firmware/Software: V3.2.70 Options: R&S CMW-KM012 CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SETup <SegmentLength>, <Level>, <DuplexMode>, <Band>, <Frequency>, <ChBandwidth>, <CyclicPrefix>, <ChannelType>, <RetriggerFlag>, <EvaluatOffset>[, <NetworkSigValue>] Defines the length and analyzer settings of segment <no>.

Page 771 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <ChBandwidth> B014 | B030 | B050 | B100 | B150 | B200 PCC channel bandwidth used in the segment B014: 1.4 MHz B030: 3 MHz B050: 5 MHz B100: 10 MHz B150: 15 MHz B200: 20 MHz *RST: B200...

Page 772 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.0.10, some bands added in later versions V3.2.70: added <RetriggerFlag> value IFPower; NS11 to NS18, NS20 V3.2.82: added NS19, NS21 to NS24 V3.5.30: added NS25 to NS32 Options: R&S CMW-KM012 R&S CMW-KM500 for FDD, R&S CMW-KM550 for TDD CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:TDD <UplinkDownlink>, <SpecialSubframe>...

Page 773 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <ChBandwidth> B014 | B030 | B050 | B100 | B150 | B200 SCC channel bandwidth used in the segment B014: 1.4 MHz B030: 3 MHz B050: 5 MHz B100: 10 MHz B150: 15 MHz B200: 20 MHz *RST: B200...

Page 774 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:RBALlocation <Auto>, <NoRB>, <Offset> Allows you to define the resource block allocation manually for segment <no>. By default, the RB allocation is detected automatically. Suffix: <no> 1..2000 Segment number Parameters: <Auto> OFF | ON OFF: manual definition via <NoRB>...

Page 775 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <ModStatistics> Statistical length in slots Range: 1 to 1000 *RST: <ModEnable> OFF | ON Enable or disable the measurement of modulation results ON: Modulation results are measured according to the other enable flags in this command.

Page 776 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask <SEMstatistics>, <SEenable>, <OBWenable>, <SEMenable> Defines settings for spectrum emission measurements in list mode for segment <no>. Suffix: <no> 1..2000 Segment number Parameters: <SEMstatistics> Statistical length in slots Range: 1 to 1000 *RST: <SEenable>...

Page 777 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <ACLRstatistics> Statistical length in slots Range: 1 to 1000 *RST: <ACLRenable> OFF | ON Enable or disable the measurement of ACLR results ON: ACLR results are measured according to the other enable flags in this command.

Page 778 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer <PowerStatistics>, <PowerEnable> Defines settings for the measurement of the total TX power of all carriers for segment <no>. Suffix: <no> 1..2000 Segment number Parameters: <PowerStatistics> Statistical length in subframes Range: 1 to 1000 *RST: <PowerEnable>...

Page 779 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ..........779 TRIGger:LTE:MEAS<i>:MEValuation:CATalog:SOURce? ..............779 TRIGger:LTE:MEAS<i>:MEValuation:SOURce ..............779 TRIGger:LTE:MEAS<i>:MEValuation:SLOPe .............. 780 TRIGger:LTE:MEAS<i>:MEValuation:THReshold ..............780 TRIGger:LTE:MEAS<i>:MEValuation:DELay ..............780 TRIGger:LTE:MEAS<i>:MEValuation:TOUT ..............781 TRIGger:LTE:MEAS<i>:MEValuation:MGAP ..............781 TRIGger:LTE:MEAS<i>:MEValuation:SMODe ..............781 TRIGger:LTE:MEAS<i>:MEValuation:AMODe TRIGger:LTE:MEAS<i>:MEValuation:CATalog:SOURce? Lists all trigger source values that can be set using TRIGger:LTE:MEAS<i>: MEValuation:SOURce.

Page 780 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Slope> REDGe | FEDGe REDGe: Rising edge FEDGe: Falling edge *RST: REDG Example: Configuring the Trigger System Firmware/Software: V1.0.10.1 Manual operation: "Trigger Slope" on page 704 TRIGger:LTE:MEAS<i>:MEValuation:THReshold <TrigThreshold> Defines the trigger threshold for power trigger sources. Parameters: <TrigThreshold>...

Page 781 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <TriggerTimeOut> Range: 0.01 s to 167772.15 s *RST: 0.1 s Default unit: s Additional parameters: OFF | ON (disables | enables the time- out) Example: Configuring the Trigger System Firmware/Software: V1.0.10.1 Manual operation: "Trigger Timeout"...

Page 782 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.1.25 Manual operation: "Acquisition Mode" on page 705 3.5.3.10 Limits (Modulation, QPSK) The following commands define limits for results which characterize the modulation accuracy of signals with modulation scheme QPSK........782 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:EVMagnitude ..........

Page 783 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Peak> Range: 0 % to 100 % *RST: 35 %, OFF Default unit: % Additional parameters: OFF | ON (disables the limit check | ena- bles the limit check using the previous/default limit values) Example: Specifying Limits Firmware/Software: V1.0.10.1...

Page 784 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:IQOFfset <Enable>, <Offset1>, <Offset2>, <Offset3> Defines upper limits for the I/Q origin offset (QPSK modulation). Three different I/Q ori- gin offset limits can be set for three TX power ranges. For details, see Chapter 3.2.5.4, "I/Q Origin Offset Limits",...

Page 785 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <RBPower> Range: -256 dBm to 256 dBm *RST: -57 dBm Default unit: dBm <IQImage> Range: -256 dB to 256 dB *RST: -24.2 dB Default unit: dB Example: Specifying Limits Firmware/Software: V1.0.10.1 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:IBE:IQOFfset <Offset1>, <Offset2>, <Offset3>...

Page 786 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Range1> Upper limit for max(range 1) - min(range 1) Range: -256 dBpp to 256 dBpp *RST: 5.4 dBpp Default unit: dBpp <Range2> Upper limit for max(range 2) - min(range 2) Range: -256 dBpp to 256 dBpp *RST: 9.4 dBpp Default unit: dBpp...

Page 787 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <ModOrder> 16,64 16-QAM or 64-QAM Parameters: <RMS> Range: 0 % to 100 % *RST: 12.5 % (16-QAM) / 8 % (64-QAM), ON Default unit: % Additional parameters: OFF | ON (disables the limit check | ena- bles the limit check using the previous/default limit values) <Peak>...

Page 788 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QAM<ModOrder>:PERRor <RMS>, <Peak> Defines symmetric limits for the RMS and peak values of the phase error for 16-QAM or 64-QAM. The limit check fails if the absolute value of the measured phase error exceeds the specified values.

Page 789 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QAM<ModOrder>:IQOFfset <Enable>, <Offset1>, <Offset2>, <Offset3> Defines upper limits for the I/Q origin offset (16-QAM or 64-QAM modulation). Three different I/Q origin offset limits can be set for three TX power ranges. For details, see Chapter 3.2.5.4, "I/Q Origin Offset Limits", on page 649.

Page 790 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Minimum> Range: -256 dB to 256 dB *RST: -29.2 dB Default unit: dB <EVM> Range: 0 % to 100 % *RST: 12.5 % (16-QAM) / 7.5 % (64-QAM) Default unit: % <RBPower> Range: -256 dBm to 256 dBm *RST:...

Page 791 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QAM<ModOrder>:ESFLatness <Enable>, <Range1>, <Range2>, <Max1Min2>, <Max2Min1>, <EdgeFrequency> Defines limits for the equalizer spectrum flatness (16-QAM or 64-QAM modulation). Suffix: <ModOrder> 16,64 16-QAM or 64-QAM Parameters: <Enable> OFF | ON OFF: disables the limit check ON: enables the limit check *RST: <Range1>...

Page 792 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ..792 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:UTRA<no>:CBANdwidth<Band> ....792 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:EUTRa:CBANdwidth<Band> ..793 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit:CBANdwidth<Band> ..793 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:CBANdwidth<Band> CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:ADDitional<Table>: .................... 795 CBANdwidth<Band> CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:UTRA<no>: CBANdwidth<Band> <RelativeLevel>, <AbsoluteLevel> Defines relative and absolute limits for the ACLR measured in the first or second adja- cent UTRA channel, depending on <no>.

Page 793 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <RelativeLevel> Range: -256 dB to 256 dB *RST: 29.2 dB, ON Default unit: dB Additional parameters: OFF | ON (disables the limit check | ena- bles the limit check using the previous/default limit values) <AbsoluteLevel>...

Page 794 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Enable> OFF | ON OFF: disables the check of these requirements ON: enables the check of these requirements *RST: depends on channel bandwidth and area number <FrequencyStart> Start frequency of the area, relative to the edges of the channel bandwidth Range: see table below...

Page 795 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>: ADDitional<Table>:CBANdwidth<Band> <Enable>, <FrequencyStart>, <FrequencyEnd>, <Level>, <RBW> Defines additional requirements for the emission mask area <no>. The activation state, the area borders, an upper limit and the resolution bandwidth must be specified. The emission mask applies to the channel bandwidth <Band>.

Page 796 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <RBW> K030 | K100 | M1 Resolution bandwidth to be used for the area K030: 30 kHz K100: 100 kHz M1: 1 MHz *RST: depends on area number and set of requirements Example: Specifying Limits Firmware/Software: V2.0.20...

Page 797 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:UTRA<no>:CAGGregation: CBANdwidth<Band1>:CBANdwidth<Band2> <RelativeLevel>, <AbsoluteLevel> Defines relative and absolute limits for the ACLR measured in the first or second adja- cent UTRA channel, depending on <no>. The settings are defined separately for each channel bandwidth combination of the aggregated channels.

Page 798 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <RelativeLevel> Range: -256 dB to 256 dB *RST: 32.2 dB (<no> = 1) / 35.2 dB (<no> = 2) Default unit: dB Additional parameters: OFF | ON (disables the limit check | ena- bles the limit check using the previous/default limit values) <AbsoluteLevel>...

Page 799 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KM502/-KM552 for FDD/TDD CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:EUTRa:CAGGregation: OCOMbination <RelativeLevel>, <AbsoluteLevel> Defines relative and absolute limits for the ACLR measured in an adjacent E-UTRA channel. The settings apply to all channel bandwidth combinations that are not supported by CONFigure:LTE:MEAS<i>:MEValuation:LIMit:ACLR:EUTRa:CAGGregation: CBANdwidth<Band1>:CBANdwidth<Band2>.

Page 800 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.2.70, V3.5.50 <Band2> = 50 Options: R&S CMW-KM502/-KM552 for FDD/TDD CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit:CAGGregation: OCOMbination <OBWlimit> Defines an upper limit for the occupied bandwidth. The settings apply to all channel bandwidth combinations that are not supported by CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit: CAGGregation:CBANdwidth<Band1>:CBANdwidth<Band2>.

Page 801 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <FrequencyStart> Start frequency of the area, relative to the edges of the aggrega- ted channel bandwidth Range: 0 MHz to 45 MHz *RST: depends on the suffixes Default unit: Hz <FrequencyEnd> Stop frequency of the area, relative to the edges of the aggrega- ted channel bandwidth Range: 0 MHz to 45 MHz...

Page 802 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <FrequencyStart> Start frequency of the area, relative to the edges of the aggrega- ted channel bandwidth Range: 0 MHz to 45 MHz *RST: depends on <no> Default unit: Hz <FrequencyEnd> Stop frequency of the area, relative to the edges of the aggrega- ted channel bandwidth Range: 0 MHz to 45 MHz...

Page 803 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Table> Set of additional requirements 1 = CA_NS_04 Parameters: <Enable> OFF | ON OFF: disables the check of these requirements ON: enables the check of these requirements *RST: ON (<no> = 1 to 3) / OFF (<no> = 4 to 12) <FrequencyStart>...

Page 804 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <no> 1..12 Number of the emission mask area <Table> Set of additional requirements 1 = CA_NS_04 Parameters: <Enable> OFF | ON OFF: disables the check of these requirements ON: enables the check of these requirements *RST: <FrequencyStart>...

Page 805 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:MEValuation:LIMit:PDYNamics:CBANdwidth<Band> <Enable>, <OnPowerUpper>, <OnPowerLower>, <OffPowerUpper> Defines limits for the ON power and OFF power determined with the power dynamics measurement. Separate limits can be defined for each channel bandwidth. Suffix: <Band> 14,30,50,100,150,200 Channel bandwidth in 0.1 MHz Parameters: <Enable>...

Page 806 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ......... 806 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DMODulation? ..........806 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DCHType? ............806 FETCh:LTE:MEAS<i>:MEValuation:ACLR:DCHType? ........... 806 FETCh:LTE:MEAS<i>:MEValuation:SEMask:DCHType? .......... 807 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DALLocation? ...........807 FETCh:LTE:MEAS<i>:MEValuation:ACLR:DALLocation? ..........807 FETCh:LTE:MEAS<i>:MEValuation:SEMask:DALLocation? ............807 FETCh:LTE:MEAS<i>:MEValuation:VFTHroughput? FETCh:LTE:MEAS<i>:MEValuation:MODulation:DMODulation? Returns the detected modulation scheme in the measured slot. If channel type PUCCH is detected, QPSK is returned as modulation type because the QPSK limits are applied in that case.

Page 807 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:MODulation:DALLocation? FETCh:LTE:MEAS<i>:MEValuation:ACLR:DALLocation? FETCh:LTE:MEAS<i>:MEValuation:SEMask:DALLocation? Returns the detected allocation for the measured slot. If the same slot is measured by the individual measurements, all commands yield the same result. If different statistic counts are defined for the modulation, ACLR and spec- trum emission mask measurements, different slots can be measured and different results can be returned by the individual commands.

Page 808 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ........808 FETCh:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:CURRent? ........808 FETCh:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:AVERage? ........808 FETCh:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:MAXimum? ........808 READ:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:CURRent? ........809 READ:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:AVERage? ........809 READ:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:MAXimum? ........809 FETCh:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:CURRent? ........809 FETCh:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:AVERage? ......... 809 FETCh:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:MAXimum? ........809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:CURRent? ........809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:AVERage? ........809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:MAXimum? ............809 FETCh:LTE:MEAS<i>:MEValuation:TRACe:EVMC? ............

Page 809 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference READ:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:AVERage? READ:LTE:MEAS<i>:MEValuation:EVMagnitude:PEAK:MAXimum? Returns the values of the EVM peak bar graphs for the SC-FDMA symbols in the mea- sured slot. The results of the current, average and maximum bar graphs can be retrieved.

Page 810 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference The number of results n equals 12 times the number of resource blocks, which depends on the channel bandwidth, see Chapter 3.2.4.1, "Resources in Time and Fre- quency Domain", on page 643. Return values: <Reliability>...

Page 811 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference 3.5.3.18 Phase Error Results (Traces) The following commands return the phase error vs. SC-FDMA symbol results of the multi-evaluation measurement. FETCh:LTE:MEAS<i>:MEValuation:PERRor:CURRent? FETCh:LTE:MEAS<i>:MEValuation:PERRor:AVERage? FETCh:LTE:MEAS<i>:MEValuation:PERRor:MAXimum? READ:LTE:MEAS<i>:MEValuation:PERRor:CURRent? READ:LTE:MEAS<i>:MEValuation:PERRor:AVERage? READ:LTE:MEAS<i>:MEValuation:PERRor:MAXimum? Returns the values of the phase error bar graphs for the SC-FDMA symbols in the measured slot.

Page 812 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference .... 814 FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:EXTReme:RBINdex? ..814 FETCh:LTE:MEAS<i>:MEValuation:IEMission:SCC<no>:MARGin:CURRent:RBINdex? ..814 FETCh:LTE:MEAS<i>:MEValuation:IEMission:SCC<no>:MARGin:EXTReme:RBINdex? FETCh:LTE:MEAS<i>:MEValuation:TRACe:IEMissions[:PCC]? READ:LTE:MEAS<i>:MEValuation:TRACe:IEMissions[:PCC]? Returns the values of the PCC inband emissions trace. See also Chapter 3.2.6.5, "View Inband Emissions", on page 662. The number of results n (resource blocks) depends on the channel bandwidth, see Chapter 3.2.4.1, "Resources in Time and Frequency Domain", on page 643.

Page 813 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:CURRent? FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:AVERage? FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:SDEViation? Return the limit line margin results for the PCC diagram. The CURRent margin indi- cates the minimum (vertical) distance between the inband emissions limit line and the current trace. A negative result indicates that the limit is exceeded. The AVERage, EXTReme and SDEViation values are calculated from the current mar- gins.

Page 814 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Margin> Range: -50 dB to 110 dB Default unit: dB Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V3.2.70 Options: R&S CMW-KM502/-KM552 for FDD/TDD FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:CURRent: RBINdex? FETCh:LTE:MEAS<i>:MEValuation:IEMission[:PCC]:MARGin:EXTReme: RBINdex? Return resource block indices for PCC inband emission margins. At these RB indices, the CURRent and EXTReme margins have been detected (see FETCh:LTE:MEAS<i>: and ...:EXTReme).

Page 815 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <OutOfTolerance> Out of tolerance result, i.e. percentage of measurement inter- vals of the statistic count for modulation measurements exceed- ing the specified inband emission limits. Range: 0 % to 100 % <RBindex> Resource block index Range: 0 to 99...

Page 816 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent? FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:AVERage? FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:SDEViation? READ:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent? READ:LTE:MEAS<i>:MEValuation:ESFLatness:AVERage? READ:LTE:MEAS<i>:MEValuation:ESFLatness:EXTReme? READ:LTE:MEAS<i>:MEValuation:ESFLatness:SDEViation? Return current, average, extreme and standard deviation single value results of the equalizer spectrum flatness measurement. See also Chapter 3.2.5.6, "Equalizer Spec- trum Flatness Limits",...

Page 817 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <8_MaxR1> Max (range 1) Range: -20 dB to 20 dB Default unit: dB <9_MinR2> Min (range 2) Range: -20 dB to 20 dB Default unit: dB <10_MaxR2> Max (range 2) Range: -20 dB to 20 dB Default unit: dB Example: Performing Single-Shot Measurements...

Page 818 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.20 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent:SCINdex? Returns subcarrier indices of the equalizer spectrum flatness measurement. At these SC indices, the current minimum and maximum power of the equalizer coefficients have been detected within range 1 and range 2.

Page 819 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference ..........820 READ:LTE:MEAS<i>:MEValuation:SEMask:SDEViation? ..........820 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:CURRent? ..........820 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:AVERage? ...........820 FETCh:LTE:MEAS<i>:MEValuation:SEMask:EXTReme? ............ 820 READ:LTE:MEAS<i>:MEValuation:SEMask:EXTReme? ..........820 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:EXTReme? ..........821 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:ALL? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:CURRent:NEGativ? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:CURRent:POSitiv? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:AVERage:NEGativ? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:AVERage:POSitiv? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:MINimum:NEGativ? ......822 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:MINimum:POSitiv? FETCh:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:CURRent? FETCh:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:AVERage?

Page 820 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:SEMask:CURRent? FETCh:LTE:MEAS<i>:MEValuation:SEMask:AVERage? FETCh:LTE:MEAS<i>:MEValuation:SEMask:SDEViation? READ:LTE:MEAS<i>:MEValuation:SEMask:CURRent? READ:LTE:MEAS<i>:MEValuation:SEMask:AVERage? READ:LTE:MEAS<i>:MEValuation:SEMask:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:SEMask:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:SEMask:AVERage? Return the current, average and standard deviation single value results of the spec- trum emission measurement. The values described below are returned by FETCh and READ commands. CALCulate commands return limit check results instead, one value for each result listed below.

Page 821 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <OutOfTolerance> Out of tolerance result, i.e. percentage of measurement inter- vals of the statistic count for spectrum emission measurements exceeding the specified spectrum emission mask limits. Range: 0 % to 100 % Default unit: % <OBW>...

Page 822 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <51_MinNeg1> ... Margin results for maximum trace (resulting in minimum mar- <62_MinNeg12> gins) <63_MinPos1> ... Range: -160 dB to 160 dB <74_MinPos12> Default unit: dB Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V3.2.80 FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:CURRent:NEGativ? FETCh:LTE:MEAS<i>:MEValuation:SEMask:MARGin:CURRent:POSitiv?

Page 823 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V3.2.80: increased number of areas to 12 3.5.3.22 ACLR Spectrum Results The following commands return the results of the ACLR spectrum multi-evaluation measurement..........823 FETCh:LTE:MEAS<i>:MEValuation:TRACe:ACLR:CURRent? ........... 823 FETCh:LTE:MEAS<i>:MEValuation:TRACe:ACLR:AVERage? ..........823 READ:LTE:MEAS<i>:MEValuation:TRACe:ACLR:CURRent? ..........823 READ:LTE:MEAS<i>:MEValuation:TRACe:ACLR:AVERage?

Page 824 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <7_UTRA1pos> Power in the first and second adjacent UTRA channels with <8_UTRA2pos> higher frequency Range: -100 dBm to 55 dBm Default unit: dBm Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V1.0.10.1 FETCh:LTE:MEAS<i>:MEValuation:ACLR:CURRent? FETCh:LTE:MEAS<i>:MEValuation:ACLR:AVERage? READ:LTE:MEAS<i>:MEValuation:ACLR:CURRent?

Page 825 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V1.0.10.1 3.5.3.23 I/Q Constellation Results The following commands return the results in the I/Q constellation diagram. FETCh:LTE:MEAS<i>:MEValuation:TRACe:IQ:LOW? FETCh:LTE:MEAS<i>:MEValuation:TRACe:IQ:HIGH? Returns the results in the I/Q constellation diagram for low and high EVM window posi- tion.

Page 826 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Reliability> Reliability Indicator <ChannelType> PUSCh | PUCCh | NONE | DL | SSUB Detected channel type for the first captured slot PUSCh: slot contains only PUSCH PUCCH: slot contains only PUCCH NONE: slot contains no allocated RBs at all DL: downlink slot (only relevant for TDD) SSUB: part of special subframe (only relevant for TDD)

Page 827 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <NoRB> Number of allocated RBs in the first captured slot Range: 0 to 100 Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V3.2.70 Options: R&S CMW-KM502/-KM552 for FDD/TDD 3.5.3.25 Power Monitor Results The following commands return the power monitor results of the multi-evaluation mea- surement.

Page 828 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:TRACe:PMONitor:SCC<no>? READ:LTE:MEAS<i>:MEValuation:TRACe:PMONitor:SCC<no>? Returns the power monitor results for all captured SCC subframes. The number of sub- frames can be configured, see CONFigure:LTE:MEAS<i>:MEValuation: MSUBframes. Suffix: <no> Only SCC1 supported - suffix can be omitted Return values: <Reliability>...

Page 829 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.5.40 3.5.3.26 Power Dynamics Results The following commands return the results of the power dynamics measurement........829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:CURRent? ........829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:AVERage? ........829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:MAXimum? ........829 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:CURRent? ........829 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:AVERage? ........829 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:MAXimum? ..........

Page 830 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:CURRent? FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:AVERage? FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:MINimum? FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:MAXimum? FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:SDEViation? READ:LTE:MEAS<i>:MEValuation:PDYNamics:CURRent? READ:LTE:MEAS<i>:MEValuation:PDYNamics:AVERage? READ:LTE:MEAS<i>:MEValuation:PDYNamics:MINimum? READ:LTE:MEAS<i>:MEValuation:PDYNamics:MAXimum? READ:LTE:MEAS<i>:MEValuation:PDYNamics:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:MINimum? CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:MAXimum? Return the current, average, minimum, maximum and standard deviation single value results of the power dynamics measurement.

Page 831 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Power2> Range: -100 dBm to 55 dBm Default unit: dBm <Power3> Range: -100 dBm to 55 dBm Default unit: dBm <Power4> Range: -100 dBm to 55 dBm Default unit: dBm Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10...

Page 832 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference The ranges indicated below apply to all results except standard deviation results. The minimum for standard deviation results equals 0. The maximum equals the width of the indicated range divided by two. Exceptions are explicitly stated. The number to the left of each result parameter is provided for easy identification of the parameter position within the result array.

Page 833 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <18_TXpower> User equipment power Range: -100 dBm to 55 dBm Default unit: dBm <19_PeakPower> User equipment peak power Range: -100 dBm to 55 dBm Default unit: dBm <20_RBpower> RB power Range: -100 dBm to 55 dBm Default unit: dBm <21_EVM_DMRSl>...

Page 834 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference The values described below are returned by FETCh and READ commands. CALCulate commands return limit check results instead, one value for each result listed below. The number to the left of each result parameter is provided for easy identification of the parameter position within the result array.

Page 835 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <20_PeakPowMin> Minimum and maximum user equipment peak power <21_PeakPowMax> Range: -100 dBm to 55 dBm Default unit: dBm <22_RBpowMin> Minimum and maximum RB power <23_RBpowMax> Range: -100 dBm to 55 dBm Default unit: dBm <24_EVM_DMRSl>...

Page 836 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference READ:LTE:MEAS<i>:MEValuation:EVMC:PEAK:MAXimum? READ:LTE:MEAS<i>:MEValuation:EVMC:PEAK:SDEViation? The CURRent command returns the maximum value of the EVM vs subcarrier trace. The AVERage, MAXimum and SDEViation values are calculated from the CURRent values. The peak results cannot be displayed at the GUI. Return values: <Reliability>...

Page 837 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V1.0.15.21 V3.0.10: added <DTX> For additional information concerning syntax elements and returned values, refer to Conventions and General Information. 3.5.3.29 List Mode Results (One Segment) The following commands return the list mode results for a selected segment.

Page 838 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin: ................... 846 EXTReme:RBINdex? ....846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:CURRent? ....846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:AVERage? ....846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:EXTReme? ..... 846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:SDEViation? ...848 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:CURRent? ..848 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:AVERage? ..848 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:CURRent: ......................849 SCINdex? ......850 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:CURRent? ..... 850 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:AVERage? ....850 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:SDEViation? ....

Page 839 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation: AVERage? Returns modulation single value results for segment <no> in list mode. The values described below are returned by FETCh commands. The first four values (reliability to out-of-tolerance result) are also returned by CALCulate commands. The remaining values returned by CALCulate commands are limit check results, one value for each result listed below.

Page 840 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <13_PErr_RMSlow> Phase error RMS value for low and high EVM window position <14_PErr_RMSh> Range: 0 deg to 180 deg Default unit: deg <15_PErrPeakLow> Phase error peak value for low and high EVM window position <16_PErrPeakHigh>...

Page 841 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V2.0.20: CALCulate commands V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation: EXTReme?

Page 842 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <13_PErr_RMSlow> Phase error RMS value for low and high EVM window position <14_PErr_RMSh> Range: 0 deg to 180 deg Default unit: deg <15_PErrPeakLow> Phase error peak value for low and high EVM window position <16_PErrPeakHigh>...

Page 843 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V2.0.20: CALCulate command V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:MARGin: CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:MARGin:...

Page 844 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:MARGin: CURRent:RBINdex? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:MARGin: EXTReme:RBINdex? Return resource block indices of the PCC inband emission measurement for segment <no>...

Page 845 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:SDEViation? Return the SCC inband emission limit line margin results for segment <no> in list mode. The CURRent margins indicate the minimum (vertical) distance between the limit line and the current trace.

Page 846 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:CURRent:RBINdex? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>: MARGin:EXTReme:RBINdex? Return resource block indices of the SCC inband emission measurement for segment <no> in list mode. At these RB indices, the CURRent and EXTReme margins have been detected. Suffix: <no>...

Page 847 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Return values: <1_Reliability> Reliability Indicator In list mode, a zero reliability indicator indicates that the results in all measured segments are valid. A non-zero value indicates that an error occurred in at least one of the measured segments. <2_SegReliability>...

Page 848 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V2.0.20: CALCulate commands V2.1.25: increased maximum number of segments to 250, added <9_MinR1> to <12_MaxR2> V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ESFLatness:...

Page 849 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <6_Ripple2> Max (range 2) - min (range 2) Range: 0 dB to 40 dB Default unit: dB <7_MaxR1MinR2> Max (range 1) - min (range 2) Range: -40 dB to 40 dB Default unit: dB <8_MaxR2MinR1>...

Page 850 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Minimum1> SC index of min (range 1) Range: 0 to 1199 <Maximum2> SC index of max (range 2) Range: 0 to 1199 <Minimum2> SC index of min (range 2) Range: 0 to 1199 Usage: Query only Firmware/Software: V2.0.10...

Page 851 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <TXpower> Total TX power in the slot Range: -100 dBm to 55 dBm Default unit: dBm Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 V2.0.20: CALCulate commands V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options:...

Page 852 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <7_TXpowerMax> Maximum total TX power in the slot Range: -100 dBm to 55 dBm Default unit: dBm Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 V2.0.20: CALCulate command V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options:...

Page 853 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V3.2.80 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: CURRent:NEGativ? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: CURRent:POSitiv? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: AVERage:NEGativ? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: AVERage:POSitiv? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: MINimum:NEGativ? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:MARGin: MINimum:POSitiv? Return spectrum emission mask margin results for segment <no> in list mode. The individual commands provide results for the CURRent, AVERage and maximum traces (resulting in MINimum margins) for NEGative and POSitive offset frequen- cies.

Page 854 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <7_MarginX2> X-position and Y-value for area 2 to 12 <8_MarginY2> ... <27_MarginX12> <28_MarginY12> Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 V3.2.80: increased number of areas to 12 Options:...

Page 855 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <7_EUTRAneg> ACLR for the first adjacent E-UTRA channel below the carrier frequency Range: 0 dB to 100 dB Default unit: dB <8_EUTRA> Power in the allocated E-UTRA channel Range: -100 dBm to 55 dBm Default unit: dBm <9_EUTRApos>...

Page 856 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <Power_1> ... n power values, one per subframe, from first to last subframe of <Power_n> the segment For an inactive segment only one INV is returned, independent of the number of configured subframes. Range: -100 dBm to 55 dBm Default unit: dBm...

Page 857 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V3.5.50 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:DALLocation? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:ACLR:DALLocation? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation: DALLocation? Return the detected allocation for segment <no> in list mode. The result is determined from the last measured slot of the statistical length. The indi- vidual measurements provide identical detected allocation results when measuring the same slot.

Page 858 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference If channel type PUCCH is detected, QPSK is returned as modulation type because the QPSK limits are applied in that case. Suffix: <no> 1..1000 Return values: <Reliability> Reliability Indicator In list mode, a zero reliability indicator indicates that the results in all measured segments are valid.

Page 859 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Performing Single-Shot Measurements Usage: Query only Firmware/Software: V2.0.10 V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 3.5.3.30...

Page 860 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:LOW: SDEViation? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH: SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:LOW: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:LOW: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:HIGH: EXTReme? Return error vector magnitude RMS values for low and high EVM window position, for all measured list mode segments.

Page 861 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:HIGH: EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:HIGH: SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:LOW: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:LOW: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:PEAK:HIGH: EXTReme? Return error vector magnitude peak values for low and high EVM window position, for all measured list mode segments. The values described below are returned by FETCh commands.

Page 862 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH: SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:LOW: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:LOW: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH: EXTReme? Return error vector magnitude DMRS values for low and high EVM window position, for all measured list mode segments. The values described below are returned by FETCh commands.

Page 863 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH: EXTReme? Return magnitude error RMS values for low and high EVM window position, for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 864 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:LOW: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH: EXTReme? Return magnitude error peak values for low and high EVM window position, for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 865 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:LOW: EXTReme? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH: EXTReme? Return magnitude error DMRS values for low and high EVM window position, for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 866 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH: EXTReme? Return phase error RMS values for low and high EVM window position, for all mea- sured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 867 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:HIGH: EXTReme? Return phase error peak values for low and high EVM window position, for all mea- sured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 868 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:HIGH: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:HIGH: EXTReme? Return phase error DMRS values for low and high EVM window position, for all mea- sured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 869 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:EXTReme? Return carrier frequency error values for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below. Return values: <Reliability>...

Page 870 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:MINimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:MAXimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:MINimum? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:TPOWer:MAXimum? Return user equipment power values for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below. Return values: <Reliability>...

Page 871 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MINimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MAXimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MINimum? CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MAXimum? Return RB power values (power spectral density) for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 872 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:IEMission:MARGin:RBINdex:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:IEMission:MARGin:RBINdex:EXTReme? Return resource block indices of the inband emission measurement for all measured list mode segments. At these RB indices, the CURRent and EXTReme margins have been detected. Return values: <Reliability>...

Page 873 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: EXTReme? FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>: EXTReme? Return equalizer spectrum flatness single value results (differences between ranges) for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 874 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <no> 1..2 Selects the range for which the minimum is returned Return values: <Reliability> Reliability Indicator <MinR> Comma-separated list of values, one per measured segment Range: -20 dB to 20 dB Default unit: dB Example: Retrieving Single Results for All Segments...

Page 875 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:SCINdex:MINimum<no>: CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:SCINdex:MAXimum<no>: CURRent? Return subcarrier indices of the equalizer spectrum flatness measurement for all mea- sured list mode segments. At these SC indices, the current MINimum or MAXimum power of the equalizer coeffi- cients has been detected within the selected range.

Page 876 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MINimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MAXimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:SDEViation? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MINimum? CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MAXimum? Return the total TX power in the slot for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 877 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Suffix: <no> 1..12 Selects the emission mask area Return values: <Reliability> Reliability Indicator <MarginPosX> X-position of margin for selected area Range: -35 MHz to 35 MHz Default unit: Hz <MarginPosY> Y-position of margin for selected area Range: -160 dB to 160 dB Default unit: dB...

Page 878 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:EUTRa:NEGativ:AVERage? CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:EUTRa:POSitiv:CURRent? CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:EUTRa:POSitiv:AVERage? Return the ACLR for the first adjacent E-UTRA channel above (POSitiv) or below (NEGativ) the carrier frequency for all measured list mode segments. The values described below are returned by FETCh commands. CALCulate com- mands return limit check results instead, one value for each result listed below.

Page 879 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Retrieving Single Results for All Segments Usage: Query only Firmware/Software: V2.1.30 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:PMONitor:RMS? FETCh:LTE:MEAS<i>:MEValuation:LIST:PMONitor:PEAK? Return the power monitor results for all measured segments in list mode. The com- mands return one power result per subframe for the measured carrier. The power val- ues are RMS averaged over the subframe or represent the peak value within the sub- frame.

Page 880 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor:ARRay: STARt? Returns the offset of the first power monitor result for segment <no> within a result list for all measured segments. Such a result list is e.g. returned by the command FETCh: LTE:MEAS<i>:MEValuation:LIST:PMONitor:RMS?.

Page 881 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.20 V2.1.25: increased maximum number of segments to 250 V2.1.30: increased maximum number of segments to 512 V3.0.50: increased maximum number of segments to 1000 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:POWer:TXPower:CURRent? FETCh:LTE:MEAS<i>:MEValuation:LIST:POWer:TXPower:AVERage? FETCh:LTE:MEAS<i>:MEValuation:LIST:POWer:TXPower:MINimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:POWer:TXPower:MAXimum? FETCh:LTE:MEAS<i>:MEValuation:LIST:POWer:TXPower:SDEViation? Return the total TX power of all component carriers, for all measured list mode seg-...

Page 882 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference <OffsetResBlocks> Offset of the first allocated resource block from the edge of the allocated UL transmission bandwidth Range: 0 to 99 Example: Retrieving Single Results for All Segments Usage: Query only Firmware/Software: V2.1.30 Options: R&S CMW-KM012 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:DMODulation?

Page 883: Combined Signal Path Commands
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.1.30 Options: R&S CMW-KM012 3.5.4 Combined Signal Path Commands For some settings, the command to be used depends on the active scenario. While the combined signal path (CSP) scenario is active, these settings are configured via com- mands of the signaling application.

Page 884 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx Command Reference Setting Commands for SA scenario Commands for CSP scenario Expected nominal CONFigure:LTE:MEAS<i>:RFSettings: CONFigure:LTE:SIGN<i>:RFSettings[: power ENPower PCC]:ENPMode CONFigure:LTE:SIGN<i>:RFSettings[: PCC]:ENPower CONFigure:LTE:SIGN<i>:RFSettings: SCC<c>:ENPMode CONFigure:LTE:SIGN<i>:RFSettings: SCC<c>:ENPower User margin CONFigure:LTE:MEAS<i>:RFSettings: CONFigure:LTE:SIGN<i>:RFSettings[: UMARgin PCC]:UMARgin CONFigure:LTE:SIGN<i>:RFSettings: SCC<c>:UMARgin Mixer level offset CONFigure:LTE:MEAS<i>:RFSettings: CONFigure:LTE:SIGN<i>:RFSettings[: MLOFfset...

Page 885: List Of Commands
® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands Setting Commands for SA scenario Commands for CSP scenario Network signaled CONFigure:LTE:MEAS<i>:MEValuation: CONFigure:LTE:SIGN<i>:CONNection: value NSValue ASEMission CONFigure:LTE:MEAS<i>:MEValuation: CONFigure:LTE:SIGN<i>:CONNection: NSValue:CAGGregation SCC<c>:ASEMission:CAGGregation Multi-cluster on/off CONFigure:LTE:MEAS<i>:MEValuation: CONFigure:LTE:SIGN<i>:CONNection[: RBALlocation:MCLuster PCC]:MCLuster:UL CONFigure:LTE:SIGN<i>:CONNection: SCC<c>:MCLuster:UL RBG multi-cluster CONFigure:LTE:MEAS<i>:MEValuation: CONFigure:LTE:SIGN<i>:CONNection[: allocation RBALlocation:MCLuster:NRB<Number>...

Page 886 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:UTRA<no>:NEGativ:CURRent?......... 878 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:UTRA<no>:POSitiv:AVERage?........878 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ACLR:UTRA<no>:POSitiv:CURRent?........878 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:AVERage?......873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:CURRent?......873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:EXTReme?......873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:AVERage?........874 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:CURRent?........874 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:EXTReme?........874 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:AVERage?........873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:CURRent?........873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:EXTReme?........873 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:AVERage?........872 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:CURRent?........872 CALCulate:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:EXTReme?........872 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH:AVERage?......862 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH:CURRent?......862 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:HIGH:EXTReme?......862 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:DMRS:LOW:AVERage?......

Page 887 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:LOW:EXTReme?......864 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH:AVERage?....... 863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH:CURRent?......863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:HIGH:EXTReme?...... 863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW:AVERage?......863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW:CURRent?......863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:RMS:LOW:EXTReme?....... 863 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:HIGH:AVERage?..... 868 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:HIGH:CURRent?......867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:HIGH:EXTReme?....868 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:LOW:AVERage?...... 867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:LOW:CURRent?...... 867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:DMRS:LOW:EXTReme?..... 867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:HIGH:AVERage?...... 867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:HIGH:CURRent?.......866 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:HIGH:EXTReme?..... 867 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:LOW:AVERage?....... 866 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:LOW:CURRent?....... 866 CALCulate:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:PEAK:LOW:EXTReme?......

Page 888 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:SEMask:EXTReme?........851 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:OBW:AVERage?............. 875 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:OBW:CURRent?............. 875 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:OBW:EXTReme?............ 875 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:AVERage?..........876 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:CURRent?..........876 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MAXimum?..........876 CALCulate:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MINimum?..........876 CALCulate:LTE:MEAS<i>:MEValuation:MODulation:AVERage?..............831 CALCulate:LTE:MEAS<i>:MEValuation:MODulation:CURRent?..............831 CALCulate:LTE:MEAS<i>:MEValuation:MODulation:EXTReme?..............833 CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:AVERage?..............830 CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:CURRent?..............830 CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:MAXimum?..............830 CALCulate:LTE:MEAS<i>:MEValuation:PDYNamics:MINimum?..............830 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:AVERage?............... 820 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:CURRent?................820 CALCulate:LTE:MEAS<i>:MEValuation:SEMask:EXTReme?..............820 CONFigure:LTE:MEAS<i>:BAND........................736 CONFigure:LTE:MEAS<i>:CAGGregation:CBANdwidth:AGGRegated?............

Page 889 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QAM<ModOrder>:PERRor........... 788 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:ESFLatness............... 785 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:EVMagnitude............. 782 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:FERRor..............783 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:IBE................784 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:IBE:IQOFfset............. 785 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:IQOFfset..............784 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:MERRor..............782 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:QPSK:PERRor..............783 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:ADDitional<Table>: CAGGregation:CBANdwidth<Band1>:CBANdwidth<Band2>..............802 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:ADDitional<Table>: CAGGregation:OCOMbination........................ 803 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:ADDitional<Table>: CBANdwidth<Band>..........................795 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:CAGGregation: CBANdwidth<Band1>:CBANdwidth<Band2>..................800 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:CAGGregation:OCOMbination....801 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:LIMit<no>:CBANdwidth<Band>......793 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit:CAGGregation: CBANdwidth<Band1>:CBANdwidth<Band2>..................799 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit:CAGGregation:OCOMbination....800 CONFigure:LTE:MEAS<i>:MEValuation:LIMit:SEMask:OBWLimit:CBANdwidth<Band>......

Page 890 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:MEAS<i>:MEValuation:NSValue..................753 CONFigure:LTE:MEAS<i>:MEValuation:NSValue:CAGGregation..............753 CONFigure:LTE:MEAS<i>:MEValuation:NVFilter..................753 CONFigure:LTE:MEAS<i>:MEValuation:PDYNamics:AEOPower:LAGGing..........766 CONFigure:LTE:MEAS<i>:MEValuation:PDYNamics:AEOPower:LEADing..........765 CONFigure:LTE:MEAS<i>:MEValuation:PDYNamics:TMASk..............765 CONFigure:LTE:MEAS<i>:MEValuation:PFORmat..................752 CONFigure:LTE:MEAS<i>:MEValuation:POWer:HDMode................766 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:AUTO..............754 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:MCLuster..............754 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:MCLuster:NRB<Number>........755 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:MCLuster:ORB<Number>........756 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:NRB................ 755 CONFigure:LTE:MEAS<i>:MEValuation:RBALlocation:ORB................ 756 CONFigure:LTE:MEAS<i>:MEValuation:REPetition..................748 CONFigure:LTE:MEAS<i>:MEValuation:RESult:ACLR.................746 CONFigure:LTE:MEAS<i>:MEValuation:RESult:BLER................. 746 CONFigure:LTE:MEAS<i>:MEValuation:RESult:ESFLatness...............746 CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMagnitude..............746 CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMagnitude:EVMSymbol..........747 CONFigure:LTE:MEAS<i>:MEValuation:RESult:EVMC................746 CONFigure:LTE:MEAS<i>:MEValuation:RESult:IEMissions.................

Page 891 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:MEAS<i>:RFSettings:MLOFfset..................739 CONFigure:LTE:MEAS<i>:RFSettings:SCC<no>:FREQuency..............737 CONFigure:LTE:MEAS<i>:RFSettings:UMARgin..................739 CONFigure:LTE:MEAS<i>:RFSettings[:PCC]:FREQuency................737 CONFigure:LTE:MEAS<i>:SCC<no>:CBANdwidth..................741 CONFigure:LTE:MEAS<i>[:PCC]:CBANdwidth..................... 740 FETCh:LTE:MEAS<i>:MEValuation:ACLR:AVERage?................. 824 FETCh:LTE:MEAS<i>:MEValuation:ACLR:CURRent?................. 824 FETCh:LTE:MEAS<i>:MEValuation:ACLR:DALLocation?................807 FETCh:LTE:MEAS<i>:MEValuation:ACLR:DCHType?................. 806 FETCh:LTE:MEAS<i>:MEValuation:BLER?....................836 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:AVERage?............... 816 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent:SCINdex?............818 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent?............... 816 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:EXTReme?..............816 FETCh:LTE:MEAS<i>:MEValuation:ESFLatness:SDEViation?..............816 FETCh:LTE:MEAS<i>:MEValuation:EVMagnitude:AVERage?..............808 FETCh:LTE:MEAS<i>:MEValuation:EVMagnitude:CURRent?..............

Page 892 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:AVERage?........873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:CURRent?........873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:EXTReme?......... 873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:DIFFerence<no>:SDEViation?........873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:AVERage?...........874 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:CURRent?........... 874 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:EXTReme?.......... 874 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MAXR<no>:SDEViation?........874 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:AVERage?..........873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:CURRent?..........873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:EXTReme?........... 873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:MINR<no>:SDEViation?......... 873 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:AVERage?.......... 872 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:CURRent?.......... 872 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:EXTReme?......... 872 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:RIPPle<no>:SDEViation?........872 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:SCINdex:MAXimum<no>:CURRent?......875 FETCh:LTE:MEAS<i>:MEValuation:LIST:ESFLatness:SCINdex:MINimum<no>:CURRent?.......875 FETCh:LTE:MEAS<i>:MEValuation:LIST:IEMission:MARGin:AVERage?............871 FETCh:LTE:MEAS<i>:MEValuation:LIST:IEMission:MARGin:CURRent?............

Page 893 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:EVM:RMS:LOW:SDEViation?......... 860 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:AVERage?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:CURRent?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:EXTReme?..........869 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:FERRor:SDEViation?..........869 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:IQOFfset:AVERage?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:IQOFfset:CURRent?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:IQOFfset:EXTReme?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:IQOFfset:SDEViation?..........868 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH:AVERage?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH:CURRent?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH:EXTReme?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:HIGH:SDEViation?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:LOW:AVERage?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:LOW:CURRent?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:LOW:EXTReme?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:DMRS:LOW:SDEViation?......864 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH:AVERage?......863 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH:CURRent?......863 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH:EXTReme?......863 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:HIGH:SDEViation?......863 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:MERRor:PEAK:LOW:AVERage?......

Page 894 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH:CURRent?......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH:EXTReme?......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:HIGH:SDEViation?......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:LOW:AVERage?.......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:LOW:CURRent?....... 865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:LOW:EXTReme?......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PERRor:RMS:LOW:SDEViation?......865 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PPOWer:AVERage?..........870 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PPOWer:CURRent?..........870 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PPOWer:MAXimum?..........870 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PPOWer:MINimum?..........870 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PPOWer:SDEViation?..........870 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:AVERage?............871 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:CURRent?............871 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MAXimum?............871 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:MINimum?............871 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:PSD:SDEViation?............ 871 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:TERRor:AVERage?..........869 FETCh:LTE:MEAS<i>:MEValuation:LIST:MODulation:TERRor:CURRent?..........

Page 895 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin:CURRent: RBINdex?..............................846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin:CURRent?.....845 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin:EXTReme: RBINdex?..............................846 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin:EXTReme?....845 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:IEMission:SCC<c>:MARGin:SDEViation?..845 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:AVERage?........839 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:CURRent?........839 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:DALLocation?......... 857 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:DCHType?........858 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:DMODulation?........ 857 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:EXTReme?........841 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:MODulation:SDEViation?........839 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor:ARRay:LENGth?........ 880 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor:ARRay:STARt?........880 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor:PEAK?..........855 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:PMONitor:RMS?..........855 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer:AVERage?..........856 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer:CURRent?..........856 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer:MAXimum?..........856 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer:MINimum?..........856 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEGMent<no>:POWer:SDEViation?...........856...

Page 896 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MAXimum?............ 876 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:MINimum?............. 876 FETCh:LTE:MEAS<i>:MEValuation:LIST:SEMask:TXPower:SDEViation?..........876 FETCh:LTE:MEAS<i>:MEValuation:LIST:SRELiability?................859 FETCh:LTE:MEAS<i>:MEValuation:MERRor:AVERage?................810 FETCh:LTE:MEAS<i>:MEValuation:MERRor:CURRent?................810 FETCh:LTE:MEAS<i>:MEValuation:MERRor:MAXimum?................810 FETCh:LTE:MEAS<i>:MEValuation:MODulation:AVERage?................831 FETCh:LTE:MEAS<i>:MEValuation:MODulation:CURRent?................ 831 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DALLocation?..............807 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DCHType?................806 FETCh:LTE:MEAS<i>:MEValuation:MODulation:DMODulation?..............806 FETCh:LTE:MEAS<i>:MEValuation:MODulation:EXTReme?...............833 FETCh:LTE:MEAS<i>:MEValuation:MODulation:SDEViation?..............831 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:AVERage?............... 830 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:CURRent?................830 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:MAXimum?..............830 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:MINimum?................830 FETCh:LTE:MEAS<i>:MEValuation:PDYNamics:SDEViation?..............830 FETCh:LTE:MEAS<i>:MEValuation:PERRor:AVERage?................811 FETCh:LTE:MEAS<i>:MEValuation:PERRor:CURRent?................811 FETCh:LTE:MEAS<i>:MEValuation:PERRor:MAXimum?................811 FETCh:LTE:MEAS<i>:MEValuation:PMONitor:AVERage?................828...

Page 897 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands FETCh:LTE:MEAS<i>:MEValuation:TRACe:IEMissions[:PCC]?..............812 FETCh:LTE:MEAS<i>:MEValuation:TRACe:IQ:HIGH?.................825 FETCh:LTE:MEAS<i>:MEValuation:TRACe:IQ:LOW?..................825 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:AVERage?............829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:CURRent?............829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:MAXimum?............829 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PMONitor:SCC<no>?.............. 828 FETCh:LTE:MEAS<i>:MEValuation:TRACe:PMONitor[:PCC]?..............827 FETCh:LTE:MEAS<i>:MEValuation:TRACe:RBATable:SCC<no>?............. 826 FETCh:LTE:MEAS<i>:MEValuation:TRACe:RBATable[:PCC]?..............825 FETCh:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:AVERage?..........819 FETCh:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:CURRent?..........819 FETCh:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:MAXimum?..........819 FETCh:LTE:MEAS<i>:MEValuation:VFTHroughput?..................807 INITiate:LTE:MEAS<i>:MEValuation......................742 READ:LTE:MEAS<i>:MEValuation:ACLR:AVERage?.................. 824 READ:LTE:MEAS<i>:MEValuation:ACLR:CURRent?...................824 READ:LTE:MEAS<i>:MEValuation:BLER?....................836 READ:LTE:MEAS<i>:MEValuation:ESFLatness:AVERage?................ 816 READ:LTE:MEAS<i>:MEValuation:ESFLatness:CURRent?.................816 READ:LTE:MEAS<i>:MEValuation:ESFLatness:EXTReme?................816 READ:LTE:MEAS<i>:MEValuation:ESFLatness:SDEViation?..............816 READ:LTE:MEAS<i>:MEValuation:EVMagnitude:AVERage?..............

Page 898 ® LTE Multi-Evaluation Measurement R&S CMW-KM5xx/-KS5xx List of Commands READ:LTE:MEAS<i>:MEValuation:PMONitor:MINimum?................828 READ:LTE:MEAS<i>:MEValuation:PMONitor:SDEViation?................828 READ:LTE:MEAS<i>:MEValuation:SEMask:AVERage?................820 READ:LTE:MEAS<i>:MEValuation:SEMask:CURRent?................820 READ:LTE:MEAS<i>:MEValuation:SEMask:EXTReme?................820 READ:LTE:MEAS<i>:MEValuation:SEMask:SDEViation?................820 READ:LTE:MEAS<i>:MEValuation:TRACe:ACLR:AVERage?..............823 READ:LTE:MEAS<i>:MEValuation:TRACe:ACLR:CURRent?..............823 READ:LTE:MEAS<i>:MEValuation:TRACe:ESFLatness?................815 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMC?..................809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:AVERage?............809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:CURRent?............809 READ:LTE:MEAS<i>:MEValuation:TRACe:EVMSymbol:MAXimum?............809 READ:LTE:MEAS<i>:MEValuation:TRACe:IEMissions:SCC<no>?..............812 READ:LTE:MEAS<i>:MEValuation:TRACe:IEMissions[:PCC]?..............812 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:AVERage?............829 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:CURRent?............829 READ:LTE:MEAS<i>:MEValuation:TRACe:PDYNamics:MAXimum?............829 READ:LTE:MEAS<i>:MEValuation:TRACe:PMONitor:SCC<no>?............... 828 READ:LTE:MEAS<i>:MEValuation:TRACe:PMONitor[:PCC]?..............827 READ:LTE:MEAS<i>:MEValuation:TRACe:RBATable:SCC<no>?...............826 READ:LTE:MEAS<i>:MEValuation:TRACe:RBATable[:PCC]?..............825 READ:LTE:MEAS<i>:MEValuation:TRACe:SEMask:RBW<kHz>:AVERage?..........

Page 899: Lte Prach Measurement
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description 4 LTE PRACH Measurement The LTE PRACH measurement provides quick and flexible tests on LTE FDD and TDD random access preambles. The tests cover the following UE transmitter properties: ● Modulation accuracy for each PRACH subcarrier (EVM, magnitude error, phase error) ●...

Page 900: How To Measure An Uplink Prach Signal
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description See also: "RF Connectors" in the R&S CMW base unit manual, chapter "Getting Star- ted" 4.2.2 How to Measure an Uplink PRACH Signal The measurement expects an LTE PRACH UL signal. Any other signals do not yield measurement results (e.g.

Page 901 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description In this context, two types of result views must be distinguished: ● Single-preamble measurements evaluate one preamble per measurement inter- val. The related views display results for the current measurement interval (one preamble).

Page 902: Parallel Signaling And Measurement
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Used view: "EVM vs Preamble" Settings: statistic count = 1, number of preambles = 5, period of preambles = 20 ms, repetition = single shot Results: The result diagram and table contain the labels 1 to 5 as for a measurement without missing preambles.

Page 903: Calculation Of Modulation Results
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description For configuration, see Chapter 4.3.2.5, "Trigger Settings", on page 925. 4.2.6 Calculation of Modulation Results Modulation results are based on a comparison between the measured signal, correc- ted by the average frequency and timing offset for each measured subframe, and an ideal reference waveform.

Page 904: Lte Prach Ul Signal Properties
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description EVM window settings Use the settings in the section "Config... > Measurement Control > Modulation > EVM Window Length" to adjust the length of the EVM window (see "EVM Window Length" on page 923). The minimum value of one FFT symbol actually corresponds to a win- dow of zero length so that EVM = EVM Use the setting "Config...

Page 905 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Channel bandwidth / MHz Resource blocks (RB) 4.2.7.2 Preambles in the Time Domain In the time domain, a preamble consists of a cyclic prefix (CP) and the preamble sequence. Figure 4-3: Preamble structure The length of CP and preamble sequence depend on the preamble format as shown in = 1/30.72 MHz ≈...

Page 906: Limit Settings And Conformance Requirements
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description From the u root Zadoff-Chu sequence, random access preambles with zero correla- tion zones of length N −1 are generated by cyclic shift. The parameter N depends on the parameters "Zero Correlation Zone Config" and "High Speed Flag", both provi- ded by higher layers.

Page 907 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-4: Modulation limit settings Characteristics Refer to 3GPP TS 36.521 V9.3.0, section... Specified limit EVM (RMS) 6.5.2.1 Error Vector Magnitude (EVM) ≤ 17.5 % 4.2.8.2 Power Dynamics Limits Transmission at excessive uplink power increases interference to other channels while a too low uplink power increases transmission errors.

Page 908: Measurement Results
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-6: Power dynamics limit settings Characteristics Refer to 3GPP TS 36.521 V9.3.0, section... Specified limit ON power 6.3.4.2 PRACH and SRS Time Mask ≥ -8.5 dBm, ≤ 6.5 dBm OFF power 6.3.4.2 PRACH and SRS Time Mask ≤...

Page 909 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-7: PRACH result overview The results to be measured and displayed in the overview can be limited using the hot- key "Assign Views", see Chapter 3.3.9, "Additional Softkeys and Hotkeys", on page 707. You can enlarge one of the diagrams in the overview and show a detailed view with additional measurement results, see Chapter 4.2.9.7, "Selecting and Modifying...

Page 910 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-8: Error Vector Magnitude view The diagram shows the EVM / magnitude error / phase error in all preamble subcarri- ers. For preamble format 0 to 3, there are 839 subcarriers with a spacing of 1.25 kHz. For preamble format 4, there are 139 subcarriers with a spacing of 7.5 kHz.

Page 911 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-9: EVM vs preamble view The diagram shows results for a configurable number of preambles (up to 32), labeled 1 to n. The preambles are captured within one measurement interval, using a configu- rable periodicity.

Page 912 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description 4.2.9.4 View I/Q Constellation Diagram This single-preamble view shows the modulation symbols as points in the I/Q plane. Figure 4-10: I/Q constellation diagram The typical constellation diagram of a random access preamble shows 839 points (pre- amble format 4: 139 points) evenly distributed on a circle around the origin.

Page 913 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 4-11: Power Dynamics view The diagram shows the UE output power vs. time, sampled with 48 T (1.5625 µs). The trace covers the range from -1100 µs to +2098.4375 µs relative to the start of the pre- amble.

Page 914 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description Signal configuration Ensure that two subframes before and after the preamble are off (OFF, OFF, pream- ble, OFF, OFF). This configuration guarantees that the measured "OFF Power (before)" is not falsified by power contributions of a preceding ON subframe ramped down too slowly.

Page 915: Hotkey Description
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description ● Carrier frequency error: offset between the measured carrier frequency and the nominal RF frequency of the measured radio channel ● Timing error: Difference between the actual timing and the expected timing. The timing error measurement requires an "external"...

Page 916: See Also: "Markers" In The R&S Cmw Base Unit Manual, Chapter "System Overview
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx General Description See also: "Markers" in the R&S CMW base unit manual, chapter "System Overview" 4.2.9.9 Common View Elements This section describes elements that are displayed in most views. Tables Most detailed views show tables providing a statistical evaluation of results obtained from the measured preamble.

Page 917: Gui Reference
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Sequence Correlation The sequence correlation indicates the correlation between the ideal preamble sequence determined from the parameter settings and the measured preamble sequence. A value of 1 corresponds to perfect correlation. A value much smaller than 1 indicates that the searched preamble sequence was not found.

Page 918 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference All settings are defined via softkeys and hotkeys or using the main configuration dialog. The configuration dialog is described in the following sections. To open the dialog, select the "PRACH" tab and press the "Config" hotkey. 4.3.2.1 Signal Routing and Analyzer Settings The following parameters configure the RF input path.

Page 919 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 4-14: Measurement Control settings - general part Repetition........................919 Stop Condition......................919 Measure on Exception....................920 Frame Structure......................920 Channel Bandwidth..................... 920 PRACH Configuration Index..................920 Number of Preambles....................920 Period of Preambles....................921 PRACH Frequency Offset...................

Page 920 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Measure on Exception Specifies whether measurement results that the R&S CMW identifies as faulty or inac- curate are rejected. A faulty result occurs e.g. when an overload is detected. In remote control, the cause of the error is indicated by the "reliability indicator". ●...

Page 921 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Single-preamble views evaluate only one preamble per measurement interval. To ach- ieve maximum measurement speed for these views, set this parameter to 1. Remote command: CONFigure:LTE:MEAS<i>:PRACh:NOPReambles Period of Preambles Specifies the periodicity of preambles to be captured for multi-preamble result views. See also Chapter 4.2.3, "Defining the Scope of the Measurement",...

Page 922 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 4-15: Modulation settings Statistic Count......................922 High Speed Flag......................922 Logical Root Sequence Index..................923 Zero Correlation Zone Config..................923 Sequence Index......................923 EVM Window Length....................923 EVM Window Position....................924 Statistic Count Defines the number of measurement intervals per measurement cycle (statistics cycle, single-shot measurement).

Page 923 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: Logical Root Sequence Index Specifies the logical root sequence index to be used for generation of the preamble sequence. Set this parameter to the value used by the UE. In the standalone (SA) scenario, this parameter is controlled by the measurement. In the combined signal path (CSP) scenario, it is controlled by the signaling application.

Page 924 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: CONFigure:LTE:MEAS<i>:PRACh:MODulation:EWLength EVM Window Position Position of the EVM window used for calculation of the trace results. While result tables show both the results for low and high EVM window position, the diagram results are only determined for the selected window position.

Page 925 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference While the combined signal path scenario is active, this parameter is not configurable. Remote command: CONFigure:LTE:MEAS<i>:PRACh:POWer:HDMode 4.3.2.5 Trigger Settings The "Trigger" parameters configure the trigger system for the LTE PRACH measure- ment. Figure 4-17: Trigger settings Trigger Source......................

Page 926 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Trigger Threshold Defines the input signal power where the trigger condition is satisfied and a trigger event is generated. The trigger threshold is valid for power trigger sources. It is a dB value, relative to the reference level minus the external attenuation ("<Ref.

Page 927 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Remote command: TRIGger:LTE:MEAS<i>:PRACh:MGAP 4.3.2.6 Limit Settings The "Limits" section in the "LTE PRACH Configuration" dialog defines upper limits for the modulation and power results. For details, see Chapter 4.2.8, "Limit Settings and Conformance Requirements", on page 906.

Page 928: Measurement Results
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference 4.3.3 Measurement Results The results of the LTE PRACH measurement are displayed in several different views. For a detailed description, see Chapter 4.2.9, "Measurement Results", on page 908. The PRACH measurement provides an overview dialog and a detailed view for each diagram in the overview.

Page 929 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 4-21: LTE PRACH: EVM Traces and Bar Graphs The results can be retrieved via the following remote commands. Remote command: etc. FETCh:LTE:MEAS<i>:PRACh:TRACe:EVM:CURRent? etc. FETCh:LTE:MEAS<i>:PRACh:TRACe:MERRor:CURRent? etc. FETCh:LTE:MEAS<i>:PRACh:TRACe:PERRor:CURRent? etc. FETCh:LTE:MEAS<i>:PRACh:TRACe:EVPReamble? etc. FETCh:LTE:MEAS<i>:PRACh:TRACe:PVPReamble? FETCh:LTE:MEAS<i>:PRACh:TRACe:IQ? etc.

Page 930: Programming
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS<i>:PRACh:MODulation:DSINdex:PREamble<Number>? FETCh:LTE:MEAS<i>:PRACh:MODulation:SCORrelation: PREamble<Number>? 4.4 Programming The following sections provide programming examples for the LTE PRACH measure- ment. See also: "Remote Control" in the R&S CMW base unit manual ● Features......................930 ● Specifying General and Common Measurement Settings........

Page 931: Specifying Required Prach Settings
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Programming // Carrier center frequency 1850 MHz, frequency offset 1 kHz, peak power 7 dBm, // 5 dB user margin and 1 dB mixer level offset. // ***************************************************************************** ROUTe:LTE:MEAS:SCENario:SALone RF1C, RX1 CONFigure:LTE:MEAS:RFSettings:EATTenuation 2 CONFigure:LTE:MEAS:RFSettings:FREQuency 1850E+6 CONFigure:LTE:MEAS:RFSettings:FOFFset 1000 CONFigure:LTE:MEAS:RFSettings:ENPower 7 CONFigure:LTE:MEAS:RFSettings:UMARgin 5...

Page 932: Configuring The Trigger System
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:MEAS:PRACh:PFOFfset:AUTO OFF CONFigure:LTE:MEAS:PRACh:PFOFfset 0 // ***************************************************************************** // Disable automatic detection of the preamble sequence index and // specify it manually. // ***************************************************************************** CONFigure:LTE:MEAS:PRACh:MODulation:SINDex:AUTO OFF CONFigure:LTE:MEAS:PRACh:MODulation:SINDex 5 // ***************************************************************************** // Specify EVM window length for all preamble formats. // Correct EVM window length for preamble format 2.

Page 933: Performing Single-Shot Measurements
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Programming 4.4.7 Performing Single-Shot Measurements // ***************************************************************************** // Enable all measurements. // ***************************************************************************** CONFigure:LTE:MEAS:PRACh:RESult:ALL ON,ON,ON,ON,ON,ON,ON,ON // ***************************************************************************** // Start single-shot measurement, return average EVM trace. // Query the measurement state (should be "RDY"). // ***************************************************************************** READ:LTE:MEAS:PRACh:TRACe:EVM:AVERage? FETCh:LTE:MEAS:PRACh:STATe? // *****************************************************************************...

Page 934: Single-Shot And Continuous Measurements
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference // ***************************************************************************** // Read limit check results obtained in the last measurement // without re-starting the measurement. // ***************************************************************************** CALCulate:LTE:MEAS:PRACh:MODulation:AVERage? CALCulate:LTE:MEAS:PRACh:MODulation:EXTReme? CALCulate:LTE:MEAS:PRACh:PDYNamics:AVERage? CALCulate:LTE:MEAS:PRACh:PDYNamics:MINimum? CALCulate:LTE:MEAS:PRACh:PDYNamics:MAXimum? 4.4.8 Single-Shot and Continuous Measurements // ***************************************************************************** // Start single-shot measurement, return magnitude error trace, // return phase error trace (without repeating the measurement).

Page 935: Conventions And General Information
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference 4.5.1 Conventions and General Information The following sections describe the most important conventions and general informa- tion concerning the command reference. 4.5.1.1 MEAS<i> MEAS<i> is used as abbreviation of "MEASurement<instance>". For better readability only the abbreviated form (which is also accepted by the instrument) is given in the command reference.

Page 936 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference 4.5.1.4 Keywords Selected keywords used in the command description are described in the following. ● Command usage If the usage is not explicitly stated, the command allows you to set parameters and query parameters.

Page 937 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● 8 ("Sync Error"): The R&S CMW could not synchronize to the RF input signal. ● 9 ("Uncal"): Due to an inappropriate configuration of resolution bandwidth, video bandwidth or sweep time, the measurement results are not within the specified data sheet limits. ●...

Page 938 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● 30 ("File not Found"): The specified file could not be found. ● 31 ("No DTM reply"): The EUT did not reply to the direct test mode (DTM) command. ● 32 ("ACL Disconnected"): The ACL connection has been disconnected or lost.

Page 939: General Measurement Settings
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Indicates a firmware or software error. If you encounter this error for the first time, restart the instrument. If the error occurs again, consider the following hints: – Firmware errors can often be repaired by restoring the factory default settings. To restore these settings, restart your instrument and press the "Factory Default"...

Page 940 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● Detected Signal Configuration................955 ● EVM vs. Subcarrier Results (Traces)..............958 ● Magnitude Error Results (Traces)................. 959 ● Phase Error Results (Traces)................959 ● EVM vs. Preamble Results (Traces)..............960 ● Power vs. Preamble Results (Traces)..............961 ●...

Page 941 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:PRACh:STATe? Queries the main measurement state. Use FETCh:...:STATe:ALL? to query the measurement state including the substates. Use INITiate..., STOP..., ABORt... to change the measurement state. See also: "Measurement Control" in the R&S CMW base unit manual, chapter "Remote Control"...

Page 942 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <ResourceState> QUE | ACT | INV QUE: measurement without resources, no results available ("queued") ACT: resources allocated, acquisition of results in progress but not complete ("active") INV: not applicable, <MainState> OFF or RDY ("invalid") Example: Single-Shot and Continuous Measurements Usage:...

Page 943 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <IQ> OFF | ON I/Q constellation diagram *RST: <PowerDynamics> OFF | ON Power dynamics *RST: <TXMeasurement> OFF | ON Statistical overview *RST: <EVMvsPreamble> OFF | ON Error vector magnitude vs preamble *RST: <PowervsPreamble>...

Page 944 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.10 V2.1.20: ...:EVPReamble and ...:PVPReamble added Manual operation: "Multi Evaluation, PRACH > Assign Views" on page 707 4.5.3.3 Measurement Parameters - General Part The following commands define general measurement control parameters for the PRACH measurement.

Page 945 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference See also: "Statistical Settings" in the R&S CMW base unit manual, chapter "Remote Control" Parameters: <Repetition> SINGleshot | CONTinuous SINGleshot: Single-shot measurement CONTinuous: Continuous measurement *RST: SING Example: Single-Shot and Continuous Measurements Firmware/Software: V2.0.10 Manual operation: "Repetition"...

Page 946 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:PRACh:PCINdex <PRACHconfIndex> The PRACH configuration index identifies the PRACH configuration used by the UE (preamble format, which resources in the time domain are allowed for transmission of preambles etc.). For the combined signal path scenario, use: ●...

Page 947 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:PRACh:PFOFfset:AUTO <PRACHfreqAuto> Enables or disables automatic detection of the PRACH frequency offset. To configure the offset manually for disabled automatic detection, see CONFigure:LTE:MEAS<i>: on page 947. PRACh:PFOFfset Parameters: <PRACHfreqAuto> OFF | ON *RST: Example: Specifying Measurement-Specific Settings...

Page 948 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:PRACh:SCOunt:MODulation <StatisticCount> Specifies the statistic count of the measurement. The statistic count is equal to the number of measurement intervals per single shot. Use CONFigure:...:MEAS<i>:...:REPetition SINGleshot | CONTinuous to select either single-shot or continuous measurements. See also: "Statistical Settings"...

Page 949 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:PRACh:MODulation:SINDex:AUTO <SeqIndexAuto> Enables or disables automatic detection of the sequence index. To configure the index manually for disabled automatic detection, see CONFigure:LTE:MEAS<i>:PRACh: on page 949. MODulation:SINDex Parameters: <SeqIndexAuto> OFF | ON *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V2.0.10...

Page 950 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <LengthFormat4> Length for preamble format 4 Range: 1 to 448 *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V2.0.10 V2.0.20: *RST values modified Manual operation: "EVM Window Length" on page 923 CONFigure:LTE:MEAS<i>:PRACh:MODulation:EWPosition <EVMwindowPos> Specifies the position of the EVM window used for calculation of the trace results. Parameters: <EVMwindowPos>...

Page 951 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <HighDynamicMode> OFF | ON *RST: Example: Specifying Measurement-Specific Settings Firmware/Software: V2.1.25 Manual operation: "High Dynamic Mode" on page 924 4.5.3.6 Trigger Settings The following commands define the trigger parameters............951 TRIGger:LTE:MEAS<i>:PRACh:CATalog:SOURce? .................

Page 952 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference TRIGger:LTE:MEAS<i>:PRACh:SLOPe <Slope> Qualifies whether the trigger event is generated at the rising or at the falling edge of the trigger pulse (valid for external and power trigger sources). Parameters: <Slope> REDGe | FEDGe REDGe: Rising edge FEDGe: Falling edge *RST:...

Page 953 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference TRIGger:LTE:MEAS<i>:PRACh:MGAP <MinTrigGap> Sets a minimum time during which the IF signal must be below the trigger threshold before the trigger is armed so that an IF power trigger event can be generated. Parameters: <MinTrigGap>...

Page 954 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <RMS> Range: 0 % to 100 % *RST: 17.5 %, OFF Default unit: % Additional parameters: OFF | ON (disables the limit check | ena- bles the limit check using the previous/default limit values) <Peak>...

Page 955 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Example: Specifying Limits Firmware/Software: V2.0.10 Manual operation: "Limits" on page 927 4.5.3.8 Limits (Power) The following command defines limits for results which characterize the power dynam- ics of the PRACH signal. CONFigure:LTE:MEAS<i>:PRACh:LIMit:PDYNamics <Enable>, <OnPowerUpper>, <OnPowerLower>, <OffPowerUpper>...

Page 956 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference ...... 957 FETCh:LTE:MEAS<i>:PRACh:MODulation:DPFoffset:PREamble<Number>? ......957 FETCh:LTE:MEAS<i>:PRACh:MODulation:DSINdex:PREamble<Number>? ....958 FETCh:LTE:MEAS<i>:PRACh:MODulation:SCORrelation:PREamble<Number>? FETCh:LTE:MEAS<i>:PRACh:MODulation:DPFoffset? Returns the automatically detected or manually configured PRACH frequency offset for single-preamble measurements. Return values: <Reliability> Reliability Indicator <PRACHfreqOffset> Range: 0 to 94 Example: Performing Single-Shot Measurements Usage:...

Page 957 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V2.0.10 Manual operation: "Statistical Overviews and other Single Values" on page 929 FETCh:LTE:MEAS<i>:PRACh:MODulation:DPFoffset:PREamble<Number>? Returns the automatically detected or manually configured PRACH frequency offset for a selected preamble of multi-preamble measurements. Suffix: <Number>...

Page 958 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference FETCh:LTE:MEAS<i>:PRACh:MODulation:SCORrelation:PREamble<Number>? Returns the sequence correlation for a selected preamble of multi-preamble measure- ments. It indicates the correlation between the ideal preamble sequence determined from the parameter settings and the measured preamble sequence. A value of 1 corresponds to perfect correlation.

Page 959 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V2.0.10 For additional information concerning syntax elements and returned values, refer to Conventions and General Information. 4.5.3.11 Magnitude Error Results (Traces) The following commands return the magnitude error vs. subcarrier traces of the PRACH measurement.

Page 960 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference READ:LTE:MEAS<i>:PRACh:TRACe:PERRor:AVERage? READ:LTE:MEAS<i>:PRACh:TRACe:PERRor:MAXimum? Return the values of the phase error traces. Each value is averaged over the samples in one preamble subcarrier. The results of the current, average and maximum traces can be retrieved. See also Chapter 4.2.9.2, "Views EVM, Magnitude Error, Phase Error",...

Page 961 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference 4.5.3.14 Power vs. Preamble Results (Traces) The following commands return the power vs. preamble trace of the PRACH measure- ment. FETCh:LTE:MEAS<i>:PRACh:TRACe:PVPReamble? READ:LTE:MEAS<i>:PRACh:TRACe:PVPReamble? Return the values of the power vs. preamble traces. See also Chapter 4.2.9.3, "Views EVM vs Preamble, Power vs Preamble", on page 910.

Page 962 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference For additional information concerning syntax elements and returned values, refer to Conventions and General Information. 4.5.3.16 Power Dynamics Results (Traces) The following commands return the results in the power dynamics diagram. FETCh:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:CURRent? FETCh:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:AVERage? FETCh:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:MAXimum? READ:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:CURRent?

Page 963 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference ............. 964 FETCh:LTE:MEAS<i>:PRACh:MODulation:EXTReme? ............964 READ:LTE:MEAS<i>:PRACh:MODulation:EXTReme? ..........964 CALCulate:LTE:MEAS<i>:PRACh:MODulation:EXTReme? FETCh:LTE:MEAS<i>:PRACh:MODulation:CURRent? FETCh:LTE:MEAS<i>:PRACh:MODulation:AVERage? FETCh:LTE:MEAS<i>:PRACh:MODulation:SDEViation? READ:LTE:MEAS<i>:PRACh:MODulation:CURRent? READ:LTE:MEAS<i>:PRACh:MODulation:AVERage? READ:LTE:MEAS<i>:PRACh:MODulation:SDEViation? CALCulate:LTE:MEAS<i>:PRACh:MODulation:CURRent? CALCulate:LTE:MEAS<i>:PRACh:MODulation:AVERage? Return the current, average and standard deviation single value results. The values described below are returned by FETCh and READ commands. CALCulate commands return limit check results instead, one value for each result listed below.

Page 964 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <11_PErr_RMSlow> Phase error RMS value for low and high EVM window position <12_PErr_RMSh> Range: 0 deg to 180 deg Default unit: deg <13_PErrPeakLow> Phase error peak value for low and high EVM window position <14_PErrPeakHigh>...

Page 965 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <2_OutOfTol> Out of tolerance result, i.e. percentage of measurement inter- vals of the statistic count (CONFigure:LTE:MEAS<i>:PRACh: SCOunt:MODulation) exceeding the specified modulation lim- its. Range: 0 % to 100 % Default unit: % <3_EVM_RMSlow>...

Page 966 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference 4.5.3.18 EVM / Power vs. Preamble Results (Single Values) The following commands return the single value modulation results as presented in the "EMV vs Preamble" and "Power vs Preamble" views. For additional commands, see Chapter 4.5.3.9, "Detected Signal Configuration", on page 955.

Page 967 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference <15_FreqError> Carrier frequency error Range: -80000 Hz to 80000 Hz Default unit: Hz <16_TimingError> Transmit time error Range: -32000 Ts to 32000 Ts Default unit: Ts (basic LTE time unit) <17_TXpower> User equipment power Range: -100 dBm to 55 dBm Default unit: dBm...

Page 968: Combined Signal Path Commands
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx Command Reference Return values: <Reliability> Reliability Indicator <OutOfTolerance> Out of tolerance result, i.e. percentage of measurement inter- vals of the statistic count (CONFigure:LTE:MEAS<i>:PRACh: SCOunt:PDYNamics) exceeding the specified power dynamics limits. Range: 0 % to 100 % Default unit: % <OffPowerBefore>...

Page 969: List Of Commands
® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx List of Commands Table 4-5: Mapping for PRACH measurement commands Setting Commands for SA scenario Commands for CSP scenario PRACH configuration CONFigure:LTE:MEAS<i>:PRACh:PCINdex CONFigure:LTE:SIGN<i>:CELL:PRACh: index PCINdex:FDD CONFigure:LTE:SIGN<i>:CELL:PRACh: PCINdex:TDD PRACH frequency CONFigure:LTE:MEAS<i>:PRACh:PFOFfset CONFigure:LTE:SIGN<i>:CELL:PRACh: offset PFOFfset Logical root sequence CONFigure:LTE:MEAS<i>:PRACh: CONFigure:LTE:SIGN<i>:CELL:PRACh: index...

Page 970 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx List of Commands CONFigure:LTE:MEAS<i>:PRACh:RESult:IQ....................943 CONFigure:LTE:MEAS<i>:PRACh:RESult:MERRor..................943 CONFigure:LTE:MEAS<i>:PRACh:RESult:PDYNamics................943 CONFigure:LTE:MEAS<i>:PRACh:RESult:PERRor..................943 CONFigure:LTE:MEAS<i>:PRACh:RESult:PVPReamble................943 CONFigure:LTE:MEAS<i>:PRACh:RESult:TXM................... 943 CONFigure:LTE:MEAS<i>:PRACh:RESult[:ALL]..................942 CONFigure:LTE:MEAS<i>:PRACh:SCONdition.................... 945 CONFigure:LTE:MEAS<i>:PRACh:SCOunt:MODulation................948 CONFigure:LTE:MEAS<i>:PRACh:SCOunt:PDYNamics................950 CONFigure:LTE:MEAS<i>:PRACh:TOUT..................... 944 FETCh:LTE:MEAS<i>:PRACh:MODulation:AVERage?................963 FETCh:LTE:MEAS<i>:PRACh:MODulation:CURRent?................963 FETCh:LTE:MEAS<i>:PRACh:MODulation:DPFoffset:PREamble<Number>?..........957 FETCh:LTE:MEAS<i>:PRACh:MODulation:DPFoffset?................956 FETCh:LTE:MEAS<i>:PRACh:MODulation:DSINdex:PREamble<Number>?..........957 FETCh:LTE:MEAS<i>:PRACh:MODulation:DSINdex?................. 956 FETCh:LTE:MEAS<i>:PRACh:MODulation:EXTReme?................964 FETCh:LTE:MEAS<i>:PRACh:MODulation:PREamble<Number>?..............966 FETCh:LTE:MEAS<i>:PRACh:MODulation:SCORrelation:PREamble<Number>?........

Page 971 ® LTE PRACH Measurement R&S CMW-KM5xx/-KS5xx List of Commands READ:LTE:MEAS<i>:PRACh:PDYNamics:AVERage?................. 967 READ:LTE:MEAS<i>:PRACh:PDYNamics:CURRent?................. 967 READ:LTE:MEAS<i>:PRACh:PDYNamics:MAXimum?................967 READ:LTE:MEAS<i>:PRACh:PDYNamics:MINimum?................. 967 READ:LTE:MEAS<i>:PRACh:PDYNamics:SDEViation?................967 READ:LTE:MEAS<i>:PRACh:TRACe:EVM:AVERage?................958 READ:LTE:MEAS<i>:PRACh:TRACe:EVM:CURRent?................958 READ:LTE:MEAS<i>:PRACh:TRACe:EVM:MAXimum?................958 READ:LTE:MEAS<i>:PRACh:TRACe:EVPReamble?...................960 READ:LTE:MEAS<i>:PRACh:TRACe:MERRor:AVERage?................959 READ:LTE:MEAS<i>:PRACh:TRACe:MERRor:CURRent?................959 READ:LTE:MEAS<i>:PRACh:TRACe:MERRor:MAXimum?................. 959 READ:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:AVERage?..............962 READ:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:CURRent?..............962 READ:LTE:MEAS<i>:PRACh:TRACe:PDYNamics:MAXimum?..............962 READ:LTE:MEAS<i>:PRACh:TRACe:PERRor:AVERage?................960 READ:LTE:MEAS<i>:PRACh:TRACe:PERRor:CURRent?................959 READ:LTE:MEAS<i>:PRACh:TRACe:PERRor:MAXimum?................960 READ:LTE:MEAS<i>:PRACh:TRACe:PVPReamble?...................961 STOP:LTE:MEAS<i>:PRACh........................

Page 972: Lte Srs Measurement
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description 5 LTE SRS Measurement The LTE SRS measurement provides quick and flexible tests on LTE FDD and TDD sounding reference signals. The tests cover the following UE transmitter properties: ● Transmit OFF power, transmit ON power and power ramping between them (power dynamics) The SRS measurement requires option R&S CMW-KM500 for FDD signals and R&S CMW-KM550 for TDD signals.

Page 973: How To Measure An Uplink Srs Signal
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description 5.2.2 How to Measure an Uplink SRS Signal The measurement expects a pure LTE SRS UL signal. Any other signals, e.g. an LTE SRS UL signal with additional PUSCH does not yield correct measurement results. After connecting your LTE UE to the R&S CMW, you have to adjust at least the follow- ing analyzer settings to the properties of the analyzed SRS signal: ●...

Page 974: Trigger Modes
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description 5.2.4 Trigger Modes The LTE SRS measurement requires a trigger event for each SRS symbol to be mea- sured. It can be performed in the following trigger modes: ● "IF Power" (default mode): With an internal IF power trigger, the measurement is triggered by the power ramp of the received SRS symbol.

Page 975: Measurement Results
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 5-1: Measurement periods ON/OFF power, FDD SRS signal Figure 5-2: Measurement periods ON/OFF power, TDD SRS signal According to 3GPP, the OFF power must not exceed -48.5 dBm. The ON power must be in the range -10.1 dBm to 4.9 dBm.

Page 976 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description Figure 5-4: LTE SRS measurement result view, FDD The diagram shows the UE output power vs. time, sampled with 48 T (1.5625 µs). The trace covers the range from -1100 µs to +1298.4375 µs relative to the start of the SRS symbol.

Page 977: See Also: "Statistical Settings" In The R&S Cmw Base Unit Manual, Chapter "System Overview
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx General Description 5.2.6.1 Result View Elements Statistical results The statistical values in the table are calculated as follows: ● "Current": Value of the result obtained in the last measurement interval. ● "Average": Average of all "Current" values referenced to the last statistics cycle. ●...

Page 978: Gui Reference
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Hotkey Description "Ref. Marker ..." Enable or disable the reference marker and select the marker position. If sev- eral traces can be displayed, a trace can also be selected. "Marker 1/2 ..." Enable or disable marker 1 or 2 and define the marker position (absolute or rel- ative to the reference marker).

Page 979: Parameters And Settings
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference 5.3.2 Parameters and Settings The most important settings of the "LTE SRS" measurement are displayed at the top of the measurement dialog. All settings are defined via softkeys and hotkeys or using the main configuration dialog. The configuration dialog is described in the following sections.

Page 980 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Figure 5-6: Measurement Control settings Repetition........................980 Stop Condition......................980 Measure on Exception....................980 Frame Structure......................981 Channel Bandwidth..................... 981 Statistic Count......................981 High Dynamic Mode....................981 Repetition Defines how often the measurement is repeated if it is not stopped explicitly or by a failed limit check.

Page 981 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference ● Off: Faulty results are rejected. The measurement is continued; the statistical counters are not reset. Use this mode to ensure that a single faulty result does not affect the entire measurement. ●...

Page 982 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference While the combined signal path scenario is active, this parameter is not configurable. Remote command: CONFigure:LTE:MEAS<i>:SRS:HDMode 5.3.2.3 Trigger Settings The "Trigger" parameters configure the trigger system for the LTE SRS measurement. Figure 5-7: Trigger settings Trigger Source......................

Page 983 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference Trigger Threshold Defines the input signal power where the trigger condition is satisfied and a trigger event is generated. The trigger threshold is valid for power trigger sources. It is a dB value, relative to the reference level minus the external attenuation ("<Ref.

Page 984: Measurement Results
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx GUI Reference 5.3.2.4 Limit Settings The "Limits" section in the "LTE SRS Configuration" dialog defines upper limits for the power results. For details, see Chapter 5.2.5, "Limit Settings and Conformance Requirements", on page 974. Figure 5-8: Limit settings Limits The limits can be configured via the following remote commands.

Page 985: Programming
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Programming Figure 5-10: Power dynamics results Traces The results can be retrieved via the following remote commands. Remote command: etc. FETCh:LTE:MEAS<i>:SRS:TRACe:PDYNamics:CURRent? etc. FETCh:LTE:MEAS<i>:SRS:TRACe:PDYNamics:AVERage? etc. FETCh:LTE:MEAS<i>:SRS:TRACe:PDYNamics:MAXimum? Single Values The results can be retrieved via the following remote commands. Remote command: etc.

Page 986: Key Features
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Programming ● Features......................986 ● Specifying General and Common Measurement Settings........986 ● Specifying Measurement-Specific Settings............987 ● Configuring the Trigger System................987 ● Specifying Limits....................987 ● Performing Single-Shot Measurements..............987 ● Single-Shot and Continuous Measurements............988 5.4.1 Key Features The LTE SRS measurement is programmed as follows:...

Page 987: Specifying Measurement-Specific Settings
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Programming CONFigure:LTE:MEAS:FSTRucture? CONFigure:LTE:MEAS:CBANdwidth B014 5.4.3 Specifying Measurement-Specific Settings // ***************************************************************************** // Define stop condition (stop on limit failure), statistic count (20 cycles) // and error handling. Enable the high dynamic mode. // ***************************************************************************** CONFigure:LTE:MEAS:SRS:SCONdition SLFail CONFigure:LTE:MEAS:SRS:SCOunt:PDYNamics 20 CONFigure:LTE:MEAS:SRS:MOEXception ON CONFigure:LTE:MEAS:SRS:TOUT 3600...

Page 988: Single-Shot And Continuous Measurements
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Programming FETCh:LTE:MEAS:SRS:TRACe:PDYNamics:CURRent? FETCh:LTE:MEAS:SRS:TRACe:PDYNamics:MAXimum? // ***************************************************************************** // Read statistical results obtained in the last measurement // without re-starting the measurement. // ***************************************************************************** FETCh:LTE:MEAS:SRS:PDYNamics:CURRent? FETCh:LTE:MEAS:SRS:PDYNamics:AVERage? FETCh:LTE:MEAS:SRS:PDYNamics:MINimum? FETCh:LTE:MEAS:SRS:PDYNamics:MAXimum? FETCh:LTE:MEAS:SRS:PDYNamics:SDEViation? // ***************************************************************************** // Read limit check results obtained in the last measurement // without re-starting the measurement.

Page 989: Command Reference
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference 5.5 Command Reference The following sections provide detailed reference information on the remote control commands of the "LTE SRS" measurement. ● Conventions and General Information..............989 ● General Measurement Settings................993 ● SRS Measurement Commands................

Page 990 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference 5.5.1.3 Current and Statistical Results The R&S CMW repeats measurements according to the selected statistic count and repetition mode. Consecutive measurement values are stored and used to calculate statistical results, e.g. average, minimum, maximum and standard deviation. See also: "Statistical Results"...

Page 991 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● 3 ("Overdriven") / 4 ("Underdriven"): The accuracy of measurement results can be impaired because the input signal level was too high / too low. ● 6 ("Trigger Timeout"): The measurement could not be started or continued because no trigger event was detected.

Page 992 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● 27 ("No Sensor Connected"): The GPRF external power sensor measurement could not be started due to miss- ing power sensor. ● 28 ("Unexpected Parameter Change"): One or more measurement configuration parameters were changed while the mea- surement completed.

Page 993: General Measurement Settings
® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference The individual segments of a list mode measurement with R&S CMWS use differ- ent connector benches. All segments must use the same bench. Check the "Info" dialog for the relevant segment numbers. ●...

Page 994 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference ● Measurement Control and States................. 994 ● Measurement Parameters..................996 ● Trigger Settings.....................998 ● Limits........................1000 ● Power Dynamics Results (Traces)..............1001 ● Power Dynamics Results (Single Values)............1002 5.5.3.1 Measurement Control and States The following commands control the measurement and return the current measure- ment state.

Page 995 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference See also: "Measurement Control" in the R&S CMW base unit manual, chapter "Remote Control" Return values: <MeasState> OFF | RUN | RDY OFF: measurement off, no resources allocated, no results RUN: measurement running, synchronization pending or adjus- ted, resources active or queued RDY: measurement terminated, valid results can be available *RST:...

Page 996 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference Firmware/Software: V2.0.20 Manual operation: "SRS (Softkey)" on page 978 5.5.3.2 Measurement Parameters The following commands define measurement control parameters for the SRS mea- surement................996 CONFigure:LTE:MEAS<i>:SRS:TOUT ...............996 CONFigure:LTE:MEAS<i>:SRS:REPetition ..............997 CONFigure:LTE:MEAS<i>:SRS:SCONdition ..............997 CONFigure:LTE:MEAS<i>:SRS:MOEXception ............

Page 997 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference Parameters: <Repetition> SINGleshot | CONTinuous SINGleshot: Single-shot measurement CONTinuous: Continuous measurement *RST: SING Example: Single-Shot and Continuous Measurements Firmware/Software: V2.0.20 Manual operation: "Repetition" on page 980 CONFigure:LTE:MEAS<i>:SRS:SCONdition <StopCondition> Qualifies whether the measurement is stopped after a failed limit check or continued. SLFail means that the measurement is stopped and reaches the RDY state when one of the results exceeds the limits.

Page 998 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference CONFigure:LTE:MEAS<i>:SRS:SCOunt:PDYNamics <StatisticCount> Specifies the statistic count of the measurement. The statistic count is equal to the number of measurement intervals per single shot. Use CONFigure:...:MEAS<i>:...:REPetition SINGleshot | CONTinuous to select either single-shot or continuous measurements. See also: "Statistical Settings"...

Page 999 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference Usage: Query only Firmware/Software: V2.0.20 Manual operation: "Trigger Source" on page 982 TRIGger:LTE:MEAS<i>:SRS:SOURce <Source> Selects the source of the trigger events. Some values are always available in this firm- ware application. They are listed below. Depending on the installed options, additional values are available.

Page 1000 ® LTE SRS Measurement R&S CMW-KM5xx/-KS5xx Command Reference TRIGger:LTE:MEAS<i>:SRS:TOUT <TriggerTimeOut> Selects the maximum time that the R&S CMW waits for a trigger event before it stops the measurement in remote control mode or indicates a trigger timeout in manual oper- ation mode.
