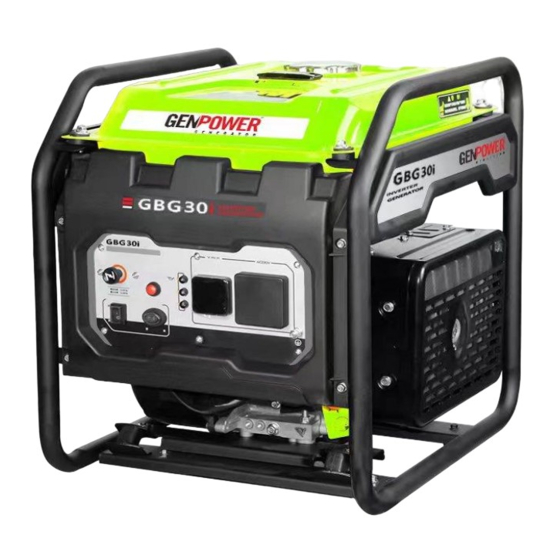

GENPOWER GBG 30I User And Maintenance Manual

Open type inverter gasoline generators
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPEN TYPE INVERTER GASOLINE
GENERATORS USER AND MAINTENANCE
MANUEL

Advertisement

Table of Contents
loading

Related Manuals for GENPOWER GBG 30I

Summary of Contents for GENPOWER GBG 30I

  • Page 1 OPEN TYPE INVERTER GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
  • Page 2 Information included in this manual may not contain all features belonging to the generator. Genpower has the right of making any amendment to improve the product quality without notifying. GENPOWER GENERATOR...
  • Page 3 GENPOWER GENERATORS UNIQUE SUPERIOR FEATURES AND ADVANTAGES  Half A Century Old Experience in Generator Production  Low-level Noise  Advanced Technology and High-Quality Diesel Engines  Low-level Exhaust Emission  Advanced Technology and High-Quality Alternators  Low Operating Costs ...

  • Page 4: Important General Information

    IMPORTANT GENERAL INFORMATION Generator Rating Definitions: Genpower generators are produced in compliance with; TS ISO 8528-1, 8528-4, ISO 8528-5, BS500, ISO 3046/1:1985, IEC 60034, NEMA MG-1.22, BS5514/1 standard. Standby Power (ESP) is defined as the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a reliable utility power outage.
  • Page 5 PART: SAFETY MEASURES 1.1. INTRODUCTION  Generator groups produced by our company have been designed and conceived by prioritizing all sorts of safety of lives and property.  Generators should be installed and used in accordance with maintenance and operating rules stated in this catalogue both in terms of using the generator economically for a long-term and ensuring continuous safety of life and property.

  • Page 6: Exhaust Gases

     Pull the starter cord slowly until you feel resistance. Then quickly pull the handle to avoid kickback and hand injuries. For safety reasons, make sure that there is no one around the starter.  Check the muffler periodically to make sure it is working properly. Worn, leaking muffler should be repaired or replaced. ...
  • Page 7 Bandage the burn. Cover the burn with a sterile gauze bandage (not fluffy cotton) PART: BEFORE STARTING:  Genpower Generators have been produced in international standards.  There is an oil level sensor in the generators to prevent damage to the engine in case of oil shortage. When the oil level falls below a certain level, this sensor does not allow the generator to operate.

  • Page 8: Filling Oil

    2.1 FILLING OIL:  The generator is shipped without oil in the engine. Add oil slowly and verify oil level often during filling process to ensure overfilling does not occur.  Place generator on a level surface.  Clean area around oil fill and drain plug. ...
  • Page 9  For GBG 30 I/ IE, 40 I/ IE, 50 I/ IE and 75 I/ IE the capacity of the fuel tank is 15 Litres. The capacity of the fuel tank of GBG 110EI is 25 Litres.  Do not fill the fuel tank to the very top. Gasoline will expand and spill over during use even with the fuel cap in place. ...
  • Page 10 TABLE-1 Generator Components Generator Components Low Oil Warning Overload Warning AC Power Light Hour Meter 1A/2.1A 5VDC USB Outlet Reset SW 220V 30A Output Grounding Location 220V 20A Output Paralell Outlets Engine Smart Control (ESC) Frame Fuel Gauge Fuel Tank Cap Fuel Tank Control Panel Off/On/Choke Switch...
  • Page 11 TABLE-2 Product Specifications MODEL 40IE 50IE 75IE 110IE Type Open Type Digital Inverter (Permanent Magnet Motor) Max. Output Power Rated Output Power Power Factor Cos Q Frequency Voltage Current ≤65 ≤65 ≤65 ≤68 ≤68 ≤75 ≤75 Noice Level (from 7 meter @1/4 Load) Type OHV, Single Cylinder,Forced Air Cooled, Four Stroke...

  • Page 12: Usb Outlets

    Figure-7 Switch (Example) 3.2 USB OUTLETS:  The 5 VDC, 1 / 2.1 Amp USB outlet allows charging of compatible electronic devices. 3.3 ECONOMY SWITCH:  The economy switch has 2 modes of operation:  ON: The Quietest mode and best when running appliances or equipment that are resistive loads (non-motor starting), (example: TV, video game, light radio).

  • Page 13: Grounding The Generator When In Use

    PART: STARTING GENERATOR  Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.  Check the oil and fuel levels.  Check that the generator properly grounded.  Open vacuum relief valve on top of fuel cap. Rotate clockwise to the “ON” position. ...

  • Page 14: Know Generator Limits

     The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin.  Electrical devices that require a grounded receptacle pin connection will not function if the receptacle ground pin is not functional. 4.2 KNOW GENERATOR LIMITS: ...
  • Page 15 OPEN TYPE INVERTER GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...

  • Page 16: Starting Hot Engines

    4.3 STARTING HOT ENGINES:  Disconnect electrical loads prior to starting or stopping unit.  Failure to do so could result in equipment and property damage.  See Figure-9. Turn OFF/ON/CHOKE dial from STOP to ON. This will open the fuel valve and permit starting. ...

  • Page 17: Maintenance Schedule

     Always use original spare parts in maintenance and repair. Never use non-original parts or those approved by GENPOWER in written form.  Guarantee of the generator set will be void as a result of damages caused by non-original maintenance or repair parts.

  • Page 18: Oil Change

    6.2 OIL CHANGE:  Replace oil after the first 5 hours of use.  Under normal operating conditions, engine oil should be changed every 50 working hour.  At high temperatures and loads the oil should be changed every 25 hours. ...
  • Page 19 Figure-14 Air Filter Assembly 6.4 CLEANING OF GENERATOR:  Remove dirt and debris with a cloth or brush and clean it.  Water jet washing does not recommended due to engine fuel system with alternator winding and electrical equipment may break down.

  • Page 20: Inspect Muffler And Spark Arrestor

     Clean the spark plug by scraping or with a wire brush.  Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug.  Screw the spark plug back into the spark plug hole using the spark plug wrench. Do not overtighten spark plug. Recommended tightening spark plug is 3/8 to 1/2 of a turn after spark plug gasket contacts spark plug hole.

  • Page 21: Valve Clearance

    Figure-17 Spark Arrestor Screen 6.8 VALVE CLEARANCE:  Please contact an authorized service dealer for service assistance. Proper valve clearance is essential for prolonging the life of the engine.  Check valve clearance after the first fifty-hours of operation. Adjust as necessary. ...
  • Page 22 7. PART: MONOPHASE GENERATOR CONNECTION DIAGRAM Figure-18 OPEN TYPE INVERTER GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
  • Page 23 OPEN TYPE INVERTER GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
  • Page 24 THANK YOU FOR CHOOSING GENPOWER GENERATOR SETS, WE WISH FOR YOU TO USE YOUR GENPOWER GENERATOR THROUGH LONG AGES IN ACCORDANCE WITH THESE OPERATING AND MAINTANCE MANUAL. GENERAL DIRECTORATE ASO II. Industrial Zone 2010. Street No: 18 06909 Temelli-Sincan/Ankara, TURKEY Phone/ Fax: +90(312) 641 32 22 - 641 32 23 genpower@genpower.com.tr...

This manual is also suitable for:

Gbg 40iGbg 40ieGbg 50iGbg 50ieGbg 75ieGbg 110ie
