Summary of Contents for GENPOWER GBG 15I

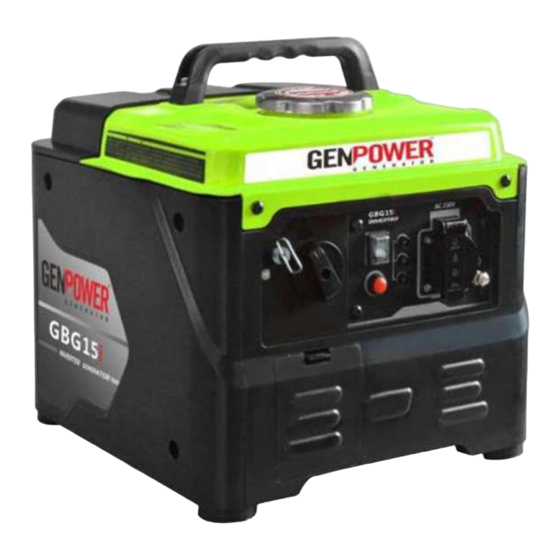

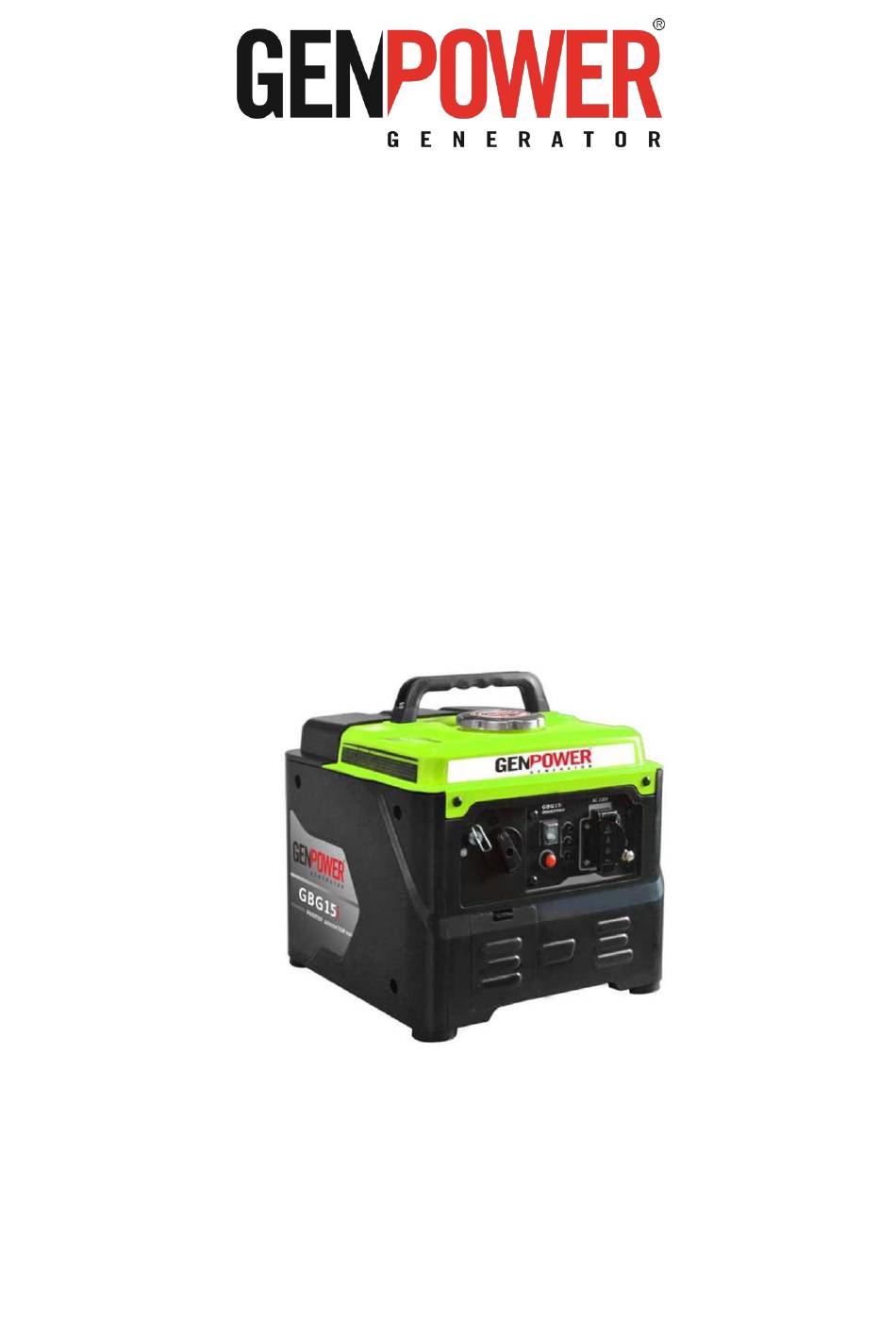

- Page 1 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
- Page 2 Information included in this manual may not contain all features belonging to the generator. Genpower has the right of making any amendment to improve the product quality without notifying. GENPOWER GENERATOR “Keep this manual for later assistance”...
- Page 3 Compatible to Heavy Duty Conditions Water and Particule Separated Fuel Filter First Class Product Support Durability Abundant and Reasonable Cost Spare Parts Global Network in Service and Maintenance GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 4: Important General Information
IMPORTANT GENERAL INFORMATION Generator Rating Definitions: Genpower generators are produced in compliance with; TS ISO 8528-1, 8528-4, ISO 8528-5, BS500, ISO 3046/1:1985, IEC 60034, NEMA MG-1.22, BS5514/1 standard. Standby Power (ESP) is defined as the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a reliable utility power outage. - Page 5 Remember to open the fuel tap before restarting. When the generator working is finished, close the fuel tap again. Clean the cylinder cooling fins and speed governor parts as they can affect engine speed. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 6: Exhaust Gases
Ensure that the patient arrives at the health facility as soon as possible. 1.6.4. What are the basics of First Aid? Opening of the breathing passage Correcting the respiratory system. Ensuring activity of the circulatory system. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... - Page 7 Risk of fire. Do not use generator without spark arrestor installed. Failure to do so could result in death or serious injury. Hot surfaces when operating machine do not touch hot surfaces keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. Figure-1 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 8: Filling Oil
Verify oil level often during filling process to ensure overfilling does not occur. Replace oil fill cap and hand–tighten. Some units have more than one oil fill location. It is only necessary to use one oil fill point. Figure-4 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... -
Page 9: Gasoline Recommendations
PART: MAIN PARTS OF THE GENERATOR Carrying Handle Rear Housing Fuel Cap Fuel Tank Air Drain Aid Fuel Cock Oiling Hole Air Filter Recoil Start Muffler (Silencer) Windows Control Panel Figure-5 Main Parts Of The Generator GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... - Page 10 TABLE-1 Generetor Components Engine Switch Reset SW Oil Alarm Lamp Overload Light Output Indicator AC 230 V Grounding Location Fuel Cock Air Drain GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 11: Usb Outlets
LOW OİIL LEVEL LED (Yellow): Illuminates when oil level is below safe operating level. Engine shuts down (1). POWER LED (Green): Indicates output from generator (3) (unless there is a low oil or overload condition). Figure-7 Status Indicators GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... -
Page 12: Circuit Breakers
The generator is equipped with an equipment ground connecting the generator frame and the ground terminals on the AC output receptacles. This allows the generator to be used as a portable without grounding the frame of the generator. See Figure-10. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... -
Page 13: Know Generator Limits
Wattage Reference Guide is provided to assist in determining how many items the generator can operate at one time. All figures are approximate. See data label on appliance for wattage requirements. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... - Page 14 Wattage Reference Guide GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
- Page 15 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 16: Starting Hot Engines
Do not use the choke to stop the engine. If “choke” used, explosion may occur due to the rich mixture. This is harmful to the engine. Figure-8 Off / On / Choke Positions ATTENTION! Allow the generator to cool for several minutes before touching areas that become hot during use GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... -
Page 17: Part: Maintenance
Always have authorized persons or authorized services maintained your generator set. Note that guarantee will be void in case of maintenance, repair and setting made by unauthorized services or persons. Always use original spare parts in maintenance and repair. Never use non-original parts or those approved by GENPOWER in written form. ... -
Page 18: Oil Change
To Check oil level remove funnel and insert dipstick into oil filler neck without screwing it in. See Figure-12. Remove dipstick and verify oil level is within safe operating range. Verify oil level often during filling process to ensure overfilling does not occur. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... -
Page 19: Air Filter
Generator cooling provided by the air flow passing over it. Therefore, the air ducts on the engine body and the alternator air outlet windows must be open and clean. Grass and dirt can clog the starter guard and the air cooling system becomes inadequate, especially as a result of extended maintenance time. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... - Page 20 Recommended tightening spark plug is 3/8 to 1/2 of a turn after spark plug gasket contacts spark plug hole. Reinstall the spark plug boot and control panel. Figure-15 Spark Plug Figure-15 Spark Plug GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
-
Page 21: Inspect Muffler And Spark Arrestor
Always store generator and fuel away from heat and ignition sources. 6.10 PREPARE FUEL SYSTEM/ENGINE FOR STORAGE: Fuel stored over 30 days can go bad and damage fuel system components. GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL... - Page 22 Install spark plug. Pull recoil slowly until resistance is felt. This will close valves so moisture cannot enter engine cylinder. Gently release recoil. 7. PART: MONO PHAZE GENERATOR CONNECTION DIAGRAM Figure-17 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
- Page 23 GBG 15I GASOLINE GENERATORS USER AND MAINTENANCE MANUEL...
- Page 24 THANK YOU FOR CHOOSING GENPOWER GENERATOR SETS, WE WISH FOR YOU TO USE YOUR GENPOWER GENERATOR THROUGH LONG AGES IN ACCORDANCE WITH THESE OPERATING AND MAINTANCE MANUAL. GENERAL DIRECTORATE ASO II. Industrial Zone 2010. Street No: 18 06909 Temelli-Sincan/Ankara, TURKEY Phone/ Fax: +90(312) 641 32 22 - 641 32 23 genpower@genpower.com.tr...
