Please read & check through these instructions carefully before proceeding

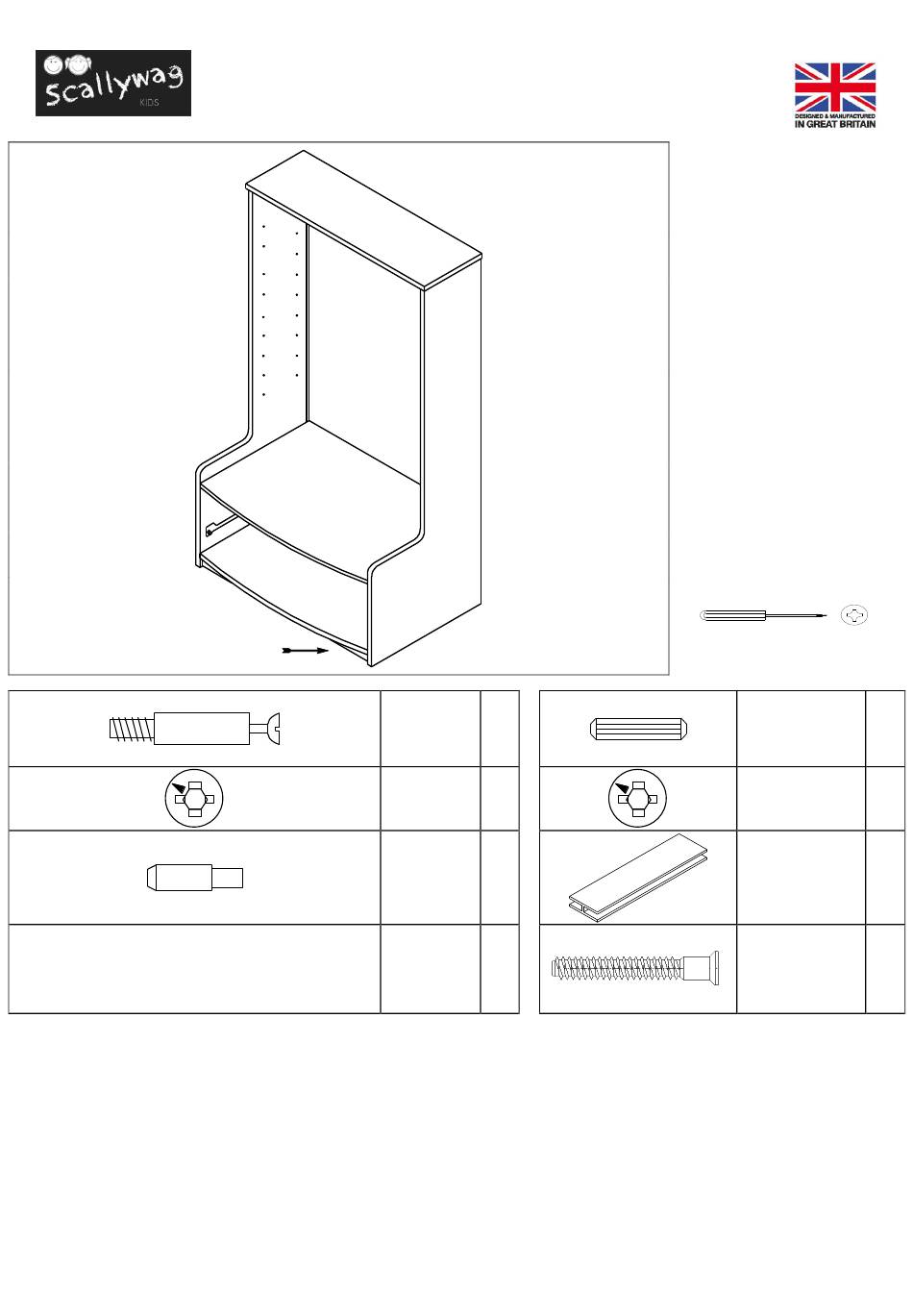

Assembly Instructions
TOP
LH SIDE
FIXED SHELF
BOTTOM
PLINTH
16 x cam
bolt
12 x cam
8 x brass
shelf
support
with assembly.
Bookcase
RH SIDE
A
C
D
- 1 -
COMPONENTS;
1 x RH side
1 x LH side
1 x Bottom
1 x bottom plinth
1 x fixed Shelf
2 x Adjustable shelf
1 x Top
2 x 3mm thick back
panels
Drawers in Box 2
1 x box fittings
(Contents as below)
Tool required
31 x 8mm
dowel (pre-
inserted into
panels)
4 x nickel
plated cam for
drawer front
1 x"H" profile
rear panel
connector
38mm
confirmat
B
H
F
M
Advertisement
Table of Contents
Related Manuals for Scallywag Kids Bookcase
Summary of Contents for Scallywag Kids Bookcase
- Page 1 Assembly Instructions Bookcase COMPONENTS; 1 x RH side 1 x LH side LH SIDE 1 x Bottom RH SIDE 1 x bottom plinth 1 x fixed Shelf 2 x Adjustable shelf 1 x Top 2 x 3mm thick back FIXED SHELF...
- Page 2 Shelf side Bottom bottom P linth . Insert cam bolt A to 5mm holes on sides. . Press fit plinth into underside of bottom, Insert cam C to 15mm holes on shelf and locating pre-inserted plinth dowels (B) into holes bottom.
- Page 3 With care, lay the top upside down on a clean surface to insert cam bolt (A) into the four 5mm holes. Insert the cam (C) into the 15mm holes at the top of sides. Carefully fit the top to the sides –...
- Page 4 DRAWER FRONT . Place drawer front face down on a clear surface to prevent scratching – screw in cam bolts (C) into the 5mm holes on the inside of front. Attach front to the box. Ensure drawer base sits into the groove on the front inside face.
