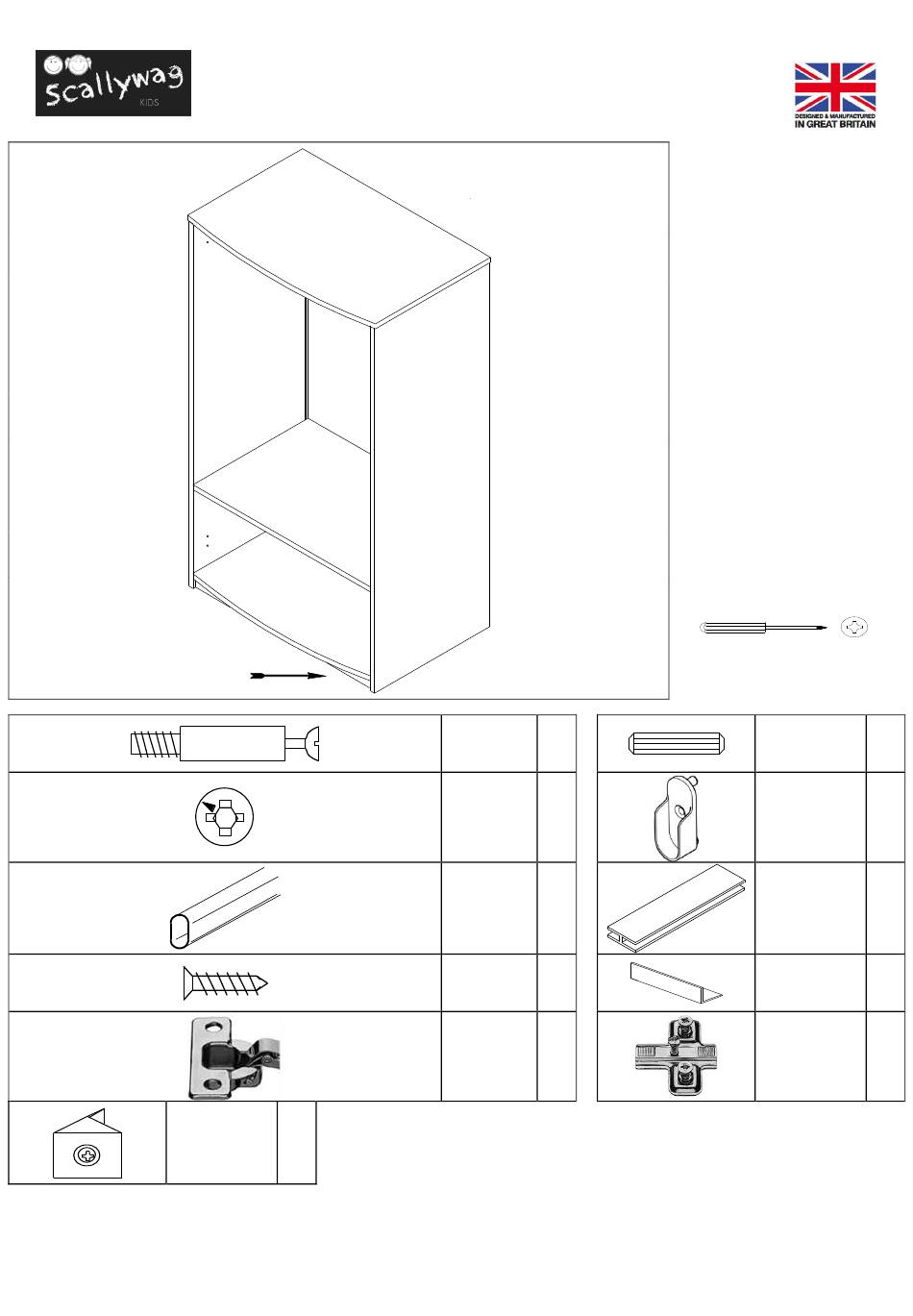

Scallywag Kids Robe Carcass Assembly Instructions

Advertisement

Quick Links

LH SIDE
6 x rear
panel
connector
Please read & check through these instructions before proceeding with assembly.
Assembly Instructions
Robe Carcass
TOP
RH SIDE
SHELF
BOTTOM
PLINTH
L
16 x cam
A
bolt
C
16 x cam
1 x
E
hanging
rail
14 x
G
15mm
screw
I
4 x hinge
- 1 -

COMPONENTS;

1 x RH side
1 x LH side
1 x Bottom
1 x bottom plinth
2 x rear top & bottom
bracing rails
1 x Shelf
1 x Top
2 x 3mm thick back
panels
2 x robe door
(Separate box)
1 x box fittings
(Contents as below)
Tool required
31 x 8mm
dowel (pre-
inserted)
2 x hanging
rail bracket
1 x"H" profile
rear panel
connector
2 x striking
plate
4 x hinge
mounting
plate
B
D
F
H
J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Robe Carcass and is the answer not in the manual?

Questions and answers

Summary of Contents for Scallywag Kids Robe Carcass

  • Page 1 Assembly Instructions Robe Carcass COMPONENTS; 1 x RH side 1 x LH side 1 x Bottom 1 x bottom plinth LH SIDE 2 x rear top & bottom bracing rails 1 x Shelf RH SIDE 1 x Top 2 x 3mm thick back...
  • Page 2 Shelf Bottom . Press fit plinth into underside of bottom, locating pre-inserted plinth dowels (B) into holes in bottom panel. P linth . Insert cam bolt A to 5mm holes on robe sides. Insert cam C to 15mm holes on shelf, bottom and sid e the rear bracing rails.
  • Page 3 With care, lay the robe top upside down on a . Attach the hanger rail bracket (D) to the clean surface to insert cam bolt (A) into the four holes shown above, fix with 15mm screw (G) 5mm holes. Insert the cam (C) into the 15mm holes at the top .
  • Page 4 With care, fix the hinges to the doors using . Fit hinge to mounting plate and tighten screw “Y” (see below ) screw (G) Hinge adjustment: X – Lateral adjustment up to 3mm Y – Vertical adjustment by mounting plate only, after loosening screw Front to back adjustment up to 4mm For added strength and stability, the white rear panel connectors (L) can be screwed through the...
