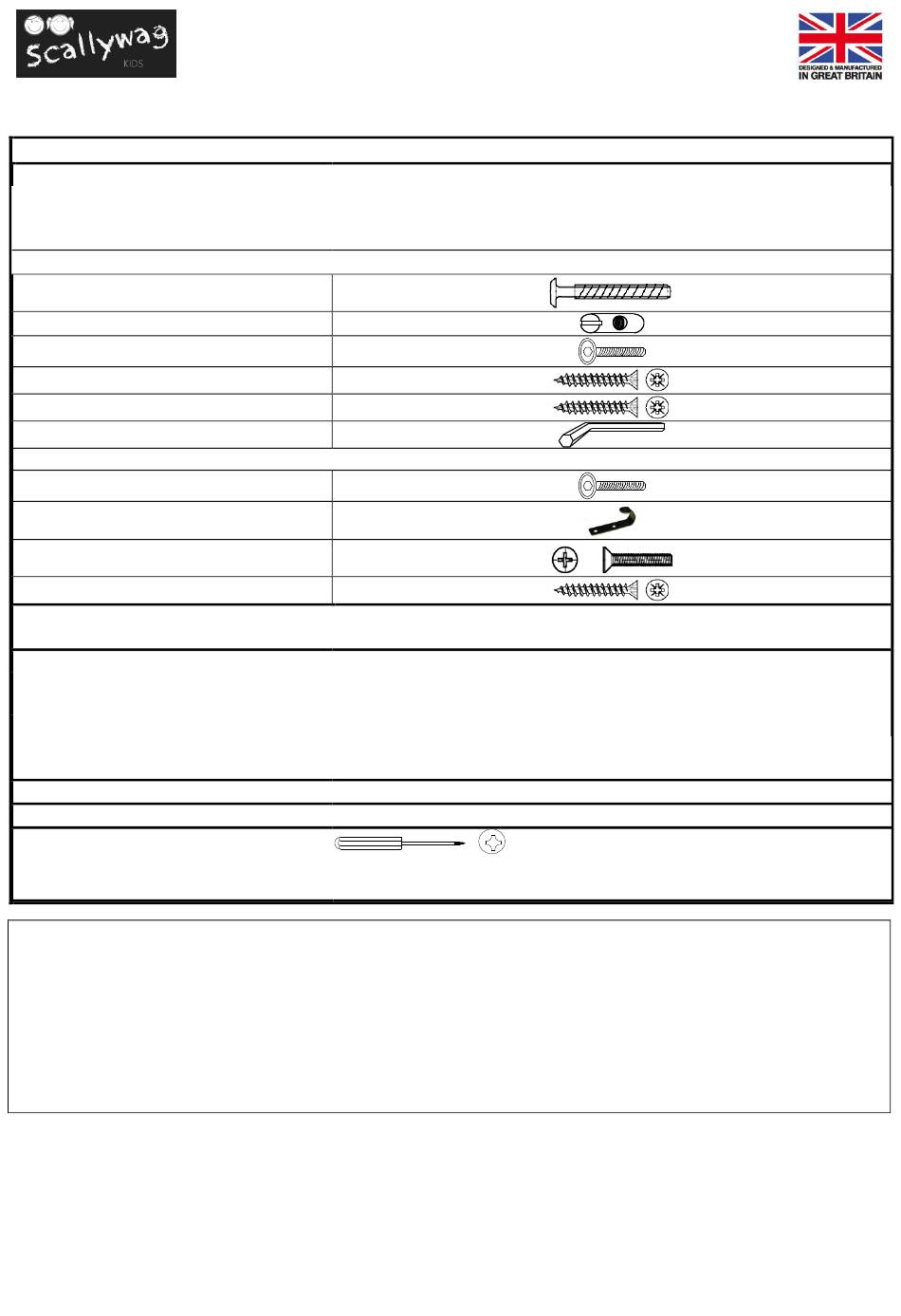

Please read & check through these instructions carefully before proceeding with assembly
Box 1 of 5 Bunk Ends & Fittings
(A) 28 x M6 115mm Bolt
(B) 28 x M6 Barrel Nut
(C) 4 x M6 38mm Bolt
(D) 4 x 25mm Woodcrews
(I) 36 x 38mm Woodscrews
(F) 1 x 4mm Allen Key
(E) 8 x M6 30mm Bright Bolt
(H) 2 x Ladder Hook
(G) 4 x M4 20mm M/C Screws
(J) 2 x 16mm Woodscrews
Box 2 of 5 Bunk Ends
Box 3 of 5 Rails & Ladder
Box 4 of 5
Box 5 of 5
Tools Required (Not Supplied)
This product is designed to conform to the latest safety regulations and we hope you will be happy with
your purchase. This product is primarily produced from quality Scandinavian pine. As such you may find
small knot or surface defects that are inherent with a natural resource and in no way compromise safety
or functionality. Whilst every effort is made to ensure this product reaches you in good condition, in the
unlikely event you find a problem with any component, please do not attempt to assemble – and
contact your retailer. As you will appreciate, we cannot accept any liability for damage once an attempt to
assemble had been made.
Cleaning: a damp cloth should be sufficient to keep this product in good order. Please do not use
abrasive cleaning materials as this will incur damage. Thank you for choosing our product.
BOSTON/WOOLDALE BUNK
ASSEMBLY INSTRUCTIONS
COMPONENTS
1 x Lower Bunk End
1 x Upper Bunk End
1 x Instructions
1 x Fittings Pack (Including Knobs for use as single beds):
Bunk Assembly
1 x Lower Bunk End
1 x Upper Bunk End
3 x Plain Side Rails
1 x Ladder Side Rail
2 x Rear Safety Rails
2 x Short Ladder Side Rails
1 x Short Ladder Rail Jointing Piece
2 x Ladder Sides & 4 x Ladder Treads
Mattress Slats
Mattress Slats
Advertisement
Table of Contents
Related Manuals for Scallywag Kids BOSTON BUNK
Summary of Contents for Scallywag Kids BOSTON BUNK
- Page 1 BOSTON/WOOLDALE BUNK ASSEMBLY INSTRUCTIONS Please read & check through these instructions carefully before proceeding with assembly COMPONENTS Box 1 of 5 Bunk Ends & Fittings 1 x Lower Bunk End 1 x Upper Bunk End 1 x Instructions 1 x Fittings Pack (Including Knobs for use as single beds): Bunk Assembly (A) 28 x M6 115mm Bolt (B) 28 x M6 Barrel Nut...
- Page 2 Box 1 and Box 2. Using 8 bolts (A) and 8 barrel nuts (B), attach 2 of the plain side rails to the bunk ends as shown. NB: Boston Bunk Ends can be assembled with grooved detail on the inside or outside.
- Page 3 8 barrel nuts (B), attach the remaining plain side rail and one ladder side rail (with holes for jointing piece) to the bunk ends as shown. NB: For the Boston Bunk ensure ends are assembled with grooved detail to match bottom bunk (see 1).
- Page 4 6 – Ladder Assembly Assemble ladder sides & treads using 8 x 30mm bright bolts (E) with the Hexagon key taking care to avoid scratching the ladder sides. Fit the ladder hooks using the 4 machine screws (G). If you wish to secure the ladder in place, please use the 2 x 16mm woodscrews (J) provided.
