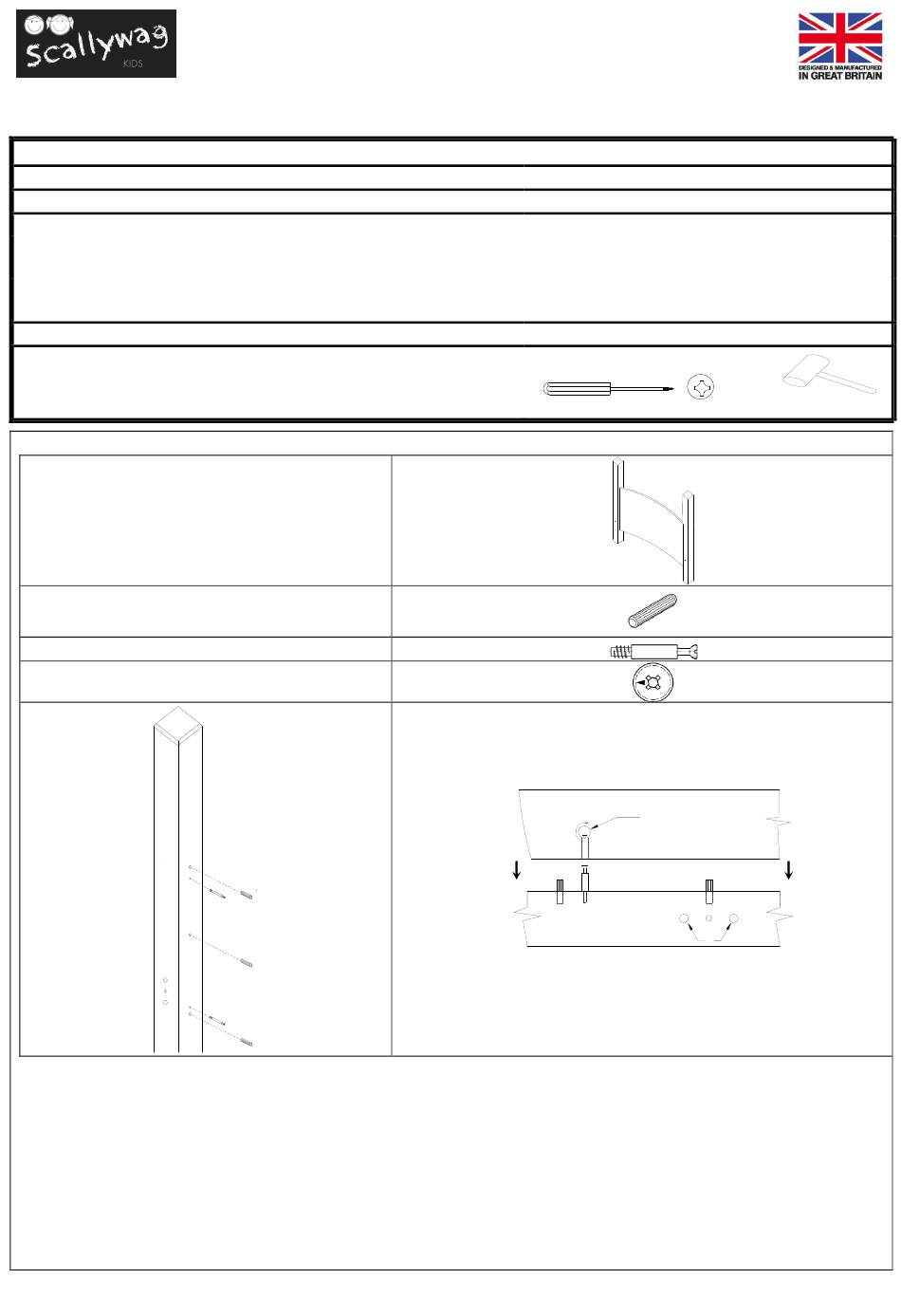

Scallywag Kids BUNK CONVERSION KIT Assembly Instructions

Advertisement

Quick Links

Please read & check through these instructions carefully before proceeding with assembly
Box 1 of 4 End Panels
Box 2 of 4 Ladder (Curved or Straight)
Box 3 of 4 Legs, Rails & Treads
Box 4 of 4 Bed Slats
Tools Required (Not Supplied)
Ends Assembly Components:
Box 1 & Legs From Box 3
Fittings
(A) 8mm Dowel Qty = 12
(B) Cam Pin Qty = 8
(C) Cam (Already In Panel) Qty = 8
1)
1) Place legs on a flat surface taking care not to scratch. Insert 8mm dowels (A) into holes with light
hammer.
Screw cam pins (B) carefully into 5mm holes, to top of the thread, using cross slot screwdriver.
Repeat process for the other three legs.
2) Ensure cams (C) are inserted in the panel with the arrow pointing to the edge. Carefully locate the
panel onto the dowels and cam pins. When in place, turn the cam clockwise with cross-slot screwdriver to
lock.
Ensure the legs are attached to the panel in pairs ie: dowel holes are facing the same way.
BUNK CONVERSION KIT
ASSEMBLY INSTRUCTIONS
COMPONENTS
1 - Ends Assembly
A
B
A
B
A
2 x End Panels with 8 Cams Inserted
2 x Ladder Sides
2 x Right Handed Bunk Conversion Legs
2 x Left Handed Bunk Conversion Legs
2 x Side Rails (with Rib)
5 x Ladder Treads
1 x Fittings Pack
1x Set of Slats
2)
A
PANEL
Cam C
A
B
Dowel Holes
