Version 1.3
Updated: 7/7/2021
Created By: Jacob Boyd & Technical Support
BP-201 Quick Startup Guide
Disclaimer: This guide is to be used as a supplement to the Start-up Operation Manual for the
BP-201 and should not be used as a replacement for the Start-up Manual. Please refer to the
Start-up operation manual for the BP-201 for full start-up instructions.
Step 1: Check to ensure the BP-201 is installed correctly and is wired to all applicable
equipment (ex: WP2, Boilers, Cellular MOM).

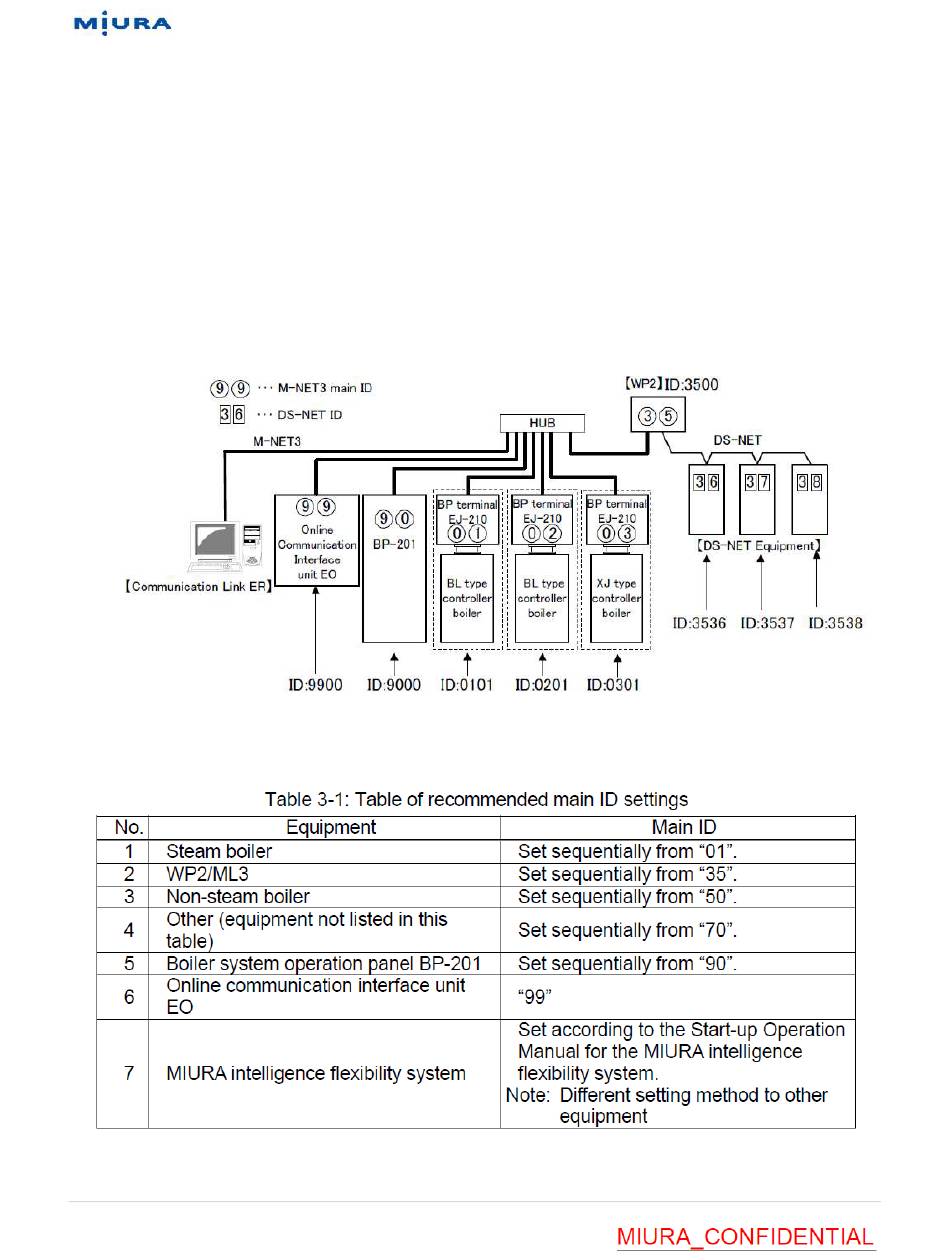

Step 2: Set all equipment ID settings on each piece of equipment. See table below.
1 |
P a g e

Advertisement

loading
Need help?

Need help?

Do you have a question about the BP-201 and is the answer not in the manual?

Questions and answers

Related Manuals for Miura BP-201

Summary of Contents for Miura BP-201

  • Page 1 Disclaimer: This guide is to be used as a supplement to the Start-up Operation Manual for the BP-201 and should not be used as a replacement for the Start-up Manual. Please refer to the Start-up operation manual for the BP-201 for full start-up instructions.
  • Page 2 Created By: Jacob Boyd & Technical Support Step 3: Turn power on to all BP-201 connected equipment (Do not turn on BP-201). Ensure local boiler pressure settings are set to a higher value than the setting the BP-201 is going to be set to.
  • Page 3 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Initialize Settings: Similar to boiler initialize settings. Turn all three DIP switches OFF Function Settings: 1: OFF 2: ON 3: OFF 4: ON 5: OFF 6: OFF 7: OFF P a g e...
  • Page 4 Step 5: Turn on power to the BP-201. Check to ensure the following is displayed: Step 6: Register the BP to the MOM-T or MOM-RT laptop (running MOM version 1.7.19 or higher) and plug the laptop into port CN2-2 on the BP-201 CPU board. Refer to image below: P a g e...
  • Page 5 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 7: Turn on the maintenance switch (SW6) on the BP-201 and enable the “save setting via communication” setting option. See images below: P a g e...
  • Page 6 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 8: Using the MOM-T/RT laptop click device setting, setting change, then select the BP-201 that is to be started. See image below. P a g e...
  • Page 7 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 9: Select the Unit Setting option, select US or SI and then click the write button. When you change the units, the pattern settings and steam capacity settings will default to the initial values.
  • Page 8 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 10: Return to the main setting screen by hitting the cancel button. Then Click the BP-201 Setting option. Set data in “Set 1” and “Set 2” menu’s according to tables below: If you are using a single steam header (single pressure system) then you can disregard the System 2 (SYS 2) settings.
  • Page 9 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Set CTRL pattern OPR based on the preferred setting. P a g e...
  • Page 10 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Set this to the number of the first boiler in the system. For a single pressure system this would be “1” Set this to the total number of boilers in the system 10 | P a g e...
  • Page 11 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Set this to the total steaming capacity of the system. Ex. two LX-300 boilers 10,350 x 2 = 20,700 Round up to nearest hundreds Set to “2”. “0” and “1” are currently not used in this software revision 11 | P a g e...
  • Page 12 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Set to “1” Only “1” is used in the North American Market Set the pressure sensor range: Set to “2” 1: 128 psi 2: 276 psi 3: 414 psi 12 | P a g e...
  • Page 13 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support 13 | P a g e...
  • Page 14 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Set the upper limit for the control range setting. This limits how high the customer can set the pressure range. The standard setting is probably sufficient. Set the lower limit for the control range setting.
  • Page 15 Created By: Jacob Boyd & Technical Support 1. Set the Date 2. Set the MOM phone number or ip address (cellular MOM) 3. Click “Apply to all” 4. Click “Write” to save to settings to the BP-201 15 | P a g e...
  • Page 16 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 12: Press the write button to write all the settings that were entered in step 11. Press the cancel button to return to the main setting screen. Then select the “HRCY DISP” menu followed by the “HRCY code(A) Simple SET”...
  • Page 17 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Boilers will be registered into the hierarchy according to the numbering scheme below: Boiler 2: 0201 Boiler 1: 0101 Step 14: Click the write option. Then select the “W-EQPT” menu and set the information according to the picture below.
  • Page 18 Step 16: Select cancel to return to the main setting menu. Then select the “Contact IN” menu. Input the settings for the BP-201 pressure switch contact according to the image below. Any additional optional contact inputs will be configured on this page if they are equipped:...
  • Page 19 Created By: Jacob Boyd & Technical Support Step 18: Turn the maintenance switch off, ensure BP-201 starts up and is like the image below. Note: If only one system is programed into BP-201 there will be only one pressure indication.
  • Page 20 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 19: Set touch screen settings (PRO distribution, Control function, Alarm pressure & Load following). See images below. 20 | P a g e...
  • Page 21 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Note: For each menu, once the values that are desired are entered, press the “Set” button. Press the back key once done to return to the previous menu. Once all settings are complete press the back button until the home screen is displayed again.
  • Page 22 Note: Fluc Range should be set for between 30%-40% of total steam flow if the load fluctuation is unknown. Max output should be set for the total possible steam flow of the system. Note: Pressures should be set on the boiler, EJ-210 and BP-201 in the following arrangement: Boiler pressure > EJ-210 Pressure > BP-201 Pressure.
  • Page 23 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support MI Control Pattern Setting Diagrams 23 | P a g e...
  • Page 24 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Low Fire Hold for Low Load Setting pressure Symmetry Low fire hold for low load Boilers are stopped in a symmetric fashion to the Unit 1 H H H H case when the boilers are Unit 2 H H H...
  • Page 25 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 20: Set the steam pressure switch. Turn on the maintenance switch (SW6) and follow images below. Press the “Start” button and raise header pressure until “P SW OPR (increase)” indicates a value.
  • Page 26 Created By: Jacob Boyd & Technical Support Step 21: If not already plugged in connect the MOM-t to the BP-201 in real time monitoring and ensure all boilers are communicating with BP-201. All items should be green. See images below:...
  • Page 27 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Step 22: Remove the MOM-T and shut the BP-201 panel. Fill out BP-201 S/U report. 27 | P a g e...
  • Page 28 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support EJ-210 Quick Startup Guide Disclaimer: This guide is to be used as a supplement to the Start-up Operation Manual for the EJ-210 and should not be used as a replacement for the Start-up Manual. Please refer to the Start-up operation manual for the EJ-210 for full start-up instructions.
  • Page 29 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support Initialize Settings: Similar to BP initialize settings. Turn all three DIP switches OFF Function Settings (normally set correct from the factory): 1: OFF 2: OFF 3: ON 4: OFF 5: ON 6: ON 7: OFF Step 3: Using the Maintenance set mode perform an automatic setting.
  • Page 30 Version 1.3 Updated: 7/7/2021 Created By: Jacob Boyd & Technical Support C) Press the button until is displayed. D) Press the button until is displayed. E) Set the steam volume to the desired quantity. See table below: Steam Volume for boiler model LX-50 1750 lbs/hr LX/EX-100...
