Distech Controls Allure EC-Smart-Comfort Series Installation Manual page 11

ECB/ECL-VAV, ECB/ECL-PTU, ECY-S1000, ECY-VAV, ECY-303, ECY-PTU

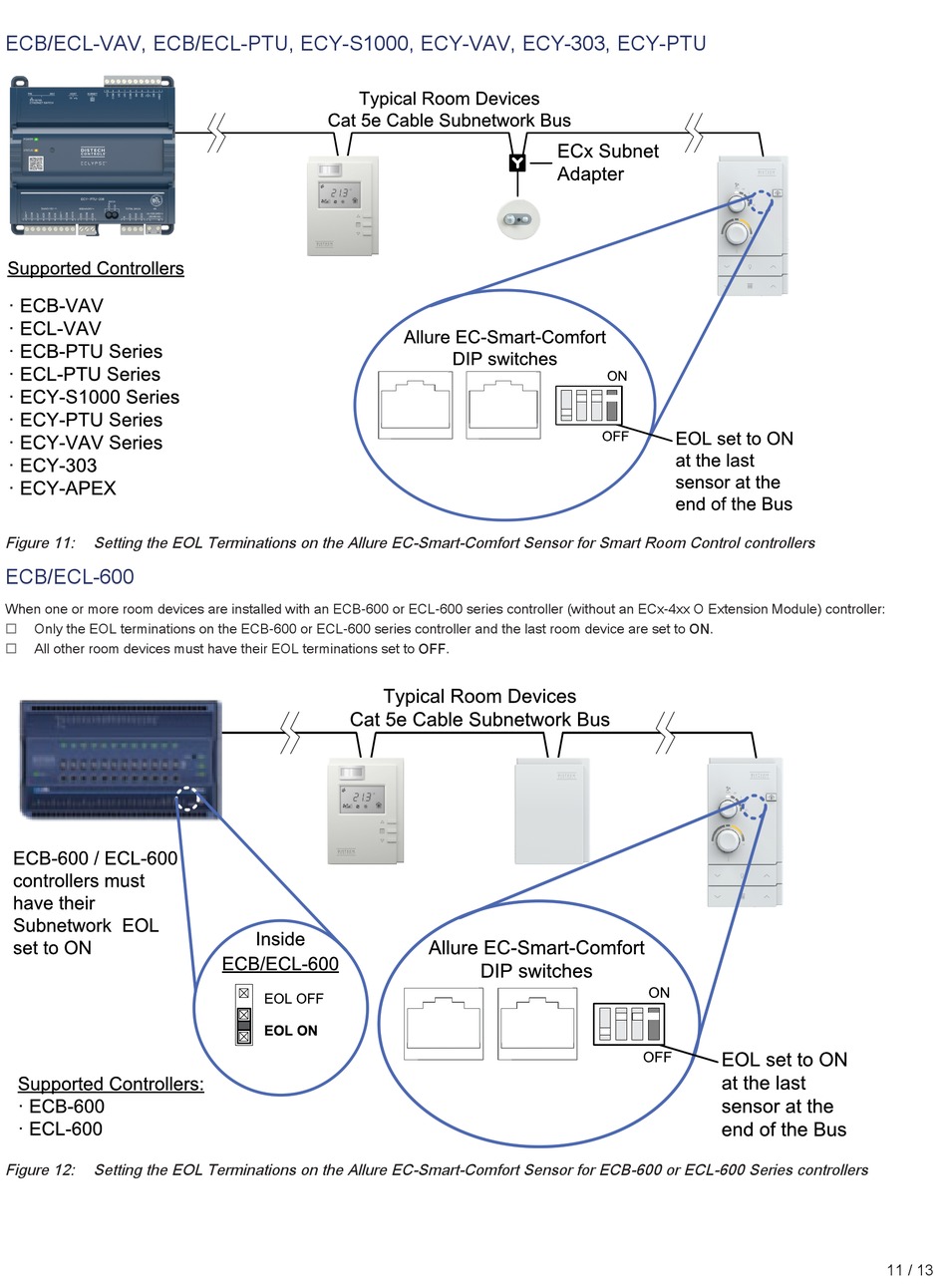

Figure 11: Setting the EOL Terminations on the Allure EC-Smart-Comfort Sensor for Smart Room Control controllers
ECB/ECL-600
When one or more room devices are installed with an ECB-600 or ECL-600 series controller (without an ECx-4xx O Extension Module) controller:
£
Only the EOL terminations on the ECB-600 or ECL-600 series controller and the last room device are set to ON.
£ All other room devices must have their EOL terminations set to OFF.
Figure 12: Setting the EOL Terminations on the Allure EC-Smart-Comfort Sensor for ECB-600 or ECL-600 Series controllers
11 / 13
