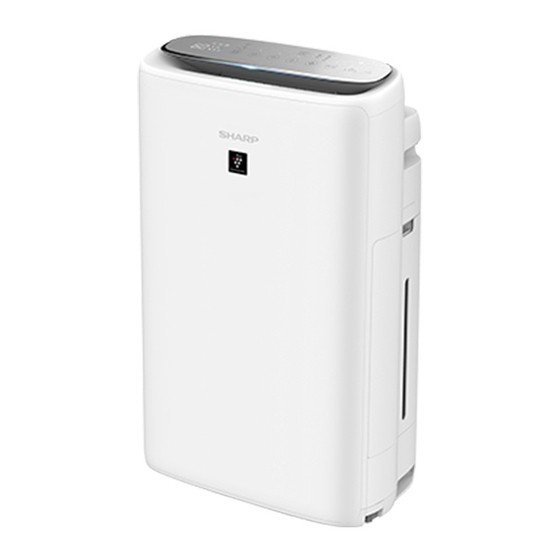

AIR PURIFIER with Humidifying Function OPERATION MANUAL “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. INTELLECTUAL PROPERTY RIGHTS FOR THIS PRODUCT * The number in this technology mark indicates an approximate number of ions supplied into air of...
Page 30
ENGLISH Thank you for purchasing this SHARP Air Purifier. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference. CONTENTS IMPORTANT SAFETY HOW TO CHANGE VARIOUS INSTRUCTIONS ........2 SETTINGS..........
Page 31
FEATURES A unique Combination of Air Treatment Technologies Triple Filteration System + Humidification + Plasmacluster Plasmacluster High Density Plasmacluster 25000 The higher the PCI density is, the more effective PCI has. By emitting a balance of positive and negative ions, Plasmacluster air treatment is a natural process.
Sharp authorized 9. Do not operate the product in a room Service Center or similarly qualified with flammable gas, such as oily persons in order to avoid a hazard.
Page 33
Water Tank or Humidifying Tray can 7. The dust collecting ability of the product cause mold, bacteria, and bad odors. is effective even when the product In rare cases, such bacteria can be a is up to 3 cm from the wall, but the health hazard.
Page 34
product while moving using the Caster descaling will be necessary. Wheels. 6. Do not remove the the Humidifier Float 6. When moving the product by its and the Roller. If the the Humidifier Caster Wheels, move it slowly and in a Float and the Roller comes off, refer to horizontal direction.
Page 35
SAFETY / PRECAUTIONS OF THE Wi-Fi FUNCTION WARNING product. ® The Bluetooth word mark is registered When remotely control the air purifier trademarks owned by Bluetooth SIG,. Inc. b. Near the product which emit In case of remote operation from outside, magnetic field.
PART NAMES OPERATION PANEL DISPLAY LIGHT SENSOR When the Light Control (Display Brightness) is set to “Auto”, the Display and Cleanliness Indicator will automatically switch ON or OFF based on room brightness. (Page 15) NOTE Detection range of Light sensor Do not install the product in the following places.
Page 37
Dust Indicator (White) Indicates the Sensitive Dust Sensor detects usual dust. Odor Indicator (White) Indicates the Odor Sensor detects odors. Cloud Service Indicator (White) Illuminates when air purifier is connected to Sharp's cloud service. Plasmacluster Ion Indicator (Blue) EN-7...
Page 38
Power Cord, Power Plug instruction manual is KI-N40TA. (Shape of power plug depends on country.) 21 HEPA Filter 22 Deodorizing Filter 23 Back Panel 24 Air Inlet (Only KI-N50TA) * The Unit refers to Plasmacluster Ion Generating Unit. (The same as below.) EN-8...
Back Panel Take out the filters from the plastic Tank Handle bag. Deodorizing HEPA Filter Water Tank (Only KI-N50TA) Filter Fill the Water Tank with the tap water. Tank Cap 満水 FULL Install the filters in the correct order as shown.
Ensure your smart device is connected to a (SHARP ID). 2.4 GHz Wi-Fi Network. • If you do not have a SHARP ID, please Wi-Fi Protected Setup (WPS) Access Point register to create a SHARP ID. (Router) iii. Enter a name for your smart •...
Page 41
How to set Wi-Fi ON / OFF after Follow instructions on the App. completing the INITIAL SET UP • If the Wi-Fi Lamp lights up after the notification sound, the connection is successfully completed. If you would like to turn the Wi-Fi ♪...
Page 42
Sensor quickly detects impurities such as dust and pollen and cleans the air powerfully. Cloud Sharp Cloud will analyze and set the optimal SLEEP: operation for your room based on the information retrieved from sensors on the product and your The product will operate quietly, and the fan speed usage records.
Page 43
CLEAN ION SHOWER SWITCH DISPLAY MODE ♪ ♪ The product releases Plasmacluster ions with Humidity strong airflow and collects dusts while decreasing ♪ static electricity for 10 minutes. After that, the Sensitive Dust Sensor sensitivity is automatically Temperature increased and quickly detects impurities and clean the air powerfully for 50 minutes.
HOW TO CHANGE VARIOUS SETTINGS • You can change the product and Wi-Fi When Wi-Fi setting functions on page 15 - 18. Refer to page 16 - 18 for the detail of each functions. Turn the product OFF. ♪ When Product setting Select “Setting number (01 - 03)”...
Page 45
PRODUCT FUNCTIONS (F1-F7) Function Setting When set to “OFF”, the “Dim” light illuminates for 8 seconds after operation starts and then the light goes off. However, some indicators that need notification will remain dim. Light Control You can select the brightness of the Display and Auto (default) Cleanliness Indicator.
Page 46
Wi-Fi FUNCTIONS (A1-A8) Function Setting Select “ ” by following Steps 1 - 3 on page 14. Press " " Button to select Setting " " or " SHARP COCORO AIR ". Wi-Fi OFF ♪ Wi-Fi ON Wi-Fi adapter ON/OFF Complete NOTE ♪...
Page 47
Function Setting Select “ ” by following Steps 1 - 3 on page 14. Press “SHARP COCORO AIR” Button to display MAC address. For example: In case MAC address is “12:34:56:AB:CD:EF”. ♪ ♪ ♪ ♪ ♪ ♪ ♪ ♪ ~...
• Be sure to stop operation and unplug the product before any maintenance or replacing accessories. Place Page Main Body Water Tank Humidifying Filter / Humidifying Tray Back Panel / Sensors HEPA Filter / Deodorizing Filter Plasmacluster Ion Generating Unit (Only KI-N50TA) EN-18...
Page 49
MAIN BODY / BACK FILTER MAINTENANCE PANEL / SENSORS LAMP When the cumulative operation period or the water containing period is more than approximately 720 hours, the Filter Maintenance Lamp will turn on. Wipe with a dry, soft cloth. • It will not calculate the time when the product is unplugged.
Page 50
HUMIDIFYING FILTER / HUMIDIFYING TRAY REPLACEMENT AND MAINTENANCE CYCLE Parts Name Maintenance Cycle Max Service Life Replacement Filter Model When odor emanates from the air Humidifying Filter 10 years FZ-J1XMFE outlet, or once a month. *1: Designated App notifies when each replacement part should be replaced according to usage. MAINTENANCE Remove the Humidifying Filter...
Page 51
NOTE How to Clean Hard-to-Remove Dirt. 100% Bottled Lemon Juice Mild Kitchen Detergent Citric Acid with No Pulp (only Humidifying tray) (available at some drugstores) 1. Fill the tray half-way with 2 1/2 cups of water 3 cups of water water.
Page 52
Deodorizing Filter air outlet, or once a month. FZ-G40DFE (Only KI-N50TA) *1: According to Japan Electric Manufacture’s Association JEM 1467, the Max service life is based on the equivalent condition of the smoke from 5 cigarettes per day whereby the dust collection/deodorization power is reduced by half compared with that of new filter.
Page 53
PLASMACLUSTER ION GENERATING UNIT (Electrode Section) REPLACEMENT AND MAINTENANCE CYCLE Parts Name Maintenance Cycle Max Service Life Replacement Model Plasmacluster Ion Every 6 months or more often if 19,000 hours IZ-C90ME Generating Unit necessary *1: In the following, "Plasmacluster Ion Generating Unit" is abbreviated as "Unit". *2: The replacement time will be announced by the Unit Replacement lamp.
TROUBLESHOOTING How to replace the Unit • Please consult your dealer for IZ-C90ME purchase of a replacement (1 unit) Unit. Before calling for service, please review • • Use only the Unit designed for the Troubleshooting list below, since this product. the problem may not be the product malfunction.
Page 55
The Cleanliness Indicator changes color is displayed. frequently. • Make sure the Plasmacluster Ion Generating Unit • The Cleanliness Indicator automatically changes inserted properly. color when the Sensitive Dust Sensor and Odor Pull out the Plasmacluster Ion Generating Unit Sensor detect impurities. If you are concerned and insert it to the end again, and then carry out about the change, you can change sensor the operation again.
Page 56
Remote operation from a smart device Wi-Fi Lamp blinks fast cannot be performed. • Network error. Please confirm the Wi-Fi network status from “A7: Display Wi-Fi network status”. • Is the Wi-Fi Lamp of the air purifier on? (Page 17) If the Wi-Fi Lamp is off, please perform “A1: Wi-Fi adapter ON/OFF”...
SPECIFICATIONS Model KI-N50TA KI-N40TA Power supply 220 V ~ 50 Hz Fan Speed Adjustment Fan Speed (m / hour) CLEAN AIR Rated Power (W) Noise Level (dBA) * Fan Speed (m / hour) CLEAN AIR Rated Power (W) & Noise Level (dBA) *...
Page 58
INTELLECTUAL PROPERTY RIGHTS FOR THIS PRODUCT ■ Software structure ●Iw-IP Copyright (c) 2001, 2002 Swedish Institute of Computer Science. Software installed in this product is structured with multiple independent All rights reserved. software components, each of them has our or third-party's copyright. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: ■...
Page 59
Copyright (c) 1994-2009 Red Hat, Inc. All rights reserved. in Japan, toll free. The direct dial number is 512-462-4118. This copyrighted material is made available to anyone wishing to use, modify, Advanced Micro Devices, Inc. copy, or redistribute it subject to the terms and conditions of the BSD License. 29K Support Products This program is distributed in the hope that it will be useful, but WITHOUT Mail Stop 573...
Page 60
Redistribution and use in source and binary forms, with or without modification, SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; are permitted provided that the following conditions are met: OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY 1.
Page 61
OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR...
