FLCI-CH(RS)-CH8-[FLRSCH7]-EN
TERMS OF USE: Automotive Data Solutions Inc. ("ADS") products are strictly intended for installation by
Certified Technicians who are employed by a registered business specialized in the installation of auto-
motive aftermarket electronics products. Prior to beginning installation of an ADS product in a vehicle,
it is the Certified Technician's responsibility to review the most current Product Guide, Install Guide
and vehicle-specific notes available in Weblink®. ADS is not responsible for any damages whatsoever,
including but not limited to any consequential damages, incidental damages, damages for loss of time,
loss of earnings, loss of profit, commercial loss, loss of economic opportunity and the like that may or
may not have resulted from the use, misuse, improper installation or operation of its products. ADS
reserves itself the right to suspend any Weblink® account without notice and decline to offer technical
support to non-Certified Technicians, non-compliant Certified Technicians or end users.
Patent No. US 8,856,780 CA 2759622
Automotive Data Solutions Inc. © 2022
INSTALL GUIDE
DOCUMENT NUMBER
81143
REVISION DATE
20221216
FIRMWARE
FLCI-CH(RS)-CH8-[FLRSCH7]
HARDWARE
FLRSCH7
ACCESSORIES
FLPROG (REQUIRED)
FLRF1/2/4 (OPTIONAL)
MYCAR (OPTIONAL)
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
www.flashlogic.com
Advertisement
Related Manuals for ADS FlashLogic FLRSCH7
Summary of Contents for ADS FlashLogic FLRSCH7
- Page 1 ADS reserves itself the right to suspend any Weblink® account without notice and decline to offer technical support to non-Certified Technicians, non-compliant Certified Technicians or end users.
- Page 2 PAGE 2 OF 22 VEHICLE LIST - 1 OF 1 • 20221216 DOC.: #81143 FEATURES NOTE I WARNING: All vehicle doors must be closed and locked prior to remote start sequence. Dart STD key (Tip-Start) AT 13-16 1 • • •...

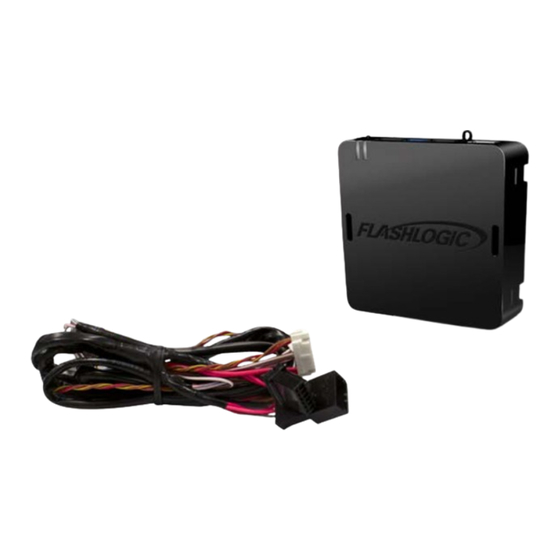

- Page 3 PAGE 3 OF 22 BOX CONTENTS - 1 OF 1 • 20221216 DOC.: #81143 BOX CONTENTS MODULE T-HARNESS 1 10 PIN CONNECTOR LED 2 PROGRAMMING BUTTON LED 1 BLUE 12 PIN CONNECTOR BLACK RF PORT/ WEBLINK PORT BLUE BLACK TELEMATIC PORT AFTERMARKET HOOD SWITCH AND CABLE BLACK...
- Page 4 PAGE 4 OF 22 COMPATIBLE ACCESSORIES - 1 OF 1 • 20221216 DOC.: #81143 RF KIT (accessories sold separately) FLRF1/2/4 RF KIT (NC) MODULE RF PORT ANTENNA TELEMATIC KIT (accessories sold separately) MYCAR MODULE VEHICLE TELEMATIC PORT YELLOW - HORN Patent No.
- Page 5 PAGE 5 OF 22 TYPE 1 - WIRE CHART - 1 OF 1 • 20221216 DOC.: #81143 CanH Black 16 pin 06 Gray/White (DATA) OBDII connector Dart CanL Black 16 pin 14 Yellow (DATA) OBDII connector STD key 13-16 Parking Light Black 06 pin 03 White/Brown...
- Page 6 PAGE 6 OF 22 TYPE 1 - WIRING DIAGRAM - 1 OF 1 • 20221216 (ADS-THR-CH7) DOC.: #81143 IGNITION SWITCH 1: IGNITION CONNECTOR RF PORT/WEBLINK PORT TELEMATIC PORT 1: IGNITION HARNESS OBDII CONNECTOR CANH - 06 BROWN/RED CANL - 14...
- Page 7 PAGE 7 OF 22 TYPE 2 - WIRE CHART - 1 OF 1 • 20221216 DOC.: #81143 CanH D7405A Black 16 pin 06 Gray/White (DATA) OBDII connector 1500 / CanL D7405A Black 16 pin 14 Yellow (DATA) OBDII connector 1500 Diesel 13-17 STD key Parking Light...
- Page 8 PAGE 8 OF 22 TYPE 2 - WIRING DIAGRAM - 1 OF 1 • 20221216 (ADS-THR-CH7) DOC.: #81143 IGNITION SWITCH 1: IGNITION CONNECTOR RF PORT/WEBLINK PORT TELEMATIC PORT 1: IGNITION HARNESS OBDII CONNECTOR CANH - 06 BROWN/RED CANL - 14...
- Page 9 PAGE 9 OF 22 TYPE 3 - WIRE CHART - 1 OF 1 • 20221216 DOC.: #81143 CanH Gray 10 pin 02 Orange (DATA) Trailer module, right of steering column 1500 / 2500 / 3500 CanL Gray 10 pin 01 Yellow (DATA) Trailer module, right of steering column STD key AT...
- Page 10 PAGE 10 OF 22 TYPE 3 - WIRING DIAGRAM - 1 OF 1 • 20221216 (ADS-THR-CH7) DOC.: #81143 IGNITION SWITCH 1: IGNITION CONNECTOR RF PORT/WEBLINK PORT TELEMATIC PORT 1: IGNITION HARNESS TRAILER PACK CONNECTOR GRAY CANH - 02 BROWN/RED CANL - 01...
- Page 11 PAGE 11 OF 22 MODULE PROGRAMMING PROCEDURE - 1 OF 2 • 20221216 DOC.: #81143 Close driver door. Re-open driver door to wake Remove key. Connect module to computer and proceed up data bus. with extended programming. START Press Unlock on OEM remote. If the vehicle is Insert key into ignition.
- Page 12 PAGE 12 OF 22 MODULE PROGRAMMING PROCEDURE - 2 OF 2 • 20221216 DOC.: #81143 Turn key to OFF position. START Module Programming Procedure completed. Patent No. US 8,856,780 CA 2759622 Automotive Data Solutions Inc. © 2022 FLCI-CH(RS)-CH8-[FLRSCH7]-EN www.flashlogic.com...
- Page 13 PAGE 13 OF 22 VALET MODE PROGRAMMING PROCEDURE - 1 OF 1 • 20221216 DOC.: #81143 >> >> NOTE: In Valet Mode, the Remote starter is not To exit valet mode: repeat steps 1 to 5. functional. Keyless entry, Lock and Unlock will remain functional.
- Page 14 PAGE 14 OF 22 AFTERMARKET REMOTE PROGRAMMING - 1 OF 1 • 20221216 DOC.: #81143 AFTERMARKET REMOTE PROGRAMMING: NOTES I All aftermarket remotes must be programmed to the RF-Kit. Refer to the RF-Kit user guide for aftermarket remote features and programming procedures. Patent No.
- Page 15 PAGE 15 OF 22 MODULE NAVIGATION PROCEDURE - 1 OF 1 • 20221216 DOC.: #81143 >> It is mandatory to exit the Module Navigation TO ACCESS THE OPTIONS: Press and hold To save and return to the OPTIONS: Press and at the end of this procedure.
- Page 16 PAGE 16 OF 22 MODULE NAVIGATION CHART - 1 OF 2 • 20221216 DOC.: #81143 MODULE NAVIGATION CHART: NOTES I Default settings are listed in bold. DISARM/UNLOCK BEFORE START II Make sure the option is covered on the vehicle before attempting to change the setting.
- Page 17 PAGE 17 OF 22 MODULE NAVIGATION CHART - 2 OF 2 • 20221216 DOC.: #81143 MODULE NAVIGATION CHART: NOTES DOUBLE LOCK LOCK + UNLOCK HORN EVENT TRIGGER LOCK + UNLOCK + START CONFIGURATION DOUBLE LOCK + START 30 mSEC HORN CHIRPS WIDTH 15 mSec 60 mSec 02-07 Technical Support only...
- Page 18 PAGE 18 OF 22 REMOTE STARTER ERROR CODES - 1 OF 1 • 20221216 DOC.: #81143 REMOTE STARTER ERROR CODES: NOTES Foot brake is ON. I WARNING: The following applies only when the parking lights are connected and supported by the system. Hood is open.
- Page 19 PAGE 19 OF 22 MODULE DIAGNOSTICS - 1 OF 1 • 20221216 DOC.: #81143 TEST MODULE Flashing RED Missing/wrong information from fi rmware or vehicle. Solid RED Module waiting for more vehicle information. Flashing GREEN Additional steps required to complete module programming. DURING PROGRAMMING Solid GREEN then OFF Module correctly programmed.
- Page 20 PAGE 20 OF 22 MODULE RESET PROCEDURE - 1 OF 1 • 20221216 DOC.: #81143 Disconnect all connectors from module except Reconnect all connectors. the BLACK 20-PIN connector. Disconnect the BLACK 20-PIN connector. Repeat programming procedure. >> PRESS AND HOLD the module’s programming Failure to follow procedure may result with a button while connecting the BLACK 20-PIN DTC or a CHECK ENGINE error message.
- Page 21 PAGE 21 OF 22 TAKEOVER PROCEDURE - 1 OF 1 • 20221216 DOC.: #81143 >> All vehicle doors must be closed and locked Press and release BRAKE pedal. prior to remote start sequence. Time restriction. Complete steps 2 to 6 within Take over procedure completed.
- Page 22 PAGE 22 OF 22 INSTALLATION CHECKLIST - 1 OF 1 • 20221216 DOC.: #81143 CHECKLIST WARNING: Vehicle engine will start many times. Test in a well ventilated area. Press the START/STOP button once [1x] on the aftermarket keyfob to shut down vehicle. Question 7: Does the vehicle shut down? Close all vehicle doors, hood and trunk.
