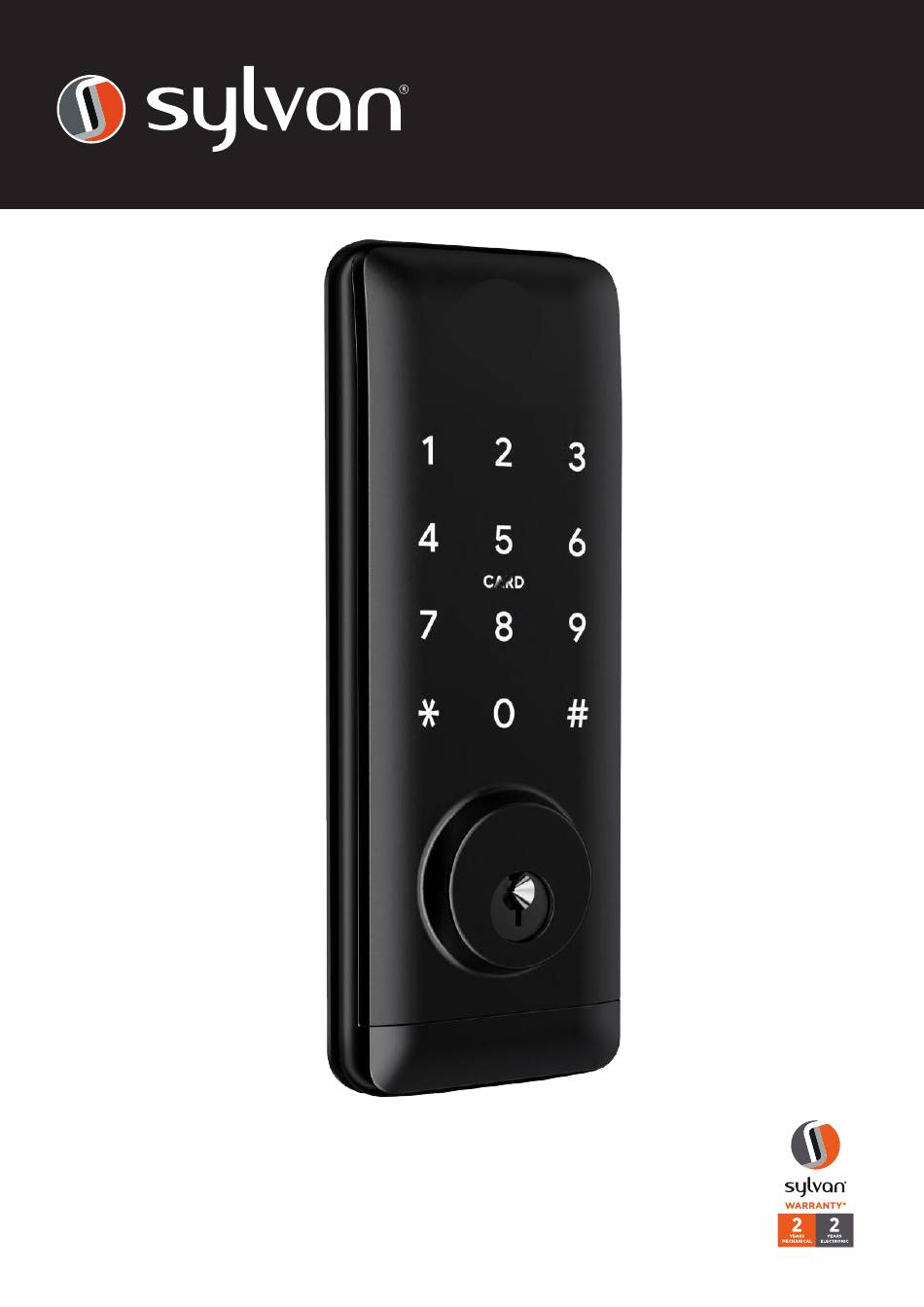

- Page 1 SL39E INSTALLATION INSTRUCTIONS Version 1...
- Page 2 www.sylvan.co.nz...
- Page 3 SL39E INSTALLATION INSTRUCTIONS Introduction Thank you for choosing Sylvan, this lock is for Residential use only, and its two year warranty (mechanical and electronic) only applies for locks being used for residential use. To ensure you get the best out of your purchase we ask that you follow the below: •...
- Page 4 Lock Dimensions www.sylvan.co.nz...
-
Page 5: Product Specifications
SL39E INSTALLATION INSTRUCTIONS Product specifications: Model number Door thickness SL39E 35mm - 55mm range Material of Aluminum alloy IP rating IP55 Manufacture Weight 2 kg Type of use Residential use only Options of Passcode Blue tooth App unlocks infinite unlocking... - Page 6 SL39E Packing List • Front panel • Mortice screws Qty x1 Qty x4 25mm • Back panel • Connection posts Qty x1 Qty x1 (M4x30 - for 35-40mm Door thickness) (M4x35 - for • User manual 40-60mm Door thickness) Qty x1 •...
- Page 7 SL39E INSTALLATION INSTRUCTIONS Adjust Deadbolt Backset If required, the supplied deadbolt is adjustable from 60mm - 70mm depending on your backset. Retract deadbolt 2. The shorter backset 3. Twist the full assembly, 4. The extended backset completely by rotating is 60mm...
-
Page 8: Installation
2. Attach rubber boot to front panel. Step 3: Install front panel 1. Feed power cable through door 2. Align spindle and posts to deadbolt latch and mount front panel to door. 3. Ensure spindle is horizontal and bolt is retracted. www.sylvan.co.nz... - Page 9 SL39E INSTALLATION INSTRUCTIONS Step 4: Install mounting plate 1. Attach rubber boot to mounting plate 2. Feed power cable through the mounting plate 3. Align the locating pins to the front panel and attach to door using mounting screws. IMPORTANT...
- Page 10 Now input code “000#” on the keypad. The system reset will be complete. From here you can re-link the SL39E Smart Lock to your phone via the TT App. *Note: this will clear all previous users from the locks memory...
- Page 11 SL39E INSTALLATION INSTRUCTIONS Using your Sylvan SL39E Smart Lock Manually unlocking with Key The SL39E Smart Lock has a mechanical key override to unlock it. The key location is on the front panel. Insert one of the included keys, turn to unlock.
- Page 12 • Verification codes will be sent to users’ mobile phone or email depending on how you have registered above. IMPORTANT By default, this lock comes standard with Autolock ‘off’. To lock from the outside, hold the # button down and deadbolt will lock. www.sylvan.co.nz...
- Page 13 7. If you have downloaded the app and loaded your lock on your front door device you are now the administrator of this lock, from here you can now add or delete users / passcodes / RFID card etc. 6. The lock is now successfully added to the app. www.sylvan.co.nz...
-
Page 14: Setting A Passcode
We suggest day and week. naming each PIN with the name of the person using it. E.g. Bobs PIN www.sylvan.co.nz... -
Page 15: Passage Mode
• Note for security reasons the passage mode only starts once a successful entry to unlock the lock has been accepted. • To lock the door when in passage mode, press and hold the # key on the lock. www.sylvan.co.nz... - Page 16 Remote unlock • This can be done using a smart hub SLG02 (sold separately) see ‘sylvan.co.nz/smart-hub-slg02/’ 1. Add the smart hub via the 2. Click on add Gateway 4. Connect power to the first screen of the TTlock gateway and the indicator 3.
- Page 17 Remote unlock you will then appear next to the padlock symbol of be able to remotely unlock your lock the app. from anywhere using the secure Wi Fi connection. 15. The app will show when the lock has been successfully unlocked. www.sylvan.co.nz...
-
Page 18: Privacy Lock
“secure lock is off” Note: Privacy can be switched on or off from the app. By switching the turn off feature, this will disable the button on your lock. NOTES www.sylvan.co.nz... - Page 19 TTLock App NOTES www.sylvan.co.nz...
- Page 20 1. Please keep this booklet and receipt so that you can use it when you need warranty service. 2. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz...
