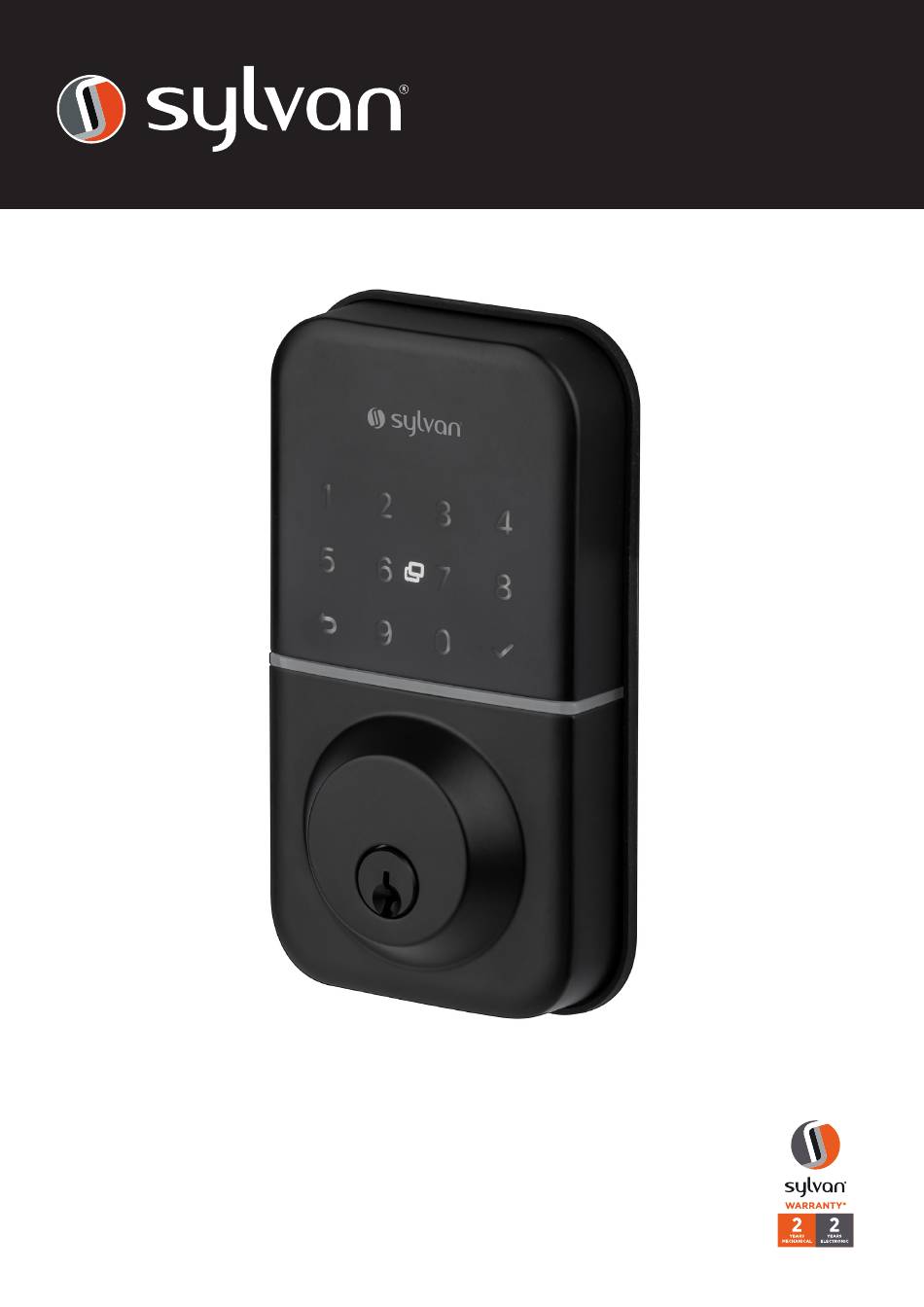

- Page 1 SL42E INSTALLATION INSTRUCTIONS Version 2...
- Page 2 Introduction Thank you for choosing Sylvan, this lock is for Residential use only, and its two year warranty (mechanical and electronic) only applies for locks being used for residential use. To ensure you get the best out of your purchase we ask that you follow the below: •...
- Page 3 SL42E INSTALLATION INSTRUCTIONS Lock Dimensions www.sylvan.co.nz...
- Page 4 SL42E Packing List • Front panel • PM3*8 Round- headed Qty x1 screw • Back panel • Mortice screws Qty x1 Qty x4 M5x10mm (For Aluminum doors) Qty x4 M4x20mm • User manual (For Wooden doors) Qty x1 • Connection posts •...
-
Page 5: Product Specifications
SL42E INSTALLATION INSTRUCTIONS Product specifications: Model number Door thickness SL42E 35mm - 60mm range Material of Aluminum alloy Manufacture Weight 1.3 kg Type of use Residential use only Options of Passcode Bluetooth App unlocks unlocking Password capacity Passcodes: 150 max... -
Page 6: Installation
1. Install the sliding screw stubs to the front panel. 2. Install the waterproof rubber plate to exterior assembly. 3. Keep the cylinder rod horizontal when installing. 4. Install the exterior assembly to the door. IMPORTANT Ensure the cylinder rod remains level during installation. www.sylvan.co.nz... - Page 7 SL42E INSTALLATION INSTRUCTIONS Step 3 Install Interior Assembly 1.Install the waterproof rubber plate to fixing plate. 2. Fix the fixing plate and exterior assembly with screws. 3. Connect the wire,Install the interior assembly on the fixing plate with screws. Plug in power cable ensuring the plug is IMPORTANT around the correct way for the plug to accept its receiver correctly.
- Page 8 Now input code “000#” on the keypad. The system reset will be complete. From here you can re-link the SL42E Smart Lock to your phone via the TT App. *Note: this will clear all previous users from the locks memory...
- Page 9 SL42E INSTALLATION INSTRUCTIONS Using your Sylvan SL42E Smart Lock The SL42E Smart Lock has a mechanical key override to unlock it. The key location is on the front panel. Insert one of the included keys, turn to unlock. Maintenance Guide: Maintenance should be carried out on your lock every 6 months: •...
- Page 10 Otherwise use the below QR codes TTlock App • TTlock supports multiple types of locks and devices • TTlock currently supports 200 countries • Verification codes will be sent to users’ mobile phone or email depending on how you have registered above. www.sylvan.co.nz...
- Page 11 7. If you have downloaded the app and loaded your lock on your front door device you are now the administrator of this lock, from here you can now add or delete users / passcodes / RFID card etc. 6. The lock is now successfully added to the app. www.sylvan.co.nz...
- Page 12 IMPORTANT Adjust Opening Direction • After adding the APP successfully, please set the desired opening direction first. www.sylvan.co.nz...
-
Page 13: Setting A Passcode
We suggest day and week. naming each PIN with the name of the person using it. E.g. Bobs PIN www.sylvan.co.nz... - Page 14 RF Cards, then add card • Decide if a Permanent or Timed or Recurring user • Name the Card (we suggest the users name) e.g. Bobs RFID • Then touch card against keypad to accept card to lock www.sylvan.co.nz...
-
Page 15: Passage Mode
• Note for security reasons the passage mode only starts once a successful entry to unlock the lock has been accepted. • To lock the door when in passage mode, press and hold the # key on the lock. www.sylvan.co.nz... - Page 16 Remote unlock • This can be done using a smart hub SLG02 (sold separately) see ‘sylvan.co.nz/smart-hub-slg02/’ 1. Add the smart hub via the 2. Click on add Gateway 4. Connect power to the first screen of the TTlock gateway and the indicator 3.
- Page 17 Remote unlock you will then appear next to the padlock symbol of be able to remotely unlock your lock the app. from anywhere using the secure Wi Fi connection. 15. The app will show when the lock has been successfully unlocked. www.sylvan.co.nz...
- Page 18 Autolocking feature The SL42E smart lock includes an auto-locking feature, this eliminates the risk of damaging the lock and door frame by not allowing the bolt to engage before the door is closed. Door timing delay can be adjusted through the app under Auto lock.
- Page 19 SL42E INSTALLATION INSTRUCTIONS 2. Frame sensor auto lock In the TT app, once the deadbolt has been set up correctly and passcodes have been entered, ensure the deadbolt has the auto-lock function switched off. 3. Position the frame magnet on...
-
Page 20: Product Warranty
1. Please keep this card so that you can use it when you need warranty service. 2. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz...
