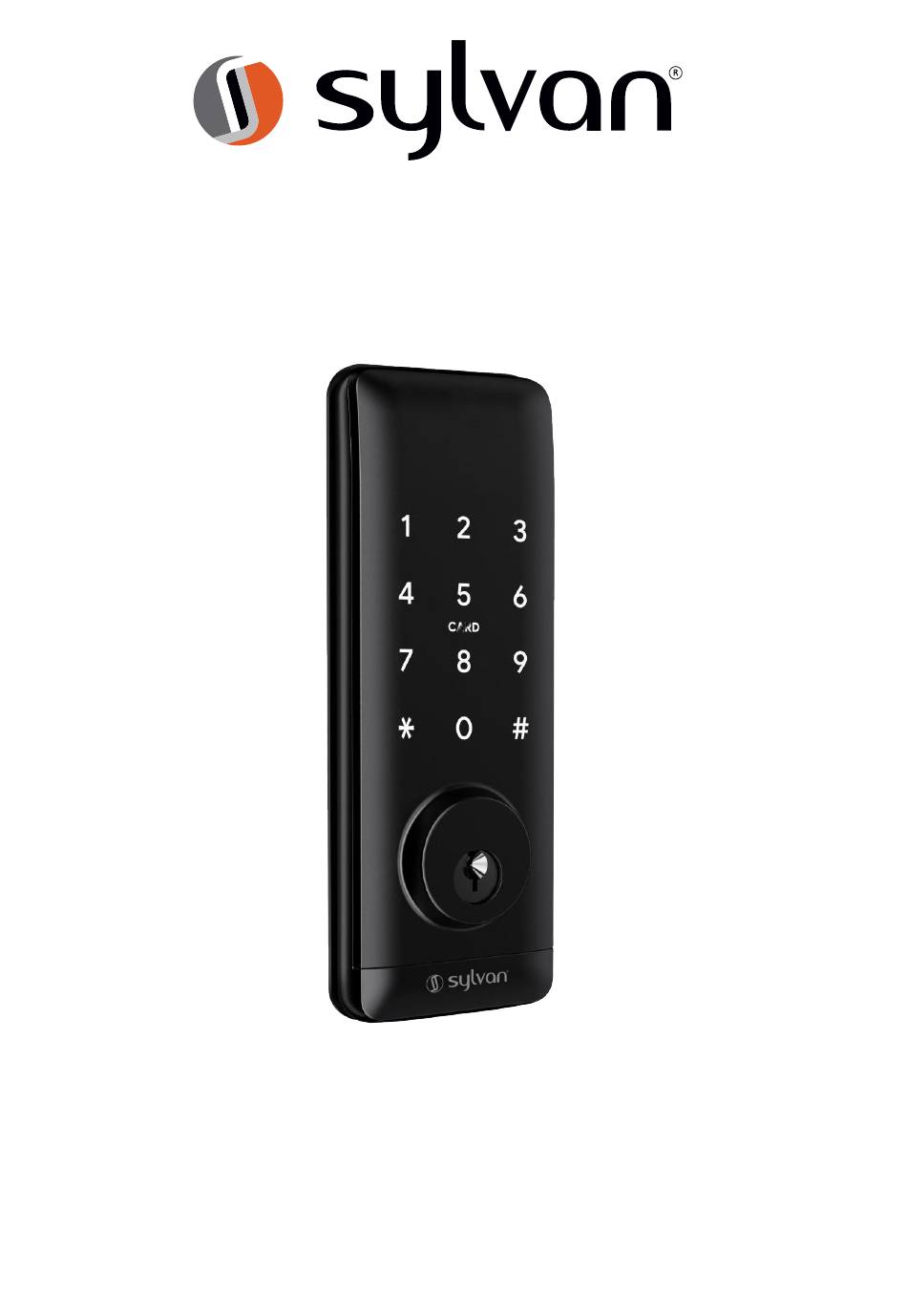

Smart Lock
User Manual
SL39E
Special Attention:
1.Mechanical keys please keep outdoor, just in case keys are required to unlock door in low power conditions.
2.Please replace for the battery when low wattage alarm. (check app status)
3
.Reading this manual carefully before installation, and keep it for future reference.
4. Alkaline (4 x AA) batteries MUST be used, do not use lithium batteries.
V.002
www.sylvan.co.nz
Advertisement
Table of Contents
Related Manuals for Sylvan SL39E
Summary of Contents for Sylvan SL39E
- Page 1 Smart Lock User Manual SL39E Special Attention: 1.Mechanical keys please keep outdoor, just in case keys are required to unlock door in low power conditions. 2.Please replace for the battery when low wattage alarm. (check app status) .Reading this manual carefully before installation, and keep it for future reference.
- Page 2 Thank you for choosing our Sylvan Smart Lock, as with all Smart Locks there are a few key tips that will ensure your Smart Lock meets your expectations. • Good quality Alkaline batteries should always be used • The supplied rubber boot must be installed, however smart locks are not suitable for use on a tongue and groove door, water can penetrate the lock via a grove.
-
Page 3: Packing List
Front Panel Screw Stubs:M4*30mm Back Panel Screw Stubs:M4*40mm Mortise Screws:M4*25mm Mortise (For Wooden Door) Mortise Screws:M5*10mm Card (For Aluminum Door) M4*10mm Screws Mechanical Key For Fixing Back Panel Waterproof Rubber M4*30mm Screw Plate User Manual M4*50mm Screw Strike&Strike Box www.sylvan.co.nz... -
Page 4: Specifications
Rating 1.4.Initialization Long press the reset button located on the battery compartment side of the lock for approx 5 seconds, input 000#, the initialization is successful when the buzzer beeps twice. Underside of the inner part of the lock. www.sylvan.co.nz... -
Page 5: Installation
This may need to be cut to suit the door thickness. Deadbolt always eep pull in during installation Change to "L"or“R” position in the PCB of back panel Deadbolt knob Attention If the above is not followed correctly, the lock will not operate correctly www.sylvan.co.nz... -
Page 6: Installation Diagram
HORIZONTAL to engage correctly into deadbolt hub. IMPORTANT DEADBOLT MUST BE RETRACTED DURING INSTALL Step5 Connecting Front and Back Panels Step6 Fixed Back Panel Step7 Install Batteries Step8 Cover the battery box www.sylvan.co.nz... -
Page 7: Operation
Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone www.sylvan.co.nz... -
Page 8: Setting Passcode
Select e-key format (Timed, permanent, One-time, Recurring) Enter recipient's account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure Send The recipient's account has Bluetooth unlock permission www.sylvan.co.nz... - Page 9 .All generated passwords can be viewed and managed in the Click " " password management module. This includes a password change, password deletion, password reset, and password unlock record. 3.4.8.Unlock records Click " "you can query your unlock record as shown in figure www.sylvan.co.nz...
-
Page 10: Add Gateway
If you want to have the Secure Electronic Locking function, first turn on "privacy lock" on the app 2.When the button is depressed, it is in the locked state and can only be unlocked through the administrator app or mechanical key. www.sylvan.co.nz... - Page 11 8 How many times will the password be Enter the wrong password more than 5 times locked? How long is it locked? in a row, the keyboard is locked for 5 minutes Other ways to can open the door www.sylvan.co.nz...
-
Page 12: Product Warranty
Please keep this card so that you can use it when you need warranty service. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz www.sylvan.co.nz...
