Special Attention:
•
This lock has a mechanical key override from the outside. Please ensure keys are kept
in a safe place in case of complete battery failure. This key can be used to access the
door from the outside.
•
Please replace the battery when low battery alarm activates.
•
Please read this instruction manual fully before installing.

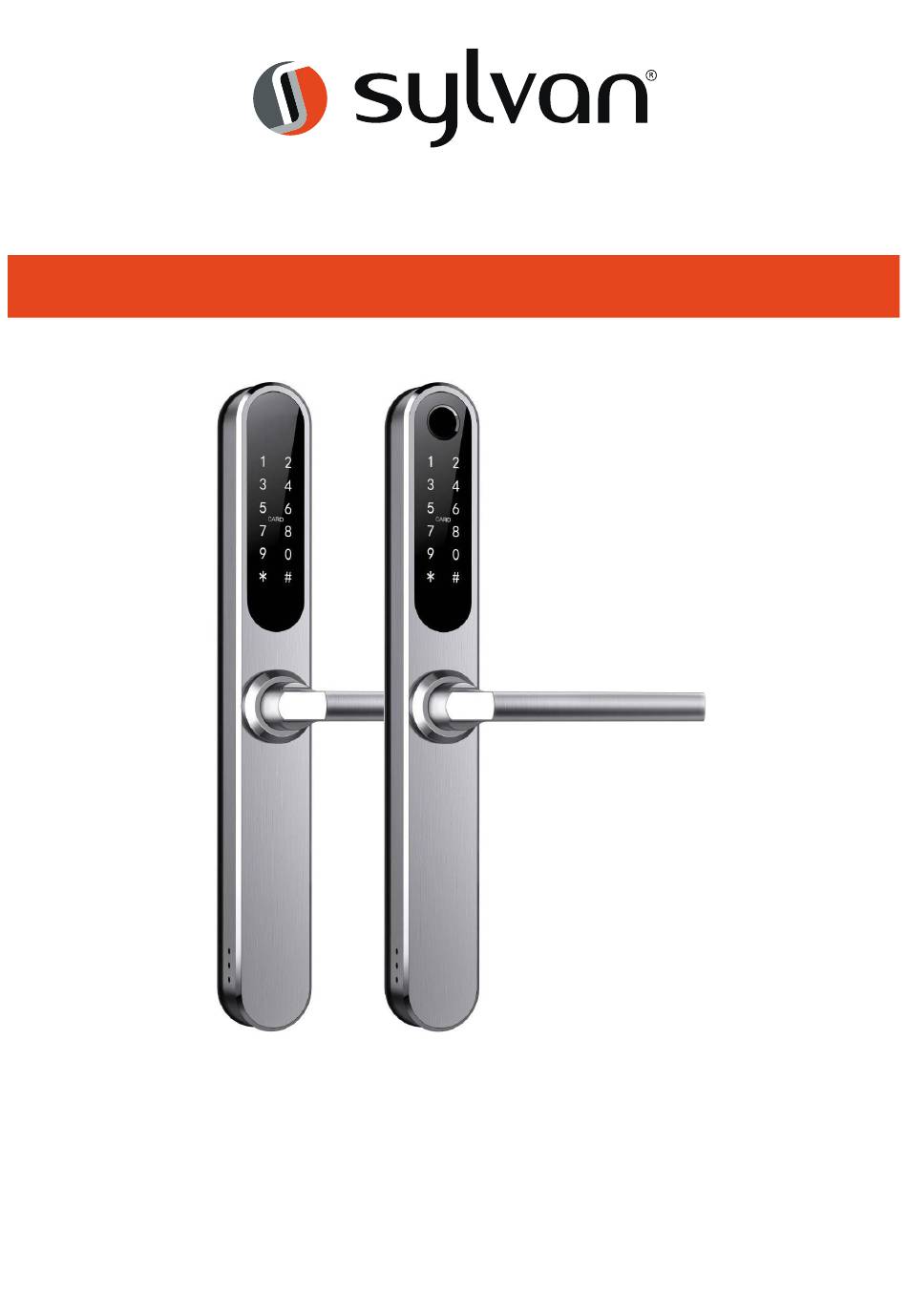

Electronic Lock
User Manual - SL35E
www.sylvan.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sylvan SL35E
Summary of Contents for Sylvan SL35E
- Page 1 Electronic Lock User Manual - SL35E Special Attention: • This lock has a mechanical key override from the outside. Please ensure keys are kept in a safe place in case of complete battery failure. This key can be used to access the door from the outside.
-
Page 2: Packing List
Mechanical Key Thickness 30-65mm M5*50mm Screw for Door Waterproof Rubber Seal Thickness 50-65mm M5*70mm Screw for Door Split Pin Thickness 50-65mm Square Spindle for Door User Manual Thickness 35-55mm Square Spindle for Door Strike & Strike Box Thickness 45-65mm www.sylvan.co.nz... -
Page 3: Specifications
1.3.Specifications Suitable for Doors Aluminum Door SL35E models Applicable Wooden Door Handle: SS304 Working Materials 35-65mm Panel: SS304 Voltage Lock Weight Door Thickness 35-65mm Bluetooth Fingerprint(option) Fingerprint: 200 Unlocking Way Password Card Data Capacity Password: 150 Mechanical key Card: 150... -
Page 4: Installation
2. Remove the handle 3. After adjusting the direction panel, of the handle, insert it into the Loosen the inner hexagon screw handle seat and re-lock the of the handle counterclockwise hexagon screw of the handle to complete the turning. www.sylvan.co.nz... -
Page 5: Installation Diagram
Depending on the location of the hole-drilling or the old door hole.. Slot T-Screw in back face of lock. When in correct position, tighten depending on hole position in door. Step 5: Install Back Panel Step 6: Install Batteries www.sylvan.co.nz... -
Page 6: Operation
TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 if not added by the phone www.sylvan.co.nz... - Page 7 Select e-key format (Timed, permanent, One-time, Recurring). Enter recipient’s account of TTlock,set the name and effective time of the eKey, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure “Send” The recipient’s account has Bluetooth unlock permission www.sylvan.co.nz...
-
Page 8: Add Fingerprint
Click “ Passcodes“. All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock record. 3.4.8 Unlock Records Click “Records“ you can query your unlock record as shown in figure. www.sylvan.co.nz... -
Page 9: Add Gateway
3.5.1 Add Gateway 3.5.2 Manual After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway. www.sylvan.co.nz... - Page 10 Enter the wrong password more than 5 times in a 8) How many times will the passcode be locked? row, the keyboard is locked for 5 mins, Other ways How long is it locked? to can open the door www.sylvan.co.nz...
-
Page 11: Product Warranty
Please keep this card so that you can use it when you need warranty service. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz www.sylvan.co.nz...
