Summary of Contents for Sylvan SL43E

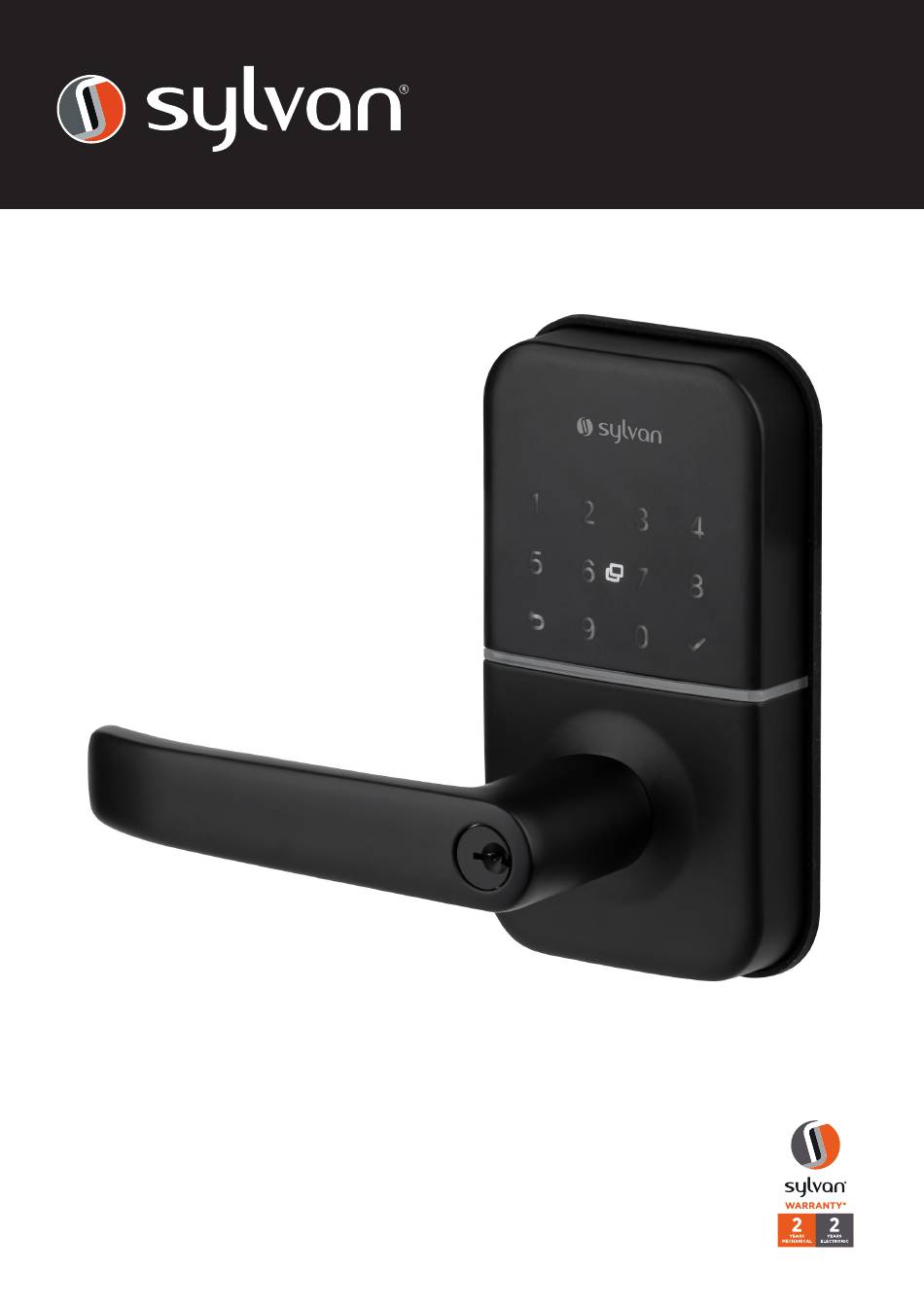

- Page 1 SL43E INSTALLATION INSTRUCTIONS Version 2...
- Page 2 Introduction Thank you for choosing Sylvan, this lock is for Residential use only, and its two year warranty (mechanical and electronic) only applies for locks being used for residential use. To ensure you get the best out of your purchase we ask that you follow the below: •...
- Page 3 SL43E INSTALLATION INSTRUCTIONS Lock Dimensions www.sylvan.co.nz...
- Page 4 SL43E Packing List • Front panel • Pin x1 Qty x1 • Screw G x2 • Back panel Qty x1 • Screw B x4 • User manual • Allen Key x1 Qty x1 • Sliding Screw Stub A x1 • Installation template Qty x1 •...
-
Page 5: Product Specifications
SL43E INSTALLATION INSTRUCTIONS Product specifications: Model number SL43E Door thickness 35mm - 65mm range Material of Low voltage Aluminum alloy Less than 4.8 Volts Manufacture Alarm Weight 2 kg Type of use Residential use only Options of Bluetooth Passcode App unlocks... - Page 6 www.sylvan.co.nz...
-
Page 7: Installation
SL43E INSTALLATION INSTRUCTIONS Installation: Notice: Adjust the handle according to the direction you open the door. The door opens to the left, with the handle facing left. The door opens to the right, with the handle facing right. For Exterior Assembly: 1. - Page 8 3. Install the latch into the door with screws Step 2: Install Exterior Assembly 1. Install the waterproof rubber plate to exterior assembly. 2. Install square shaft into spindle hub and 2 positioning columns. 3. Install 3 screw stubs. 4. Install exterior assembly. www.sylvan.co.nz...
- Page 9 SL43E INSTALLATION INSTRUCTIONS Step 3: Install Interior Assembly 1. Install the waterproof rubber plate. 2. Connect the wire. Plug in IMPORTANT power cable ensuring the plug is around the correct way for the plug to accept its receiver correctly. 3. Secure exterior assembly with screw .
- Page 10 Now input code “000#” on the keypad. The system reset will be complete. From here you can re-link the SL43E Smart Lock to your phone via the TT App. *Note: this will clear all previous users from the locks memory...
- Page 11 SL43E INSTALLATION INSTRUCTIONS Using your Sylvan SL43E Smart Lock The SL43E Smart Lock has a mechanical key override to unlock it. The key location is on the front panel. Insert one of the included keys, turn to unlock. Maintenance Guide: Maintenance should be carried out on your lock every 6 months: •...
- Page 12 Otherwise use the below QR codes TTlock App • TTlock supports multiple types of locks and devices • TTlock currently supports 200 countries • Verification codes will be sent to users’ mobile phone or email depending on how you have registered above. www.sylvan.co.nz...
- Page 13 7. If you have downloaded the app and loaded your lock on your front door device you are now the administrator of this lock, from here you can now add or delete users / passcodes / RFID card etc. 6. The lock is now successfully added to the app. www.sylvan.co.nz...
-
Page 14: Setting A Passcode
We suggest day and week. naming each PIN with the name of the person using it. E.g. Bobs PIN www.sylvan.co.nz... - Page 15 SL43E INSTALLATION INSTRUCTIONS RFID cards • This lock comes with three RFID cards and can store up to 200 unique RFID cards. • To add these to the lock, touch RF Cards, then add card • Decide if a Permanent or Timed or Recurring user •...
-
Page 16: Passage Mode
• Note for security reasons the passage mode only starts once a successful entry to unlock the lock has been accepted. • To lock the door when in passage mode, press and hold the # key on the lock. www.sylvan.co.nz... - Page 17 SL43E INSTALLATION INSTRUCTIONS Remote unlock • This can be done using a smart hub SLG02 (sold separately) see ‘sylvan.co.nz/smart-hub-slg02/’ 1. Add the smart hub via the 2. Click on add Gateway 4. Connect power to the first screen of the TTlock gateway and the indicator 3.
- Page 18 Remote unlock you will then appear next to the padlock symbol of be able to remotely unlock your lock the app. from anywhere using the secure Wi Fi connection. 15. The app will show when the lock has been successfully unlocked. www.sylvan.co.nz...
- Page 19 SL43E INSTALLATION INSTRUCTIONS www.sylvan.co.nz...
-
Page 20: Product Warranty
1. Please keep this card so that you can use it when you need warranty service. 2. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz...
