NetMedia NM-POCEYE Specifications

NM-POCEYE
B/W Color
This general purpose surveillance camera utilizes a built-in NetMedia Power over Coax (PoC) Video Encoder and external PoC
Video Decoder to exchange power and video across a single coax cable, such as RG6.There is no need to run multiple cables to
the camera location! It mounts in round 4 inch electrical fixtures or 2.7 inch diameter holes and is viewed with a security moni-
tor or television. To view the camera on a single standard television, use the TV's composite RCA Video Input jack.
Product Includes:
1. Camera Assembly (Camera Eyeball, Interior Base, Bezel Ring,
Mounting Ring, PoC Video Encoder, F-Connector).
2. NetMedia PoC Video Decoder and 24V DC 200mA Power Transformer.
3. Mounting Screws and RCA Video Cable.

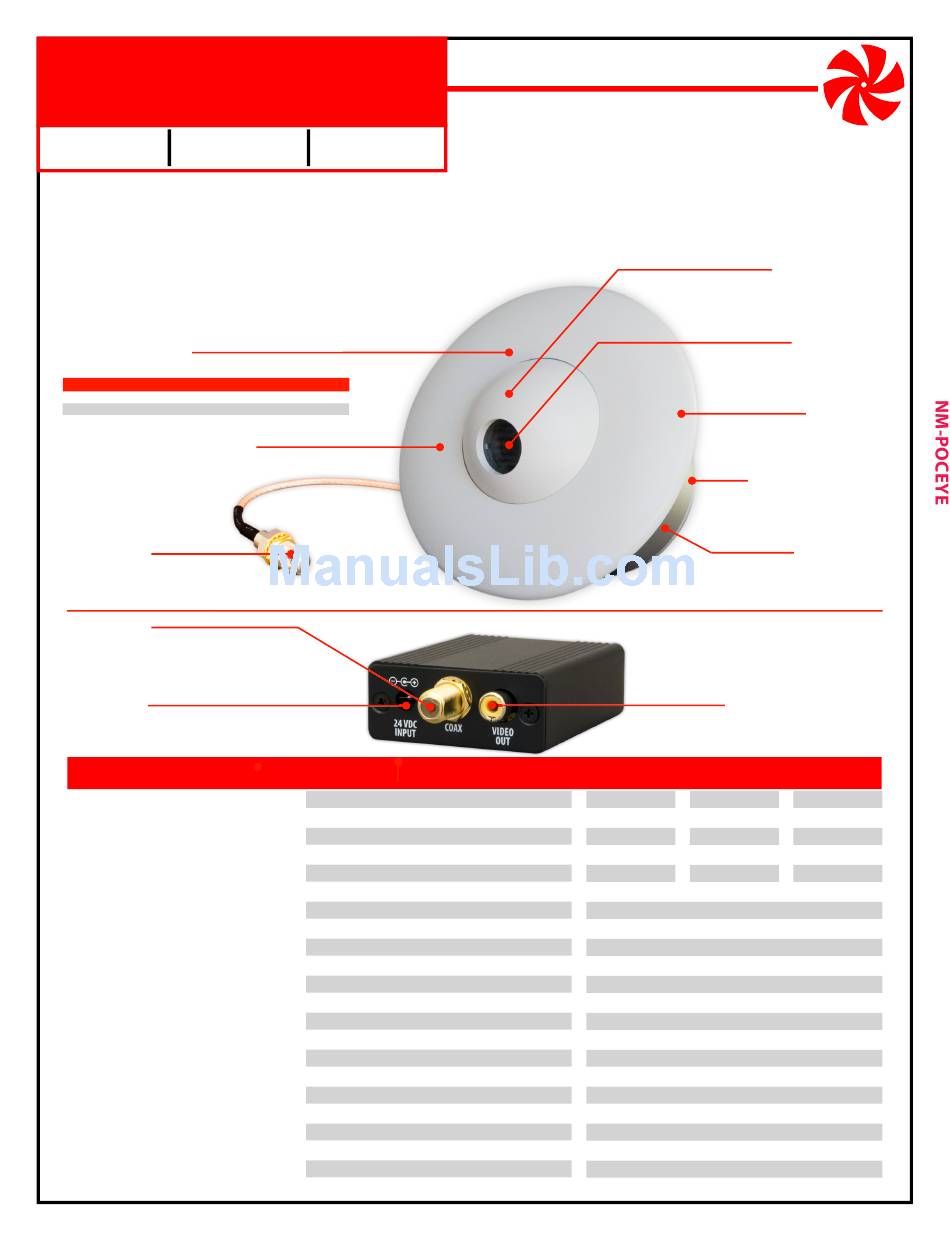

Camera Assembly
Available in choice of colors:
B/W camera Color camera Day/Night Color Housing
NM-POCEYE-BW NM-POCEYE-CW NM-POCEYE-HW
NM-POCEYE-BN
NM-POCEYE-CN NM-POCEYE-HN
Mounting Ring(Not Visible)
Beneath Bezel Ring - secures
Interior Base to mounting surface.
F-Connector
Transmits both power and video
across a single coax.
F-Connector
Connects to camera
F-Connector with a single
coax such as RG6.
Power Input
Connects to 24V DC wall
transformer (included)
and AC outlet.
FEATURES
PoC Video Encoder built into camera
Includes PoC Video Decoder module
One Wire Video™ Installation
Uses one coax cable to camera
Excellent image quality
Tough billet aluminum housing
Internally routed cables
Mounts to standard electrical fixtures
Mounts directly to walls and ceilings
Works in low light conditions
Adjustable camera angles
Tamper resistant wiring
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Power over Coax Camera
Day/Night
Color
White
Nickel
PoC Video Decoder (Included)
SPECIFICATIONS
Camera Lens:
Image Sensor:
Resolution:
Field of View:
Min Illumination:
Infrared Sensitivity:
Camera/Decoder Cable Connector:
Camera/Decoder Cable Type:
Camera/Decoder Cable Distance Range:
Camera/Decoder Video Signal:
PoC Decoder Video Output:
PoC Decoder Video Output Connector:
PoC Decoder Power Input:
PoC Decoder Power Connector:
PoC Decoder Size:
PoC Decoder Weight:
Bezel and Eyeball Profile:
Assembly Size:
Internal Base Size:
Mounting Ring Holes:
Assembly Weight:
Indoor Low Profile Eyeball
Factory set - rotates in either
Attaches to Interior Base and
Built into camera - exchanges
power and video with Decoder for
One Wire Video™ on coax cable.
Mounts in round 4" electrical
B/W Color
3.6mm 3.7mm
1/3" CCD 1/4" CCD
350 lines 470 lines
72˚ Horizontal 54˚ Horizontal
0.7 Lux F2.0 0.5 Lux F1.2
Yes No
Female F-Connector
Coax: RG6 quad shield recommended
Up to 100'
Proprietary
Composite
Female RCA
24V DC, 200mA
5.5mm OD, 2.1mm ID, center positive
3.2" long, 2.2" wide, 0.9" thick
3 oz.
4.6" dia. x 1.1" high
4.6" dia. x 3.3" long
2.65" dia. x 2.5" deep
3.5" centers
1 lb.
Camera Eyeball
Adjusts for desired
field of view.
Camera Lens
direction to adjust focus.
Bezel Ring
secures Eyeball position.
PoC Video Encoder
Interior Base
fixtures or other openings
2.7" dia. x 2.5" deep.
RCA Video Out
Connects to viewing
device such as monitor,
DVR, TV, or modulator.
Day/Night Color
3.6mm
1/3" CCD
470 lines
72˚ Horizontal
0.3 Lux F1.2
Yes
(subject to change without notice)
MAN-POCEYE REV0703A
