Waydoo Subnado User Manual page 6

Install the accessories mount on the main unit and tighten the
screws to secure.
M2.5X10
Subnado
accessories mount

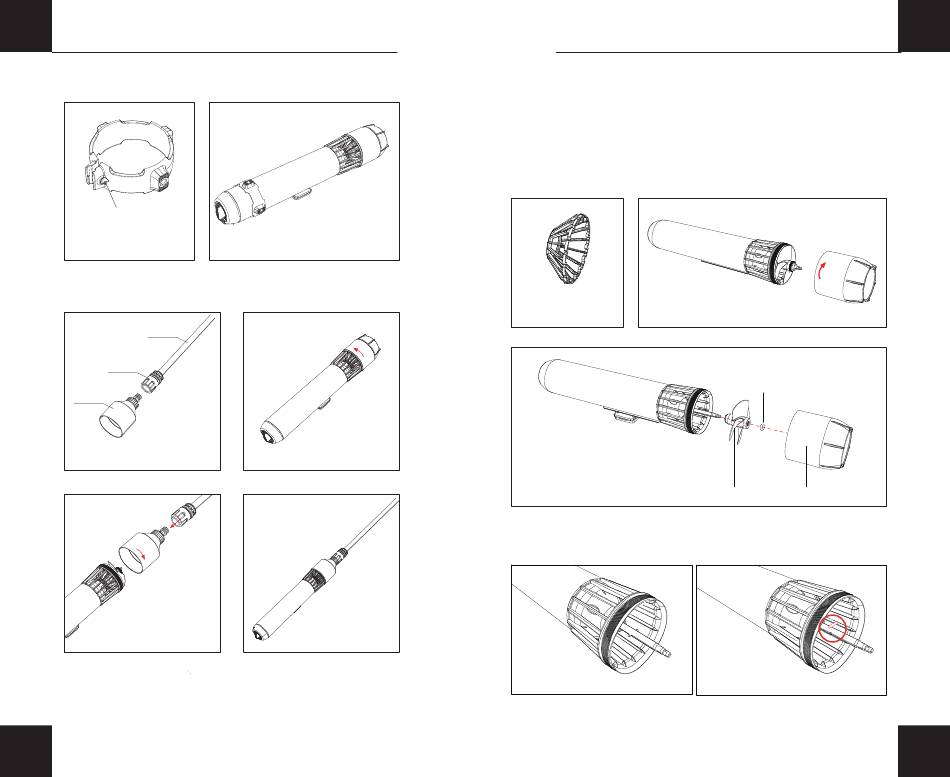

Installation steps for Subnado Water Cannon Kit.
hose
Nozzle base
shell
Subnado
Water Cannon Kit
2. Install the shell on the rear
cover. Press down on the
nozzle base to connect the
hose to the shell.
Note: Please turn clockwise and apply force to the unit first. After you feel the
obvious two consecutive sudden jumps, it means that the thread is in the best
installation position. At this time, apply appropriate force along the motor axis
and rotate the shell counterclockwise. Otherwise, it is easy to fail to install or to
install crookedly.
09
1. Unscrew main unit's rear
cover clockwise
3. Installation of Water
Cannon Kit is complete.
(6) If the users' fingers are relatively slender and are worried about injury
during use, they can install the finger safe-guard. The following are the
installation steps: (Note: Using a finger safe-guard will increase water
resistance, resulting in increased power consumption which affects efficiency
and reduces battery life and thrust)
a. Unscrew the rear cover of the main unit clockwise, remove the O-ring,
and take off the propeller.
Subnado
Finger safe guard
b. Remove the pin
O-ring
Propeller Rear cover
10
