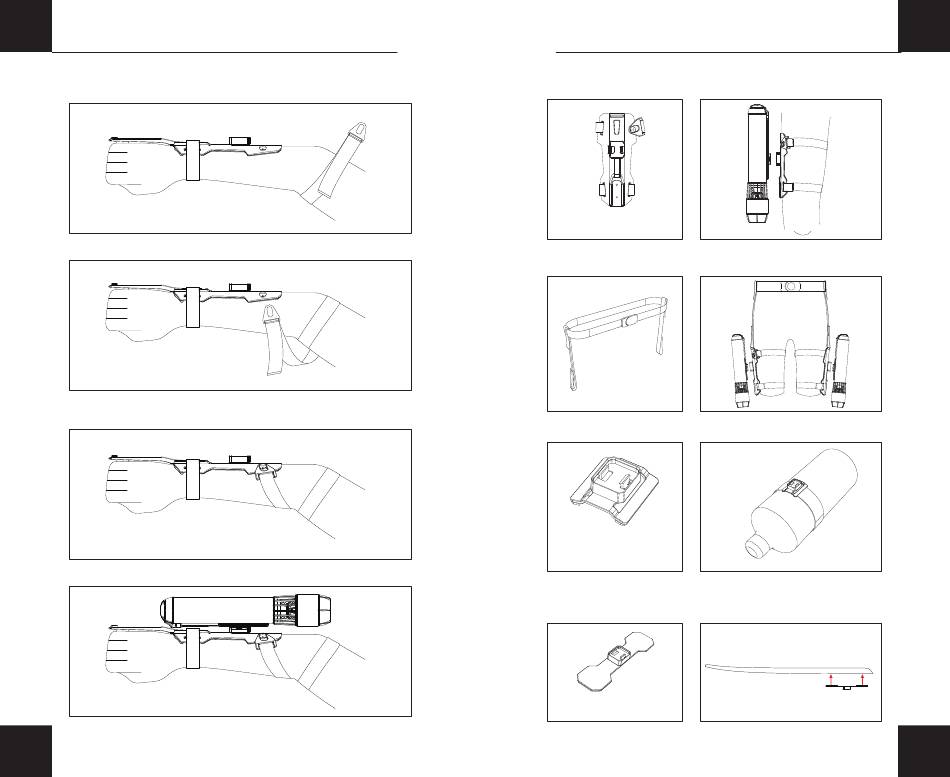

1. Hold the handgrip and place the Arm mount on the outside of the
forearm.Wrap the strap around the forearm 1-2 times, depending on
the arm circumference.
2. Fasten the gourd buckle on one end of the strap.
3. According to the forearm circumference, wrap it 2-3 times and finally
fix it with nylon tape.
4. Install the main unit to the Arm mount through the quick release part.
07
Fix the Subnado leg mount to the outside of the leg. Install the main unit to
the leg mount through the quick release part.
Note:Please use the specially designed straps for the leg mount.
Subnado Leg Mount
Fasten the belt around the waist. Pass the straps on both sides of the waist belt
through the holes above the leg mount, and then fix them with nylon straps.
Waist belt
Install the cylinder bracket on the oxygen cylinder, and the maint unit can be
installed on the cylinder bracket through the quick release part.
Cylinder bracket
Tear off the sticker on the board bracket and glue it to the bottom of
the board (such as a surfboard). Install the main unit to the pulp
board bracket through quick-release part.
Board bracket
