Neu-X300-H310/Q370 Quick Reference Guide
1
33
74
M2M
1 75
All manuals and user guides at all-guides.com

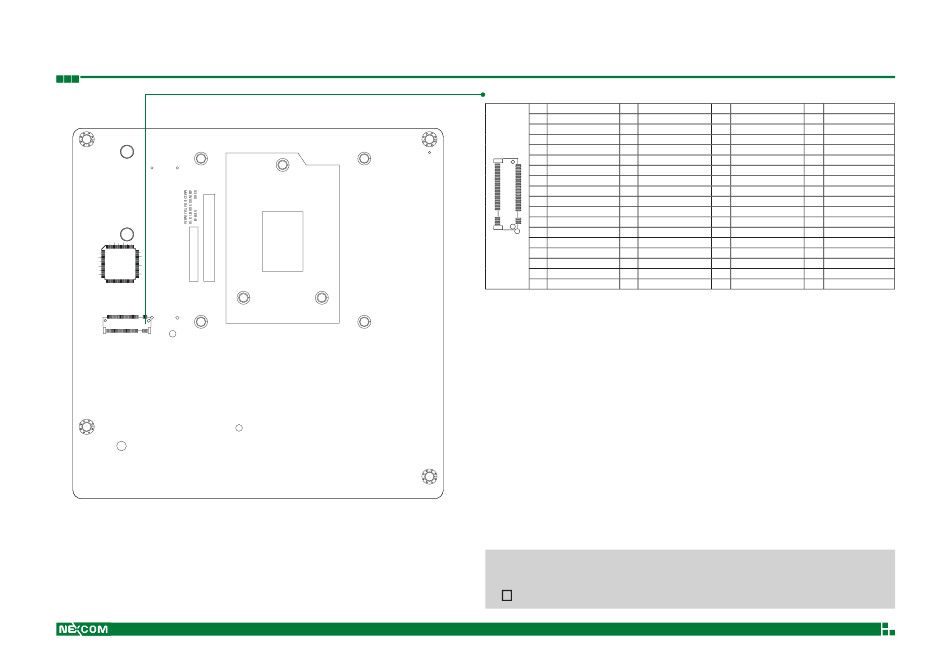

M2M (2280_2242_M2M)
Pin
01
02
03
04
05
1
06
07
08
09
10
74
11
75
12
13
14
15
16
17
Quick reference guide is subject to change without prior notice. For any update,
please visit our website: www.nexcom.com
=Pin1
Function Pin Function Pin
GND 18 +3VSB 35
+3VSB 19 PCIE3_RXP 36
GND 20 NC 37
+3VSB 21 GND 38
PCIE4_RXN 22 NC 39
NC 23 PCIE3_RXN 40
PCIE4_RXP 24 NC 41
NC 25 PCIE3_RXP 42
GND 26 NC 43
M2M_LED# 27 GND 44
PCIE4_RXN 28 NC 45
+3VSB 29 PCIE2_RXN 46
PCIE4_RXP 30 NC 47
+3VSB 31 PCIE2_RXP 48
GND 32 NC 49
+3VSB 33 GND 50
PCIE3_RXN 34 NC 51
[ * ]=Default setting
Ver A.
Function Pin Function
PCIE2_RXN 52 CLKREQ#
NC 53 CLK_PCIEN
PCIE2_RXP 54 WAKE#
DEVSLP 55 CLK_PCIEP
GND 56 NC
NC 57 GND
SATA_RXP(PCIE1_RXP) 58 NC
NC 67 NC
SATA_RXN(PCIE1_RXN) 68 NC
NC 69 M2M_PEDET
GND 70 +3VSB
NC 71 GND
SATA_TXN(PCIE1_TXN) 72 +3VSB
NC 73 GND
SATA_TXP(PCIE1_TXP) 74 +3VSB
RESET# 75 GND
GND
