High Low Manual Flex

USER MANUAL

High Low Manual Flex Table

Child Stationary

Stationary

Pump Control Elevation

Electric Elevation

Manual Flex

Automatic Flex

Automatic Manual Flex

High Low

High Low & Elevation

High Low Flex

22 John Street

Hagersville, Ontario

Canada

Serial Number

NOA-1H0

Model

HILO-FLEX

1-800-689-4730

www.elite-chirotables.com

Date

Therapy / Massage

Table of Contents

Need help?

Do you have a question about the HILO-FLEX and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite HILO-FLEX

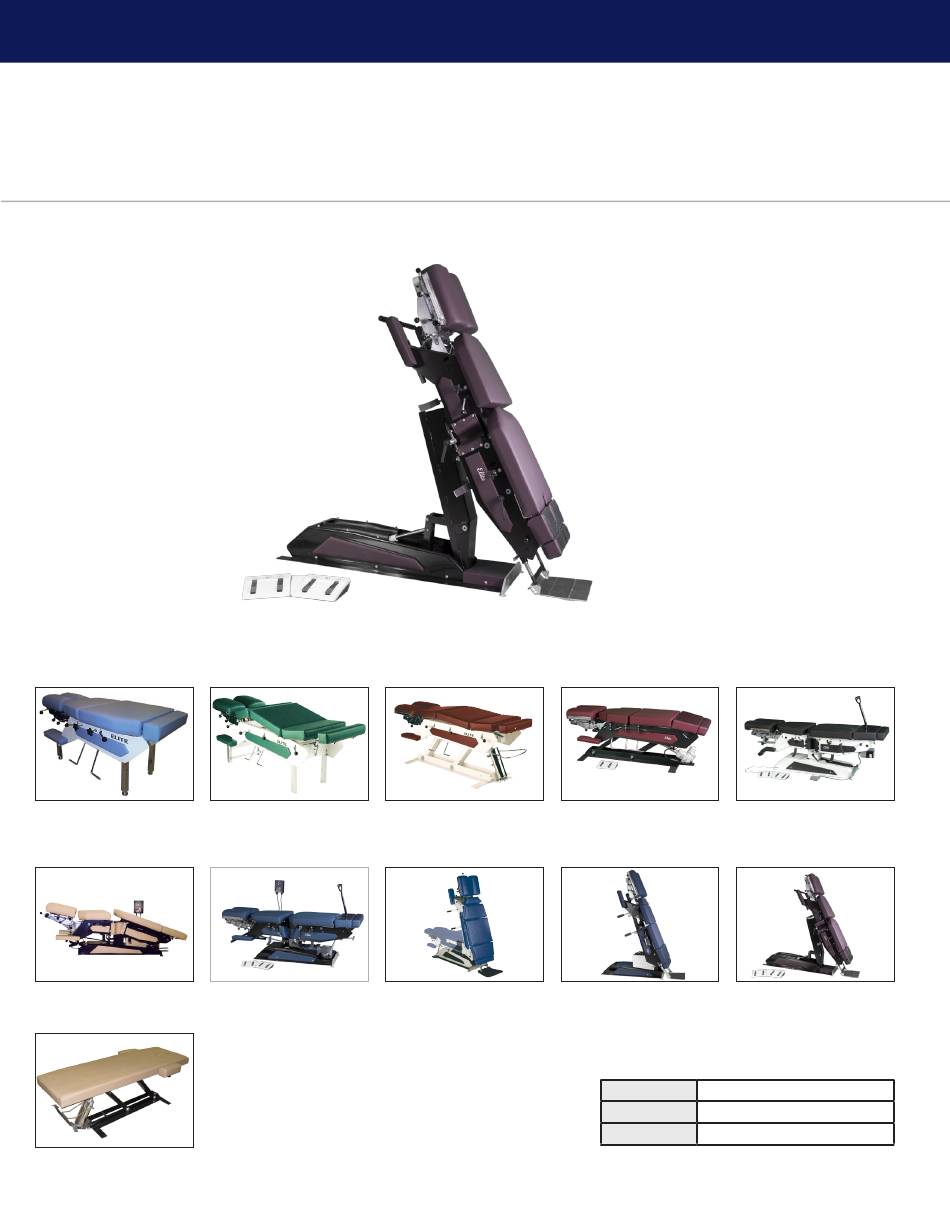

Page 1 Child Stationary Stationary Pump Control Elevation Electric Elevation Manual Flex Automatic Flex Automatic Manual Flex High Low High Low & Elevation High Low Flex 22 John Street Hagersville, Ontario Canada Serial Number NOA-1H0 Model HILO-FLEX 1-800-689-4730 www.elite-chirotables.com Date Therapy / Massage...
Page 3: Table Of Contents
Contents TABLE OF CONTENTS | Safety Instructions Important Notice Electrical Safety Instructions Drops & Cushions Drops Elevate Cushion & Ankle Rest Headpiece Standard Headpiece Headpiece - Adjusting the Position Headpiece Optional Dual Drop - How to use the Toggle Drop Headpiece Optional Dual Drop - How to use the Forward Motion Drop HP-Flex Headpiece HP-Flex-L Headpiece...
Page 4 | TABLE OF CONTENTS Warranty Return Policy...
Page 5: Safety Instructions
Electrical Safety Instructions Please study the Safety Instructions and all Operating In- structions in this manual before operating your new ELITE table. Failure to follow these instructions may result in injury If your table is equipped with an electric motor, connect the to you or your patient.
Page 6: Drops & Cushions
Drops & Cushions For controls on the main portion of the table, headpiece excluded. Elevate Cushion & Ankle Rest Drops Elevation of the cushion or ankle rest sections is achieved by Drop tension is adjusted by turning the drop tension adjust placing fingers beneath cushion frame and lifting to desired knob.
Page 7: Headpiece
Headpiece Elite tables can be ordered with a variety of different head- rests. Standard Headpiece Paper Cutter Use the Paper Cutter to cleanly tear/cut the headrest Our standard multidirectional headpiece includes tilt, eleva- paper. tion and spread. The headpiece also contains a cervical drop either forward motion oriented or straight down motion.
Page 8: Headpiece - Adjusting The Position
Headpiece - Adjusting the Position The following illustrates the various position adjustments for the standard headpiece. 1. Neutral Position 2. Push knob in 3. Tilt down 4. Headpiece tilted down 5. Grasp bar and tilt up 6. Headpiece tilted up 7.
Page 9: Headpiece Optional Dual Drop - How To Use The Toggle Drop
Headpiece Optional Dual Drop - How to use the Toggle Drop Our optional dual drop headpiece has both forward motion oriented and straight down motion. The following illustrates how to perform a toggle drop. Toggle Drop (Straight) - Start To perform a forward motion drop follow these steps. Adjust the drop tension to desired setting.
Page 10 Toggle Drop - Deploying the drop Once the drop has been cocked push in a forward motion and the drop will release. Toggle Drop - Deployed Drop Headpiece will drop to the un-cocked position.
Page 11: Headpiece Optional Dual Drop - How To Use The Forward Motion Drop
Headpiece Optional Dual Drop - How to use the Forward Motion Drop The following illustrates how to perform a forward motion drop. Forward Motion Drop - Start To perform a forward motion drop follow these steps. Adjust the drop tension to desired setting. Turn knob clockwise to increase drop tension and counter clock wise to decrease tension.
Page 12 Forward Motion Drop - Cocking Lever Next Grasp the forward motion drop cocking lever. Forward Motion Drop -Cocking the Drop Push the lever forward to cock the drop. Forward Motion Drop - Deploying the drop Once the drop has been cocked push in a forward motion and the drop will release.
Page 13: Hp-Flex Headpiece
HP-Flex Headpiece Our new flexion/distraction headpiece includes all the features of our standard multidirectional headpiece includ- ing flexion motions (long axis traction and flexion). In the illustrations to follow the flex handle has been removed to simplify the diagrams. In practice to use the flexion features the flex handle must be inserted into the flexion headpiece.
Page 14: Hp-Flex-L Headpiece
10 | HP-Flex-L Headpiece Installing the Paper Roller Our flexion/distraction and long axis traction headpiece The following illustrates how to install the paper roller on the includes all the features of our standard multidirectional headrest. headpiece and the HP-Flex headpiece and also includes lateral flexion.
Page 15: Thoracic Breakaway
Thoracic Breakaway Elite tables can be ordered with an optional breakaway thoracic section. The Illustration shows a breakaway with optional drop in breakaway. Thoracic Breakaway - How to release the breakaway The following illustrates how to use the thoracic breakaway.
Page 16 12 | Breakaway -Released Once the release knob has been pushed forward the break- away will be released. Breakaway - Testing the breakaway Shown here the breakaway in action.
Page 17: Thoracic Breakaway - How To Use The Drop
Thoracic Breakaway - How to use the drop The following illustrates how to use the optional drop in the thoracic breakaway. Breakaway - Lock the Breakaway Push the breakaway release knob towards the back of the table to lock the breakaway. Once locked the cushion will not breakaway and will be ready to perform drops.
Page 18 14 | Breakaway - Drop Cocked Shown here is the drop in the cocked position Breakaway - Deploying the drop Once the drop has been cocked push in a downward mo- tion and the drop will release. Breakaway - Deployed Drop The thoracic cushion will drop to the un-cocked position.

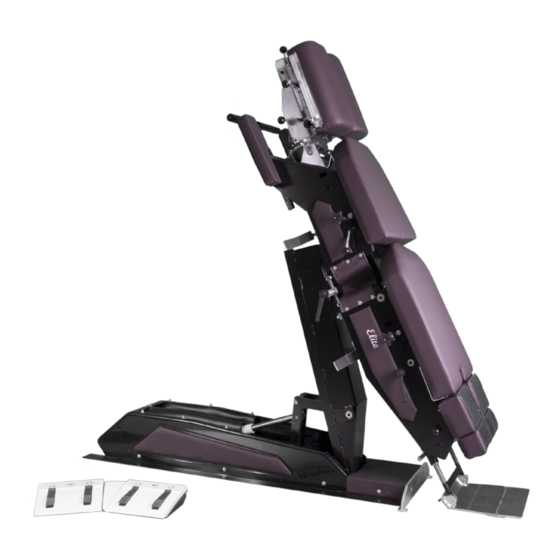

Page 19 Table Overview Table shown in HiLo upright position The High Low Manual Flexion table is shown here in the upright position with the optional distraction feature. The foot switch is used to control the HiLo operation of the table as well as the optional distraction feature. Flexion Lock Lever - Vertical Drop Tension Control Rotate clockwise to lock, counter...
Page 20: Manual Flexion Function - Step By Step
16 | Manual Flexion Function - Step By Step The following illustrates the steps used to perform manual flexion. The flexion tension can be set at the rear of the table by a crank or if your table as the optional electric tension adjustment then you can use a foot pedal to adjust the tension. 1.
Page 21 | 17 Table Elevation (optional) Table Lateral Flex If your table is equipped with the table elevation feature then Your table is able to flex laterally at the front and back of the you are able to control the height of the table with the tap of table.
Page 22: Installing Flex Straps
18 | Table Distraction (optional) Installing Flex Straps If your table is equipped with the electrical distraction then Flex straps are clipped into the loops under the cushions as you can distract the rear of the table. shown in the following illustration. Table Distracted Table Not in Distracted Position...
Page 23: Part List
| 19 Table Maintenance & Support ELITE Chiropractic tables have been called “The Work- house of the Industry” and while we stand behind the superior function and low maintenance needs of each model, replacement parts are available should they be required.
Page 24 20 | Table Specifications...
Page 25: Maintenance & Care Tips
When you apply upward force the headrest should in the illustrations bellow. You will need this number when not move making inquires to ELITE customer support. The person lifting from the back of the table should lift hold- ing onto the handles as shown bellow.
Page 26 22 | Drop Maintenance...
Page 27: Control Box Fuse Replacement
You can now try us- ing your table again to see if it has resolved the problem. NOTE: If you have already used the spares fuses previous- ly then you will have to contact ELITE to order new fuses.
Page 28 ELITE MANUFACTURING Division of 1180396 Ontario Inc. If notice of claim is made within the warranty period, Elite 1. Any order placed with us but cancelled in writing Manufacturing will repair or replace, at its option, the prod- prior to shipping by us will be given a full credit uct or part which is defective.
