Pollard 506 High Truck Assembly Instructions

www.pollardbros.com

Includes:

(3) Trays (4) Uprights
48
x
1/4" x 5/8" Round Head
Machine Screw
16
x
3/8" x 3/4" Hex Head
Machine Screw

Steps:

1
Place bottom tray down on a at surface lips
down. Note: Bottom Tray will be pierced for
casters. Allign (2) Stationary Casters with holes
on one end of the bottom tray, and attach with
(8) ⁄ " x ¾" Hex Head Machine Screws, ⁄ " Lock
Washers, and ⁄ " Hex Nuts. Repeat with remain-
ing (2) Swivel Casters and (8) ⁄ " x ¾" Hex Head
Machine Screws, ⁄ " Lock Washers, and ⁄ " Hex
Nuts on the opposite end.
2
Turn Tray and Casters over. Attach uprights to
the outside of the tray, matching the four holes
on the upright and tray. Secure with (16) 1/4" x
5/8" Round Head Machine Screws, 1/4" Hex Nuts
and 1/4" Lock Washers. HAND TIGHTEN ONLY.
Assembly Instructions

Tools Needed:

wrench at head screwdriver
(2) 5" Polyurethane Stationary Casters (2) 5" Polyurethane Swivel Casters
48
16
x
3/8" Lock Washer

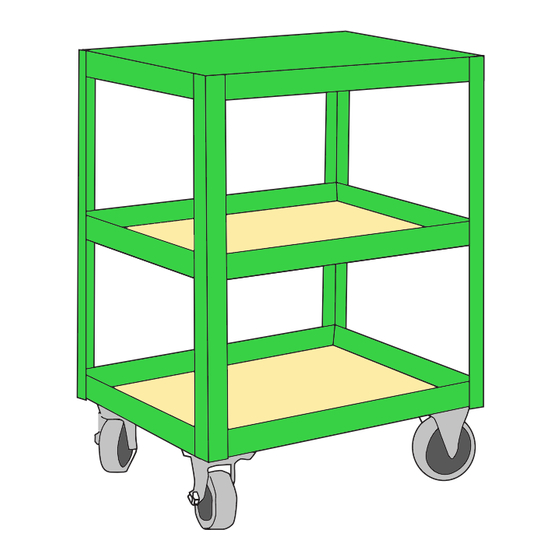

506 High Truck
x
1/4" Lock Washer
48
x
1/4" Hex Nut
16
x
3/8" Hex Nut
