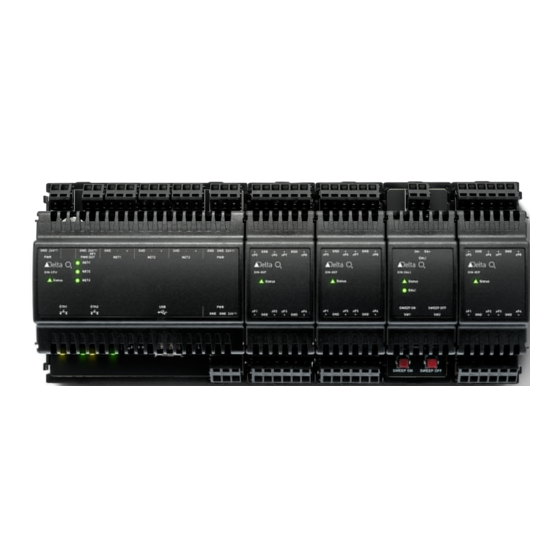

Red5-PLUS/EDGE-6xx
Quick Start Guide
This guide describes how to install and configure a Red5-PLUS/EDGE-6xx controller. If you are using the
Proviso™ App, you will need an Android or iOS device with Proviso installed. Download the app for free from
Google Play or the App Store.
Installation
Follow all applicable electrical codes and regulations. Connect to a Class 2 power source only.
Wiring guidelines
The Red5 requires a 24 VDC/VAC power supply.
• For power and I/O wiring, use 18 AWG 2-conductor copper wire.
• For network cabling, use Cat5e or Cat6 cables.
Ground all devices according to Delta Controls Wiring and Installation Guidelines.
Up to 30 devices can be daisy chained using the ETH1 and ETH2 ports as long as the distance between the
devices does not exceed 100 m (330 ft). A bypass switch allows the devices to relay data in a power failure
scenario.
However, the maximum cable length is reduced by 15 m (50 ft) for each bypassed device.
Mounting the Red5
1. The Red5 comes in a plastic enclosure that is designed to be installed onto a 35 mm × 7.5 mm top-hat DIN
rail.
2. Mount the Red5in an appropriate location within packaged equipment or within another enclosure that
meets code requirements. Alternatively, the controller can be mounted with four screws (without using
DIN rail) via the 4 holes provided on the mounting clips.
Setup
Connecting to the Red5
There are three ways to connect your Red5:
• Proviso App
• Embedded Web Server
• enteliWEB
Proviso App
To set up the Red5 using the Proviso app, you must have Bluetooth
mobile device . For best performance, your device should support Bluetooth Low Energy (BLE) version 5.0 or
later.
1. Open the Proviso app and select Bluetooth for your connectivity method. Select a device to initiate a
connection. Nearby devices are listed by their Bluetooth MAC address.
2. A pairing request dialog displays. Select Pair.
3. Select Yes, Connect. You can now view device information in the Diagnostics tab.
© 2022 Delta Controls Inc.
and location services enabled on your
®
December 2022
