The DRP-T0B is used to interface to systems that do not
utilize a front-end system to display and configure information
and objects. This controller can be used to view object and
system status, edit and configure objects that are setup in a
menu structure. Different menu structures can be created
relative to password privileges as well as system options such
as Set Time and Date or Reset.
This controller only communicates on LINKnet and has no I/O
other than the onboard temperature sensor. Programming for
equipment is done through GCL+ and programming for the
DRP-T0B is done with MN (Menu) objects. This is done
through the System controller that the DRP-T0B is connected
to.
Important Information
The DRP-T0B is only supported on System level controllers with 16 Mb of flash memory.
The DRP-T0B will only work with firmware version 3.33 Release 2 and higher.
ORCAview OWS and controller firmware must all be of the same version number (i.e. 3.33) to
be compatible. When upgrading any of these products from older versions (i.e. 3.22 or 3.30),
you must upgrade all the remaining products.
Package Contents
Product: DRP-T0B (Rev 8.6)
DRP-T0B (Rev 8.6) Installation Guide
Two pin connector (AMP643817-2) 18 gauge (orange color)
Two pin connector (AMP643820-2) 24 gauge (white color) for RS-485 connection
2 #6 x 1" screws
1 Service Tool cable
Related Documents
Delta Controls Wiring Guidelines
ORCAview Operator Guide
ORCAview Technical Reference Manual
I
NSTALLATION
DRP-T0B Rev 8.6 Installation Guide
G
UIDE
Document Edition 1.3
Document Edition 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRP-T0B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Controls DRP-T0B

Summary of Contents for Delta Controls DRP-T0B

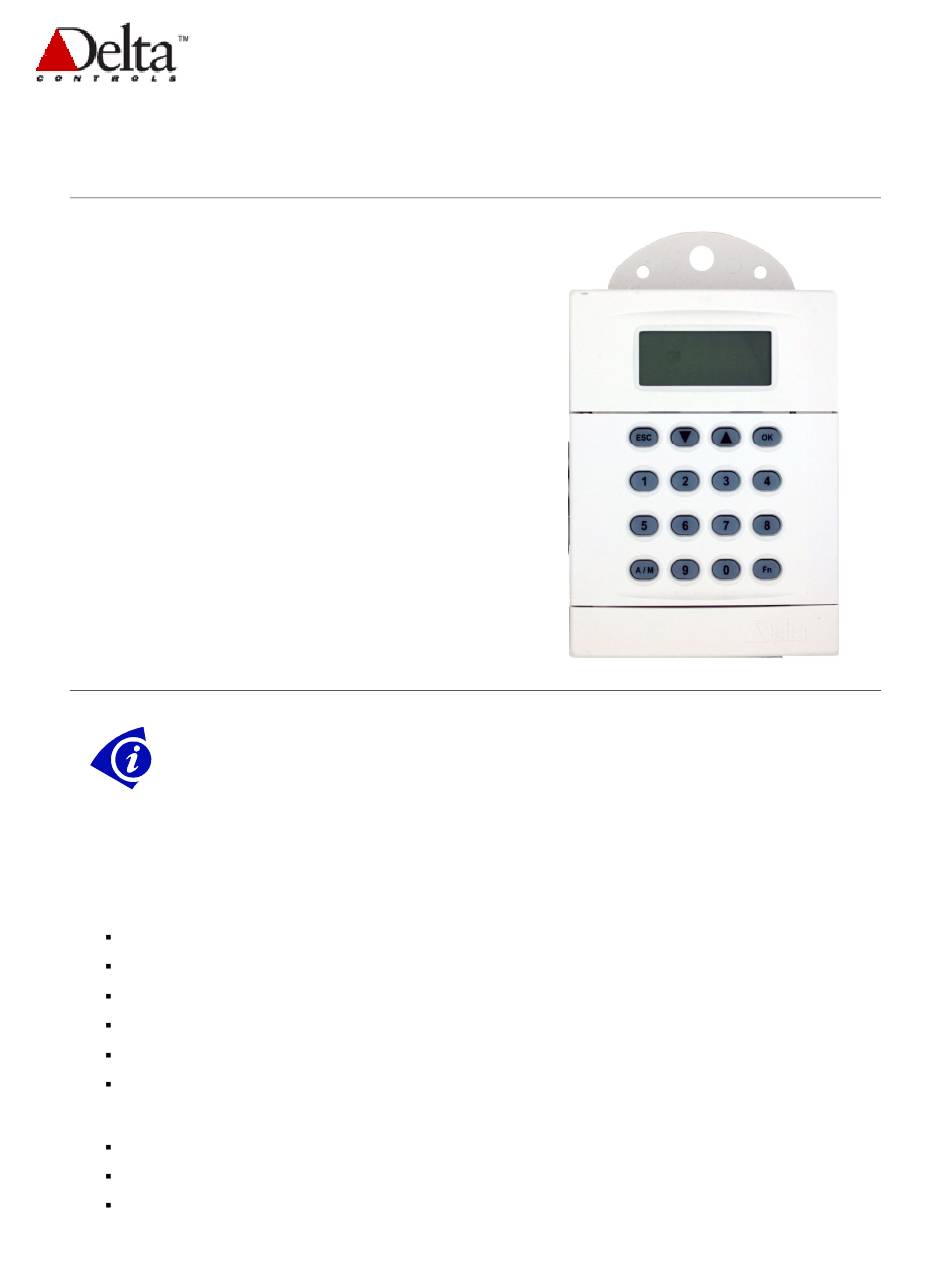

  • Page 1 System controller that the DRP-T0B is connected Important Information The DRP-T0B is only supported on System level controllers with 16 Mb of flash memory. The DRP-T0B will only work with firmware version 3.33 Release 2 and higher. ORCAview OWS and controller firmware must all be of the same version number (i.e. 3.33) to be compatible.
  • Page 2 Delta Controls Release Notes for related Firmware Required Tools AMP Tool (Part Number DTT970) Wire Cutter Phillips screwdriver Cautions or Warnings This controller is an Electro-statically sensitive device. Proper ESD protection (ground strap) should be used when installing this product so that damage to the product does not occur.
  • Page 3 Document Edition 1.3 Mounting The DRP-T0B is housed in a plastic enclosure with a removable back piece. It can be mounted on a standard North American 1110 electrical box as well as some standard international electrical boxes. This controller also comes equipped with a snap on back plate that can be used for quick mounting to any surface or used for handheld operation.
  • Page 4 Delta Controls The back piece can be mounted to an appropriate electrical box, cabinet or wall. The diagram below shows the base with the wiring opening and mounting holes above, below and on either side of the opening There are also mounting holes on each corner of the back plate.

  • Page 5: Board Layout

    Document Edition 1.3 Board Layout Page 5 of 12...

  • Page 6: Wiring General

    Delta Controls Wiring General All wiring must conform to NEC and local codes and regulations. Use earth ground isolating step-down Class 2 transformers. Do not use autotransformers. Determine supply transformer rating by summing total VA of product and output loads.

  • Page 7: Network Communication

    NET2 the supplied Service Tool Cable cannot be used. The controller must be hardwired with the connections in the back on the controller. If using an Ethernet DSC the DRP-T0B can be connected to the DSC with the supplied Service Tool Cable.
  • Page 8 Delta Controls The following diagram shows the network configuration when using a non Ethernet DSC. Page 8 of 12...
  • Page 9 Document Edition 1.3 Using the AMP Tool Insert the AMP connector into the cartridge of the AMP tool as shown. The AMP connector and tool cartridge are keyed so that it can only be inserted one way, with the wire connections pointing toward the handle of the tool.

  • Page 10: Product Specifications

    Delta Controls Indicators Function Description Scan CPU Scan Indicator This red LED flashes at a rate relative to the CPU scan rate. Network MS/TP (RS485) The green LED flashes to indicate when the controller is (NET1) Communication transmitting out the port, and the red LED flashes to indicate when Status Indicators the controller is receiving data through the port.

  • Page 11: Ce Declaration Of Conformity

    Document Edition 1.3 CE - DECLARATION OF CONFORMITY According to ISO/IEC Guide 22 and EN 45014 Manufacturer's Name: Delta Controls Manufacturer's Address: 17850 56 Avenue Surrey, British Columbia Canada V3S 1C7 Declares that the product (s): Product Name: Room Controller...
  • Page 12 Delta Controls FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
