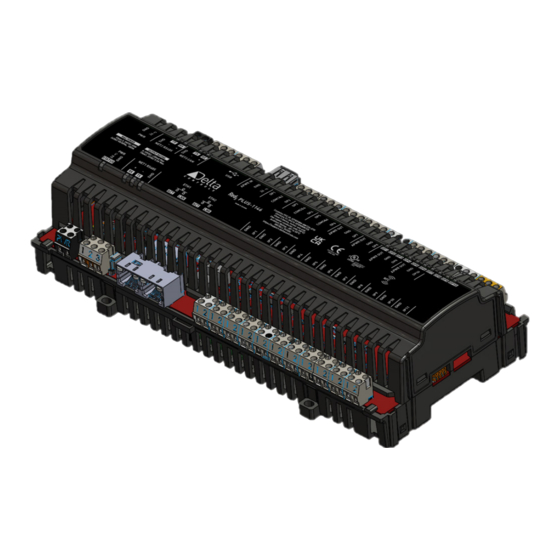

Red5-PLUS/EDGE-11xx
Quick Start Guide
This guide describes how to install and configure a Red5-PLUS/EDGE-11xx controller. If you are using the
Proviso™ App, you will need an Android or iOS device with Proviso installed. Download the app for free from
Google Play or the App Store.
Installation
Follow all applicable electrical codes and regulations. Connect to a Class 2 power source only.

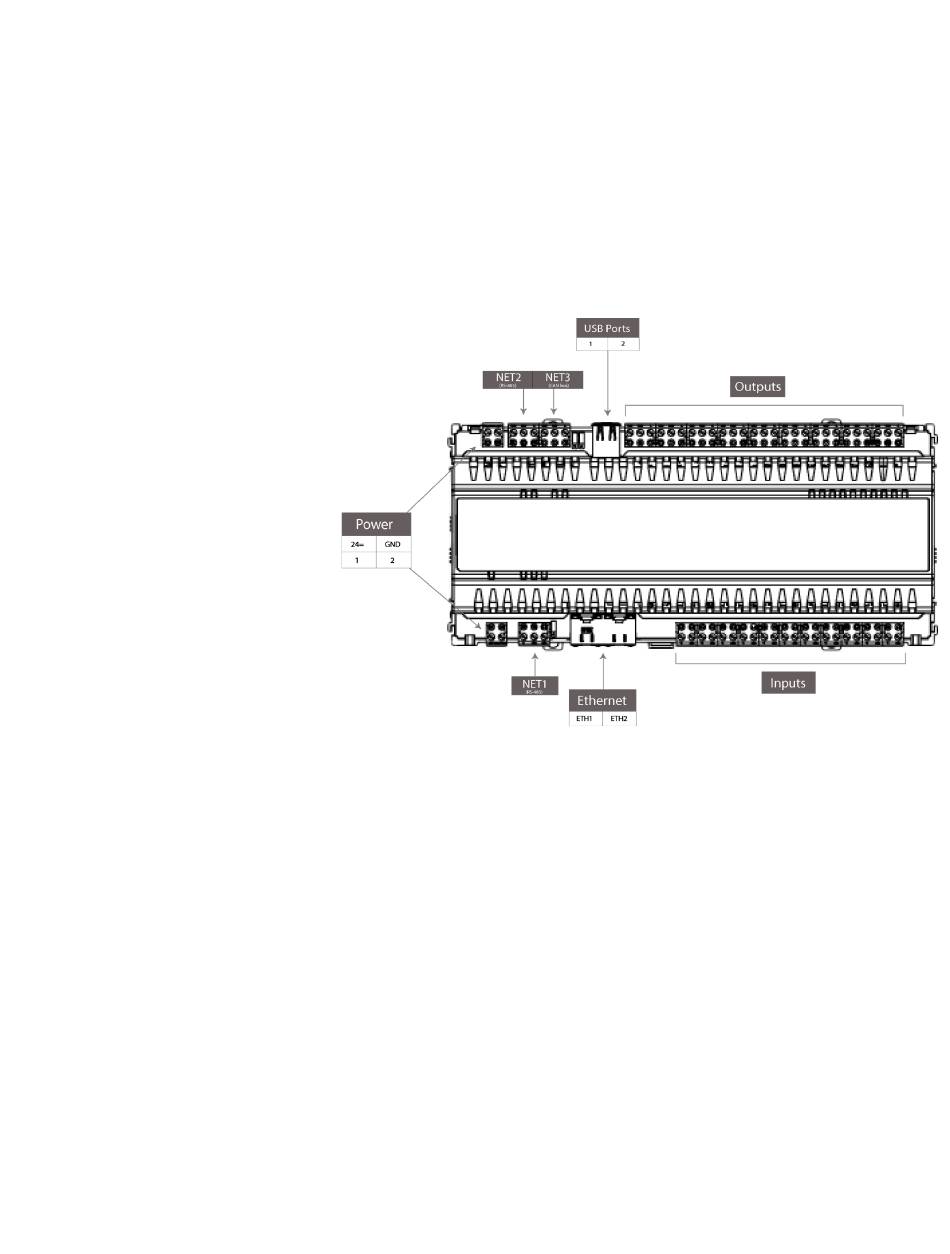

Wiring guidelines
The Red5 requires a 24 VDC/VAC
power supply.
• For power and I/O wiring, use 18
AWG 2-conductor copper wire.
• For network cabling, use Cat5e
or Cat6 cables.
Ground all devices according to Delta Controls
Wiring and Installation Guidelines.
Red5-EDGE-11xx models only: Up to 30
devices can be daisy chained using the ETH1 and
ETH2 ports as long as the distance between the
devices does not exceed 100 m (330 ft). A bypass
switch allows the devices to relay data in a
power failure scenario. However, the maximum
cable length is reduced by 15 m (50 ft) for each
bypassed device.
Mounting the Red5
1. The Red5 comes in a plastic enclosure that is designed to be installed onto a 35 mm × 7.5 mm top-hat DIN
rail.
2. Mount the Red5 in an appropriate location within packaged equipment or within another enclosure that
meets code requirements. Alternatively, the controller can be mounted with four screws (without using
DIN rail) via the 4 holes provided on the mounting clips.
Setup
Connecting to the Red5
There are three ways to connect to your Red5:
• Proviso App
• Embedded Web Server
• enteliWEB
© 2023 Delta Controls Inc.
January 2023
