Refer to the Assembly Guide to assemble and install your Traeger® Grill.

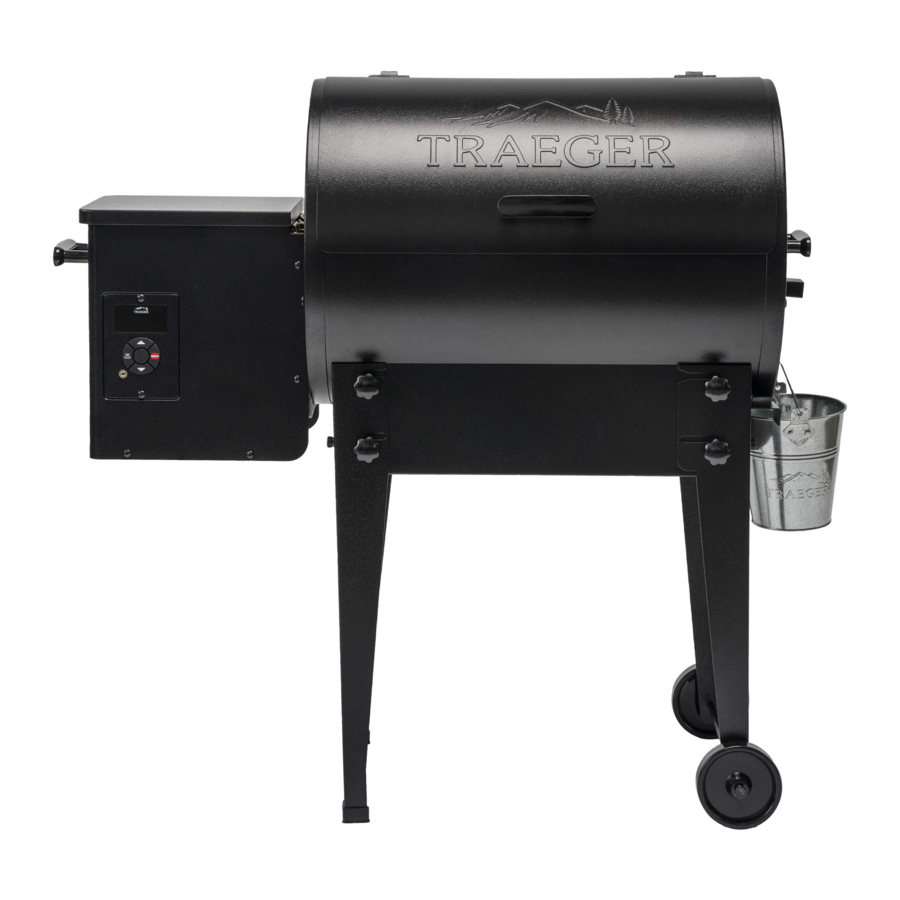

GRILL PARTS AND FEATURES
Part | Description | Part | Description |
1 | Grill Door Handle | 11 | Axle |
2 | Grill Door | 12 | Wheels |
3 | Grill Body | 13 | Wheeled Legs |
4 | Pellet Hopper Lid | 14 | Side Lift Handle |
5 | Side Lift Handle | 15 | Grease Bucket |
6 | Pellet Hopper (Auger located inside) | 16 | Heat Baffle |
7 | Main Power Switch (on back of Pellet Hopper) | 17 | Grease Drip Tray |
8 | Digital Arc Controller | 18 | Porcelain-Coated Grill Grate |
9 | Stationary Legs | 19 | Meat Probe |
10 | Rubber Feet |
An 8-pound (3.6 kg) capacity pellet hopper will keep you cooking for hours. Pair that with Traeger's Digital Arc Controller and delicious food is just a "click" away.
With 300 in. 2 (0.19 m 2 ) of grilling space, your Traeger® Grill has the real estate for party-sized orders of T-bones or racks of ribs.
Traeger's signature barrel shape creates a vortex of convection. It circulates hot, smoky air around the cooking chamber, surrounding your food with wood-fired heat for even cooking on all sides.
You don't have to worry about drippings flaring up and causing nasty fireballs that destroy your meal because Traeger® Wood Fired Grills cook by using indirect heat. Most drippings are safely channeled into an external grease bucket for easy disposal. TIP: Take care of your Traeger® Grill by using a new Traeger drip tray liner before each cook to help keep your grill clean.
Keep your grill clean. See "Operating Tips" and "Maintaining Your Grill".
YOUR CONTROL PANEL AND DISPLAY
Your Traeger® Grill is equipped with a Digital Arc Controller. Before you begin using the grill, it will be helpful to familiarize yourself with the different features of the control panel.
DIGITAL ARC CONTROLLER GUIDE
KEEP WARM FUNCTION
Keep Warm can be used to pause the cook cycle at any time during grilling. Simply press "Keep Warm" again to resume cooking. Keep Warm maintains the grill temperature at 165°F (74°C).
PRESS AND HOLD FUNCTIONS
NOTE: For the following, when the grill is in Standby mode, press and hold the buttons indicated for 2 seconds.
PRIME THE AUGER
"Pri" will flash on the display, and the auger will prime for 30 seconds. Repeat to cancel.
GRILL SHUTDOWN
"OFF" will flash on the display nine times. Grill will display "COOL DN" for 15 minutes as it cools down.
To cancel, repeat while "OFF" is flashing.
CHANGE BETWEEN °F/°C
Grill will change the display between °F and °C.
DISPLAY FIRMWARE
Firmware will scroll across the display.
NOTE: The letter "v" will display as "u."
TO BE USED ON INITIAL FIRING ONLY. In order to ensure proper and safe operation of the grill, follow the instructions below, first, to prime the auger ("charge" the auger tube with pellets) and, second, to season your grill (run your grill at a high temperature).
To confirm that pellets have reached the firepot, simply check to see that they are moving from the auger tube into the firepot. You only need a few pellets in the firepot to properly ignite your grill and begin the seasoning process.
RECOMMENDATION: For easy cleanup, line the grease drip tray with Traeger® Aluminum Drip Tray Liners or heavy-duty aluminum foil. If using foil, be sure the edges and ends of the foil are tight against the bottom of the grease drip tray. Replace foil after each cook to reduce the possibility of a grease fire. Please see "Maintaining Your Grill" for more details.
CONTROLLER SHUT-DOWN CYCLE
Always allow the shut-down cycle to completely finish before powering off your grill at the main power switch. The shut-down cycle ensures the fire is suppressed and the grill ignites properly on the next use.
Turning off the main power switch will cut power to the grill components only. When servicing the controller or any other parts, ensure that the power supply is disconnected to avoid an electrical shock hazard.
NOTES:
YOU WILL NEED TO BEGIN WITH THESE STEPS EVERY TIME YOU USE YOUR GRILL.
PRE-GRILLING CHECKLIST
YOU WILL NEED TO BEGIN WITH THESE STEPS EVERY TIME YOU USE YOUR GRILL.
IN CASE OF FIRE:
With regular maintenance and cleaning of your Traeger® Grill, a grease fire is unlikely. In the unlikely event of fire, immediately turn the grill OFF (O) and leave the grill door closed until the fire is out. Do not unplug the power cord. Do not throw water on the unit. Do not try to smother the fire. With the grill door closed, the fire will be starved of oxygen and burn itself out. If an uncontrolled fire does occur, call the Fire Department.
COOKING WITH THE MEAT PROBE
Use this method when your recipe specifies an internal goal temperature for your food.
Insert the meat probe's plug into the jack on the lower left corner of the controller, then thread probe through the access hole grommet on the left side of the grill barrel, as shown.
Insert the probe tip into the thickest part of the meat—not in the fatty portion or touching bone. The probe needs to be in the meat at least 2" (5.1 cm). This probe may not be suitable if you can't insert the probe into the thickest part of the meat and 2" (5.1 cm) inches into the meat.
Reading the temperature: Press the center button on the control. The probe temperature will display for 5 seconds, then revert back to the temperature of the grill. After removing your food from the grill, always use a meat thermometer to confirm that you have actually achieved the target internal meat temperature.
Consuming raw or undercooked meats, poultry, seafood, shellfish, or eggs may increase your risk of foodborne illness.
MEAT TEMPERATURE RECOMMENDATIONS
Range | Beef | Lamb | Pork | Poultry |
Well | 170°F (77°C) | 160°F (71°C) | 170°F (77°C) | 170°F (77°C) |
Medium | 160°F (71°C) | 155°F (68°C) | 160°F (71°C) | 170°F (77°C) |
Medium Rare | 145°F (63°C) | 145°F (63°C) | 170°F (77°C) | |
Rare | 135°F (57°C) | 170°F (77°C) |
REIGNITING YOUR GRILL
If at any time the grill fails to light, or the fire in the firepot goes out while cooking or smoking and there are sufficient pellets in the pellet hopper, it is important that you follow these steps. Failure to do so may cause a hazardous "over-firing" of your grill due to an excess of unburned pellets in the firepot.
IDLE MODE
Throughout this manual, you will be instructed to perform some actions while the grill is in Idle mode. When the grill is in Idle mode, the display's dashed border will pulse to indicate it is not actively operating and is awaiting a command. The grill automatically enters Idle mode when you first turn it on.
TIMER
Your Traeger® Grill comes equipped with a timer. The timer function does not impact grill operation; you can use it to notify you of other needed steps during cooking, such as loading vegetables or other shorter time cooks into the grill or basting your food. NOTE: When adjusting time, press and hold the "Up" or "Down" button to advance the time rapidly.
To set the Timer:
To cancel the Timer:
To adjust the Timer:
KEEP WARM FUNCTION
Keep Warm can be used to pause the cook cycle at any time during grilling. Press "Keep Warm" to activate the function and maintain the grill temperature at 165°F (74°C). Press "Keep Warm" again to resume cooking.
FOLDING LEGS
The Traeger® Tailgater Grill legs can be folded up for storage and easier transport.
Do not cook on a flammable surface with the legs folded up. High temperatures can make surfaces discolor or warp because of heat transfer on the bottom of the grill. NOTE: Remove the porcelain-coated grill grate, grease drip tray, and heat baffle to avoid scratching the interior of the grill when folding the legs.
To Fold Up the Legs:
Fire Hazard: Grease fires are most frequently caused by failing to properly maintain the grill by not cleaning the grease from the unit on a consistent basis.
Turn the main power switch on back of the grill hopper OFF (O) and disconnect the power cord before initiating any of the maintenance below.
Following are frequently asked questions along with their answers:
QUESTION | ANSWER |
Why won't my grill power on? | Verify power at the electrical outlet. If the power cord is connected to a GFCI (ground fault circuit interrupter), check and reset if necessary. (Note that a GFCI outlet may be located in a nearby outlet on the same electrical branch circuit.) Initiate start-up. If no ignition, see next answer. Check power supply cord. Check your extension cord. |
Why won't my grill ignite? | Verify that you have properly maintained your grill as described in "Maintaining Your Grill" and there is not excessive ash in your firepot. |
Verify that there are pellets in the pellet hopper and that the auger has been primed. Verify that pellets are reaching the firepot. If this is the initial firing or the grill has run out of pellets, allow enough time for the pellets to travel from the pellet hopper to the firepot (can take up to 7 minutes). | |
If there are no pellets in your firepot, initiate start-up. See "Using Your Grill". If there are still no pellets in the firepot, proceed to next answer. | |
Check the draft inducer fan and the auger drive motor for operation. If both are operating, then the hot rod needs to be replaced. If one or both are not operating, contact Traeger's customer service for additional troubleshooting help or to place an order. | |
Why are no | Confirm there are pellets in the pellet hopper. |
If you have pellets and they aren't being delivered, check controller screen for error message and contact customer service. | |
If the auger drive motor is operating (check the small fan blade on the back of the motor), the problem is in the digital control, which will need to be replaced. Contact your Traeger dealer or Traeger's customer service to place an order. | |
If the auger drive motor is not operating but the draft inducer fan is operating, then the problem is in the auger system, which will need to be checked. With the main power switch OFF (O), locate the small fan blade on the back of the auger drive motor. While watching the fan blade, turn the main power switch ON (I). If the fan blade does not turn, turn the main power switch OFF (O). This indicates a defective auger drive motor, and it will need to be replaced. Contact your Traeger dealer or Traeger's customer service to place an order. If the fan blade turns a bit and then stops, continue watching and turn the main power switch OFF (O). If the fan blade unwinds slightly, this indicates a jam in the auger system, which will need to be cleared. Turn the main power switch OFF (O) and disconnect the power cord. Remove the pellets from the pellet hopper. Check for foreign objects and wet or decomposed pellets, both of which can cause a jam in the auger system. The auger will need to be removed to clear a jam in the auger system. See "How do I remove the auger if it jams?" | |
Why is the temperature of my grill fluctuating? | Temperature fluctuations are normal for Traeger® Grills. Any significant fluctuation could be the result of wind, air temperature, improper start-up procedure, improper use, or lack of grill maintenance. |
How do I remove the auger if it jams? | First, let the grill cool completely to prevent a fire. Remove any covers necessary to access the auger drive motor. Remove the pin connecting the auger drive motor shaft to the auger shaft and the screw retaining the auger bushing into the auger tube. With a small pipe wrench or locking pliers on the auger shaft, turn the auger counterclockwise. It will turn hard until it breaks free; then the auger will turn freely. Remove the auger and clean all pellets, ash, or foreign objects from the auger, auger tube, and firepot. (See instructions for proper handling and disposal of ash.) Sand the outside surfaces of the auger with medium grit sandpaper. Check the inside of the auger tube and sand it if needed. Vacuum the sanding grit out of the auger tube and firepot when finished. Check that the auger rotates freely. Reattach the auger shaft to the auger drive motor shaft. |
How do I protect my paint finish? | Use a protective cover on the grill to protect your paint finish and power cord. A Traeger® Grill Cover is highly recommended. Grill covers are available from your Traeger dealer, or log onto our website, traeger.com. |
Every 90 days, thoroughly clean the outside of your grill with Traeger® All Natural Cleaner. | |
Is it ok to use my grill in the rain (and snow)? | Your grill can be used in a light rain or light snow; but it is an electrical appliance, so take extra precautions to be sure that the power cord and any extension cord are properly joined and the junction of the power cord and the extension cord is positioned so that it is clear of any standing water and snow. |
Where can I get a new part for my grill? | Contact Traeger's customer service to place an order. Many parts are available on our website at traeger.com. |
Be prepared with your grill's model and serial number (located on the label inside the hopper lid) to accurately identify the necessary part for your specific model. |
Although rare, you may see an error or warning message display on your control panel. Please refer to the following chart for a list of error messages and how to resolve them:
CODE | ERROR | SOLUTION |
LEr | Low temperature | This will occur when the temperature of the grill falls below 120°F (49°C) for 10 minutes, causing the grill to go into the shut-down cycle. To fix, remove any pellets from the firepot. Turn the controller off and then on again and restart your grill. If the problem persists, contact customer service. |
HEr | High temperature | This error will occur when the temperature in the grill reaches temperatures above 550°F (288°C) for more than 45 seconds. Let the grill cool, then turn off the grill. Clear out any remaining pellets from the firepot and restart your grill. If the problem persists, contact customer service. |
Er1 | Temperature sensor loose | Check to make sure your temperature sensor is correctly plugged into the controller. |
Er2 | Temperature sensor bad | Your temperature sensor is faulty and needs to be replaced. |
DRIP TRAY LINERS
Make grill maintenance a breeze with our drip tray liners. Made of heat-resistant aluminum, they're lightweight and disposable so you can clean up quick and Traeger on! Liners should rest fully on the grease drip tray, and not cover any areas outside of the grease drip tray, as to not affect the temperature and performance of the grill.
GRILL COVER
Protect your Traeger® Grill with a Traeger® brand custom-fit cover, designed to protect your grill from the elements. This durable grill cover is available at your local dealer or for purchase at traeger.com.
Fire Hazard: Do not install your grill cover until the grill has completely cooled.
GREASE BUCKET LINERS
Get a grip on your drip bucket maintenance with our aluminum liners. Just drop one in before grilling and replace once it's full. Bucket liner 5-packs are available for purchase at traeger.com.
TRAEGER'S LEGENDARY CUSTOMER SERVICE is the best out there. If you have any questions about your Traeger® Grill or need tips on cooking your first holiday turkey, our seasoned experts have your back. We're here for you 365 days a year, including holidays. For assistance with assembly, installation, safe operation, parts, or general customer service, you can visit our website or write us at:
TRAEGER'S CUSTOMER SERVICE
For support please visit: https://www.traeger.com/support
TRAEGER PELLET GRILLS LLC
1215 E. Wilmington Ave., Suite 200
Salt Lake City, UT 84106
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING YOUR TFB30KLF TRAEGER® GRILL
A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) BETWEEN COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
When properly operated and maintained, cooking with a hardwood fire on a Traeger ® Grill brings years of enjoyment – to you and your lucky friends and family. Your new Traeger ® Grill is specially designed to make cooking easier while giving you optimal performance with the most savory-flavored food.
Please read this entire manual before installation, and anyone who uses this grill should also read the entire manual before operating it. Failure to follow these instructions could result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Save these instructions. If you are assembling this unit for someone else, provide this manual for the owner to read and save for future reference.
Carbon Monoxide Hazard
Burning wood pellets produces carbon monoxide which may lead to illness, serious injury, and/or death. Follow these guidelines to prevent this colorless, odorless gas from poisoning you, your family, your pets, or others:
Fire Hazard
Fire Hazard
In the event of a grease fire, ensure the grill door and hopper lid are closed, and then immediately unplug the grill if you can do so safely. Move away from the grill until the fire is completely out and grill has cooled down. Until the fire has extinguished and the grill has cooled off:
With the grill lid and hopper closed, the fire will be starved of oxygen and burn itself out. Never keep the grill lid or hopper lid open during a grease fire; if the grill door is open use a non-combustible tool that will allow you to close the grill door while keeping a safe distance from the grill. An all-class (class ABC) approved fire extinguisher should be used if a fire is not contained within the grill. If an uncontrolled fire does occur, immediately call the Fire Department.
When the fire is completely out, allow the grill to cool completely. Remove everything from the inside of your grill, including all internal components (grill grate, drip tray, and heat baffle), pots and pans, and food. Clean the entire grill, including any grease accumulation from the Traeger ® Grease Management System (TGMS) and all ash and pellets from the grill and firepot (see "Maintaining Your Grill". Replace the heat baffle, grease drip tray and grill grates, restart the grill, and resume cooking.
Fire Hazard
Always allow grill to cool completely before clearing the auger.
Burn Hazard
Ashes should always be completely cool before handling.
Burn Hazard
Many parts of the grill become very hot during operation. During operation of the grill and afterwards, care must be taken to avoid burns while the grill is hot.
Smoke Hazard
Electrical Shock Hazard
Hazardous voltage is present, which can shock, burn, or cause death.
Use Correct Pellets
DO NOT USE FUEL PELLETS. Never use heating fuel pellets in the grill because they may contain hazardous contaminants and additives and may damage the grill.
Minimum Ambient Temperature
If the fire in the firepot goes out while cooking, it is important to follow these steps. Failure to do so may cause a hazardous "overfiring" of your grill due to an excess of unburned pellets in the firepot. This is often caused by improper startup procedure and/or running out of pellets.
SAVE THESE INSTRUCTIONS
