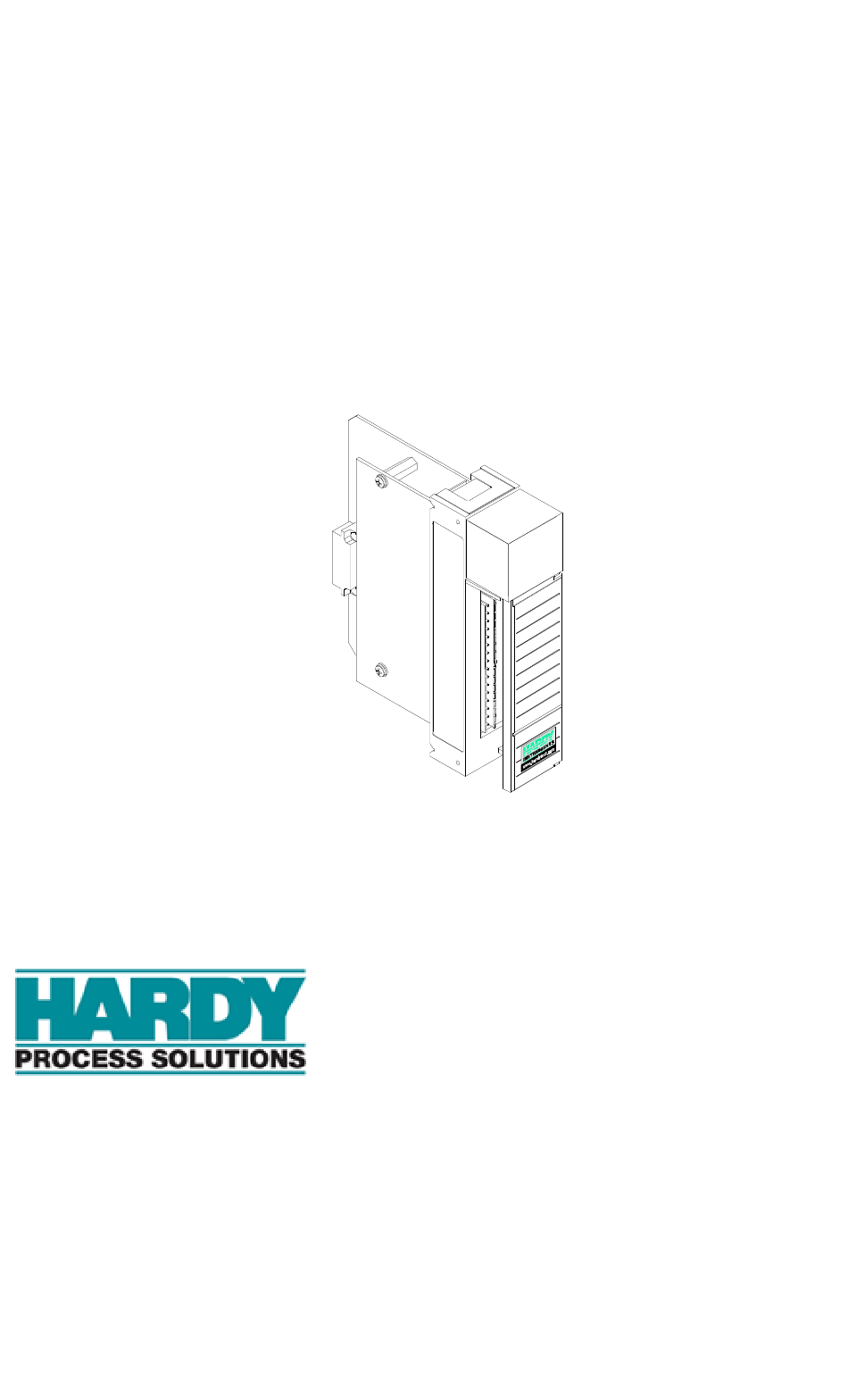

HI 1746-WS
WEIGH SCALE MODULE
OPERATION AND INSTALLATION
MANUAL
Series C
Corporate Headquarters
10075 Mesa Rim Road
San Diego, CA 92121
Phone: (858) 278-2900
Web-Site: https://www.hardysolutions.com
Hardy Process Solutions Document Number: 0596-0234-01 Rev J
Copyright 2011 - 2023 Hardy Process Solutions, Inc. All Rights Reserved. Printed in the U.S.A. (941028)
