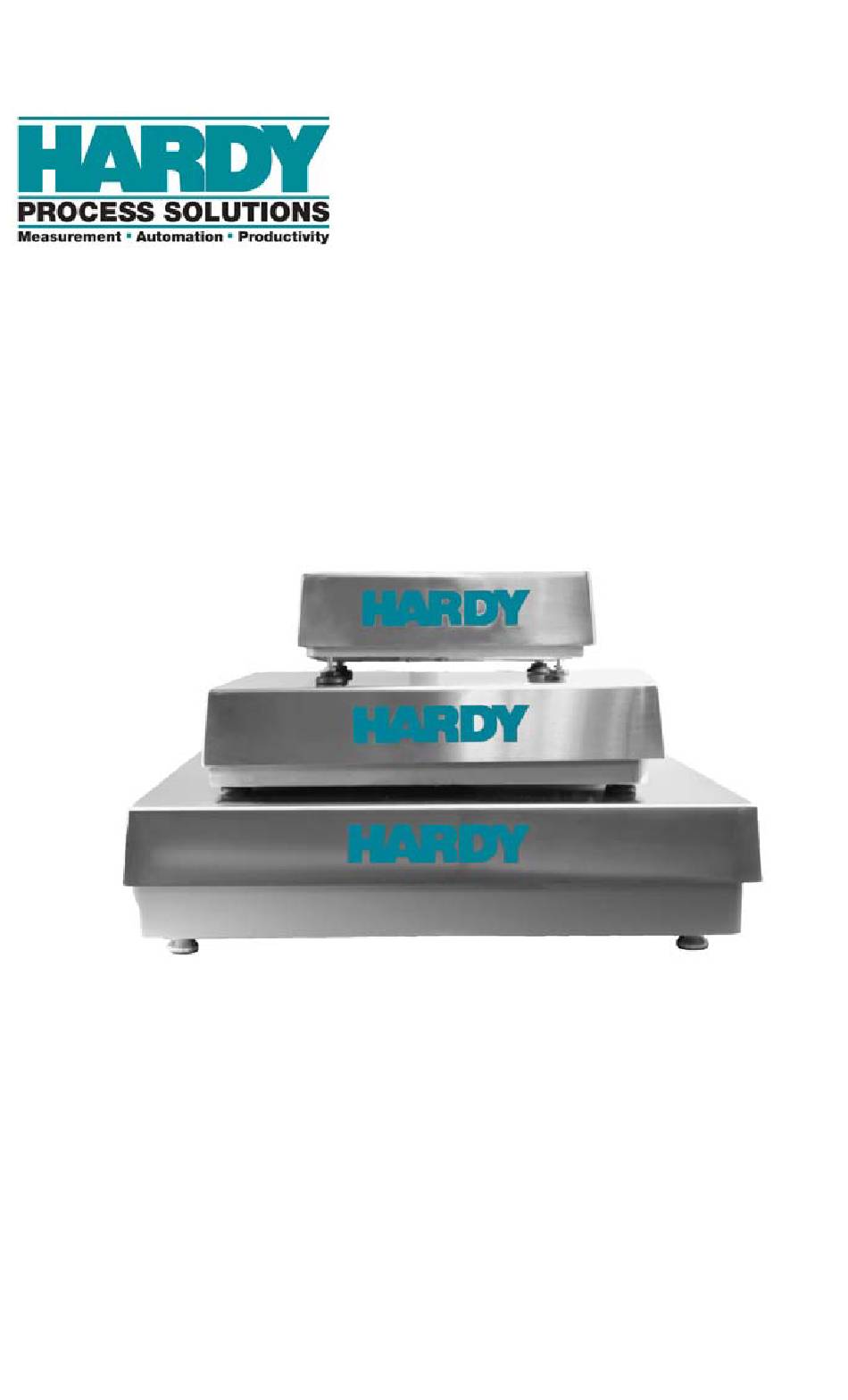

HARDY BENCH SCALES
OPERATION AND INSTALLATION
MANUAL
Hardy Process Solutions
Corporate Headquarters
9440 Carroll Park Drive
San Diego, CA 92121
Phone: (858) 278-2900
FAX: (858) 278-6700
Web-Site: www.hardysolutions.com
Hardy Process Solutions, #0596-0339-01 Rev A2
Copyright 2014-2019 Hardy Process Solutions. All Rights Reserved. Printed in the U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hardy Process Solutions 400 Series
Summary of Contents for Hardy Process Solutions 400 Series
- Page 1 MANUAL Hardy Process Solutions Corporate Headquarters 9440 Carroll Park Drive San Diego, CA 92121 Phone: (858) 278-2900 FAX: (858) 278-6700 Web-Site: www.hardysolutions.com Hardy Process Solutions, #0596-0339-01 Rev A2 Copyright 2014-2019 Hardy Process Solutions. All Rights Reserved. Printed in the U.S.A.
- Page 2 IF ANYTHING IS UNSATISFACTORY, PLEASE NOTIFY HARDY PROCESS SOLUTIONS IMMEDIATELY BY CALLING, FAXING OR E- MAILING TO: Hardy Service Center Hardy Process Solutions 9440 Carroll Park Drive San Diego, California 92121 Phone: (800) 821-5831 or (858) 278-2900 FAX:(858) 278-6700 E-mail: hardysupport@hardysolutions.com...
-
Page 3: Table Of Contents
The Stainless Steel Top Cover 1-1 Lower Frame Assembly 1-1 Scale Interface 1-1 Hardy Bench Scale Models 1-2 400 Series – HIBS400-xxxx 1-2 300 Series – HIBS300-xxxx 1-2 200 Series – HIBS200-xxxx 1-2 Chapter 2 - Specifications 2-1 Hardy Bench Scale Specifications 2-1 Standard Sizes &... -
Page 4: Chapter 1 - Overview
Chapter 1 - Overview CHAPTER 1 - OVERVIEW Introduction Congratulations on your purchase of a Hardy Bench Scale. Behind your purchase is over 90 years of quality, reliability and technical innova- tion. The Hardy Bench Scales are designed for table top or floor applications requiring high accuracy and reliability. -
Page 5: Hardy Bench Scale Models
BS400 series). ® ® NOTE: WAVERSAVER and C2 are registered trade- marks of Hardy Process Solutions. Hardy Bench Scale Models 400 Series – The HI BS400 Series is Hardy’s top of the line HIBS400-xxxx industrial bench scale. With all stainless steel... -
Page 6: Chapter 2 - Specifications
Chapter 2 - Specifications CHAPTER 2 - SPECIFICATIONS Hardy Bench Scale Specifications Platter Construction • 304 Stainless Steel (all models) • Size: 12" x 12", 18" x 18" and 24" x 24 (custom sizes are available) Deck Height • 12" x 12": 5, 25, 50, 150 lbs: 3.75" to 4.5" (9.5 to 11.4 cm) adjustable •... -
Page 7: Standard Sizes & Capacities
Hardy Bench Scales HIBS300 & HIBS200: • Aluminum, environmentally potted, IP67 • Load Sensor sensitivity: 2.0 +/- 0.2 mV/V Resolution 5000 divisions of scale capacity Accuracy Combined Error: 0.02% Temperature Operating: -10 to +40 degrees celsius Storage: -20 to +65 degrees celsius Warranty Two year limited warranty Approvals... -
Page 8: Chapter 3 - Installation
Chapter 3 - Installation CHAPTER 3 - INSTALLATION Precautions Do not store or operate the scale out of its spec- ified temperature range. (See Temperature Ranges in Chapter 2) Do not store other equipment on the scale when it is not in use or in storage. Do not allow a build-up of debris on, around or under the scale. - Page 9 Hardy Bench Scales Maximum Deflection at Capacity: HI BS400 HISPB1 Load Sensor (24” x 24”) Capacity Deflection (mm) 50 kg 0.22 100 kg 0.20 250 kg 0.10 500 kg 0.25 HISP6 Load Sensor (12” x 12” and 18” x 18” Capacity Deflection (mm) 10 kg...
-
Page 10: Leveling The Scale
Chapter 3 - Installation 1042 Load Sensor (12” x 12” and 18” x 18” Capacity Deflection (mm) 10 kg <0.40 20 kg <0.40 50 kg <0.40 100 kg <0.40 200 kg <0.40 Leveling the Scale Step 1. The Hardy Bench Scales come with an integrated leveling indicator at the front of the base. -
Page 11: Scale Connections
Hardy Bench Scales Step 2. To level the platform, turn the leveling feet clockwise to lower the scale cor- ner, or counter clockwise to raise it until you show a level reading by cen- tering the bubble in the center of the indicator. - Page 12 Chapter 3 - Installation FIG. 3-3 RUNNING CABLE THROUGH HOLE IN BACK (12”X12” OR 18” X18” INCH SCALE) FIG. 3-4 HOLE FOR THE CABLE IS AT THE BACK OF THE INSIDE OF A 24” X 24” SCALE...
- Page 13 RESULT IN SCALE OR INSTRUMENT DAM- AGE, DEGRADATION OF PERFORMANCE OR PERSONAL INJURY NOTE: Hardy Process Solutions provides drawings you may download on the Hardy Bench Scales page under the Docs & Programs tab. Drawings are provided for each of the Hardy Bench Scale models in .dxf, dwg, .pdf, and 3D formats.
- Page 14 Chapter 3 - Installation FIG. 3-5 EXPLODED VIEW OF 12” X 12” OR 18” X 18” SCALE SHOWING SELECTED PARTS...
- Page 15 Hardy Bench Scales FIG. 3-6 EXPLODED VIEW OF 24” X 24” SCALE SHOWING SELECTED PARTS...
-
Page 16: Chapter 4 - Calibration
C2 electronically calibrates a scale system with- Calibration out the need for test weights. If you are using a Hardy Process Solutions Weight Controller, Weight Processor, Indicator or Weigh Module, all that’s required is to enter a reference point. Refer... -
Page 17: Chapter 5- Troubleshooting
Chapter 5- Troubleshooting CHAPTER 5- TROUBLESHOOTING SCOPE All the information in Chapter 5 pertains to the troubleshooting and resolution of operating prob- lems that may occur. All maintenance personnel and users should be familiar with both Chapters 3 and 4 before attempting to troubleshoot prob- lems with the Scale. -
Page 18: Service And Repair (All Models)
Technical Support Hardy Process Solutions 9440 Carroll Park Drive San Diego, California 92121 US Customers Only: 800-821-5831 Outside the US: 858-278-2900...
