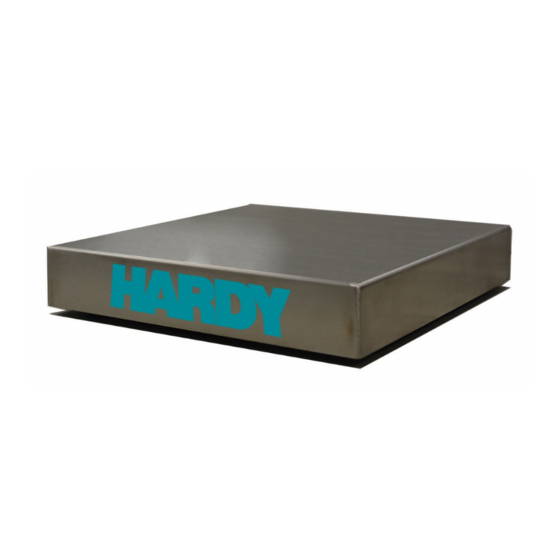

HARDY HIBSX BENCH SCALES
Installation & Operations Manual
Hardy Process Solutions
Corporate Headquarters
10075 Mesa Rim Road
San Diego, CA 92121
Phone: (858) 278-2900
Web-Site: www.hardysolutions.com
hardyinfo@hardysolutions.com
Hardy Process Solutions, #0400-HIBSXMA-0522A
Copyright © 2022 Hardy Process Solutions. All Rights Reserved. Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Hardy Process Solutions BSX Series
Summary of Contents for Hardy Process Solutions BSX Series

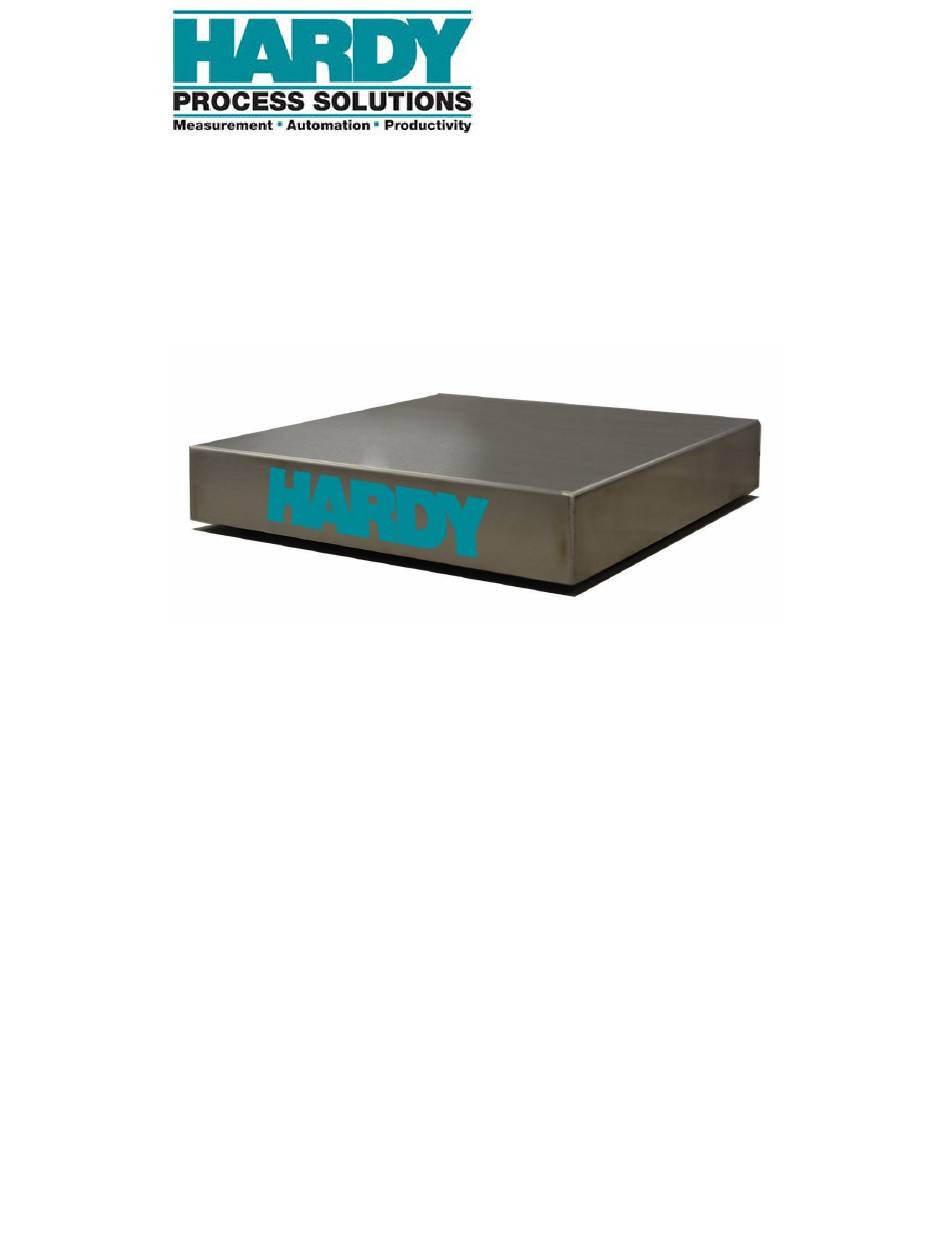

- Page 1 Installation & Operations Manual Hardy Process Solutions Corporate Headquarters 10075 Mesa Rim Road San Diego, CA 92121 Phone: (858) 278-2900 Web-Site: www.hardysolutions.com hardyinfo@hardysolutions.com Hardy Process Solutions, #0400-HIBSXMA-0522A Copyright © 2022 Hardy Process Solutions. All Rights Reserved. Printed in the U.S.A.
- Page 2 DOCUMENTS. IF ANYTHING IS UNSATISFACTORY, PLEASE NOTIFY HARDY PROCESS SOLUTIONS IMMEDIATELY BY CALLING, FAXING OR E- MAILING TO: Hardy Service Center Hardy Process Solutions 10075 Mesa Rim Road San Diego, California 92121 Phone: (800) 821-5831 or (858) 278-2900 FAX:(858) 278-6700 E-mail: hardysupport@hardysolutions.com...
-
Page 3: Table Of Contents
Table of Contents Contents HARDY HIBSX BENCH SCALES ..............1 Table of Contents ................... 3 CHAPTER 1 - OVERVIEW ................3 The Top Cover ................... 4 BSX Models ....................5 CHAPTER 2 - SPECIFICATIONS ..............6 CHAPTER 3 - INSTALLATION ..............9 Adjusting the Mechanical Overload Stops .......... -
Page 4: The Top Cover
Description All Hardy BSX Bench Scales come standard in 12”x12”, sizes, and range in capacity. Custom sizes and capacities are available from Hardy upon request. The basic Hardy Bench Scale major components: 1. Stainless Steel Top Cover. 2. Top and Bottom Plates 3. -
Page 5: Bsx Models
NOTE: WAVERSAVER and C2 registered trademarks of Hardy Process Solutions. BSX Models The SS-SS version of the BSX series includes a stainless IP69K load cell, providing the maximum SS-SS amount of washdown capability and protection for the harshest sanitation environments. -
Page 6: Chapter 2 - Specifications
CHAPTER 2 - SPECIFICATIONS Hardy HIBSX Bench Scale Specifications Platter Construction 304 Stainless Steel (all models) Size: 12" x 12" Deck Height SS-SS - 3.4" SS-AL - 2.7" Capacity Range 5 lbs to 200 lbs depending on Model Rated Output Overload: 150% R.O. - Page 7 Load Sensors Specifications HISP6 (SS-SS) HISPA22 (SS-AL) Metallurgy 17-4PH Stainless Steel 2024 Aluminum Rated Output (ES) 2±0.10mV/V 2±10% mV/V Non-Linearity <±0.0166 % R.O. <±0.0166 % R.O. Hysteresis <±0.0166 % R.O. <±0.0166 % R.O. Zero Balance <±5.0 % R.O. <±5.0 % R.O. Combined Error <±0.02 % R.O.
- Page 8 Standard Sizes & Capacities C2 Load Capacity Frame & Load Cell Part Number Cell (kg/lb) Platter Material HIBSX‐SS‐SS‐5KG SP6‐10 5/10 Stainless Stainless HIBSX‐SS‐SS‐15KG SP6‐20 15/30 Stainless Stainless HIBSX‐SS‐SS‐40KG SP6‐50 45/100 Stainless Stainless HIBSX‐SS‐SS‐75KG SP6‐100 75/165 Stainless Stainless HIBSX‐SS‐AL‐5KG SPA22‐10 5/10 Stainless Aluminum HIBSX‐SS‐AL‐15KG SPA22‐20 15/30 ...
-
Page 9: Chapter 3 - Installation
Chapter 3 - Installation CHAPTER 3 - INSTALLATION Precautions Do not store or operate the scale out of its specified temperature range. Do not store other equipment on the scale when it is not in use or in storage. Do not allow a build-up of debris on, around or under the scale. - Page 10 Leveling the Scale Adjust the level of the scale by using the leveling bubble and the adjustable feet. Scale Connections The scale has a cable exiting the rear. Wire to the preferred instrument by referring to the instrument and cell wiring diagram. Make sure the cable is not pinched and is clear of the feet.
-
Page 11: Chapter 4 - Calibration
C2 electronically calibrates a scale system with- Calibration out the need for test weights. If you are using a Hardy Process Solutions Weight Controller, Weight Processor, Indicator or Weigh Module, all that’s required is to enter a reference point. Refer... -
Page 12: Chapter 5- Troubleshooting
CHAPTER 5- TROUBLESHOOTING SCOPE All the information in Chapter 5 pertains to the troubleshooting and resolution of operating prob- lems that may occur. All maintenance personnel and users should be familiar with both Chapters 3 and 4 before attempting to troubleshoot prob- lems with the Scale. -
Page 13: Service And Repair (All Models)
Please have the scale model number and a serial number and a brief description of the problem ready when you call. Technical Support Hardy Process Solutions 10075 Mesa Rim Road San Diego, California 92121 US Customers Only: 800-821-5831 Outside the US: 858-278-2900...
