HIBSD

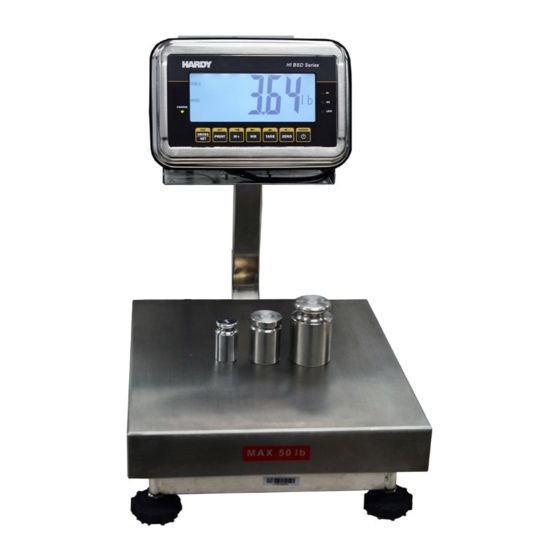

Washdown Bench Scales
Weighing Indicator Technical Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BW Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hardy Process Solutions BW Series

Summary of Contents for Hardy Process Solutions BW Series

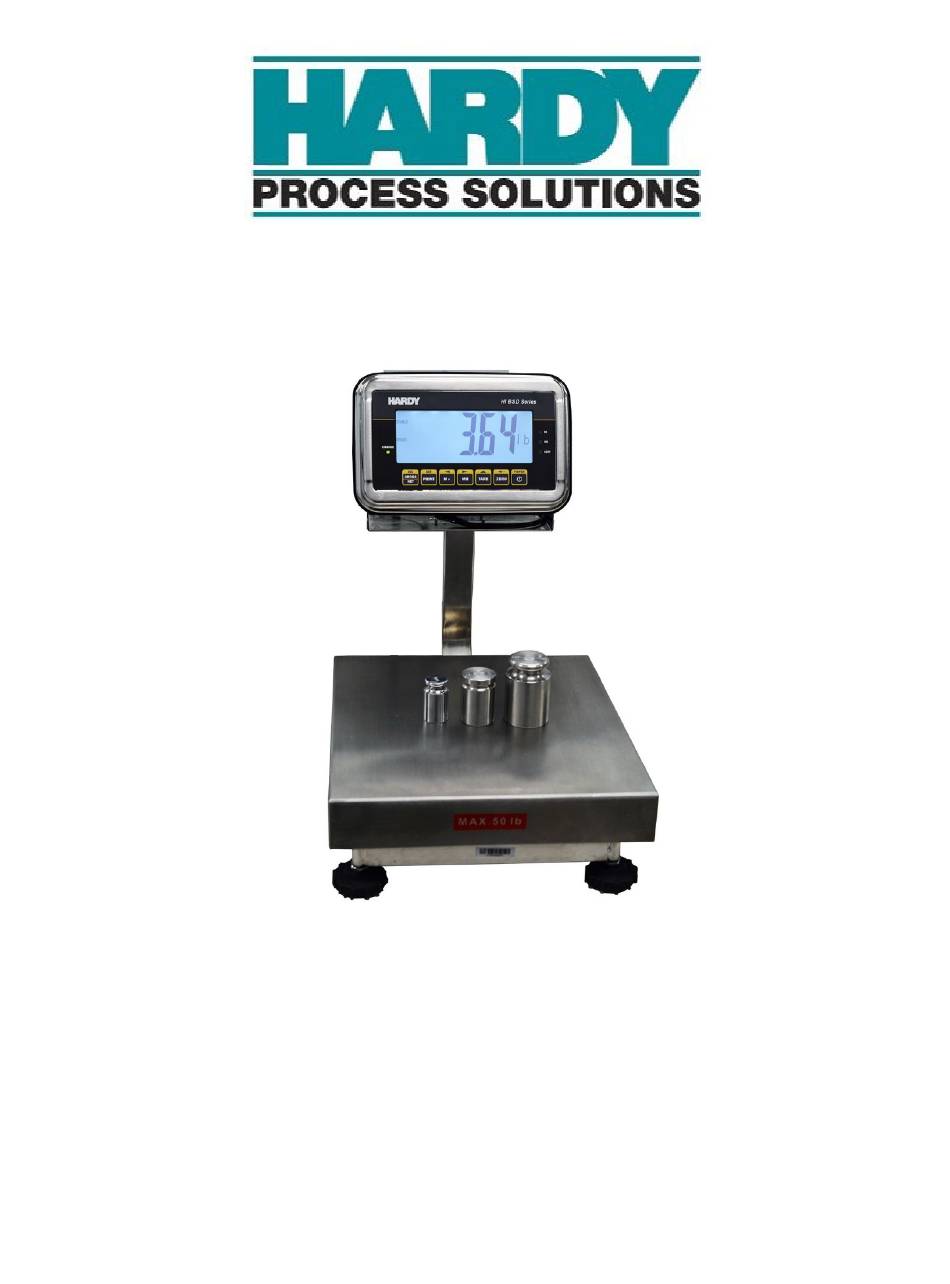

  • Page 1: U S

    HIBSD Washdown Bench Scales Weighing Indicator Technical Manual...

  • Page 2: Table Of Contents

    Hardy HIBSD Bench Scale Page - 2 - CONTENTS 1. P R E C A U T I O N S . … … … … … … … … … … … … … … … … … … … … … … … … … . 3 2.

  • Page 3: Precautions

    Hardy HIBSD Bench Scale Page - 3 - 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION Permit only qualified persons to service the instrument •...

  • Page 4: Specifications

    Hardy HIBSD Bench Scale Page - 4 - 2. SPECIFICATION Overall Display View: Dimensions Inches (mm) Specifications Model HIBSD Display 7” Diagonal LCD Housing Stainless Steel Operating Temperature 0°C - 40°C / 32°F - 104°F Resolution 3,000 divisions of Full Scale Key Pad 7 Keys Power...

  • Page 5: Introduction

    Hardy HIBSD Bench Scale Page - 5 - 3. INTRODUCTION  The Hardy HIBSD series weight Indicator is a general-purpose weighing instrument that amplifies and converts signals from a strain-gauge based load cell(s) to display or transmit theweight values.  The Indicator is suitable for use with load cells, bench scales or floor scales and is capable of more specialized applications such as static check weighing, weight accumulation (totalizer) and animal weighing (management of unstable mass).

  • Page 6: Installation

    Hardy HIBSD Bench Scale Page - 6 - 4. INSTALLATION Unpacking Inspect the Indicator to make sure that it is not damaged and that all are parts are included: • Remove the Indicator from the carton. Remove the protective covering. •...

  • Page 7: Load Cell Connections

    Hardy HIBSD Bench Scale Page - 7 - Load cell connections • Connect load cell, floor scale or home-run cables to the Indicator as shown below: Connection Pin 1 Signal + Pin 2 Signal - Pin 3 Shield Pin 4 Exc - Pin 5 Exc +...
  • Page 8 Hardy HIBSD Bench Scale Page - 8 - 5. KEYS Keys Description ON/OFF Zero Display To perform a tare function. Memory recall key, shows the stored values from the memory Accumulator key, current values will store to the memory To send the data to printer, PC or PLC. Pressing the button shifts between Gross / Net Weight.

  • Page 9: Secondary Functions Of The Keys

    Hardy HIBSD Bench Scale Page - 9 - Secondary functions of the keys Each key in the Indicator has secondary functions, which are defined below. Function Keys To confirm the selected menu (enter) To change the menu and active digit To move the active digit to right To move the active digit to left To enter into a menu and to clear the active digit.
  • Page 10 Hardy HIBSD Bench Scale Page - 10 - 6. Operation Initial Start-up Recommended warm-up time is 15 minutes from initial power-up. 6.1. Basic Operation 1. Power On/Off: • Switch on the Indicator by pressing 2. Zero • Zero the scale any time by pressing 3.
  • Page 11 Hardy HIBSD Bench Scale Page - 11 - 6.2. Checkweighing Use the checkweighing function to determine if the weight of an object is too heavy, too light or is acceptable; indicated by HI, OK or LOW LEDs as well as an audible beep when selected.
  • Page 12 Hardy HIBSD Bench Scale Page - 12 - • Press key to confirm, display will be shown no or ok or ng Check mode no : No beep. • • Check mode ok : When the weight is between the limits. OK will be shown and beeper will sound.
  • Page 13 Hardy HIBSD Bench Scale Page - 13 - 6.3.1 Memory Recall To recall the memory press Display will show acc X (X = Total number of objects accumulated), then show the total saved value. Values are shown three seconds. 6.3.2. Memory Clear To clear the memory, press keys together.
  • Page 14 Hardy HIBSD Bench Scale Page - 14 - 6.4. Parts Counting until p 10 is shown. To enter the parts counting mode, press and hold Press to change the initial quantity to be counted. Options: p10 / p 20 / p 50 / p100 / p 200 Parts Counting Operation Select the quantity of parts to be used for part calibration.
  • Page 15 Hardy HIBSD Bench Scale Page - 15 - 6.6. Keyboard Lock The Indicator features the ability to lock the keyboard to prevent unintentional changes while not in use. See section 7. PARAMETERS for steps to enter the mode. • The keyboard lock initiates 10 minutes after the last key press •...
  • Page 16 Hardy HIBSD Bench Scale Page - 16 - 6.8. Back Light key three seconds units the display shows setbl • Hold the Press once to confirm, then press the key to select. • • Press to confirm selection, the press to escape from the settings.
  • Page 17 Hardy HIBSD Bench Scale Page - 17 - 7. PARAMETERS To select modes or set parameters, follow the below steps: • Turn on the Indicator and press during the self-check countdown. The display will show pn to indicate parameter mode is enabled. •...
  • Page 18 Hardy HIBSD Bench Scale Page - 18 - (After pressing tare, NET weight will be zero) Option: on /off Speed Set the ADC speed Option: 7 .5 / 15 / 3 0 Zero Sets a new zero point. P2com Lang To set language.
  • Page 19 Hardy HIBSD Bench Scale Page - 19 -...
  • Page 20 Hardy HIBSD Bench Scale Page - 20 - 8. CALIBRATION • Turn on the Indicator and press during the self-check countdown. The display will show pn to indicate parameter mode is enabled. • Press , then , then to allow parameter modification, the display will show po chk.

  • Page 21: D I S P L A Y

    Hardy HIBSD Bench Scale Page - 21 - 8.2. Linear Calibration Liner calibration (multi-point calibration) can help to improve the accuracy of a scale over its full range of weighing or to correct for binding issues. NOTE: To use linear calibration, the scale capacity must first be set by navigating to R1 Cap using the method outlined in the PARAMETERS section.
  • Page 22 Hardy HIBSD Bench Scale Page - 22 - 10. DRAWING...

  • Page 23: E R R O R C O D E

    Hardy HIBSD Bench Scale Page - 23 - BSD Parts List Parts Spec Key Panel Front Cover Display Protection Plate M3*6 Main PCBA Washer 8x3.1x1.5 Star (+) Self Thread screw M3x8 Water Proof Rubber Bar Star (+) Screw M4x10 Washer Battery Clamp Washer Star (+) Big head Screw...
  • Page 24 Check the pre-tare value. Err19 Initialize zero error Calibrate the scale. Err P Printer error Check the printer settings or connections. Err l Approval setting error Check the PCB jumper settings. Must be connect jumper pin to K1 (BW series).
  • Page 25 Hardy HIBSD Bench Scale Page - 25 - --ol-- Over range Remove the load. Recalibrate --lo-- Underload Minus weight, check the platform and restart or calibrate. Fail h / fail l / fail Calibration Error Check the test weights & Recalibrate Ba lo / Battery low...
