cNODE Micro

System description

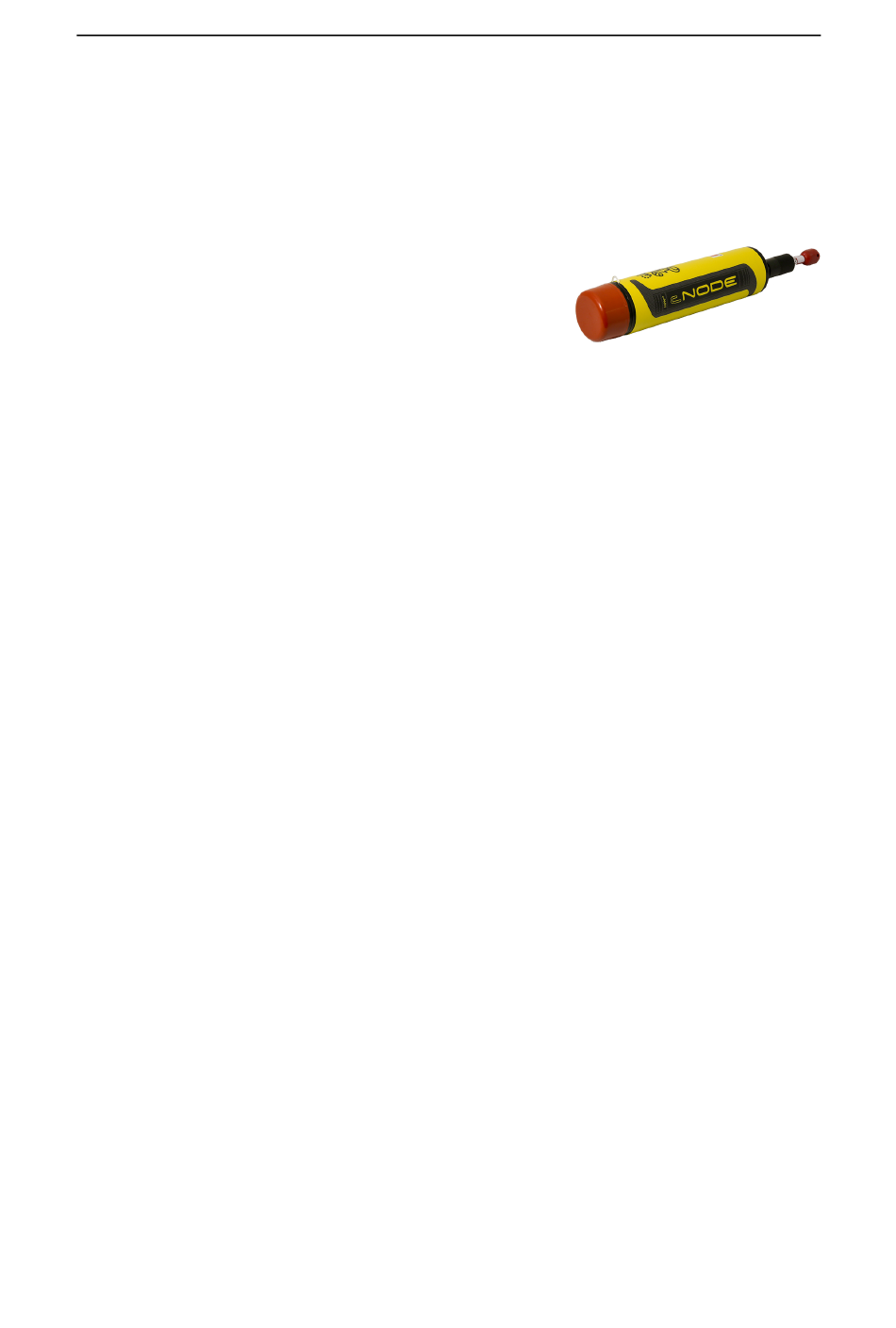

The cNODE Micro transponder is a light and compact unit designed for use by divers
and shallow water ROV's.
The transponder is operating on Kongsberg Cymbal
digital acoustic protocols and provides optimal
performance with Kongsberg's range of SSBL systems,
from µPAP to HiPAP.
The cNODE Micro is extremely flexible featuring
Cymbal digital telemetry and both SSBL and LBL positioning capabilities. With precise
baseline measurement capability between seabed transponders, the cNODE Micro
provides functionality for simple diver metrology or archeology.
The telemetry capability allows the battery status to be read during operation and the
integrated tilt sensor can be turned on and off with positioning updates. Multiple cNODE
Micro transponders can be interrogated simultaneously in SSBL positioning mode using
the µPAP and HiPAP Fast track feature to ensure the fastest possible updates during
operation.

Naming description

The transponder name consists of the model name, the model number, the transducer
beam width and any options included.
Model name
cNODE Micro
Model number
First digit = Frequency band
• 3 = 30 kHz
Second digit = Depth rating
• 1 = 600 m
Transducer beamwidth
180 = 180° beam width
Transponder identification
The transponders have labels that identifies
