cNODE Micro Instruction Manual
3 Connect the battery charger plug to the connector on the transponder marked
CHARGE.
4 Connect the battery charger to mains (110 or 220 VAC).
5 Remove the power cord after charging, before removing the connector from the
cNODE Micro.
Result
The LED indicator on the charger flashes green when charging. It normally takes about
30 seconds before the charging starts and the LED indicator starts flashing green after
connecting the cNODE battery charger to the mains. The battery will be charged within
1 hour. The LED indicator will stay green when fully charged.
The transponder is ready for use.

Turning on the transponder

The transponder is designed for operation in water only. The transponder may be
operated in air for test purposes over a short period of time.
Prerequisites
The transponder must be charged before use.
Procedure
1 Grease the connector with Molykote 44 Medium or equivalent grease.
Lubricating SEACON connectors, page 26

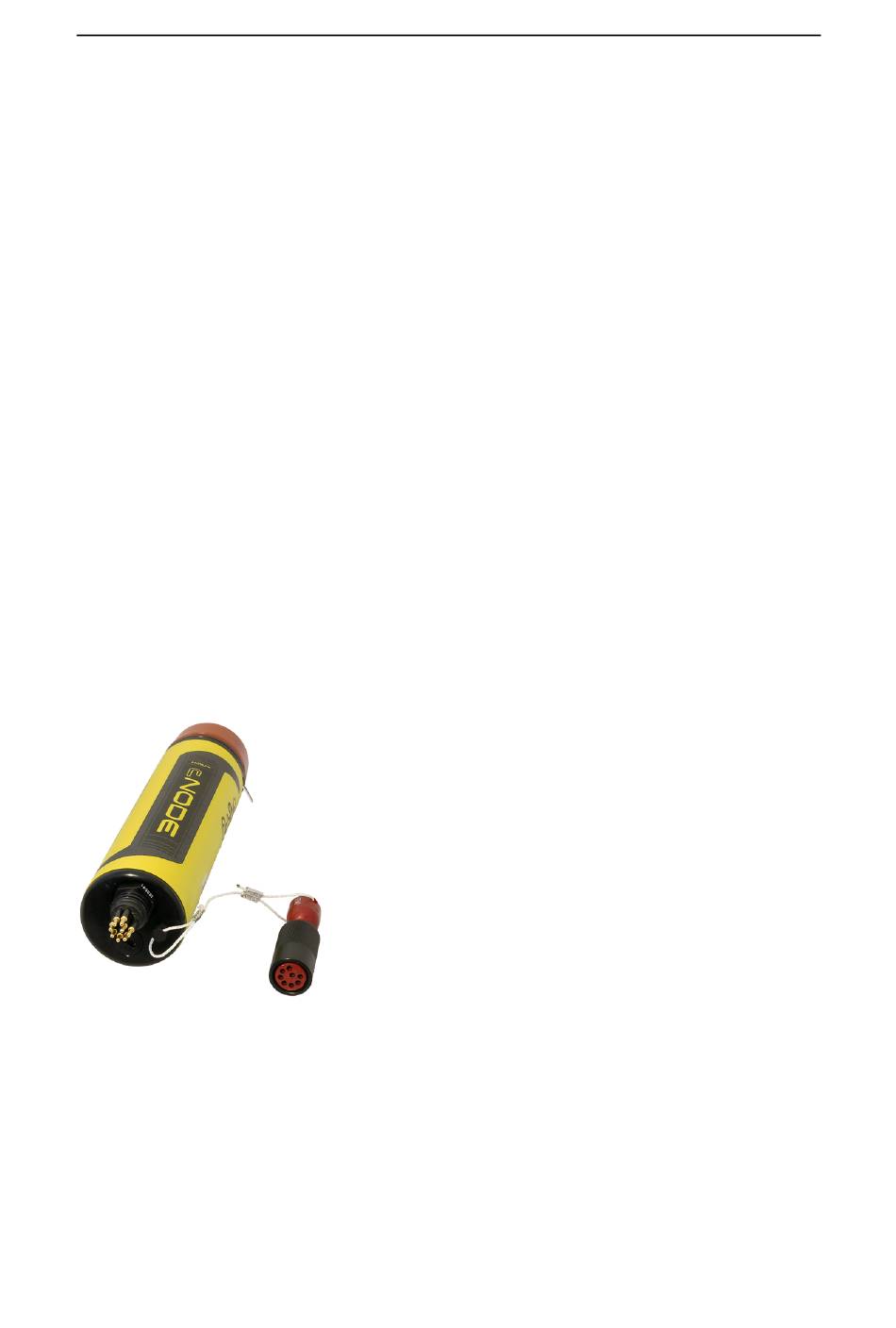

2 Connect the on/off plug to the end cap connector.
3 Tighten the locking sleeve to the end cap connector.
Result
A buzz can be heard within 25 seconds as a confirmation that the transponder is activated.
