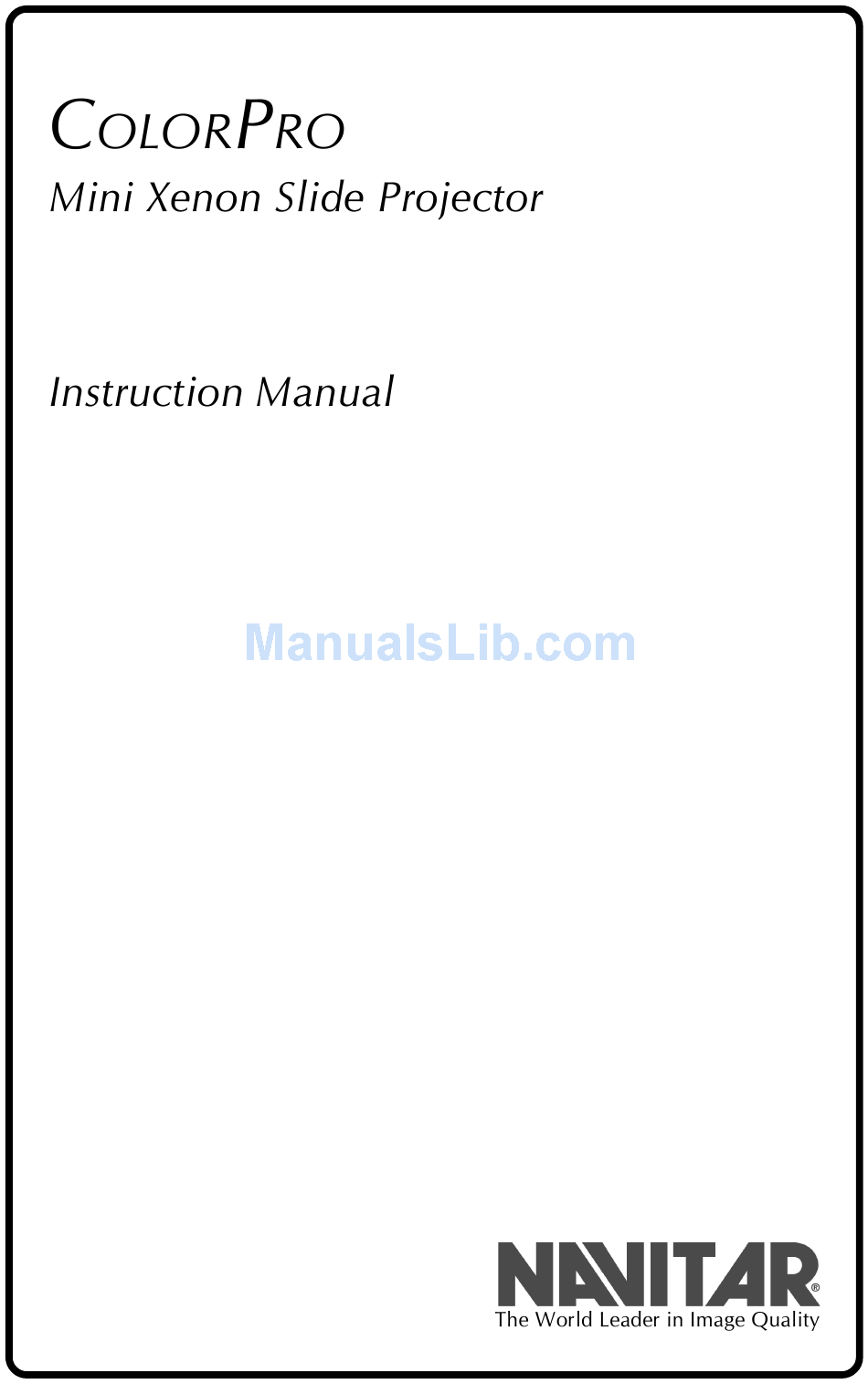

- Page 3 Thank you for your purchase of a Navitar ColorPro Mini Xenon slide projector. The Navitar ColorPro is a compact and easy-to-use mini- Xenon slide projector specifically designed for adding impact to presentations in normal size rooms where a standard Kodak projector is typically used. It offers all the advantages of a Xenon slide projector, but in a smaller, portable size that costs less.
- Page 4 Xenon Bulb n Remote 2 Power Connector n Instruction Manual Your new Navitar ColorPro Xenon slide projector is constructed of the finest electronic components available and designed for maximum reliability. For servicing, contact the dealer you purchased your projector from or call...
- Page 5 " 4 11.4” (290 8” (203 5.8” (147 t l i " 7 " 8 " 4 14.7” (377 y t i " 2 d i l d i l d i l ± ± ) y l ° 5 "...
- Page 6 Connector for dissolve power supply from AC OUT of controller. Source Select Change-over switch. Select 1 = Ordinary projection. Select 2 = Multi-image projector. Controller In-1 Pin connector for dissolve controller made by AVL or Kodak. Power Power on/off switch.
- Page 7 (CP-300SD only). Projection lenses A wide variety of Navitar slide projection lenses are available for use with your ColorPro projector. A large diameter slide projection lens from Navitar will allow you to output more light from the projector’s lamp house.
- Page 8 Timer Switch Interval timer switch. The slide tray will automatically wait the selected time before advancing to the next slide. Fade Select Switch Fade timer switch for fade in/out projection. Auto Focus Switch The on/off switch for automatic focusing.
-
Page 9: Shift Knob
HIFT OCKING EVER LIDE LIDE ROJECTION RONT DJUSTABLE ORWARD EVERSE OCUS LIDE... -
Page 10: Power On/Off
ONNECTOR FOR ANDOM CCESS -2 C EMOTE ONNECTOR AF O -1 C EMOTE ONNECTOR ORWARD EVERSE OCUS OVER OWER UPPLY ONNECTOR OWER... -
Page 11: Vertical Shift
OCKING EVER LIDE LIDE IMER WITCH ELECT WITCH OCUS OUSE ROJECTION ERTICAL HIFT LIDE ORIZONTAL HIFT RONT DJUSTABLE... - Page 12 ONNECTOR FOR ONTROLLER EMOTE EMOTE ONNECTOR OWER ONTROLLER OURCE OURCE ANDOM CCESS OINT OCUS OURCE ELECT NDICATOR EVERSE ORWARD OVER...
- Page 13 Do not look at the bulb directly while it is on. The light emerging from the projector lens is safe as long as common sense is exercised.
- Page 14 If you have any questions regarding the installation of the Xenon lamp, please call Navitar at 1-800-828-6778 or 716-359-4000. Make sure the projector is unplugged and the bulb is thorougly cooled before proceding. Do not open the side cover while the lamp is lit.
- Page 15 1. Place your slides in front of you in the same direction as the pictures are to be projected on the screen. 2. Place them in the order to be projected. 3. Turn each slide up-side-down. 4. Using a felt pen, write a slide number on the right upper corner of each slide.
- Page 16 When the tray is properly installed, it is “locked” to the projector. If the slide tray cannot be installed firmly on the projector, check the bottom of the tray. The slide holding plate might be fastened with a latch. Unfasten the latch and try to install the slide tray again.
- Page 17 (Model CP-300SD). Roughly adjust the focus of the projected image by adjusting the lens manually. Adjust a Navitar lens by moving it horizontally in or out. Adjust focus further by means of the focus switch.
- Page 18 Random Access allows you to show slides in any order you select. Connect the random access controller (optional) to the connector on the side of your projector. Input the numbers of the slides (in the order you want to show them) into the ten-key random access remote controller.
- Page 19 In the case of a 3-projector multi-image show using a set-up slide in each projector (e.g. AMI), turn ON the set-up switch of projector “B.” This will be the basis for positioning the image. Open the dissolve shutter and adjust the position of the image vertically and horizontally by means of shift-1, shift-2 and the leveling feet.
- Page 20 Contact for remote controllers (remote-1 and remote-2) are arranged as shown below. Various functions can be controlled when they are connected to the projector’s external controllers. The remote-1 connector is used for the Kodak Ektagraphic III remote controller. 1 Focus Adjustment...
- Page 21 If during the warranty period the product is found to be defective, it will be repaired or replaced at the facilities of Navitar. However, Navitar reserves the right to refund the purchase price if the replacement or repair is not commercially practical or timely.
