Summary of Contents for Yaasa Desk Pro 2

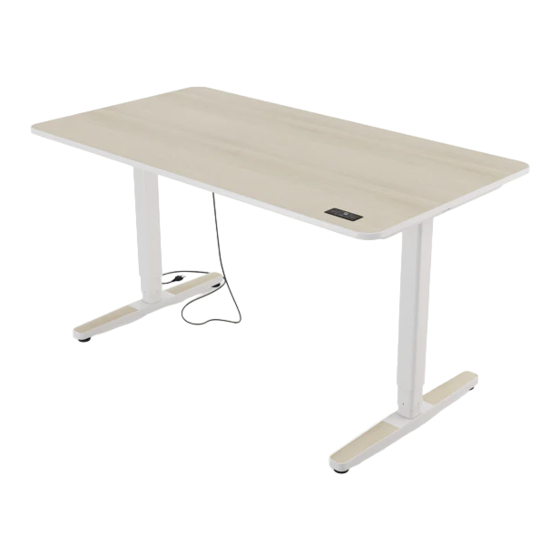

- Page 1 Yaasa Desk Pro 2 Troubleshooting Guide...
-
Page 2: Table Of Contents
CONTENTS HANDSET FEATURES03 GENERAL 03 A) Connect the drives 03 B) Connect the power supply03 CLICK CODES 04 TROUBLESHOOTING 04 A) Manual Reset04 B) Reset to factory settings 04 C) Possible errors and solutions 05 D) Error messages on the handset 06... -
Page 3: Handset Features03
1. HANDSET FEATURES MEMORY POSITIONS 1 & 2 DISPLAY SAVE „SAVE“ BUTTON „UP“ AND „DOWN“ BUTTONS Moves the table top up or down 2. GENERAL Read all instructions and safety precautions in the manual before using the table for the first time. If problems or errors occur, consult this troubleshooting guide. -
Page 4: Click Codes 04
3. CLICK-CODES Once the control box is supplied with power, system status is communicated via clicking sounds. NUMBER OF CLICKS STATUS INFORMATION Normal operation: The system is working without problems. Emergency operation: The system is in emergency operation mode and the drives cannot be used. Check the LEDs and/or error code on the display. -
Page 5: C) Possible Errors And Solutions 05
NOTE: THE MENU HAS A TIMEOUT OF 5 SECONDS. IF NO INPUT IS MADE IN THIS TIME, THE MENU CLOSES WITHOUT SAVING CHANGES. 4. C) POSSIBLE ERRORS AND SOLUTIONS PROBLEM POSSIBLE CAUSE SOLUTION Flashing 0 Height adjustment is not activated. Press the „down“... - Page 6 PROBLEM MÖGLICHE URSACHE BEHEBUNG Drives only move in one direction. Control box defective. Contact customer service. The control box may have to be repla- ced. Handset defective. Contact customer service. The handset may have to be replaced. Drive defective. Contact customer service. 4.
- Page 7 NUMBER DESCRIPTION SOLUTION Synchronization of motor group 1 Remove any load from the table. not possible Perform a manual reset. If the error occurs after the reset, contact customer service. Voltage too high. Unplug the power cable and contact customer service. Modification of the drive Disconnect from the power for configuration.
